Garmin ECHOMAP UHD 73cv Ice Fishing Bundle w/GT10HN-IF Transducer
Garmin ECHOMAP UHD 73cv Ice Fishing Bundle w/GT10HN-IF Transducer — Product description
Imagine drilling your first hole through thick winter ice, the cold biting at your fingertips, and instantly spotting a school of perch dancing just below the surface. That's the edge the Garmin ECHOMAP UHD 73cv ice fishing bundle delivers to serious anglers who refuse to let seasons dictate their pursuit. This portable powerhouse transitions effortlessly from frozen lakes to summer boats, packing advanced sonar tech into a rugged setup that's as tough as the fish you chase.
Crystal-Clear Views Under the Ice
The GT10HN-IF transducer is the heart of this bundle, optimized for ice fishing with its high narrow CHIRP (130-300 kHz) that punches through ice and sediment for sharp fish arches and precise target separation. Selectable beam widths let you dial in tight 8-degree cones for vertical jigging or wider scans to cover more ground without moving your hole. Paired with the built-in flasher, you'll track every twitch of your lure and the subtle strikes from wary walleye—something traditional flashers can't match in detail.
Users rave about the "ice fishing sonar mode," which boosts frequency for hyper-detailed returns right at your feet, helping you stay locked on structure and baitfish even in murky, low-visibility water. It's like having X-ray vision for the underworld of your favorite lake.
Sunlight-Readable Display That Performs in Harsh Conditions
The 7-inch WVGA touchscreen (800 x 480 pixels) shines bright enough to cut through blinding snow glare or midday sun on open water. Touch controls with keyed assist mean gloved hands won't fumble settings mid-bite. IPX7 waterproofing shrugs off splashes, spills, and submersion, while the sturdy build handles the bumps of sled-hauling across uneven ice.
Year-Round Versatility for Every Angler
What sets this apart? Open-water prowess. Hook up a compatible ClearVü scanning sonar transducer (sold separately), and you'll get nearly photo-like side and down images of fish holding near drop-offs or weed edges. Preloaded LakeVü g3 inland maps cover over 18,000 U.S. lakes with high-definition contours, depth shading, and integrated Navionics data—perfect for pinpointing hotspots before you even wet a line.
Customize split-screen combos to overlay sonar, flasher, and charts simultaneously. Record sonar history to rewind and analyze missed opportunities, or mark waypoints for proven honey holes that pay off trip after trip.
Portability That Follows Your Hunt

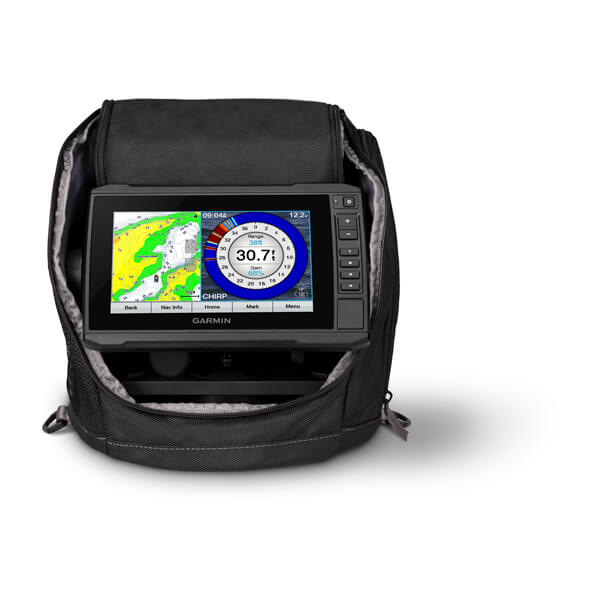

Weighing in at 10.7 lbs with a dedicated rechargeable battery and charger, this bundle slips into its padded carrying case with foam float for worry-free transport. Everything nests neatly: transducer, power cable, tilt/swivel mount, and docs. Dash it from truck to hole in seconds, or mount it on your boat for bass season—no reconfiguration needed.
Power and Connectivity for the Modern Angler
Running on 500W RMS transmit power, it reaches depths up to 800 feet in freshwater, with bottom-lock mode to focus on key returns. NMEA 2000 compatibility links to other marine electronics, wireless connectivity shares data with apps, and a microSD slot (up to 32GB) stores custom maps or waypoints (5,000 total, 50 routes, 50K track points).
| Specification | Details |
|---|---|
| Physical Dimensions | 10.5" x 9.5" x 10.5" (26.7 x 22.9 x 26.7 cm) |
| Display | 7" diagonal WVGA (6.0" x 3.6" viewable), 800 x 480 pixels |
| Weight | 10.7 lb (4.9 kg) |
| Water Rating | IPX7 |
| Transmit Power | 500 W (RMS) |
| Max Depth | 800 ft freshwater |
| Frequencies | CHIRP High Narrow (130-300 kHz) |
Complete Kit for Immediate Action
- ECHOMAP UHD 73cv chartplotter
- GT10HN-IF transducer
- Power cable
- Tilt/swivel mount
- Rugged bag with handle
- Foam float
- Rechargeable battery
- Battery charger
- Documentation
Anglers upgrading from basic flashers often double their catch rates thanks to the real-time insights. Pro tip: Pair it with tip-ups for multi-line monitoring and use sonar history to learn lake patterns over seasons.
Frequently Asked Questions
Is the ECHOMAP UHD 73cv suitable for both ice and open-water fishing?
Yes, it's designed for year-round use. The bundle excels on ice with its specialized transducer and flasher, while supporting ClearVü scanning sonar for boats.
How does the built-in flasher work for jigging?
It displays real-time jig and fish movement as they enter the sonar cone, offering superior tracking over standalone flashers with clearer separation.
What maps are preloaded on this device?
LakeVü g3 inland maps cover 18,000+ U.S. lakes with detailed contours, depth shading, and Navionics integration for precise navigation.
Is it easy to transport on ice?
Absolutely—the rugged carrying case holds everything, including the battery-powered unit, for quick hole-to-hole moves with a handle and foam protection.
Does it support gloves for operation?
Yes, the touchscreen with keyed assist works reliably even with bulky winter gloves, keeping you focused on fishing.
What's the battery life like?
The included rechargeable battery powers full-day sessions on ice, with low power draw (15W) for extended runtime.
Can I customize the screen layout?
Definitely—create custom pages blending sonar, flasher, and maps to match your fishing style.
Designed for the passionate angler, the ECHOMAP UHD 73cv ice fishing bundle is made for ice or open water and can be easily transported between seasons.
Garmin 100233415 Attributes
- Maps: U.S. Lakevü G3
- Display Size: 7 Inch LCD
- Display Type: WVGA, With 800 x 480 Pixels Resolution
- Interface: Touchscreen With Keyed
- Dimensions: 10-1/2 Inch Length X 9-1/2 Inch Width X 10-1/2 Inch Height
- Waterproof: IPX7 Rating Waterproof
- Sonar Compatibility: High Narrow Chirp Traditional
Garmin 100233415 Features & Benefits
- Sun Won't Steal Your Screen, The Bright 7 Inch Display Is Sunlight Readable
- With The Provided Transducer, You Can See What's Beneath The Surface
- With The Built-In Flasher, You Won't Lose Sight Of The Jig Or The Fish It Attracts
- It's All In The Details, And With Lakevu G3 Maps, You'll Get Them All On 18,000+ Lakes
- Everything Goes Where You Go, All Accessories Fit In The Rugged, Portable Carrying Case
- You Can Create Custom Pages That Combine Sonar, Flasher And Map On Your Display
- Limited 2 Year Warranty
Garmin 100233415 Installation Instructions
Garmin 100233415 Warranties
ECHOMAP UHD 73cv Ice Fishing Bundle with GT10HN-IF Transducer
First Year-Round with the ECHOMAP UHD Ice Fishing Bundle
Designed for the passionate angler, the ECHOMAP UHD 73cv ice fishing bundle is made for ice or open water and can be easily transported between seasons.
Features:
- The sun won't steal your screen. The bright display is sunlight readable.
- You need to see what's beneath the surface. With the included transducer, you can.
- With the built-in flasher, you won't lose sight of the jig or the fish it attracts.
- It's all in the details. And with LakeV g3 maps, you'll get them all on 18,000+ lakes.
- Everything goes where you go. All accessories fit in the rugged, portable carrying case.
Catch More Fish Wherever You Drop Your Line
ECHOMAP UHD
The portable ECHOMAP UHD 73cv ice fishing bundle is excellent on ice and on your boat for year-round fishing, and it features a touchscreen with keyed assist.
ICE FISHING TRANSDUCER
The bundle includes a high narrow CHIRP ice fishing transducer with selectable beamwidth and provides crisp, clear fish arches with excellent target separation.
BUILT-IN FLASHER
The built-in flasher provides accurate jig and fish detection as they swim into the sonar beam.
LAKEVÃ G3 MAPS
The unit comes preloaded with LakeV g3 maps with integrated Navionics data, covering more than 18,000 lakes in the U.S.
CUSTOM COMBOS
You can create custom pages that combine sonar, flasher and map on your display.
SUPPORTS SCANNING SONAR
ECHOMAP UHD 73cv also supports ClearV scanning sonar for open water. Get nearly photographic images of what's below the surface (transducer sold separately).
CARRYING CASE
Where you take your bundle is up to you. But the rugged, portable carrying case lets you easily transport it from hole to hole and season to season.
Garmin ECHOMAP™ UHD 73cv Ice Fishing Bundle With GT10HN-IF Transducer
Model: 010-02334-15- The sun won’t steal your screen. The bright 7" display is sunlight readable.
- You need to see what’s beneath the surface. With the included transducer, you can.
- With the built-in flasher, you won’t lose sight of the jig or the fish it attracts.
- It’s all in the details. And with LakeVü g3 maps, you’ll get them all on 18,000+ lakes.
- Everything goes where you go. All accessories fit in the rugged, portable carrying case.
The portable 7" ECHOMAP UHD 73cv ice fishing bundle is excellent on ice and on your boat for year-round fishing, and it features a touchscreen with keyed assist.
The bundle includes a high narrow CHIRP ice fishing transducer with selectable beamwidth and provides crisp, clear fish arches with excellent target separation.
The built-in flasher provides accurate jig and fish detection as they swim into the sonar beam.
The unit comes preloaded with LakeVü g3 maps with integrated Navionics® data, covering more than 18,000 lakes in the U.S.
You can create custom pages that combine sonar, flasher and map on your display.
ECHOMAP UHD 73cv also supports ClearVü scanning sonar for open water. Get nearly photographic images of what’s below the surface (transducer sold separately).
Where you take your bundle is up to you. But the rugged, portable carrying case lets you easily transport it from hole to hole and season to season.
Specifications| General | |
| PHYSICAL DIMENSIONS | 10.5" 9.5" 10.5" (26.7 22.9 26.7 cm) |
| DISPLAY SIZE | 6.0"x3.6"; 7.0" diagonal |
| DISPLAY RESOLUTION | 800 x 480 pixels |
| DISPLAY TYPE | WVGA display |
| WEIGHT | 10.7 lb (4.9 kg) |
| WATER RATING | IPX7 |
| POWER CONSUMPTION | 15 W |
| ANTENNA | Internal or external over NMEA 2000 |
| RECEIVER | 5 Hz |
| GARMIN MARINE NETWORK™ PORTS | 1 Panoptix™ port |
| TRANSMIT POWER | 500 W (RMS) |
| Maps & Memory | |
| PRELOADED MAPS | LakeVü g3 (inland maps) |
| ACCEPTS DATA CARDS | 1 microSD™ card; 32 GB maximum card size |
| WAYPOINTS | 5,000 |
| TRACK LOG | 50,000 points; 50 saved tracks |
| ROUTES | 100 |
| Outdoor Recreation | |
| TIDE TABLES | Yes |
| Chartplotter Features | |
| GARMIN SONAR COMPATIBLE | Yes |
| Sonar Features & Specifications | |
| FREQUENCIES SUPPORTED | CHIRP High Narrow (130-300 kHz) |
| CHIRP SONAR TECHNOLOGY | Yes (Built-in) |
| CLEARVü | Yes (with compatible transducer sold separately) |
| MAXIMUM DEPTH | 800 ft freshwater |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) | Yes |
| SONAR RECORDING | yes |
| SONAR HISTORY REWIND | Yes |
| Connections | |
| NMEA 2000® COMPATIBLE | Yes |
| TRANSDUCER PIN NUMBERS | 8-pin |
| NMEA 0183 INPUT PORTS | 1 |
| NMEA 0183 OUTPUT PORTS | 1 |
| WIRELESS CONNECTIVITY | Yes |
What's in the Box:
- ECHOMAP™ UHD 73cv chartplotter
- GT10HN-IF transducer
- Power cable
- Tilt/swivel mount
- Documentation
- Bag with handle
- Foam float
- Rechargeable battery
- Battery charger
The portable 7-inch ECHOMAP UHD 73cv ice fishing set is made for ice or open water, so you can enjoy fishing all year round. It includes a tall and narrow CHIRP ice fishing transducer with optional beam width and provides clear, clear fish targets and excellent target separation. The built-in flasher provides accurate jig and fish detection functions when swimming into the sonar beam. The unique ice fishing sonar mode can increase the frequency to get better image quality on the screen. ECHOMAP UHD 73cv also supports ClearVu scanning sonar to obtain a close-up image of the bottom of the ship (the sensor is sold separately). The device has a touch screen with key assist function and is pre-installed with LakeVug3 mapping, which provides excellent details of more than 18,000 lakes. Create a custom combination page to combine sonar, flasher and map on your monitor. And all parts are packed in a sturdy and durable suitcase that is easy to carry with gloves.
SKU: NVN-86271
MPN: 010-02334-15
UPC: 753759264574
Technical specifications
| Brand | Garmin |
| Model | Garmin ECHOMAP UHD 73cv Ice Fishing Bundle w/GT10HN-IF Transducer |
| SKU / MFR# | 86271 |
