FUSION XS-S10CWB XS Series 10" 600 Watt Classic Marine Subwoofer - White & Black Grill Options

XS-S10CWB XS Series 10" 600 Watt Classic Marine Subwoofer - White & Black Grill Options

Continuing to set the benchmark for marine audio entertainment, Fusion's XS Series subwoofer features their trademark quality audio reproduction and enhanced marine aesthetics at a mid-range price point. Optimized for use in the marine environment, and built for performance, the XS subwoofer is designed to consistently produce quality low frequency audio at any volume level, season after season.

With an IP65 weatherproof rating, True-Marine accreditation and an industry-leading 3-year warranty, you can enjoy peace of mind that your XS Series subwoofer is built to last on your boat.

Versatile Design

Designed to add low frequencies to your audio system, the XS Series subwoofer features versatility in wiring options, providing different ways to integrate one into your audio entertainment setup. This can simplify installation, reduce system cost, and is an easy way to add bass.

Wire your subwoofer traditionally into your system through an amplifier, or alternatively create a 2.1 audio zone by connecting two speakers and a subwoofer directly to a Fusion multi-zone stereo with DSP, without the need to use an external amplifier. Simply connect a pair of speakers to the zone 1 speaker connections, and the XS Series subwoofer to the left and right speaker connections of zone 2, then select the applicable DSP profile for setup.

Features:

• Versatile Design: With versatile options for integrating your subwoofer into your audio system, you can customize your setup to suit your audio requirements. Wire your subwoofer traditionally through an amplifier or create a 2.1 audio zone by connecting your subwoofer and two speakers directly to a compatible Fusion stereo with DSP, like the Apollo Series, without requiring an external amplifier.
• Quality Audio Reproduction: Enjoy quality low frequency audio at any volume level.
• True-Marine Designed and Engineered: Extensively tested to perform in the harsh marine environment, the XS Series carry an IP65 weatherproof rating along with True-Marine accreditation.

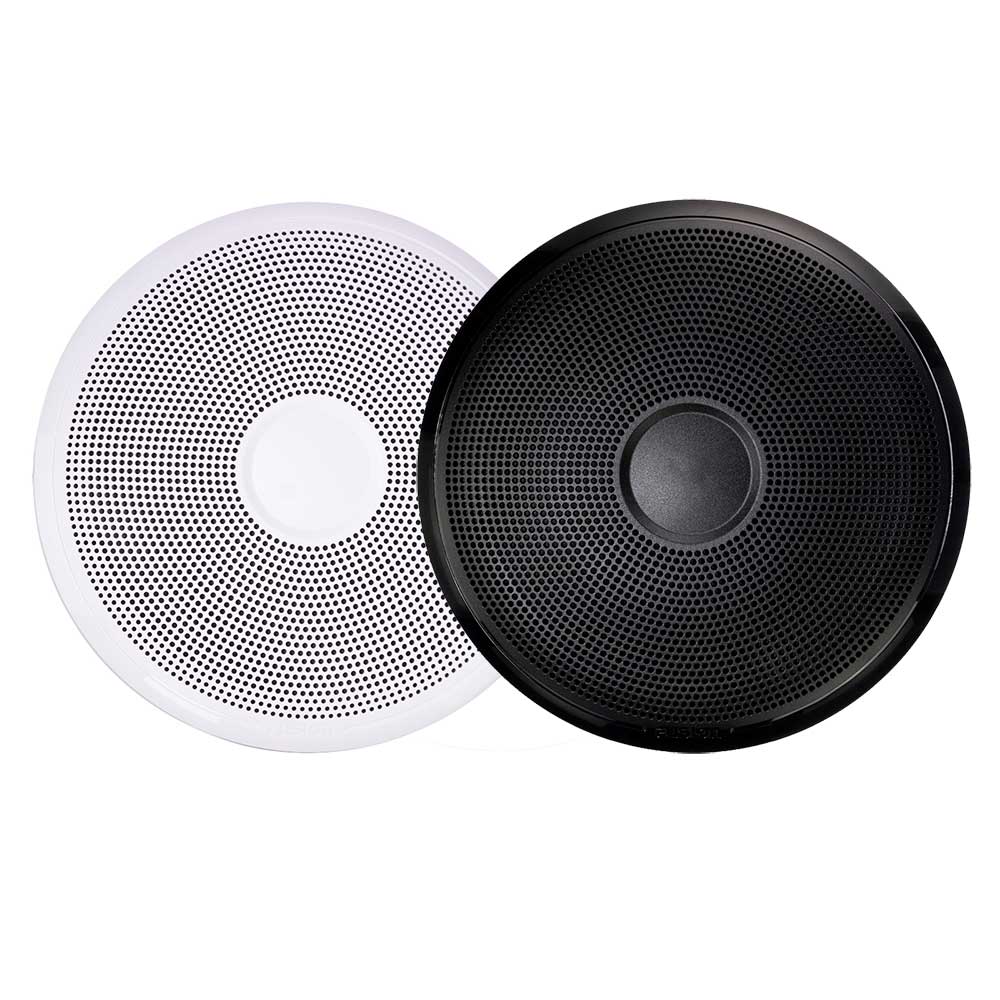

• Two Grille Options Supplied: Enjoy the freedom to choose the finish to suit your vessel, with both Classic Black and Classic White grilles supplied in the box.
• IP65 Weatherproof: Perfect for installation both indoors and outdoors, the XS Series subwoofer is rated IP65 for water and dust ingress protection from the front when installed correctly, while also meeting industry standards for UV and salt fog protection.

Fusion XS-S10CWB Sub-Woofer

Model: 010-02198-00

• Versatile Design: With versatile options for integrating your subwoofer into your audio system, you can customize your setup to suit your audio requirements. Wire your subwoofer traditionally through an amplifier or create a 2.1 audio zone by connecting your subwoofer and two speakers directly to a compatible Fusion stereo with DSP, like the Apollo Series, without requiring an external amplifier.
• Quality Audio Reproduction: Enjoy quality low frequency audio at any volume level.
• True-Marine™ Designed and Engineered: Extensively tested to perform in the harsh marine environment, the XS Series carry an IP65 weatherproof rating along with True-Marine accreditation.
• Two Grille Options Supplied: Enjoy the freedom to choose the finish to suit your vessel, with both Classic Black and Classic White grilles supplied in the box.

Continuing to set the benchmark for marine audio entertainment, Fusion’s new XS Series subwoofer features their trademark quality audio reproduction and enhanced marine aesthetics at a mid-range price point. Optimized for use in the marine environment, and built for performance, the XS subwoofer is designed to consistently produce quality low frequency audio at any volume level, season after season.

With an IP65 weatherproof rating, True-Marine accreditation and an industry-leading 3-year warranty, you can enjoy peace of mind that your XS Series subwoofer is built to last on your boat.

Specifications

Subwoofer Size	10"
Peak Power	600 Watts
RMS Power Rating	120 Watts
Efficiency (1W/1M)	87dB
Frequency Response	30 Hz - 2 kHz
Nominal Impedance	4 ohms
Recommended Amplifier Power (RMS)	40 - 300 W/Ch
Cone / Surround Material	Polypropylene with rubber surround
Mounting Diameter Clearance	223mm (8-3/4")
Mounting Depth Clearance	113mm (4-7/16")
Optimum Enclosure Volume (Sealed enclosure, fully filled with absorption material)	40 L
Operating Temperature Range	0 to 50°C (32 to 122°F)
Storage Temperature Range	-20 to 70°C (-4 to 158°F)
Water and Dust Resistance (IPX rating)	IP65
Warranty	3 years

SKU: NVN-75298
MPN: 010-02198-00
UPC: 753759221508
