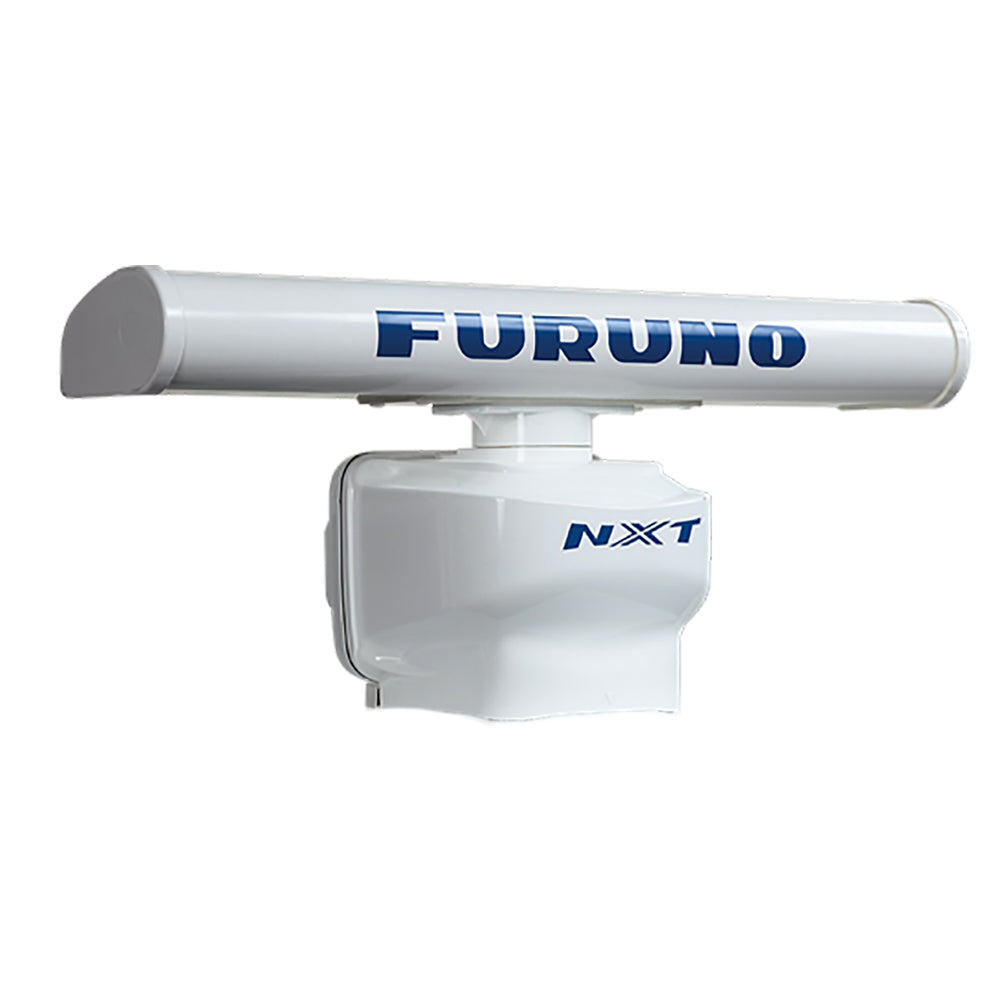

Furuno DRS25ANXT/3 Radar Pedestal 3' Array - 15M Cable
Furuno DRS25ANXT/3 Radar Pedestal 3' Array - 15M Cable — Product description
Unlock Superior Situational Awareness on the Water
Imagine navigating through foggy coastal waters or chasing schools of fish at dawn, where every second counts for safety and success. The Furuno DRS25ANXT/3 steps in as your vigilant partner, delivering 200W of solid-state power through a compact 3-foot open array antenna. This isn't just radar—it's a smart system that analyzes threats in real-time, helping you spot approaching vessels, birds, or even steer clear of rain squalls with confidence.
Crafted for seamless integration with NavNet TZtouch2 and TZtouch3 multifunction displays, this radar pedestal transforms your helm into a command center. Its Doppler-enhanced processing cuts through clutter, providing crystal-clear images from close quarters to distant horizons, making it ideal for both recreational cruisers and serious offshore anglers.
Standout Technologies That Set It Apart
What elevates this radar beyond standard models? It's the fusion of Furuno's pioneering innovations:
- Target Analyzer: Echoes shift to red for inbound dangers or green for receding ones—no guesswork needed. This visual cue works dynamically, regardless of your boat's speed, boosting collision avoidance.
- Fast Target Tracking: Select a contact, and within seconds, get precise speed and course vectors. Doppler tech auto-triggers alarms for head-on risks, simplifying busy scenarios.
- Bird Mode: Auto-tunes gain and sea clutter for spotting flocks over structure, a game-changer for sportfishing without manual fiddling.
- Rain Mode: Storm cells appear in blue, letting targets pop through precipitation so you maintain visibility.
- RezBoost Beam Sharpening: Mimics the resolution of larger antennas, delivering sharp, detailed returns even at max range.
These aren't gimmicks; they're proven tools refined from years of marine feedback, ensuring reliability when conditions turn tough.
Performance Tailored for Real-World Demands
Short-range brilliance shines here, detecting small objects like kayaks or debris as close as 20 meters. The X-band frequency and 2.3-degree horizontal beamwidth slice through haze, offering unmatched discrimination in crowded marinas or bait ball hunts.
Power it via 12-24 VDC—no magnetron warm-up delays. Solid-state design means instant readiness, lower maintenance, and consistent output across varying temperatures.
| Specification | Details |
|---|---|
| Antenna Size | 3 feet (Open Array) |
| Frequency Band | X-Band |
| Output Power | 200W |
| Power Supply | 12-24 VDC |
| Horizontal Beam Width | 2.3° |
Practical Scenarios Where It Excels
For the weekend warrior dodging weekend traffic in bays, it flags rogue jetskis early. Offshore adventurers benefit from its rain-piercing clarity during squalls, while tournament anglers zero in on bird piles miles out. Pair it with your TZtouch setup, and ARPA tracks up to 100 targets per sweep—overwhelming most competitors.
Compact footprint suits mid-sized vessels (30-60 feet), with the included 15m cable offering flexible mounting options from flybridge to hardtop.
Kit Components for Easy Setup
- RSB137-126 Radar Pedestal
- XN10A/3 3.5-foot Antenna (precisely tuned for this bundle)
- 15m Signal Cable for straightforward connectivity
Everything arrives matched and ready, minimizing downtime.
Frequently Asked Questions
What makes Target Analyzer unique on the Furuno DRS25ANXT/3?
It automatically colors approaching targets red and stationary or receding ones green, using Doppler processing independent of your vessel's speed for enhanced threat detection.
Is this radar compatible with older Furuno displays?
It's optimized for NavNet TZtouch2 and TZtouch3 MFDs, ensuring full feature access like ARPA and vector tracking.
How does Bird Mode improve fishing?
It automatically optimizes gain and sea clutter to reveal bird flocks over fish schools, saving time on adjustments.
What's the advantage of solid-state over traditional radars?
No warm-up time, instant operation, reduced maintenance, and superior close-range performance without magnetron wear.
Can Rain Mode help in stormy conditions?
Yes, it isolates rain in blue while highlighting vessels and obstacles in clearer contrast for safer navigation.
What cable length is included?
A 15-meter signal cable provides ample reach for most installations.
Does it support automatic target tracking?
Fast Target Tracking delivers vectors in seconds, with ARPA handling up to 100 simultaneous targets.
DRS25ANXT/3 Radar Pedestal 3' Array - 15M Cable
The high-power NXT solid-state Radar options for NavNet TZtouch2 and TZtouch3. These radar options pack serious power and include several Furuno exclusive features: Target Analyzer™ highlights targets in red or green to indicate potential danger, Fast Target Tracking™ displays target vectors in mere seconds, ARPA displays and tracks up to 100 targets in a single sweep, Bird Mode automatically adjusts gain and sea settings to help you find those feathered friends, and Rain Mode turns storm cells blue so you can easily navigate around the weather. Works with NavNet TZtouch2/Tztouch3 MFDs. The high-power DRS12A-NXT and DRS25A-NXT are 100W and 200W respectively.
Features:
- High-power 100W (DRS12A-NXT) or 200W (DRS25A-NXT) Solid State Radars for NavNet Tztouch2 and Tztouch3
- Utilize 3.5-foot, 4-foot, or 6-foot Open Array antennas
- Target Analyzer™ shows dangerous targets approaching your boat by automatically changing their color to red
- Fast Target Tracking™ displays a targets speed and course vector in only seconds after acquiring
- Bird mode works automatically adjusting the gain & sea settings for optimal visibility
- Rain Mode isolates rain cells, so that you can clearly see your targets
- Exceptional short-range detection
Furuno DRS Radars are available in bundled kits that include the DRS Radar, Antenna, and signal cable. Models ending in /3 include the XN10A/3 antenna. Models ending in /4 include the XN12A/4 antenna. Models ending in /6 include the XN13A/6 antenna.
Furuno DRS25ANXT 200 Watt Solid-State Doppler Radar with 3' antenna
Model: DRS25ANXT/3The Furuno NXT Radar is the next step in Radar evolution; a Solid-State Radar with pulse compression, Target Analyzer™ and Fast Target Tracking™ utilizing Doppler technology. Combined with FURUNO exclusive RezBoost™ technology for beam sharpening, NXT packs the performance of a larger Radar in a more compact package.
NXT was the first Radar in the world to use the new Furuno exclusive Target Analyzer™ function, where targets that are approaching your vessel automatically change color. Green targets are targets that stay stationary, or are moving away from you, while red targets are moving towards your vessel. Target Analyzer™ works independent of vessel speed, both your own vessels and target vessels, with minor limitations. Echoes dynamically change colors as targets approach, or get farther away from your vessel. Target Analyzer™ can increase safety, as well as improve situational awareness.
Once a target has been selected, a speed and course vector is displayed in seconds. With accurate tracking information, estimation of other vessel's course and speed is greatly simplified. With Doppler technology, any vessel approaching yours will automatically display a target vector, as well as sound an alarm.
For the first time Furuno's exclusive RezBoost™ technology is used in one of our Radar units, with impressive performance. With RezBoost™ set to MAX, the sharpness of a much larger open array antenna can be achieved.
Specifications| Antenna Size | 3' |
| Band | X |
| Power Usage | 12-24 VDC |
| Power Output | 200 W |
| Antenna Type | Open Array |
| Beam Width | 2.3 degrees |
What's in the Box:
- RSB137-126 Pedestal
- 001-512-620-00 15m Cable
- XN10A/3.5 3.5' Antenna
DRS25ANXT/3 radar base 3'array-15M cable is used for NavNet TZtouch2 and TZtouch3 high-power NXT solid-state radar options. These radar options are powerful and have many unique features of Furuno:...
SKU: NVN-83552
MPN: DRS25ANXT/3
UPC:
Technical specifications
| Brand | Furuno |
| Model | Furuno DRS25ANXT/3 Radar Pedestal 3' Array - 15M Cable |
| SKU / MFR# | 83552 |
