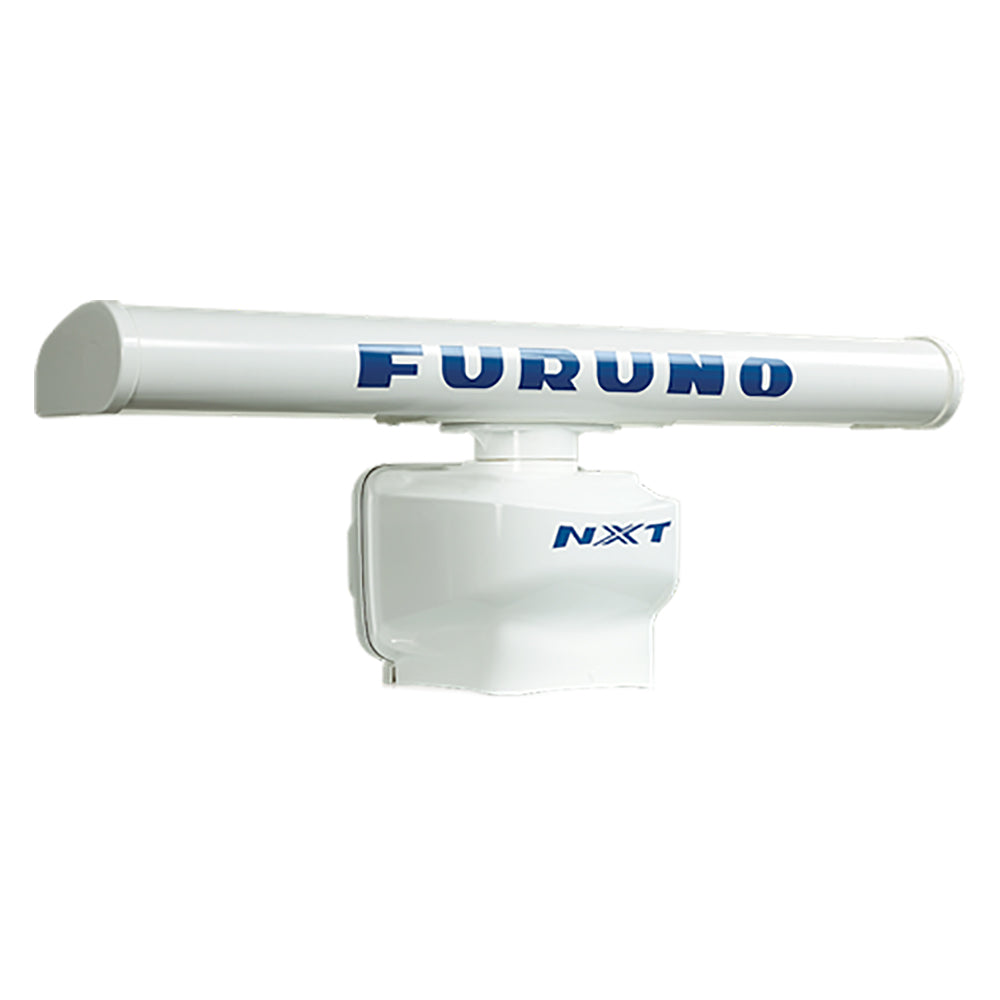

Furuno DRS12ANXT/4 Radar Pedestal 4' Array - 15M Cable
Furuno DRS12ANXT/4 Radar Pedestal 4' Array - 15M Cable — Product description
Unlock Superior Situational Awareness on the Water
Imagine navigating through dense fog, spotting schools of fish from afar, or dodging unexpected threats with confidence. The Furuno DRS12ANXT/4 delivers that edge with its cutting-edge solid-state Doppler technology packed into a compact 4-foot open array design. Unlike traditional radars that require warm-up time, this unit powers up instantly, providing reliable performance whether you're cruising coastal waters or venturing offshore.
Crafted for seamless integration with NavNet TZtouch2 and TZtouch3 multifunction displays, it transforms your helm into a command center. Mariners rave about its ability to cut through clutter, revealing clear images even in challenging conditions like heavy rain or choppy seas. It's not just a radar—it's your vigilant watchman, enhancing safety and efficiency on every voyage.
Standout Features That Set It Apart
- Target Analyzer™: Echoes shift to red for approaching dangers and green for receding or stationary ones, alerting you instantly without relying on your vessel's speed.
- Fast Target Tracking™: Select a contact, and within seconds, get precise speed and course vectors—perfect for collision avoidance and maneuvering.
- Bird Mode: Automatically tunes gain and sea clutter for spotting flocks at dawn or dusk, a game-changer for sportfishing enthusiasts.
- Rain Mode: Highlights storm cells in blue, letting you steer clear while maintaining target visibility behind precipitation.
- RezBoost™ Technology: Sharpens resolution to rival larger arrays, delivering exceptional short-range detail down to 50 yards.
- ARPA Radar: Tracks up to 100 targets per sweep, ideal for busy harbors or fleet operations.
With 100W output and X-band precision, it punches up to 96 nautical miles, balancing power and efficiency on 12-24 VDC systems.
Real-World Performance for Every Boater
For offshore adventurers, the DRS12ANXT/4 excels at long-range target acquisition, helping you monitor weather fronts or distant vessels hours ahead. Anglers benefit from its clutter-free bird detection, turning speculative drifts into productive hauls. Commercial operators appreciate the robust build and low maintenance of solid-state design—no magnetron to replace means fewer downtimes.
Pair it with your existing Furuno ecosystem for a unified interface. The included 15-meter cable simplifies pedestal installation, while the 1.9-degree beam width ensures pinpoint accuracy. Users often note how it reduces false echoes from nearby boats or buoys, providing a cleaner picture that builds trust over time.
Technical Specifications at a Glance
| Specification | Details |
|---|---|
| Antenna Size | 4 feet Open Array |
| Frequency Band | X-Band |
| Power Supply | 12-24 VDC |
| Maximum Range | 96 nautical miles |
| Horizontal Beam Width | 1.9 degrees |
| Transmitter Output | 100 Watts (Solid-State) |
What's Included for Easy Setup
- RSB137-125 Radar Pedestal
- XN12A/4 4-Foot Antenna
- 15-Meter Signal Cable (001-512-620-00)
Everything arrives ready to mount and connect, minimizing installation hassles. Pro tip: Position the array high on your mast for optimal horizon scanning and minimal blind spots.
Frequently Asked Questions
How does Target Analyzer™ improve safety?
It uses Doppler processing to color-code targets: red for those closing in on your position, green for others. This visual cue works regardless of your speed, helping you react faster to potential collisions.
Is the DRS12ANXT/4 suitable for fishing?
Absolutely. Bird Mode optimizes settings to detect flocks over reefs or bait balls, giving you a huge advantage in locating prime fishing spots.
What's the difference between solid-state and traditional radars?
Solid-state radars like this one offer instant boot-up, longer lifespan, and advanced signal processing without a fragile magnetron, resulting in sharper images and less maintenance.
Can it track multiple targets?
Yes, ARPA mode handles up to 100 targets simultaneously, displaying vectors for quick assessment in crowded waters.
Does Rain Mode affect overall performance?
No—it isolates rain clutter in blue while preserving target echoes, so you navigate storms confidently without losing sight of key objects.
How compact is the 4-foot array?
The 4-foot design fits most vessels without dominating the profile, yet delivers beam sharpening akin to bigger units via RezBoost™.
DRS12ANXT/4 Radar Pedestal 4' Array - 15M Cable
The high-power NXT solid-state Radar options for NavNet TZtouch2 and TZtouch3. These radar options pack serious power and include several Furuno exclusive features: Target Analyzer™ highlights targets in red or green to indicate potential danger, Fast Target Tracking™ displays target vectors in mere seconds, ARPA displays and tracks up to 100 targets in a single sweep, Bird Mode automatically adjusts gain and sea settings to help you find those feathered friends, and Rain Mode turns storm cells blue so you can easily navigate around the weather. Works with NavNet TZtouch2/Tztouch3 MFDs. The high-power DRS12A-NXT and DRS25A-NXT are 100W and 200W respectively.
Features:
- High-power 100W (DRS12A-NXT) or 200W (DRS25A-NXT) Solid State Radars for NavNet Tztouch2 and Tztouch3
- Utilize 3.5-foot, 4-foot, or 6-foot Open Array antennas
- Target Analyzer™ shows dangerous targets approaching your boat by automatically changing their color to red
- Fast Target Tracking™ displays a targets speed and course vector in only seconds after acquiring
- Bird mode works automatically adjusting the gain & sea settings for optimal visibility
- Rain Mode isolates rain cells, so that you can clearly see your targets
- Exceptional short-range detection
Furuno DRS Radars are available in bundled kits that include the DRS Radar, Antenna, and signal cable. Models ending in /3 include the XN10A/3 antenna. Models ending in /4 include the XN12A/4 antenna. Models ending in /6 include the XN13A/6 antenna.
Furuno DRS12ANXT 100 Watt Solid-State Doppler Radar with 4' antenna
Model: DRS12ANXT/4The Furuno NXT Radar is the next step in Radar evolution; a Solid-State Radar with pulse compression, Target Analyzer™ and Fast Target Tracking™ utilizing Doppler technology. Combined with FURUNO exclusive RezBoost™ technology for beam sharpening, NXT packs the performance of a larger Radar in a more compact package.
NXT was the first Radar in the world to use the new Furuno exclusive Target Analyzer™ function, where targets that are approaching your vessel automatically change color. Green targets are targets that stay stationary, or are moving away from you, while red targets are moving towards your vessel. Target Analyzer™ works independent of vessel speed, both your own vessels and target vessels, with minor limitations. Echoes dynamically change colors as targets approach, or get farther away from your vessel. Target Analyzer™ can increase safety, as well as improve situational awareness.
Once a target has been selected, a speed and course vector is displayed in seconds. With accurate tracking information, estimation of other vessel's course and speed is greatly simplified. With Doppler technology, any vessel approaching yours will automatically display a target vector, as well as sound an alarm.
For the first time Furuno's exclusive RezBoost™ technology is used in one of our Radar units, with impressive performance. With RezBoost™ set to MAX, the sharpness of a much larger open array antenna can be achieved.
Specifications| Antenna Size | 4' |
| Band | X |
| Power Usage | 12-24 VDC |
| Range | 96 nm |
| Antenna Type | Open Array |
| Beam Width | 1.9 degrees |
| Power Output | 100 W |
What's in the Box:
- RSB137-125 Pedestal
- 001-512-620-00 15m Cable
- XN12A/4 4' Antenna
DRS12ANXT/4 radar base 4'array-15M cable is used for NavNet TZtouch2 and TZtouch3 high-power NXT solid-state radar options. These radar options are powerful and have many unique features of Furuno:...
SKU: NVN-83550
MPN: DRS12ANXT/4
UPC:
Technical specifications
| Brand | Furuno |
| Model | Furuno DRS12ANXT/4 Radar Pedestal 4' Array - 15M Cable |
| SKU / MFR# | 83550 |
