Revolutionize Your On-Water Navigation with Advanced Solid-State Technology
Imagine navigating busy waterways or chasing fish in low-visibility conditions with crystal-clear target discrimination that keeps you one step ahead of potential hazards. The Furuno DRS6ANXT delivers this edge through its cutting-edge solid-state Doppler radar design, paired with a robust 6-foot open array antenna. Unlike traditional magnetron radars that warm up slowly and guzzle power, this system powers up instantly from your boat's 12-24 VDC supply, making it ideal for vessels from weekend cruisers to serious offshore workhorses.
Crafted for seamless integration with modern multifunction displays, it simplifies setup with a standard 10-meter cable—no extra power bricks required for shorter runs. Boaters rave about its ability to cut through rain clutter and sea state noise, painting a reliable picture of your surroundings up to 72 nautical miles out.
Standout Features That Set It Apart
Target Analyzer: Instant Threat Identification
Picture this: a vessel closing in fast from your starboard side during a foggy dawn patrol. Target Analyzer springs into action, dynamically coloring approaching echoes red when they exceed 3 knots relative speed—green for stationary or slow movers. This game-changing function operates independently of your boat's motion, feeding you vital collision avoidance data without guesswork. It's like having an extra set of eyes tuned to Doppler shifts, boosting safety on congested harbors or open seas.
Precision Target Tracking with ARPA-Like Power
Tracking up to 100 targets simultaneously, this radar locks on almost every sweep thanks to advanced signal processing. Watch course vectors and speed overlays update in real-time; hazardous tracks glow red for immediate attention. Enhance your situational awareness with true motion trails that reveal a target's path unaffected by your vessel's sway—perfect for maneuvering in traffic or plotting intercepts during pursuits.
Bird Mode: Unlock Prime Fishing Spots
For anglers, spotting bird flocks signals the motherlode below. Activate Bird Mode on your display, and the radar optimizes gain and tuning to pull faint avian echoes from the clutter. It's a staple for tournament pros and casual fishers alike, turning distant specks into actionable intel that leads straight to the action.
RezBoost: Sharper Resolution, Longer Reach
Even at its base, the 1.2-degree horizontal beamwidth slices through targets with surgical precision. Dial in RezBoost for sub-degree sharpening, separating close-in contacts like buoys from boats or isolating schools amid chop. This exclusive tech extends reliable detection without spiking power draw, maintaining a lean 25-watt output.
Solid-State Reliability for Demanding Conditions
Solid-state means no fragile magnetron to replace, lower emissions, and bird-safe operation. The X-band open array thrives in foul weather, punching through precipitation that blinds lesser units. Pair it with pedestal mounting for stable, 360-degree sweeps tailored to larger hulls.
Real-World Applications for Every Boater
Recreational skippers use it for confident night runs and harbor dodging. Commercial operators rely on its endurance for search-and-rescue or towing ops. Offshore anglers leverage Bird Mode and long-range scale for epic hauls. Whatever your voyage, this radar adapts, enhancing safety and efficiency across diverse scenarios.
Core Specifications at a Glance
| Attribute |
Details |
| Antenna Size |
6 feet |
| Cable Length |
10 meters |
| Antenna Type |
Open Array |
| Frequency Band |
X-Band |
| Horizontal Beam Width |
1.2 degrees |
| Power Supply |
12-24 VDC |
| Output Power |
25 W |
| Maximum Range |
72 nm |
Frequently Asked Questions
What makes the Target Analyzer feature unique on the Furuno DRS6ANXT?
Target Analyzer uses Doppler technology to color-code echoes: green for stationary or slow-moving targets under 3 knots, red for faster-approaching ones. It functions independently of your boat's speed, providing clear hazard alerts.
How does Bird Mode help with fishing?
Bird Mode enhances radar settings to detect bird flocks, which often indicate baitfish and larger predators below the surface, helping anglers locate productive spots quickly.
Can this radar track multiple targets at once?
Yes, it tracks up to 100 targets simultaneously with ARPA-like processing, displaying vectors, speeds, and color-coded threats for comprehensive monitoring.
What is RezBoost and how does it improve performance?
RezBoost is Furuno's beam-sharpening technology that boosts target separation and resolution, especially at maximum settings, while supporting long-range detection.
Is the DRS6ANXT suitable for direct 12VDC power?
Absolutely, it connects directly to 12-24 VDC systems with the included 10-meter cable, eliminating the need for external power supplies on standard runs.
How does solid-state radar differ from traditional radars?
Solid-state radars like this one offer instant-on operation, lower power use, no warm-up time, reduced maintenance, and advanced features like Bird Mode without the vulnerabilities of magnetron tubes.
What type of vessels is the 6-foot open array best for?
It's optimized for mid-to-large recreational and commercial vessels needing high-resolution, long-range scanning from stable pedestal mounts.

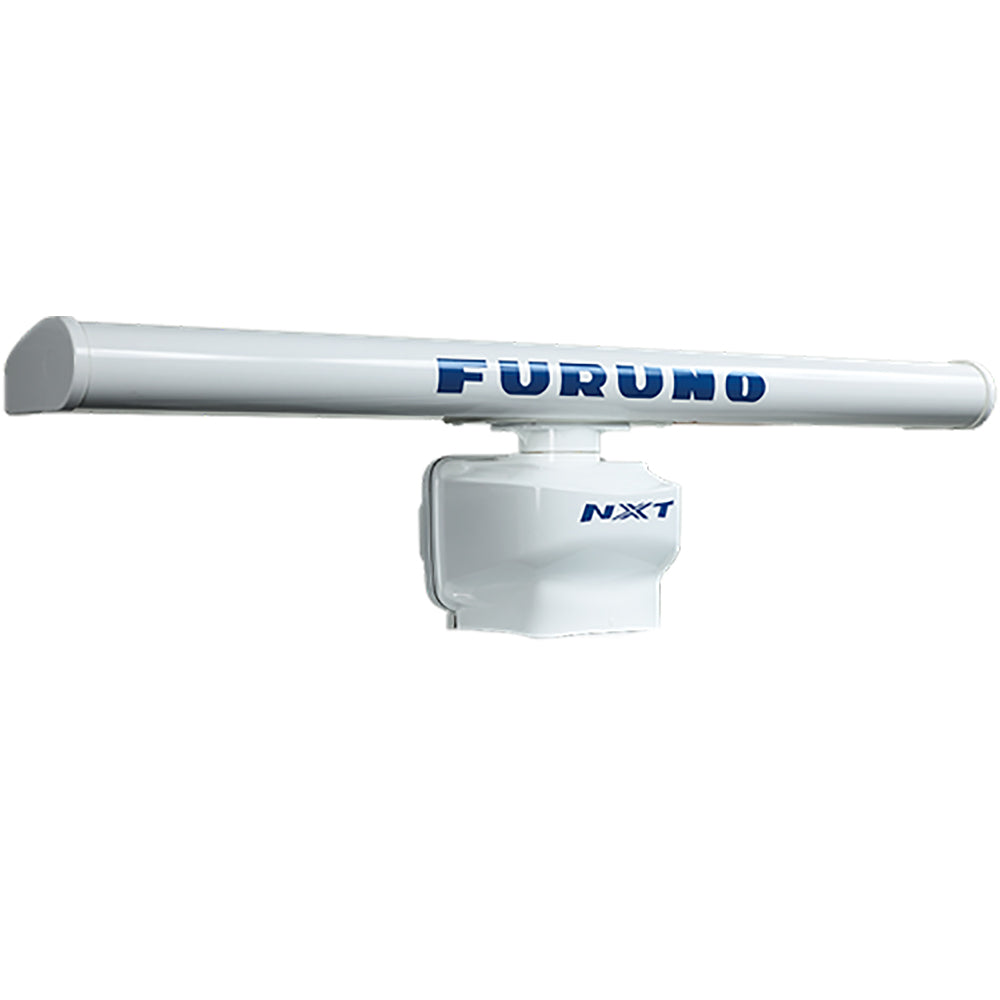

DRS6ANXT Solid State Doppler Radar with Pedestal, 10M Cable & 6' Open Array
The DRS6ANXT leverages the same pulse compression and Doppler frequency shift sensing technologies featured in the DRS4DNXT, as well as offering the same simplified connection with TZtouch and TZtouch2. Additionally, the DRS6ANXT offers direct connection to 12VDC power for cable runs up to 10 meters (standard supply), without the need for an external power supply. With the introduction of the new DRS6ANXT, your recreational and commercial customers now have Furuno Solid State Radar options, ranging from a 24" Radome (DRS4DNXT) to a 6-foot Open Array (DRS6ANXT), providing the perfect NXT generation solution for vessels of all shapes and sizes.
Target Analyzer
Target Analyzer may be one of the most innovative and revolutionary features available in the NXT family, automatically changing the color of targets approaching your boat to clearly show potential hazards. Green echoes represent stationary targets, land, or approaching targets moving at a velocity of less than 3 knots. Echoes dynamically turn red when targets are approaching your vessel at a speed of 3 knots or faster. It works the same when you are following another vessel. If the target is getting closer at a speed of 3 knots or more, the echo will be depicted in red. Incredibly, Target Analyzer works independently of one's own ship speed!
Target Tracking
Interpreting and tracking threats is easier than ever with NXT Radars. Using Furuno's advanced Doppler technology, NXT Radars acquire and track targets in virtually every sweep. Almost instantly, you'll see the target's speed and course vector, and if the target is hazardous, it will also be displayed in red, making it easier to identify and predict its course. The NXT Radar's incredible ARPA signal processor tracks and displays up to 100 targets! The entire target theater can be viewed, monitored, and tracked simultaneously, at any range. For an even more detailed display, target trails and Furuno's unique True Trail feature can be utilized, allowing you to graphically see the direction in which a target is moving, independent of your own vessel's motion.
Bird Mode
Bird Mode is another standard feature found in NXT Radars. With a single selection on the MFD, the Radar automatically adjusts settings for echo enhancement to help locate birds. Of course, finding birds is an important step to zeroing-in on the bite.
RezBoost
The resolution of NXT Radars is already impressive, but we've taken it a step further by incorporating our exclusive RezBoost beam sharpening technology. With RezBoost set to maximum, NXT Radars offer enhanced target separation, in addition to its impressive long range target detection.
Specifications:
- Antenna Size: 6 ft
- Cable: 10M
- Antenna Type: Open Array
- Band: X-Band
- Beam Width: 1.2 degrees
- Power Usage: 12-24 VDC
- Power Output: 25 W
- Range: 72 nm
DRS6ANXT solid-state Doppler radar with base, 10M cable and 6'open array
SKU: NVN-83542
MPN: DRS6ANXT/6
UPC:
