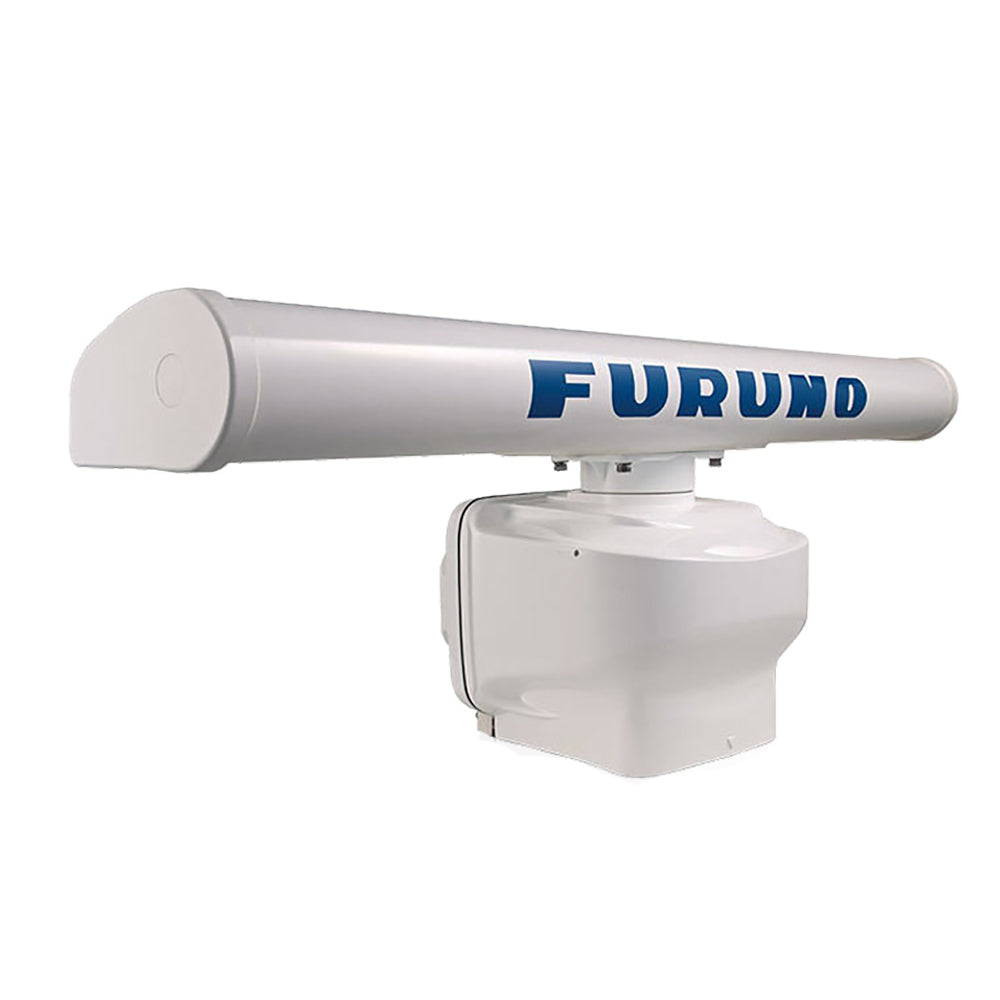

Furuno DRS6AX 6kW UHD Digital Radar w/Pedestal, 4' Open Array Antenna & 15M Cable
Furuno DRS6AX 6kW UHD Digital Radar w/Pedestal, 4' Open Array Antenna & 15M Cable — Product description
Discover Superior Marine Radar Performance with X-Class Technology
Imagine navigating challenging waters with crystal-clear radar images that reveal targets from as close as 20 meters to an astonishing 120 nautical miles away. The Furuno DRS6AX delivers this level of precision through its advanced UHD digital processing, setting a new standard for recreational and commercial boating. Boaters trust this radar for its ability to cut through rain clutter and sea waves, providing reliable echoes even in tough conditions.
What sets this model apart is its evolution from earlier designs. With a redesigned pedestal that's 20% lighter and equipped with a whisper-quiet motor, it minimizes onboard noise while maximizing efficiency. Whether you're dodging obstacles in busy harbors or scanning distant horizons, this radar enhances your confidence on the water.
Key Advantages for Everyday Boating Adventures
- Powerful 6kW Output: Ensures strong signal returns for detecting small vessels, buoys, and debris at extended ranges.
- Ultra-High Definition Imaging: Sharpens target separation, making it easier to distinguish between birds, boats, and weather patterns.
- Fast Target Tracking: Borrowed from professional-grade systems, this feature instantly displays course and speed vectors for up to 100 targets, boosting situational awareness during high-traffic maneuvers.
- Bird Mode: Ideal for anglers, it optimizes sensitivity to spot schools of fish by detecting feeding birds from miles away.
- Compact 4-Foot Open Array Antenna: With a narrow 1.85-degree horizontal beam width, it offers exceptional resolution without dominating your vessel's silhouette.
Effortless Setup and Maintenance
Installation becomes a breeze thanks to the innovative smart-connector cable and a sealed pedestal design—no need to open the unit during setup, reducing the risk of errors and weather ingress. Operating on a straightforward 24V DC system (with a simple converter for 12V setups), it eliminates the need for an extra power supply unit, keeping your electrical setup clean and cost-effective.
Maintenance is equally user-friendly. The 15-meter cable provides ample length for flexible mounting, and the IP56 waterproof rating protects against harsh marine environments. Rotate at speeds from 24 to 48 RPM (range-coupled or fixed), adapting to your navigation style.
Seamless Integration with Modern Chartplotters
Pair this radar perfectly with NavNet TZtouch, TZtouch2, or TZtouch3 systems for overlay on charts, ARPA-like tracking, and intuitive controls. It's designed for seamless networking, turning your helm into a command center where radar data fuses with GPS, AIS, and sonar for comprehensive awareness.
Real-World Applications: From Coastal Cruising to Offshore Fishing
For coastal cruisers, the short-range prowess shines in fog or night operations, spotting unlit vessels early. Offshore enthusiasts benefit from long-range scanning to track weather cells or distant traffic. Fishermen leverage Bird Mode alongside Fast Target Tracking to pinpoint productive spots efficiently. In all scenarios, the low-noise operation keeps conversations uninterrupted, enhancing crew comfort on long passages.
Detailed Technical Specifications
| Specification | Details |
|---|---|
| Antenna Rotation Speed | 24/36/48 RPM (range-coupled) or 24 RPM fixed |
| Beam Width | 1.9° Horizontal, 22° Vertical |
| Range Scales | 0.0625 to 120 NM |
| Waterproof Rating | IP56 |
| Power Supply | 24V DC, 4.0A |
Package Contents for Quick Deployment
- Pedestal unit (RSB134-112)
- 4' Open Array Antenna (XN12A/4)
- 15m Smart-Connector Cable (001-376-480-00)
Everything you need arrives ready to mount, so you spend less time in the workshop and more time on the water.
Frequently Asked Questions
What is the minimum detection range of the Furuno DRS6AX radar?
The DRS6AX offers an impressive minimum detection range of just 20 meters, perfect for close-quarter navigation in harbors or marinas.
Does this radar support bird detection for fishing?
Yes, the dedicated Bird Mode enhances sensitivity to detect feeding birds over fish schools, aiding anglers in locating prime fishing grounds.
Is the Furuno DRS6AX compatible with older NavNet systems?
It works seamlessly with NavNet TZtouch, TZtouch2, and TZtouch3. It's not compatible with NavNet 3D or earlier models.
What power system does the DRS6AX require?
This is a 24V DC system drawing 4.0A. For 12V boats, a DC-DC converter is recommended for reliable operation.
How does Fast Target Tracking work on this radar?
Press a button to instantly display course and speed vectors for tracked targets, improving safety and decision-making much like professional ARPA systems.
Is installation complicated for the DRS6AX?
No, the smart-connector cable and sealed pedestal make it plug-and-play simple, with no need to open the unit during setup.
What is the maximum range of this 6kW radar?
It reaches up to 120 nautical miles, ideal for long-distance offshore monitoring.
DRS6AX 6kW UHD Digital Radar with Pedestal, 4' Open Array Antenna & 15M Cable
DRS6AX "X-Class" a whole new class of Radar!
Pushing the boundaries of what is possible with conventional Radar technology, DRS6AX "X-Class" marks yet another leap forward for Furuno. Improved in almost all aspects, DRS6AX "X-Class" Radar features improved short range detection, as well as an impressive long range detection of up to 120 nautical miles.
The redesigned pedestal unit is 20% lighter than previous DRS6AX model and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.
Fast Target Tracking™ function adopted from our commercial Radar FAR3000, is also available on the DRS6AX "X-Class." Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.
Features:
- 6kW Power Output
- Enhanced target detection, both short and long range
- Minimum detection range of just 20M
- Fast Target Tracking™
- Bird Mode
- Pedestal unit, 20% lighter than previous DRS6A unit, updated low noise motor
- No PSU required, decreasing total costs
- Easy installation without the need to open pedestal unit
- Smart-connector cable
- Antenna - XN12A/4 is a 4' Open Array Antenna with a horizontal beam width of 1.85 degrees
- 15M Cable
- Compatible with NavNet TZtouch and NavNet TZtouch2 and NavNet TZtouch3 (not compatible with NavNet 3D or earlier NavNet models)
- The DRS6AX is a 24V system; a converter will be required for use with 12V power systems
Furuno DRS6AX 6kw UHD Digital Radar with 4' Antenna and 15M Cable
Model: DRS6AX/4- 6kW Power Output
- Enhanced target detection, both short and long range
- Minimum detection range of just 20 m
- Fast Target Tracking™
- Bird Mode
- New pedestal unit, 20% lighter than previous DRS6A unit, updated low noise motor
- No PSU required, decreasing total costs
- Easy installation without the need to open pedestal unit
- New smart-connector cable
- The DRS6AX is a 24V system; a converter will be required for use with 12V power systems
- Compatible with NavNet TZtouch and NavNet TZtouch2 (not compatible with NavNet 3D or earlier NavNet models)
Pushing the boundaries of what is possible with conventional Radar technology, DRS6A X-Class marks yet another leap forward for FURUNO. Improved in almost all aspects, DRS6A X-Class Radar features improved short range detection, as well as an impressive long range detection of up to 120 nautical miles.
The newly redesigned pedestal unit is 20% lighter than previous DRS6A model and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.
Fast Target Tracking™ function adopted from our commercial Radar FAR3000, is also available on the DRS6A X-Class. Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.
Specifications| Antenna rotation speed | 24/36/48 rpm range coupled or 24rpm fixed |
| Beam width | 1.9d Horizontal 22d Vertical |
| Range scales | 0.0625 to 120 nm |
| Waterproofing | IP56 |
| Power supply | 24vDC 4.0A |
What's in the Box:
- 001-376-480-00 15m Cable
- RSB134-112 Pedestal
- XN12A/4 4' Antenna
"Compact in size, yet big on features and performance, the Furuno GP33 is the perfect GPS navigator for a wide range of vessels. This advanced unit provides accurate and reliable position fixing, thanks to a super sensitive, 12-channel GPS receiver combined with integrated WAAS technology. The GP33 displays navigation data in a wide variety of numerical and graphical formats. You may freely select which data you want displayed with easy to use controls. The combination of a high resolution screen and large data fields makes the screen easy to read in almost any condition. The GP33 has a waterproof display and is built to stand up to tough marine conditions. The durable casing houses an impressive memory, capable of storing up to 3,000 points of ship's track, 10,000 points for marks and waypoints, and 100 routes of up to 30 waypoints each. Vital navigation data is presented on a 4.3\" color LCD. The GP33 features Furuno's CAN bus interface system for feeding highly accurate navigation data to your Nav-Net 3D, radar, chart plotter, autopilot, fish finder or other navigation equipment. CAN bus is a communication protocol that shares multiple data and signals through a single backbone cable. You can simply connect any CAN bus devices onto the backbone cable to expand your network onboard. With CAN bus, IDs are assigned to all the devices, and the status of each sensor in the network can be detected. All the CAN bus devices can be incorporated into the NMEA2000 network, offering easy plug-and-play installation."
SKU: NVN-83538
MPN: DRS6AX/4
UPC:
Technical specifications
| Brand | Furuno |
| Model | Furuno DRS6AX 6kW UHD Digital Radar w/Pedestal, 4' Open Array Antenna & 15M Cable |
| SKU / MFR# | 83538 |
