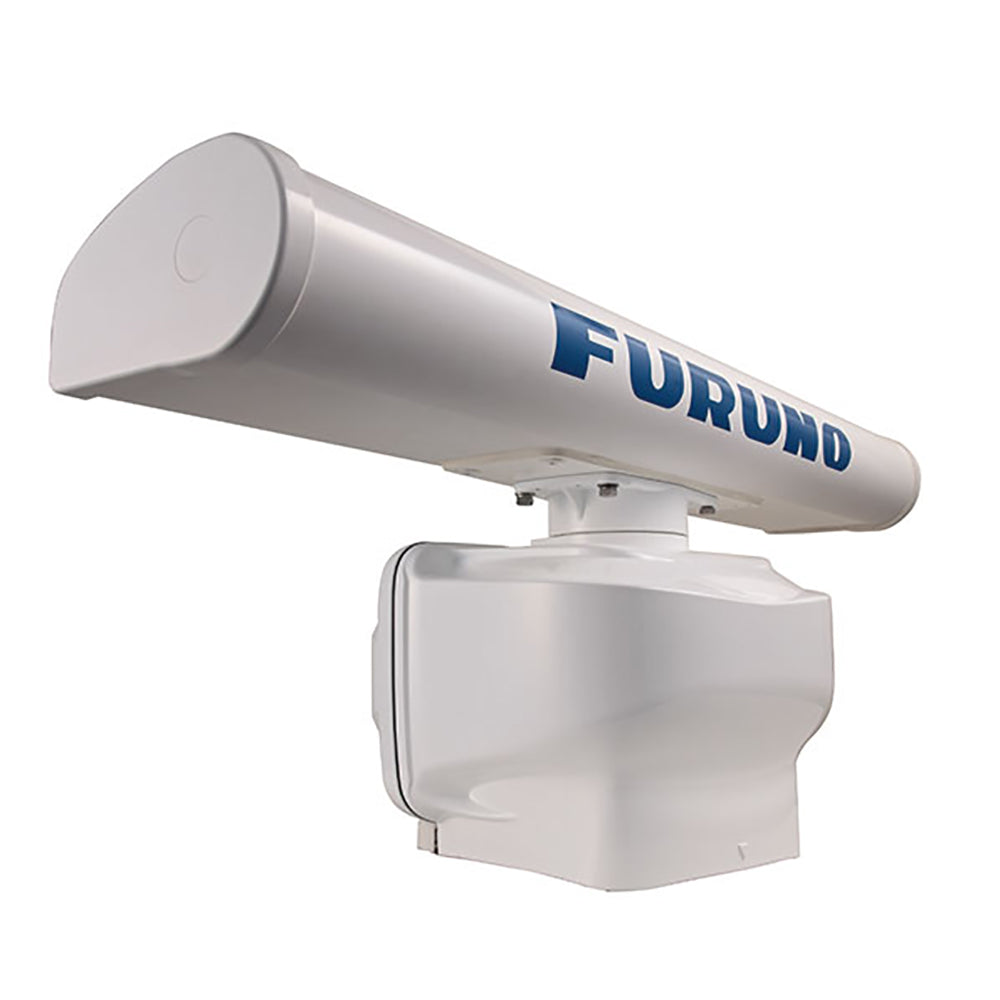

Furuno DRS6AX 6kW UHD Digital Radar w/Pedestal, 3.5' Open Array Antenna & 15M Cable
Furuno DRS6AX 6kW UHD Digital Radar w/Pedestal, 3.5' Open Array Antenna & 15M Cable — Product description
Discover Superior Performance with Furuno DRS6AX X-Class Radar
Experience a revolution in marine radar technology with the Furuno DRS6AX, part of the innovative X-Class series. Designed for serious mariners who demand precision and reliability, this 6kW UHD digital radar delivers unmatched clarity across short and long distances. Whether you're navigating crowded harbors or scanning distant horizons up to 120 nautical miles, the DRS6AX provides razor-sharp target separation that keeps you one step ahead.
What sets the X-Class apart is its blend of cutting-edge enhancements: a minimum detection range of just 20 meters for spotting close obstacles effortlessly, combined with powerful long-range capabilities. Imagine confidently maneuvering through fog or spotting vessels in low visibility with ease— that's the confidence this radar instills.
Key Features That Elevate Your Boating Experience
- Ultra-High Definition (UHD) Imaging: Crystal-clear echoes with exceptional clutter rejection, even in challenging sea states.
- Fast Target Tracking™: Borrowed from Furuno's professional FAR3000 series, this feature instantly calculates and displays target course, speed, and vectors. Press a button to boost situational awareness and reduce collision risks.
- Bird Mode: Optimized for anglers, highlighting seabirds to reveal prime fishing spots teeming with baitfish underneath.
- Redesigned Pedestal: 20% lighter than its predecessor, with a whisper-quiet updated motor that minimizes noise and vibration on board.
- Smart-Connector Cable: Simplifies setup and servicing—no need to access internal components during installation.
- No External Power Supply Unit (PSU): Streamlines your system and cuts down on extra hardware costs.
Powerful 3.5' Open Array Antenna
The included XN10A/3.5 antenna boasts a narrow 2.2-degree horizontal beam width, ensuring pinpoint accuracy. With adjustable rotation speeds (24/36/48 rpm coupled or fixed 24 rpm), it adapts to your needs, from high-speed scanning to detailed close-range views. Paired with the 15-meter cable, it's ready for seamless integration on most vessels.
Effortless Installation and Broad Compatibility
Setting up the DRS6AX is straightforward, thanks to its user-friendly design. The pedestal arrives pre-assembled, and the smart-connector cable plugs in without hassle. It's optimized for Furuno's NavNet TZtouch, TZtouch2, and TZtouch3 systems, delivering plug-and-play performance. Note: This is a 24VDC system drawing 4.0A—pair it with a converter for 12V setups to unlock its full potential on smaller boats.
IP56 waterproofing ensures durability against harsh marine environments, from pounding waves to salt spray.
Technical Specifications at a Glance
| Specification | Details |
|---|---|
| Antenna Rotation Speed | 24/36/48 rpm (range coupled) or 24 rpm fixed |
| Beam Width | 2.3° Horizontal / 22° Vertical |
| Range Scales | 0.0625 to 120 nm |
| Waterproofing | IP56 |
| Power Supply | 24VDC, 4.0A |
Why Choose Furuno DRS6AX for Your Vessel?
Boat owners rave about the DRS6AX's real-world performance. Fishermen love the Bird Mode for locating schools, while cruisers appreciate the Fast Target Tracking for safer passages in busy waters. Its lighter, quieter design means less fatigue on long trips, and the UHD resolution rivals higher-end systems without the bulk. Built on Furuno's decades of marine expertise, this radar isn't just equipment—it's a trusted partner enhancing safety, efficiency, and enjoyment on the water.
Frequently Asked Questions
What makes the Furuno DRS6AX different from older radar models?
The DRS6AX X-Class introduces UHD imaging for superior short-range detection down to 20m, long-range up to 120nm, Fast Target Tracking™, and a lighter, quieter pedestal—advances not found in previous generations.
Is the Bird Mode useful for fishing?
Absolutely. Bird Mode enhances detection of seabirds, which often circle above baitfish schools, helping anglers pinpoint productive fishing areas quickly.
What NavNet systems work with the DRS6AX?
It's fully compatible with NavNet TZtouch, TZtouch2, and TZtouch3. It does not support NavNet 3D or earlier models.
Does this radar require a separate power supply?
No, the DRS6AX eliminates the need for an external PSU, simplifying your setup and reducing costs.
Can I use the DRS6AX on a 12V boat?
Yes, but as a 24VDC system, you'll need a DC-DC converter for 12V power sources.
How easy is installation?
Very straightforward. The smart-connector cable and pre-assembled pedestal mean no internal access is required, making it DIY-friendly for most boaters.
What's the minimum and maximum range?
Minimum detection is 20 meters, with scalable ranges up to 120 nautical miles for versatile use.
DRS6AX 6kW UHD Digital Radar with Pedestal, 3.5' Open Array Antenna & 15M Cable
DRS6AX "X-Class" a whole new class of Radar!
Pushing the boundaries of what is possible with conventional Radar technology, DRS6AX "X-Class" marks yet another leap forward for Furuno. Improved in almost all aspects, DRS6AX "X-Class" Radar features improved short range detection, as well as an impressive long range detection of up to 120 nautical miles.
The redesigned pedestal unit is 20% lighter than previous DRS6AX model and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.
Fast Target Tracking™ function adopted from our commercial Radar FAR3000, is also available on the DRS6AX "X-Class." Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.
Features:
- 6kW Power Output
- Enhanced target detection, both short and long range
- Minimum detection range of just 20M
- Fast Target Tracking™
- Bird Mode
- Pedestal unit, 20% lighter than previous DRS6A unit, updated low noise motor
- No PSU required, decreasing total costs
- Easy installation without the need to open pedestal unit
- Smart-connector cable
- Open Array Antenna - XN10A/3.5 has a 2.2 horizontal beam width. Its range is 48 nautical miles
- 15M Cable
- Compatible with NavNet TZtouch and NavNet TZtouch2 and NavNet TZtouch3 (not compatible with NavNet 3D or earlier NavNet models)
- The DRS6AX is a 24V system; a converter will be required for use with 12V power systems
Furuno DRS6AX 6kw UHD Digital Radar with 3.5' Antenna and 15M Cable
Model: DRS6AX/3- 6kW Power Output
- Enhanced target detection, both short and long range
- Minimum detection range of just 20 m
- Fast Target Tracking™
- Bird Mode
- New pedestal unit, 20% lighter than previous DRS6A unit, updated low noise motor
- No PSU required, decreasing total costs
- Easy installation without the need to open pedestal unit
- New smart-connector cable
- Choice of 3.5'/4'/6' Antenna Sold Seperately
- Compatible with NavNet TZtouch and NavNet TZtouch2 (not compatible with NavNet 3D or earlier NavNet models)
- The DRS6AX is a 24V system; a converter will be required for use with 12V power systems
Pushing the boundaries of what is possible with conventional Radar technology, DRS6A X-Class marks yet another leap forward for FURUNO. Improved in almost all aspects, DRS6A X-Class Radar features improved short range detection, as well as an impressive long range detection of up to 120 nautical miles.
The newly redesigned pedestal unit is 20% lighter than previous DRS6A model and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.
Fast Target Tracking™ function adopted from our commercial Radar FAR3000, is also available on the DRS6A X-Class. Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.
Specifications| Antenna rotation speed | 24/36/48 rpm range coupled or 24rpm fixed |
| Beam width | 2.3d Horizontal 22d Vertical |
| Range scales | 0.0625 to 120 nm |
| Waterproofing | IP56 |
| Power supply | 24vDC 4.0A |
What's in the Box:
- 001-376-480-00 15m Cable
- RSB134-112 Pedestal
- Xn10A/3.5 3.5' Antenna
DRS6AX 6kW ultra-high-definition digital radar with base, 3.5-inch open array antenna and 15M cable DRS6AX "X-Class" is a brand new radar category! Breaking through the possible range of conventional radar...
SKU: NVN-83528
MPN: DRS6AX/3
UPC:
Technical specifications
| Brand | Furuno |
| Model | Furuno DRS6AX 6kW UHD Digital Radar w/Pedestal, 3.5' Open Array Antenna & 15M Cable |
| SKU / MFR# | 83528 |
