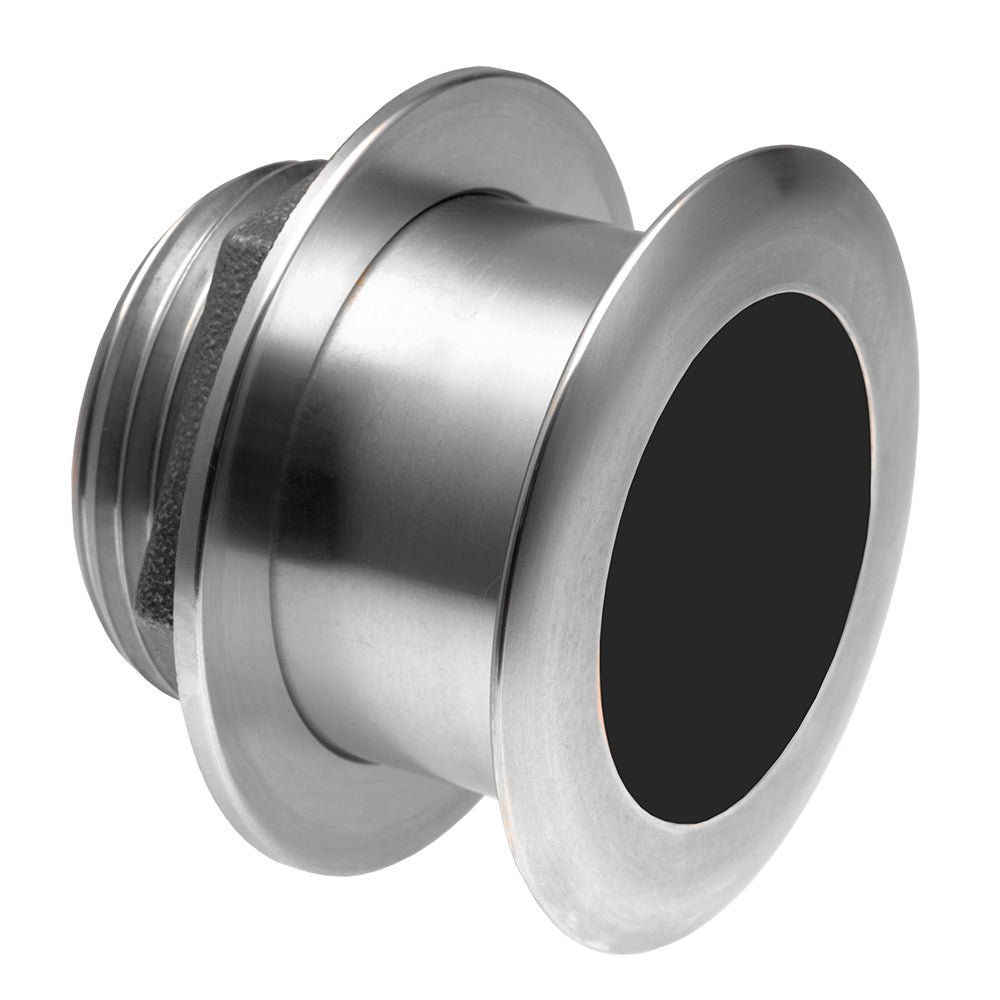

Furuno 556TID-LTD/12 Stainless Steel Thru-Hull 1kW - 12° Tilted
Furuno 556TID-LTD/12 Stainless Steel Thru-Hull 1kW - 12° Tilted — Product description
Upgrade your marine electronics setup with the Furuno 556TID-LTD/12, a rugged stainless steel thru-hull transducer designed for boaters who demand reliable sonar performance in challenging conditions. This 1kW powerhouse features a 12-degree tilted element that perfectly matches hull deadrises between 8° and 15°, ensuring crystal-clear bottom tracking and fish detection without the guesswork of misalignment.
Engineered for Precision and Depth
Crafted with an Airmar SS164 housing style, this transducer delivers dual-frequency operation at 50/200 kHz, giving you versatility for everything from shallow coastal cruising to deep offshore adventures. The wide 20° beam at 50 kHz excels at scanning large areas for structure and bait schools, while the narrow 6° beam at 200 kHz provides pinpoint detail for marking individual fish or navigating wrecks.
- Power Output: 1kW for superior signal penetration in deeper waters.
- Integrated Temperature Sensor: Monitor water temps in real-time to track thermoclines and fish behavior.
- Beam Angles: 20° at 50 kHz / 6° at 200 kHz for balanced coverage and resolution.
- Cable: 30-foot length with a 10-pin connector for straightforward integration.
Seamless Adaptation to Your Hull
Boat hulls aren't flat, and this transducer gets that. The built-in 12° tilt compensates for your deadrise angle, directing sound waves straight down toward the bottom rather than at an awkward angle. Look for the arrow on the housing top—it points toward the keel for foolproof orientation, whether mounting port or starboard. This simple alignment hack minimizes distortion and maximizes your fishfinder's potential.
Built to Withstand the Marine Environment
Stainless steel construction laughs off corrosion, impacts from debris, and the constant pounding of waves. Unlike plastic alternatives, it holds up in saltwater without degrading, making it a smart long-term investment for serious anglers and commercial operators alike. Fairing blocks can enhance performance further by streamlining water flow over the housing.
Installation Insights for Peak Results
Mounting a thru-hull like the 556TID-LTD/12 offers advantages over transom or in-hull options: cleaner signals, less interference, and better speed tolerance. Drill a precise hole sized to the housing, bed it in marine sealant, and secure with the nut—avoid over-tightening to prevent cracking. Position it forward of props and strakes for optimal water flow. Test in shallow water post-install to verify readings.
Why Boaters Trust This Setup
Whether you're chasing trophy tuna in deep blue or bass nearshore, the combination of high power, dual beams, and tilt compensation delivers actionable intel. Pair it with modern Furuno displays for CHIRP-enhanced imaging, revealing bait balls and bottom contours with stunning clarity. Skip the frustration of dead zones or fuzzy returns— this transducer keeps you locked on target.
Frequently Asked Questions
What deadrise angles is the Furuno 556TID-LTD/12 suited for?
It's optimized for hull deadrises from 8° to 15°, with the 12° tilted element ensuring perpendicular sound transmission to the water column.
Does this transducer measure water temperature?
Yes, it includes a built-in temperature sensor, providing accurate surface water readings alongside sonar data.
What frequencies and beam angles does it use?
Operates at 50 kHz with a 20° beam angle for wide-area coverage and 200 kHz with a 6° beam for high-resolution detail.
How do I orient the transducer during installation?
Align the arrow on the housing top toward the keel (bow direction) for correct tilted element positioning, regardless of port or starboard side.
What's the cable length and connector type?
It comes with a 30-foot cable featuring a 10-pin connector, ideal for most console or flybridge installations.
Why choose stainless steel over plastic for thru-hull mounts?
Stainless steel offers unmatched durability against corrosion, impacts, and abrasion in harsh marine environments, ensuring longevity.
Is this suitable for fiberglass or metal hulls?
Primarily designed for fiberglass hulls, but it performs well on metal with proper isolation to avoid interference.
556TID-LTD/12 Stainless Steel Thru-Hull 1kW - 12° Tilted
Furuno's Stainless Steel Thru-Hull Transducer, 1 kW (10 Pin), 12-degree Tilted Element.
Airmar SS164 Housing Style Transducer.
If a thru-hull flush-style, stainless steel transducer is called for, the 12-Degree Tilted Element 556TID-LTD/12 will accommodate a deadrise angle between 8° and 15°. This transducer compensates for deadrise by angling the element inside the housing.
The transducer is labeled with an arrow on top of the housing that should point towards the keel, whether it is installed to port or starboard. This ensures that the tilted element within the housing is given the correct orientation.
Features:
- 1kW 50/200 kHz
- 20/6 degree Beam Angles
- Stainless Steel Thru Hull with Temperature
- 30 Foot Cable with 10-Pin Connector
We love outdoor activities and know that having the best equipment is essential for any new adventure. Our selected collection focuses on top brands from the marine, leisure and outdoor markets...
SKU: NVN-76181
MPN: 556TID-LTD/12
UPC: 611679317025
Technical specifications
| Brand | Furuno |
| Model | Furuno 556TID-LTD/12 Stainless Steel Thru-Hull 1kW - 12° Tilted |
| SKU / MFR# | 76181 |
