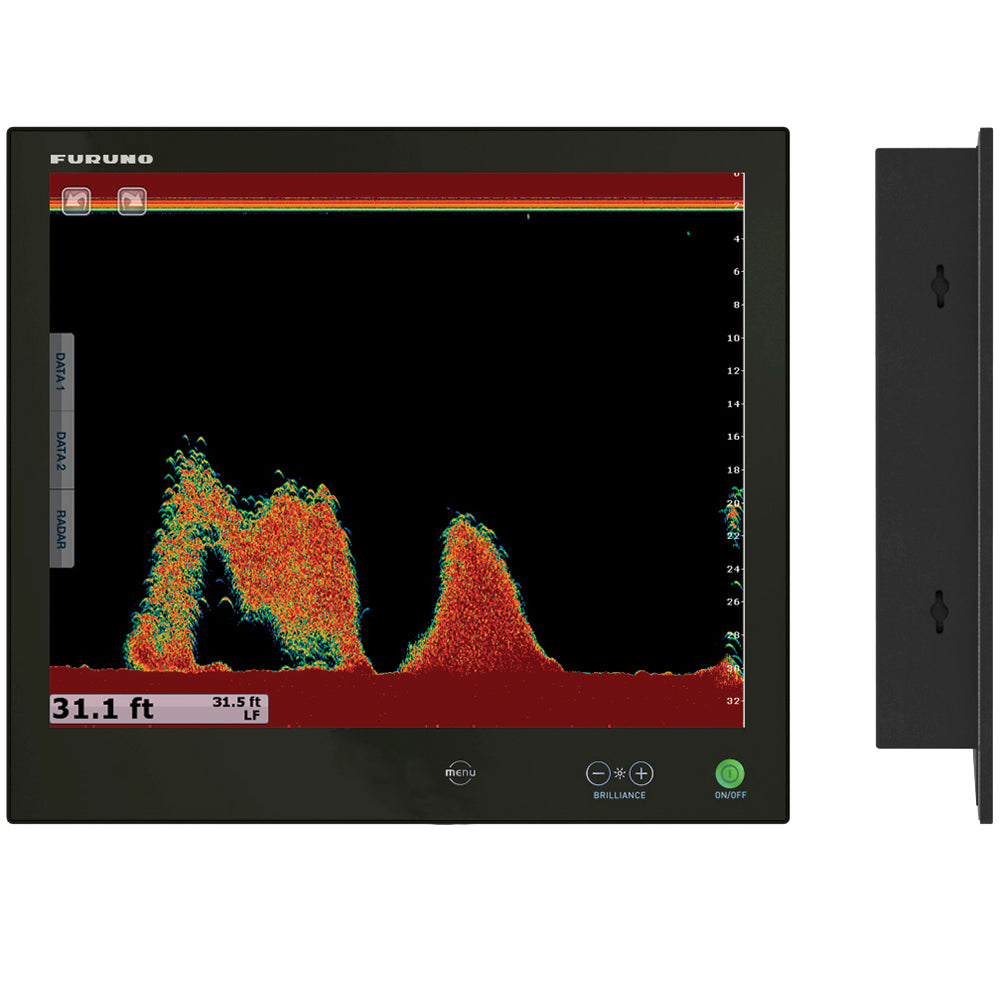

Furuno MU195T 19" Multi Touch Marine Monitor
Furuno MU195T 19" Multi Touch Marine Monitor — Product description
Discover the pinnacle of marine display technology with the Furuno MU195T, a 19-inch powerhouse designed to elevate your onboard navigation experience. Engineered for the harshest sea conditions, this multi-touch monitor delivers razor-sharp visuals and intuitive control, seamlessly integrating with Furuno's NavNet TZtouch and TZtouch2 black box systems. Whether you're charting courses on an open flybridge or monitoring from an enclosed helm, its exceptional brightness and durability ensure reliable performance day or night.
Superior Visibility in Any Marine Environment
Boaters know that sunlight glare and low-light transitions can compromise critical decisions. The MU195T counters this with a stunning 1,000 nits brightness—four times brighter than standard monitors—powered by advanced LED backlighting. Its optically bonded glass eliminates internal reflections by up to 94%, banishing fog and condensation even in humid, salty air. Wide viewing angles of ±89° in all directions mean your crew gets a clear view from any position, making it ideal for collaborative decision-making during long passages.
Versatile Connectivity for Modern Vessels
Stay connected to your entire ecosystem with an array of inputs: one Device Port 1.2 for direct TZtouch integration, dual DVI-D ports for high-definition sources, two BNC composite video inputs for cameras or media players, and a VGA output for daisy-chaining to secondary displays. This flexibility turns your helm into a command center, supporting everything from radar overlays and sonar returns to live camera feeds and entertainment options.
Intuitive Multi-Touch and Customization Options
Powered by Projected Capacitive (PC) touch technology, the MU195T responds swiftly to gloved or wet fingers, mimicking smartphone precision at sea. Customize your view with adjustable Picture-in-Picture (PIP) and Picture-by-Picture (PBP) modes—perfect for splitting navigation data with engine diagnostics or weather radar. Full-glass display controls include two programmable hot keys for instant access to favorites, enhancing workflow efficiency.
Built to Endure Offshore Demands
Marine-grade toughness defines the MU195T: IP66-rated front panel shrugs off spray and waves, while operating from -15°C to +55°C handles extreme climates. Dual-power redundancy (115/230 VAC or 24 VDC with auto-switchover) prevents downtime, ensuring your display stays online when it matters most. Edge-to-edge glass design not only looks sleek for glass-bridge aesthetics but also withstands vibration and shock common in rough seas.
Key Technical Specifications
| Display Characteristics | Details |
|---|---|
| Screen Size & Aspect Ratio | 19 inches, 5:4 |
| Resolution | Native SXGA (1280 x 1024), supports VGA to SXGA |
| Contrast Ratio | 1,000:1 (typical) |
| Viewing Angles | ±89° (Up/Down/Left/Right) |
| Max Brightness | 1,000 nits |
| Interfaces | 1x Device Port 1.2, 2x DVI-D, 2x Composite (BNC), 1x VGA Out (15-pin D-SUB) |
| Power Supply | 115/230 VAC (50/60Hz), 24 VDC with auto-switch |
| Environmental Ratings | -15°C to +55°C; IP66 (front), IP22 (rear) |
What's Included for Seamless Setup
- 19" Touch Screen Assembly
- DVI Video Cable
- VGA Video Cable
- VGA to DVI Adapter
- USA and EU Power Cable Assemblies
- 1.8m Type A USB Cable
- Flush Mount Bracket Kit
- Terminal Connectors (2-pin and 5-pin x2)
Integrators and captains alike praise the MU195T for its plug-and-play compatibility within Furuno's ecosystem, reducing installation time while maximizing uptime. Elevate your vessel's helm with a display that doesn't just perform—it thrives where others falter.
What makes the Furuno MU195T ideal for marine use?
Its 1,000 nits brightness, optical bonding for fog-free views, IP66 front protection, and wide temperature range ensure top performance in direct sunlight, rain, or cold nights.
Can the MU195T work with devices beyond NavNet TZtouch?
Yes, multiple inputs like DVI, composite BNC, and Device Port support cameras, computers, media players, and more, with PIP/PBP for multi-source viewing.
How does the power system handle outages?
Dual AC (115/230V) and DC (24V) inputs provide seamless auto-switchover, prioritizing AC and falling back to DC without interruption.
Is the touch screen usable with gloves or wet hands?
Absolutely—Projected Capacitive technology delivers responsive multi-touch even with gloves or seawater, mimicking consumer device sensitivity.
What mounting options come standard?
Flush mount bracket kit is included, supporting clean, edge-to-edge installations for a modern glass-bridge look.
Does it support video output to other monitors?
Yes, the VGA Out port enables video pass-through, cloning the display to additional screens for extended helm setups.
MU195T 19" Multi Touch Marine Monitor
The Furuno MU195T is a 19" multi-purpose, multi-touch marine LCD that features the unmatched quality and reliability that you have learned to depend on. The MU195T utilizes Projected Capacitive Technology (called PCTouch) to provide the ultimate in responsive sensitivity for the NavNet TZtouch black box system. The MU195T employs an extremely bright (1,000 cd/m2 ) color TFT Active-Matrix LCD with LED Backlight Technology. With its bright colors, excellent contrast and wide viewing angles, the MU195T monitor is perfect for any tropical sunlight or low light conditions. Furthermore, the LCD and the glass are bonded together to ensure fog free operation on open fly-bridge installations.
The MU195T features native SXGA (1280 x 1024) screen resolution, and can auto-detect a wide variety of common screen resolutions with its built-in scaler. Its wide range of interface options include 1 Device Port 1.2, 2 DVI (Digital Video Interface) and 2 composite video inputs, and one 15-Pin D-SUB VGA Out port..The display is the perfect match for the NavNet TZtouch and TZtouch2 series, but can also display images from security cameras, DVD player, computers, HDTV Receivers or other peripheral devices. The MU195T display offers enduring quality for system integrators and boat builders, particularly where reliability and long life time are key pre-requisites. The product range combines stunning design and technology with innovative features and options, making it all that the integrator needs for top class, type-approved marine systems.
Features:
- Multiple inputs (2 DVI-I, 1 DisplayPort, 2 BNC) to connect to virtually any source
- DisplayPort replaces VGA (DVI-I to VGA adapter can be used for VGA inputs)
- Updated touchscreen and controller for better/faster response
- Adjustable Picture-In-Picture (PIP) & Split-Screen Picture By Picture (PBP) modes
- Dual-Power (115-230VAC, 24VDC or both) offers redundancy & auto-switchover
- Video Pass-Through (VGA only) provides clone video output to another monitor
- Full Glass Display Controls (GDC) featuring 2 user-programmable "Hot Keys"
- MU245T can be used as a remote display & operating station for the TZT9/TZT14
- Flush mounting kits are supplied standard with all models
- Multiple class approvals: IEC, NK, GL, DNV, BV, LRS & ABS (some pending)
- Power Usage: 115 or 230 VAC or 24 VDC
"The FURUNO MU195T is a 19\" multi-purpose, multi-touch marine LCD that features the unmatched quality and reliability that you have learned to depend on. The MU195T utilizes Projected Capacitive Technology (called PCTouch) to provide the ultimate in responsive sensitivity for the NavNet TZtouch black box system. The MU195T employs an extremely bright (1,000 cd\/m2 ) color TFT Active-Matrix LCD with LED Backlight Technology. With its bright colors, excellent contrast and wide viewing angles, the MU195T monitor is perfect for any tropical sunlight or low light conditions. Furthermore, the LCD and the glass are bonded together to ensure fog free operation on open fly-bridge installations."
SKU: NVN-71650
MPN: MU195T
UPC: 611679375704
