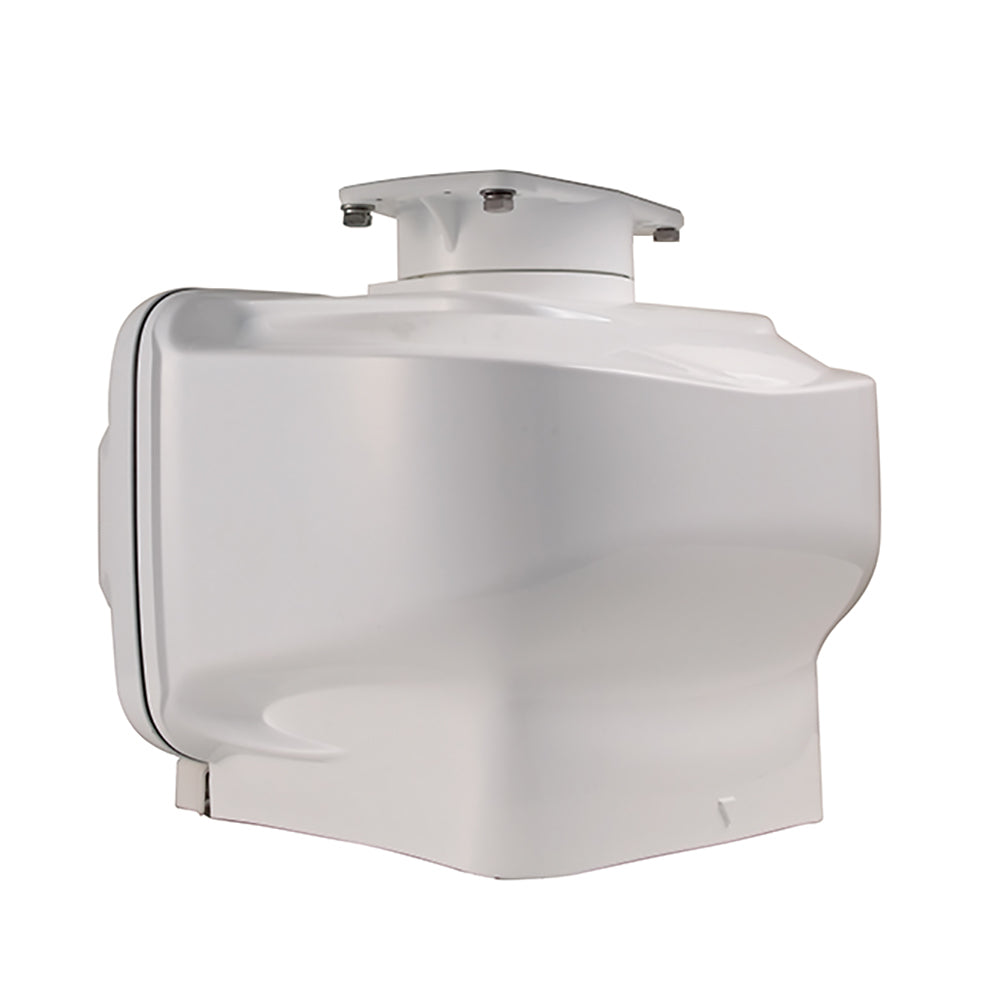

Furuno DRS12AX 12kW UHD Digital Radar f/TZtouch & TZtouch2 - Less 4' or 6' Antenna
Furuno DRS12AX 12kW UHD Digital Radar f/TZtouch & TZtouch2 - Less 4' or 6' Antenna — Product description
Discover Superior Situational Awareness with Furuno DRS12AX X-Class Radar
Imagine navigating through foggy coastal waters or scanning the horizon for distant vessels during an offshore adventure. The Furuno DRS12AX X-Class radar transforms these scenarios from uncertain to confident, delivering razor-sharp detection that keeps you one step ahead. This powerhouse 12kW UHD digital radar pushes conventional X-band technology to new heights, blending enhanced short-range precision with extraordinary long-range visibility up to 96 nautical miles.
What sets the DRS12AX apart is its thoughtful evolution. Mariners who've upgraded from older models rave about the quieter operation and effortless setup, making it a game-changer for both recreational boaters and serious anglers. Whether you're dodging traffic in busy harbors or tracking bird schools for prime fishing spots, this radar integrates seamlessly with your NavNet TZtouch or TZtouch2 systems, elevating your onboard electronics to pro-level performance.
Key Advancements That Redefine Radar Performance
- Ultra-High Definition Clarity: Spot small targets as close as 20 meters with unprecedented detail, reducing clutter and false echoes for cleaner overlays on your chartplotter.
- Extended Reach: Lock onto distant objects up to 96 nautical miles, ideal for open-ocean passages where early warnings can prevent mishaps.
- Fast Target Tracking™: Borrowed from Furuno's commercial-grade FAR3000 series, this feature instantly calculates and displays target vectors for course and speed—press a button and gain real-time insights that boost safety during high-traffic maneuvers.
- Bird Mode Mastery: Anglers, rejoice. Toggle into Bird Mode to detect flocks indicating baitfish below, turning your radar into a secret weapon for locating hot spots without guesswork.
- Dual Range Scanning: Monitor close-in hazards and far-off threats simultaneously, perfect for multi-tasking in dynamic environments.
Beam Precision for Every Scenario
The DRS12AX shines with narrow horizontal beam widths—1.9° on the 4-foot antenna or an even tighter 1.4° on the 6-foot option—paired with a 22° vertical beam. This combination delivers pinpoint accuracy, whether you're weaving through a yacht-clogged marina or surveying expansive seas.
Streamlined Design for Hassle-Free Ownership
Furuno engineers lightened the pedestal by 20% and swapped in a whisper-quiet motor, so you can enjoy peaceful cruises without the drone of older radars. Say goodbye to bulky power supply units (PSUs)—this model runs lean, cutting costs and complexity.
Installation? A breeze. The smart-connector cable plugs in without cracking open the pedestal, and the included 15-meter signal/power cable gives you routing flexibility. Pair it with your choice of 4' or 6' antenna (sold separately) for a custom fit on any vessel size.
Power and Compatibility Essentials
- Designed for 24V DC systems—add a converter for 12V setups to keep things powered smoothly.
- Exclusively pairs with NavNet TZtouch and TZtouch2; skip it if you're on NavNet 3D or legacy models.
Real-World Applications: From Safety to Sportfishing
For coastal cruisers, the short-range prowess means spotting unlit kayaks or buoys in the murk. Offshore racers leverage the long-range edge for strategic positioning. Fishermen activate Bird Mode to chase leads, often landing trophy catches where others troll blindly. In all cases, Fast Target Tracking provides that extra layer of vigilance, displaying vectors that predict collisions before they escalate.
Maintenance is minimal—corrosion-resistant components and user-friendly access points keep it reliable season after season. Boaters report fewer service calls compared to competitors, thanks to the robust build and intuitive diagnostics via TZtouch integration.
What's Included for Quick Setup
- Scanner unit
- ATV10A60V fuse
- Four corrosion-proof pads
- M12 hardware kit (hex nuts, washers, studs)
- Installation manual, mounting template, and environmental data sheet
- 15m signal/power cable assembly
With the DRS12AX, you're not just adding radar—you're investing in peace of mind, sharper decisions, and memorable voyages.
Frequently Asked Questions
What distinguishes the Furuno DRS12AX from earlier Furuno radars?
The DRS12AX features a 20% lighter pedestal, quieter motor, smart-connector cable for easier installs, and advanced functions like Fast Target Tracking™ from commercial models, plus Bird Mode and UHD imaging for superior short- and long-range performance.
Is the DRS12AX compatible with NavNet TZtouch systems?
Yes, it's fully compatible with NavNet TZtouch and TZtouch2. It does not work with NavNet 3D or older NavNet models.
How does Fast Target Tracking™ work on the DRS12AX?
Press a button to instantly display course and speed vectors for selected targets, enhancing situational awareness and safety by predicting movements in real-time.
Does the DRS12AX require a separate power supply unit?
No, it eliminates the need for a PSU, simplifying setup and reducing costs while running directly on 24V DC.
What antenna sizes are available for the DRS12AX?
Choose from 4-foot (1.9° horizontal beam) or 6-foot (1.4° horizontal beam) antennas, sold separately, to match your vessel's needs.
What's the minimum and maximum detection range?
As close as 20 meters for short-range precision, extending to 96 nautical miles for long-range monitoring.
Can I use the DRS12AX on a 12V boat system?
It's a 24V system, but a DC-DC converter makes it compatible with 12V setups.
DRS12AX 12kW UHD Digital Radar for TZtouch & TZtouch2 - Less 4' or 6' Antenna
Pushing the boundaries of what is possible with conventional Radar technology, DRS12AX "X-Class" marks yet another leap forward for Furuno. Improved in almost all aspects, DRS12AX "X-Class" Radar features improved short range detection, as well as an impressive long range detection of up to 96 nautical miles.
The redesigned pedestal unit is 20% lighter than previous models and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.
Fast Target Tracking™ function adopted from our commercial Radar FAR3000, is also available on the DRS12AX "X-Class." Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.
Features:
- 12kW Power Output
- Enhanced target detection, both short and long range
- Minimum detection range of just 20 m
- Fast Target Tracking™
- Bird Mode
- Pedestal unit 20% lighter than previous unit, updated with new, low noise motor
- No PSU required, decreasing total costs
- Easy installation without the need to open pedestal unit
- Smart-connector cable
- Choice of 3.5'/4'/6' Antenna
- Compatible with NavNet TZtouch and NavNet TZtouch2 (not compatible with NavNet 3D or earlier NavNet models)
- The DRS12AX is a 24V system; a converter will be required for use with 12V power systems
Furuno DRS12AX 12Kw X-Band Radar with 15m Cable
Model: DRS12AX- 12kW Power Output
- Enhanced target detection, both short and long range
- Minimum detection range of just 20 m
- Fast Target Tracking™
- Bird Mode
- New pedestal unit 20% lighter than previous unit, updated with new, low noise motor
- No PSU required, decreasing total costs
- Easy installation without the need to open pedestal unit
- New smart-connector cable
- Compatible with NavNet TZtouch and NavNet TZtouch2 (not compatible with NavNet 3D or earlier NavNet models)
- The DRS12AX is a 24V system; a converter will be required for use with 12V power systems
Pushing the boundaries of what is possible with conventional Radar technology, DRS12AX "X-Class" marks yet another leap forward for FURUNO. Improved in almost all aspects, DRS12AX "X-Class" Radar features improved short range detection, as well as an impressive long range detection of up to 96 nautical miles.
The newly redesigned pedestal unit is 20% lighter than previous models and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.
Fast Target Tracking™ function adopted from our commercial Radar FAR3000, is also available on the DRS12AX "X-Class." Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.
Specifications| Input Voltage | 24vDC |
| Antenna Options | 4 and 6 foot sold separately |
| Horizontal Beam | 1.9° with 4' Antenna 1.4° with 6' |
| Verticle Beam | 22° |
| Maximum range | 96nm |
| Dual RangeScanning | Yes |
What's in the Box:
- Scanner Unit
- Fuse ATV10A60V
- Corrosion-proof pad x 4
- Hex Nut M12 x 8
- Spring Washer M12 x 4
- Flat Washer M12 x 4
- Hex Stud M12x70 x 4
- Installation Manual
- Mounting Template
- Environmental Data Sheet
- Signal/Power Cable Assy 15M
DRS12AX is suitable for 12kW UHD digital radar of TZtouch and TZtouch2-Fewer 4'or 6'antennas break the possible limit of traditional radar technology. DRS12AX "X-Class" marks another...
SKU: NVN-65431
MPN: DRS12AX
UPC: 00611679368362
Technical specifications
| Brand | Furuno |
| Model | Furuno DRS12AX 12kW UHD Digital Radar f/TZtouch & TZtouch2 - Less 4' or 6' Antenna |
| SKU / MFR# | 65431 |
