Furuno AIS Interface Box
Furuno AIS Interface Box — Product description
Enhance your maritime navigation setup with the Furuno IF1500AIS, a reliable interface box designed specifically to bridge AIS transponders or receivers with FR8XX2 series radars. This compact device ensures seamless data flow, transforming raw AIS signals into actionable overlays on your radar screen—perfect for spotting nearby vessels, avoiding collisions, and improving situational awareness during busy sea traffic or low-visibility conditions.
Seamless AIS Integration for FR8XX2 Radars
The IF1500AIS steps in where direct connections fall short, converting standard AIS data at 38.4 kbps into a format your FR8XX2 radar can readily display. It thrives when paired with accurate heading and position inputs, painting a clear picture of surrounding maritime activity right on your display. Whether you're outfitting a fishing vessel, yacht, or commercial boat, this interface unlocks the full potential of AIS without complex rewiring.
Essential Features That Deliver Real-World Value
- Plug-and-Play Compatibility: Tailored for FR8XX2 series, it handles AIS data effortlessly once the right inputs are fed.
- High-Speed Data Handling: Supports 38.4 kbps for quick, lag-free updates on vessel positions, speeds, and courses.
- Robust Build: Marine-grade construction withstands harsh saltwater environments, vibrations, and temperature swings common on deck.
- Expanded Situational Awareness: Overlays AIS targets alongside radar echoes, helping you differentiate real threats from clutter.
Perfect Match for FR8XX2 Series—With a Key Exception
Engineered for the FR8XX2 lineup, the IF1500AIS shines in setups using external AIS units. Keep in mind: if you're linking an FA150 directly to your FR8XX2 display, this box isn't necessary—Furuno's design handles that natively. For other AIS transponders like Class A or B models, it becomes your go-to connector, ensuring compliance with SOLAS standards for larger vessels.
Complete Your Setup with the Right Cables
To get everything talking, gather these essentials alongside the IF1500AIS:
- Two 7-pin cables (like 000-154-028) for position data to the radar and linking the interface box itself.
- One 6-pin cable (like 000-154-054) to pipe in heading data.
Pro tip: Double-check your NMEA 0183 wiring for polarity and ground to sidestep common signal glitches. A simple multimeter test before powering up can save hours of head-scratching.
Why Mariners Trust AIS Integration Like This
Picture navigating a foggy channel or anchoring in a crowded harbor—AIS overlays on your FR8XX2 radar reveal vessel names, MMSI numbers, and predicted paths, turning guesswork into precision. It boosts safety, cuts insurance risks, and meets regulatory needs for vessels over 300 gross tons. Users report fewer near-misses and smoother voyages, especially in high-traffic zones like shipping lanes or fishing grounds.
Pro Installation Tips for Peak Performance
Mount the IF1500AIS in a dry, ventilated spot near your radar and GPS/gyro compass. Power it via 12-24V DC, and route cables away from high-current lines to minimize interference. After hookup, calibrate your radar's AIS menu settings—enable target vectors and trial speeds for the clearest view. If symbols don't appear, verify baud rates match across devices (38400 for AIS input). Regular firmware checks keep it cutting-edge.
Frequently Asked Questions
What does the Furuno IF1500AIS interface box do?
It connects AIS transponders or receivers to FR8XX2 series radars, enabling the display of AIS vessel data like positions, speeds, and headings when 38.4 kbps data, position, and heading info are available.
Do I need the IF1500AIS for an FA150 with FR8XX2 radar?
No, the IF1500AIS is not required when connecting an FA150 directly to an FR8XX2 display—it's built for native integration.
What cables are needed to set up the IF1500AIS?
You'll need two 7-pin cables for position input and interface connection, plus one 6-pin cable for heading data.
How does the IF1500AIS improve radar navigation?
It overlays AIS targets on your radar screen, providing real-time vessel tracking to enhance collision avoidance and situational awareness in busy waters.
Is the IF1500AIS suitable for all Furuno radars?
It's optimized for FR8XX2 series radars; check compatibility for other models, as direct FA150 connections may bypass the need.
What data speed does the IF1500AIS support?
It processes AIS data at 38.4 kbps, ensuring fast and reliable updates for dynamic maritime environments.
Can I return the IF1500AIS if there's an issue?
This product is non-returnable to the original purchase point; reach out to the manufacturer for support or concerns.

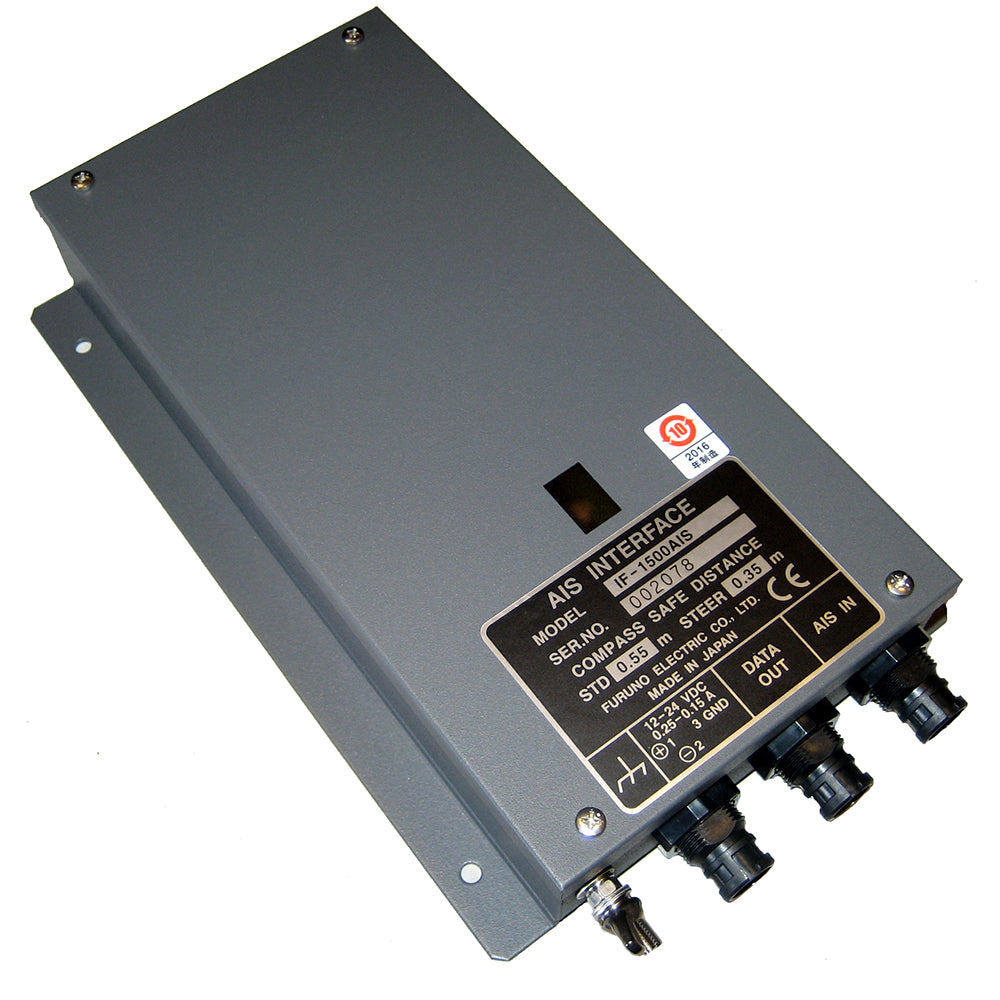

The IF1500AIS is an interface box that enables connection of any AIS Transponder or receiver to the FR8XX2 Series radar. Note that when connecting an FA150 to any FR8XX2 series display, the IF1500AIS is NOT required! Once 38.4 KBPS AIS data is connected, and both heading and position information are available at the display, the FR8XX2 will display AIS information.
Along with the IF1500AIS, the following optional cables are required to get heading, position and the IF1500AIS interfaced to the FR8XX2 series display:
- 2 each 000-154-028 - 7-Pin cables - One for position input to the FR8XX2 Radar display, and another one to connect the IF1500 AIS to the FR8XX2 Radar display.
- 1 each 000-154-054 - 6-Pin cable for connecting heading data into the FR8XX2 Radar display.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
"The IF1500AIS is an interface box that enables connection of any AIS Transponder or receiver to the FR8XX2 Series radar. (Note that when connecting an FA150 to any FR8XX2 series display, the IF1500AIS is NOT required!) Once connected, the FR8XX2 will be capable of displaying AIS information on the radar screen. AIS target information from the transponder is selected and sorted, format-converted and then output to the FR8XX2 series radar."
SKU: NVN-63003
MPN: IF1500AIS
UPC: 611679296399
Technical specifications
| Brand | Furuno |
| Model | Furuno AIS Interface Box |
| SKU / MFR# | 63003 |
