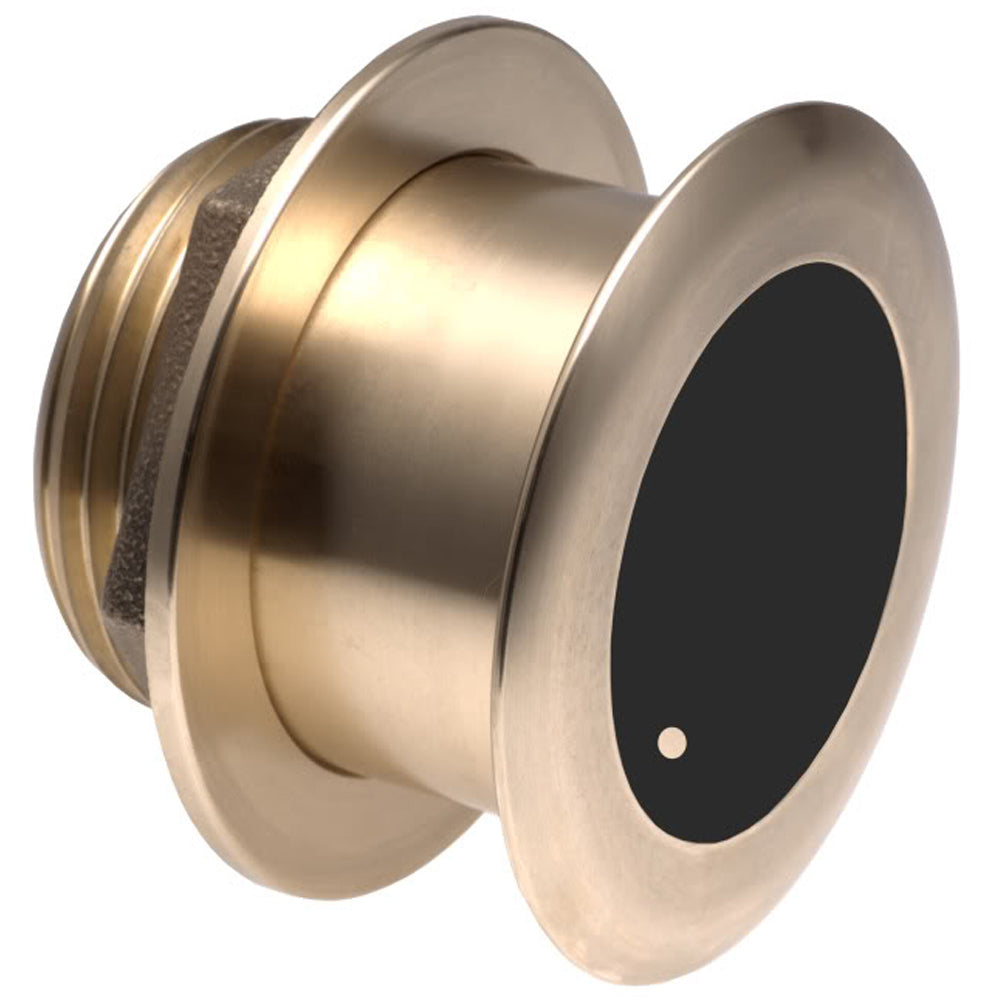

Furuno 1kW 0° Tilted Element Transducer
Furuno 1kW 0° Tilted Element Transducer — Product description
1 kW
Step up to a 1 kW—without a fairing! The 1 kW, flush-mount, Tilted Element transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4") below the hull, so it can sit on trailer rollers and bunks. The ceramic arrays are tilted inside the housing, providing the perfect vertical beam with maximum energy on what is directly below the boat.
Available in three Tilted Element models:
- Fixed 20° tilted version for 16 to 24° hull deadrise angles
- Fixed 12° tilted version for 8 to 15° hull deadrise angles
- Fixed 0° tilted version for 0 to 7° hull deadrise angles
Upgrade your fishing setup with the Furuno B164-0-10F, a powerhouse 1kW tilted element transducer designed for serious anglers chasing trophy catches. This 0° tilted version delivers pinpoint accuracy on depths and temperatures without needing a bulky fairing, making it ideal for high-speed trailered boats that demand rugged reliability.
Why Choose the B164-0-10F for Superior Fishfinding?
Crafted with Airmar's cutting-edge tilted element technology, the B164-0-10F houses its high-output ceramic array at a precise angle inside a sleek bronze flush-mount housing. This innovation ensures maximum signal energy beams straight down from your hull, cutting through water clutter for crystal-clear images of structure, bait balls, and game fish. Unlike traditional transducers that suffer from hull deadrise interference, this model thrives on flat-bottom or low-deadrise vessels, protruding just a quarter-inch to glide effortlessly over trailer bunks and rollers.
Operating at dual frequencies—50 kHz for wide-area sweeps up to 3,000 feet in ideal conditions and 200 kHz for high-resolution details—this transducer pairs seamlessly with Furuno's top-tier sounders. Expect sharper target separation, reduced noise from aerated water during high-speed trolling, and reliable temp readings to track thermoclines where big fish stage.
Key Performance Specs and Build Quality
- Power Handling: 1kW RMS for deep-water penetration and vivid bottom detail.
- Frequencies: 50/200 kHz with optimized beam widths (32°/6° at 50 kHz, 12°/2° at 200 kHz).
- Housing: Durable marine-grade bronze, corrosion-resistant for saltwater abuse.
- Mounting: Flush design with minimal hull protrusion (under 6.35 mm), perfect for trailerable hulls.
- Sensors: Integrated depth and fast-response temperature probe.
- Cable: 10-meter length with stainless steel connector for easy integration.
Installation Insights for Peak Performance
Position the B164-0-10F forward of your propeller and strakes, ideally amidships on a flat hull section for the 0° tilt to shine. Core through the hull with a 3-inch hole, bed in epoxy, and secure with backing hardware—common sense steps that pros swear by for zero leak worries. No fairing means simpler installs and less drag, keeping your boat nimble. Test at various speeds post-install to dial in gains sensitivity and eliminate interference.
Real-World Applications for Tournament Pros
Whether you're running offshore ledges for grouper or scanning shallows for bass in big-water reservoirs, this transducer elevates your edge. Trailering tournament bass boats? Its low-profile build laughs off bunk rash. High-speed offshore? It punches through turbulence like a champ. Anglers report game-changing marks on wrecks and suspended schools that lesser units miss entirely.
Long-Term Maintenance for Lasting Value
Wipe down after every trip with fresh water to fend off salt buildup. Inspect the face for marine growth and gently clean with a soft brush—no abrasives. Store dry in off-seasons to preserve the ceramic. With proper care, expect years of bulletproof service from this battle-tested design.
Frequently Asked Questions
What makes the Furuno B164-0-10F different from standard transducers?
The tilted element technology tilts the ceramic inside the housing for a true vertical beam without external fairings, ideal for flush mounts on trailerable boats.
Is the B164-0-10F suitable for saltwater fishing?
Yes, its bronze housing offers excellent corrosion resistance, making it a top pick for offshore and inshore saltwater environments.
What Furuno fishfinders work best with this transducer?
It excels with Furuno units supporting 1kW like the DRS series or TZtouch systems, unlocking full dual-frequency potential.
Can I trailer my boat with this transducer installed?
Absolutely—its flush design protrudes less than 0.25 inches, safe for rollers and bunks without damage.
Does it measure water temperature?
Yes, it includes a fast-response temperature sensor for tracking water columns and fish-holding zones.
What's the maximum depth capability?
Up to 3,000 feet at 50 kHz in optimal conditions, with superb high-res detail at 200 kHz for shallower waters.
How do I clean and maintain the transducer face?
Rinse with fresh water after use, remove growth with a soft brush, and avoid harsh chemicals to keep performance sharp.
0 degree tilted version
Features:
- Depth/Temp
- 50/200 kHz
- High-performance
- Bronze
Step up to a 1kW Without a Fairing! Airmar has taken our innovative Tilted Element technology to a higher power. The new 1kW, flush-mount, tilted element transducers are perfect for fast, trailered tournament sport fishing vessels who cannot have a high-performance fairing. The flush mounted, bronze housing protrudes less than 6.35 mm (0.25) outside your hull and can sit on trailer rollers and bunks with no damage at all. The ceramic arrays are tilted inside the housing giving you the perfect vertical beam with maximum energy on what is directly below your boat. Take your fishfinder to the next power with Airmars 1kW tilted element transducers.
The B164 bronze penetrating transducer is the first choice for fishermen looking for better depth readings and more accurate fish detection. Embedded installation design will not cause...
- Depth and fast-response water-temperature sensing
- 1 kW of power
- Dual-frequency elements:
- 50 kHz with a wide 22° beamwidth for depth performance to 529 m (1800')
- 200 kHz with a 6° beamwidth for depth performance to 235 m (800')
- Interfaces to any 600 W or 1 kW echo sounder
- Engineered for center-console and trailered boats
- Low-profile bronze housing extends less than 6.35 mm (0.25") below the hull
- No effect on boat's running performance
- Available in a stainless steel housing (SS164) for use in all hull materials
- Patented Xducer ID technology
SKU: NVN-36063
MPN: B164-0-10F
UPC:
Technical specifications
| Brand | Furuno |
| Model | Furuno 1kW 0° Tilted Element Transducer |
| SKU / MFR# | 36063 |
