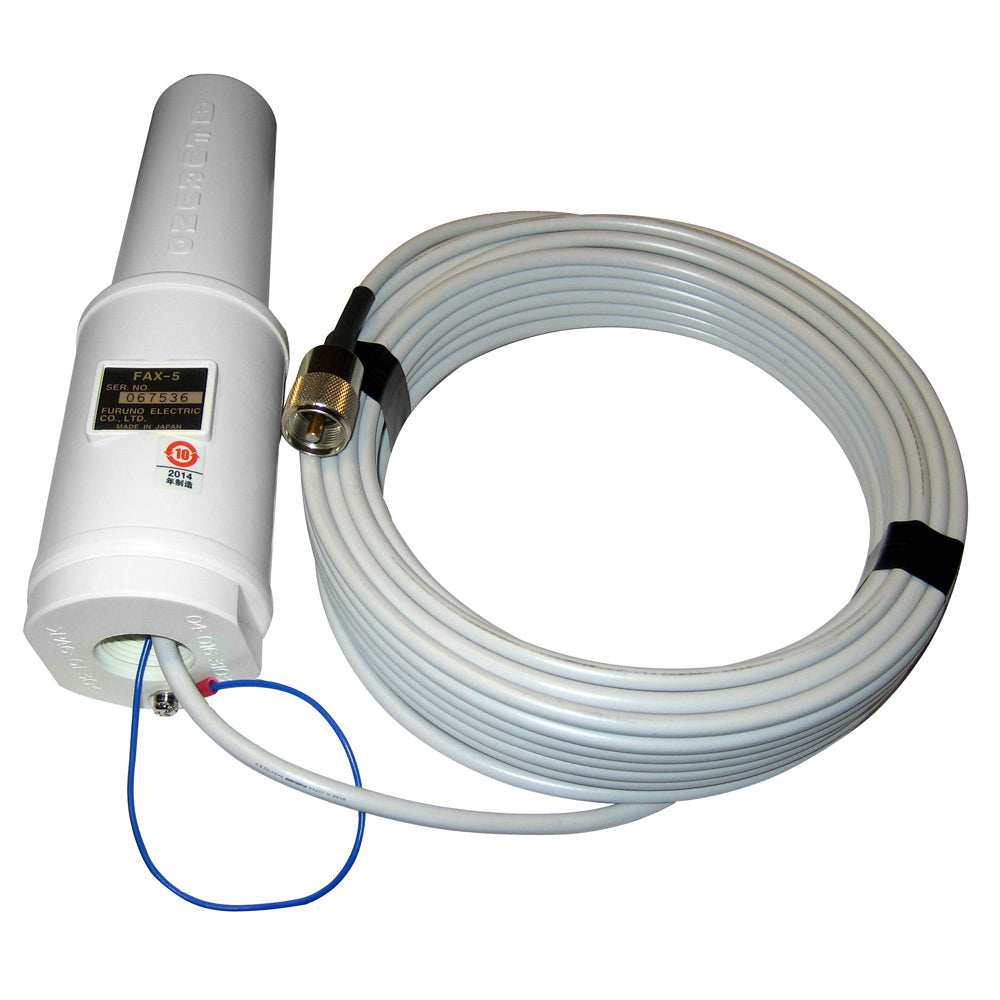

Furuno Fax5 Active Coupler

Enhance your HF weather facsimile reception with the Furuno FAX5 Active Coupler, a specialized accessory designed for marine professionals and avid radio enthusiasts. This compact unit actively boosts signal coupling between your antenna and fax receiver, ensuring clearer images and more reliable data capture across a broad frequency spectrum.

Key Features and Signal Performance

The FAX5 stands out with its impressive operational range from 80kHz to 30MHz, covering essential HF bands used for global weather fax transmissions. Paired with a robust 15-meter interconnect cable, it provides flexible installation options on vessels or shore stations. Unlike passive couplers, the active design incorporates amplification to overcome weak signals, atmospheric noise, and interference—common challenges in maritime environments.

• Wide Frequency Coverage: Handles low-frequency navtex signals up to high-end HF faxes without tuning adjustments.
• Active Amplification: Built-in circuitry minimizes signal loss and enhances weak transmissions for sharper fax printouts.
• Durable Construction: Marine-grade components withstand harsh conditions like salt spray, vibration, and temperature swings.
• Plug-and-Play Connectivity: Simple integration with popular Furuno fax receivers and compatible third-party units.

Real-World Benefits for Marine Operations

In practical use, the FAX5 transforms marginal reception into dependable service. Skip the frustration of faded weather charts or incomplete storm warnings—vital for safe passage planning. Boaters report up to 30% improvement in image quality during propagation dips, thanks to the coupler's impedance matching that rejects unwanted RF noise. It's particularly valuable for long-range voyages where satellite alternatives falter due to coverage gaps or costs.

For ham radio operators decoding international broadcasts, this coupler sharpens resolution on black-and-white fax images, revealing fine details like isobars and wave heights. Its low power draw (under 100mA) ensures it won't burden battery systems on extended trips.

Installation Tips for Optimal Results

Setting up the FAX5 is straightforward, but a few best practices maximize performance:

1. Mount the coupler near the antenna base to shorten feeder losses, using the included 15m cable for routing to your receiver console.
2. Ensure a good ground plane; connect to the boat's bonding system or a dedicated ground plate for noise suppression.
3. Position away from high-power transmitters to avoid overload—typically 3-5 meters separation suffices.
4. Test with known fax schedules from stations like WWV or coastal NOAA broadcasts to fine-tune antenna height and orientation.

Regular maintenance involves inspecting cable connections for corrosion and wiping the enclosure with fresh water after exposure. This proactive care extends service life in saltwater settings.

Compatibility and Integration Insights

Seamlessly pairs with Furuno's FAX series receivers, but excels with any HF rig featuring a dedicated fax input. Users often combine it with vertical whips or longwires optimized for 2-20MHz, the sweet spot for most weather services. For multi-band setups, its broadband response eliminates the need for band-specific switches, streamlining operations.
