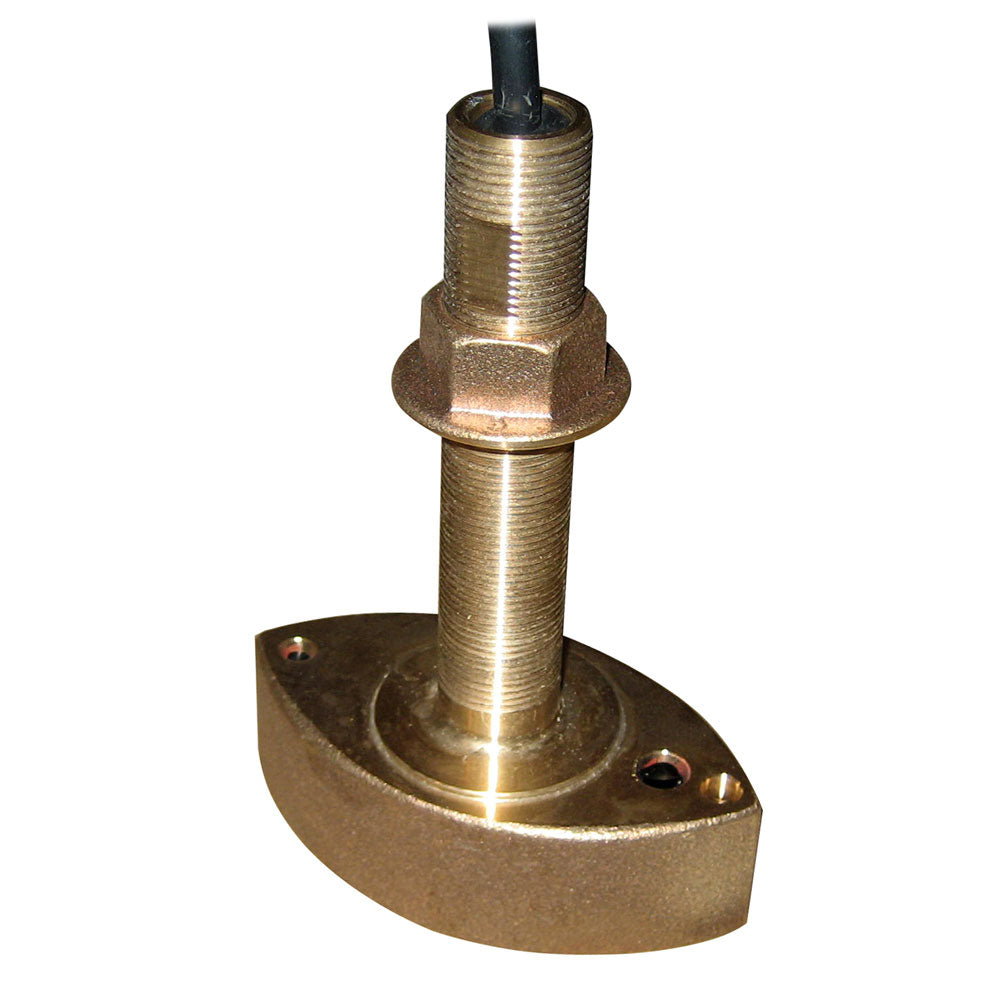

Furuno 525T-BSD Bronze Thru-Hull Transducer w/Temp, 600W (10-Pin)
Furuno 525T-BSD Bronze Thru-Hull Transducer w/Temp, 600W (10-Pin) — Product description
Furuno 525T-BSD Bronze Thru-Hull Transducer with Temperature - Professional Marine Depth Finder
Experience superior underwater performance with the Furuno 525T-BSD Bronze Thru-Hull Transducer, engineered for serious mariners who demand precision depth and temperature readings in the harshest marine environments. This professional-grade 600-watt transducer combines Furuno's legendary reliability with advanced Airmar B45 bronze housing technology, delivering crystal-clear sonar performance for fishing, navigation, and marine research applications.
Key Features & Marine Technology
- Dual-Frequency Sonar Performance: 50/200 kHz frequencies provide versatile depth detection from shallow water to deep ocean applications up to 1,200 feet
- Bronze Construction Excellence: Airmar B45 bronze thru-hull housing with 7/8" shaft ensures corrosion resistance and long-term durability in saltwater environments
- Integrated Temperature Sensing: Built-in temperature sensor provides accurate water temperature readings essential for fishing success and engine cooling monitoring
- Professional-Grade Power Handling: 600-watt power rating delivers strong signal penetration through thermoclines and turbulent water conditions
- Precision Beam Angles: 45° and 12° beam angles provide comprehensive bottom coverage and precise target separation for enhanced fish detection
- Ready-to-Install Package: Includes 30-foot marine-grade cable with 10-pin connector for direct compatibility with Furuno fishfinders and chartplotters
Technical Specifications
| Power Rating: | 600 Watts |
| Frequency Range: | 50/200 kHz Dual Frequency |
| Maximum Depth: | 1,200 feet (366 meters) |
| Beam Angles: | 45° (50 kHz) / 12° (200 kHz) |
| Housing Material: | Bronze Thru-Hull (B45 Design) |
| Shaft Diameter: | 7/8 inch (22mm) |
| Cable Length: | 30 feet (10 meters) |
| Connector Type: | 10-Pin Furuno Standard |
| Temperature Sensor: | Integrated |
| Hull Compatibility: | Fiberglass, Wood (0° to 26° deadrise) |
Professional Installation & Compatibility
The 525T-BSD features professional marine installation standards with a compact 7/8" shaft requiring only a 22mm through-hull opening. The bronze construction meets ABYC standards for below-waterline fittings and provides excellent electrolytic compatibility with bronze through-hulls and propellers. The transducer accommodates deadrise angles from 0° to 26°, making it suitable for planing hulls, displacement cruisers, and fishing vessels.
Hull Type Compatibility: Designed specifically for fiberglass and wood hulls. Not recommended for aluminum hulls due to galvanic corrosion concerns. Professional installation recommended for optimal performance and warranty compliance.
Enhanced Fishfinding Performance
The dual-frequency operation provides tactical advantages for different fishing and navigation scenarios. The 50 kHz frequency offers superior depth penetration and wide-area coverage ideal for deep water trolling and bottom structure identification. The 200 kHz frequency delivers precise target separation and detailed bottom composition analysis perfect for shallow water fishing and navigation in unfamiliar waters.
Furuno Quality & Support
Backed by Furuno's legendary 70+ year marine electronics heritage, the 525T-BSD includes comprehensive technical support and a limited 3-year manufacturer warranty. The transducer meets CE compliance standards and integrates seamlessly with Furuno FCV-series fishfinders, NavNet systems, and compatible third-party marine electronics.
What's Included
- Furuno 525T-BSD Bronze Thru-Hull Transducer
- 30-foot Marine Cable with 10-Pin Connector
- Installation Hardware and Gaskets
- Technical Documentation
- 3-Year Limited Warranty
Note: Fairing block sold separately. Standard fairing (#33-351-01) or high-speed fairing (#33-352-01) available for enhanced hydrodynamic performance.
Frequently Asked Questions
What hull types are compatible with the 525T-BSD transducer?
What's the maximum depth capability of this transducer?
Do I need a fairing block for this transducer?
Which Furuno fishfinders are compatible with the 10-pin connector?
How accurate is the temperature sensor?
For over 70 years, Furuno has been continuously imagining and creating new solutions, making new marine electronic equipment with the goal of offering both performance and simplicity for everyone. Not only for men and women who make a living on the seas, but also for those who simply want to enjoy the boating lifestyle. For them, Furuno has become synonymous with quality, performance and reliability.
Furuno 525TBSD Attributes
- Mounting Location: Thru-Hull Mount
- Number Of Pins: 10 Pin
- Depth: 1200 Feet
- Power Rating: 600 Watt
- Frequency Range: 50/ 200 kHz
- Supported Angle: 45/ 12 Degree Beamwidth
- Cable Length: 30 Feet
Furuno 525TBSD Features & Benefits
- Bronze Thru-Hull With Temperature
- 45/12 Degree Beam Angles
- 30 Foot Cable With 10-Pin Connector
- Easy To Install
- Limited 3 Year Warranty
Bronze Thru-Hull Transducer w/ Temp, 600w (10-Pin)
- 600 Watts
- 50/200 kHz
- 45/15 degree Beam Angles
- Bronze Thru-Hull with Temperature
- 30 Foot Cable with 10-Pin Connector
It is an Airmar B45 housing sensor. The machine operates at a dual frequency of 50/200 k Hz. It includes a 30-foot cable with a 10-pin connector.
SKU: NVN-11817
MPN: 525T-BSD
UPC: 6116792470632
