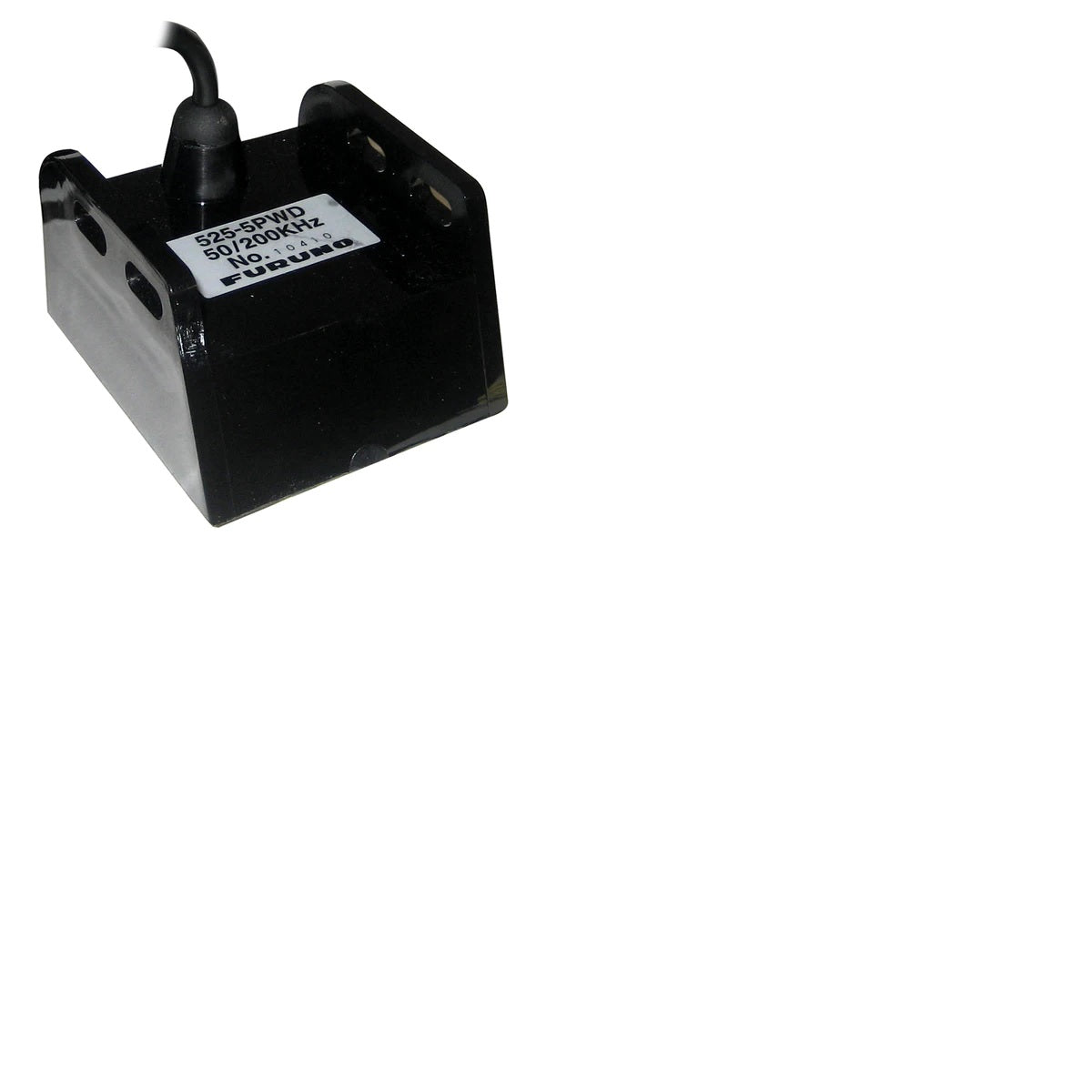

Furuno 525-5PWD Transom Mount Depth Only 10-Pin

Discover Reliable Depth Detection with the Furuno 525-5PWD Transducer

Boat owners and avid anglers rely on precise depth readings to navigate safely and locate fish effectively. The Furuno 525-5PWD stands out as a robust transom-mount solution designed exclusively for depth measurement. With its dual-frequency capability, this transducer delivers clear, consistent performance across various water conditions, from shallow bays to deeper offshore waters. Its plastic construction ensures longevity in harsh marine environments, making it a go-to choice for both recreational and serious boaters.

What sets this model apart is its balance of power and coverage. At 600 watts, it punches through water with strong signal returns, while the 50/200 kHz frequencies allow users to switch between wide-area scanning for structure and narrow-beam precision for pinpoint accuracy. Whether you're trolling for bass in freshwater lakes or charting depths along coastal routes, this transducer provides the data your fishfinder needs without unnecessary extras like temperature sensing.

Key Features That Drive Performance

• Power Output: 600 watts RMS for reliable signal strength, even in turbulent waters or at higher boat speeds.
• Dual Frequencies: 50 kHz for broad coverage (46° beam angle) ideal for spotting contours and wrecks, and 200 kHz for focused depth readings (10° beam angle) perfect for detailed bottom tracking.
• Transom-Mount Design: Comes with a sturdy plastic bracket for straightforward installation on most hull types, minimizing drag and turbulence interference.
• Cable Setup: 8-meter cable with a 10-pin connector offers flexibility for routing to your display unit, reducing clutter in the bilge.

These specs translate to real-world advantages: fewer false readings from aerated water and sharper bottom discrimination, helping you avoid shallows and find productive fishing zones faster.

Effortless Installation for DIY Boaters

Mounting the Furuno 525-5PWD is straightforward, typically taking under an hour with basic tools. Position the transducer about one-third from the transom's centerline, ensuring it's parallel to the waterline at speed. The included bracket adjusts for deadrise angles up to 20 degrees, common on many fiberglass hulls. Secure it with stainless hardware to resist corrosion, then route the cable along the hull interior, avoiding heat sources and sharp edges.

Pro tip: Test in a bucket of water before full deployment to confirm operation. Pair it with Furuno's ecosystem or compatible nav systems via the 10-pin plug, and you'll have depth data streaming reliably from day one.

Versatile Performance Across Conditions

In shallow waters under 50 feet, the 200 kHz mode excels with its tight beam, revealing subtle ledges and drop-offs. Switch to 50 kHz for deeper scenarios, where the wider beam captures more seafloor detail without losing sensitivity. Saltwater anglers appreciate the plastic housing's resistance to electrolysis and biofouling, while freshwater users benefit from its sensitivity to soft bottoms like mud or sand.

At planing speeds up to 30 knots, it maintains stable readings thanks to hydrodynamic shaping, outperforming some pod-style alternatives that lift out of the water.

Maintenance for Long-Term Reliability

Keep your Furuno 525-5PWD performing like new with simple care. After each trip, rinse with fresh water to remove salt crystals. Inspect the face for marine growth and gently clean with a soft brush and non-abrasive cleaner. Store the boat with the transducer tilted up if trailering. Over time, this routine extends its life well beyond typical 5-year expectations, saving you replacement hassles.
