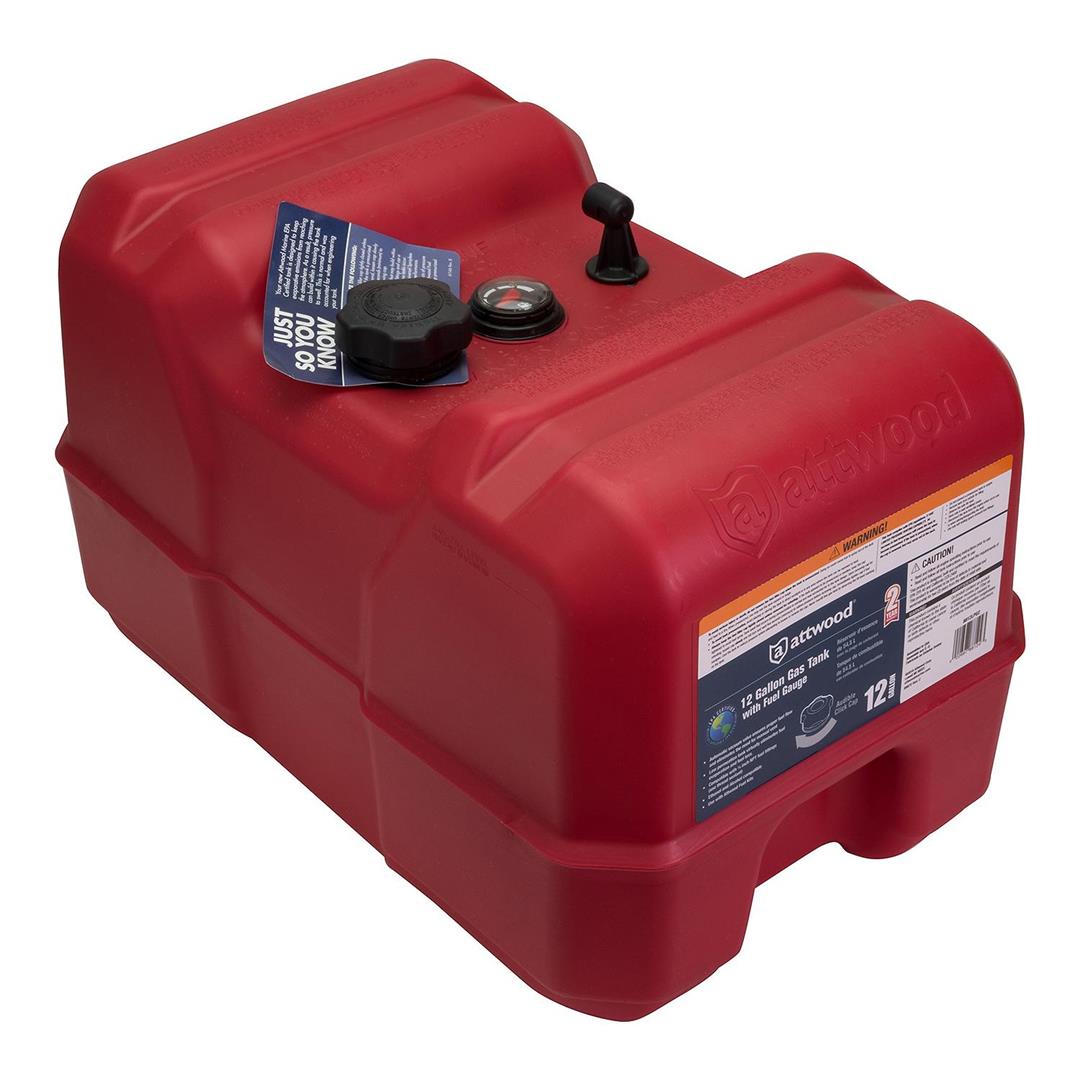

Attwood Portable Fuel Tank - 12 Gallon w/Gauge

EPA Certified multi-layer tank with industry leading fuel flow performance. Designed around the EPA and California Air Resources Board (CARB) regulations. Features an ergonomic design, an optional gauge and a tethered self sealing cap with audible click.

Attwood Marine 8812LPG2 Attributes

• Capacity: 12 Gallon
• Fuel Type: Gas
• Material: Plastic (High Density Polyethylene)/ Ethylene Vinyl Alcohol
• With Shield: No

Attwood Marine 8812LPG2 Features & Benefits

• Automatic Vacuum Valve Ensures Proper Fuel Flow And Eliminates The Need For Manual Vent And Operator Adjustment
• Low-Permeation Tank Virtually Eliminates Fuel Evaporation And Fuel Loss
• Compatible With 1/4 Inch N PT Fuel Fittings
• Ethanol And Alcohol Compatible
• EPA And CARB Certified
• Impact-Resistant, High-Visibility UV Protected Fuel Gauge
• Exclusive No-Joint Injection Molded Tank Interfaces Ensure Leak Free Performance In Severe Conditions
• Fuel Gauge Designed To Resist Fuel Slosh And Lens Scratching That Make Traditional Fuel Gauges Difficult To Read
• Robust Tank Construction The Same As Found In Most Automobile Fuel Systems
• Limited 2 Year Warranty

Attwood Marine 8812LPG2 Warranties

• Attwood Warranty 2009.pdf

Attwood Marine 8812LPG2 Technical Bulletins

• attwood-port-fuel-tank-specs.pdf

Portable Fuel Tank - 12 Gallon with Gauge

Attwood has engineered the industry’s only comprehensive EPA-certified fuel tank-to-engine solution. Tough materials and innovative design stand up to harsh marine conditions. A 12-gallon tank is ideal for pontoon boats where more fuel capacity is needed. Includes gauge.

Features:

• 12 Gallon fuel capacity
• Compatible with 1/4-inch NPT fuel fittings
  • High-Contrast, easy to read gage
• Additional oil and ullage/vapor capacity
• EPA Cap with automatic, high-flow vacuum valve
• UV-grade multi-layer tank material
• Automotive-grade, multi-layer construction withstands the pressure build-up associated with closed fuel systems
• Cap with built-in vacuum valve means no need for manual venting
• Meets EPA and CARB (California Air Resources Board) regulations
• Complies with all ABYC/NMMA requirements for portable marine fuel tanks

Dimensions:

• Length: (inch) 22.75"
• Width: (inch) 14.25"
• Height: (inch) 14.47"

*No fuel line included

SKU: NVN-98378
MPN: 8812LPG2
UPC:
