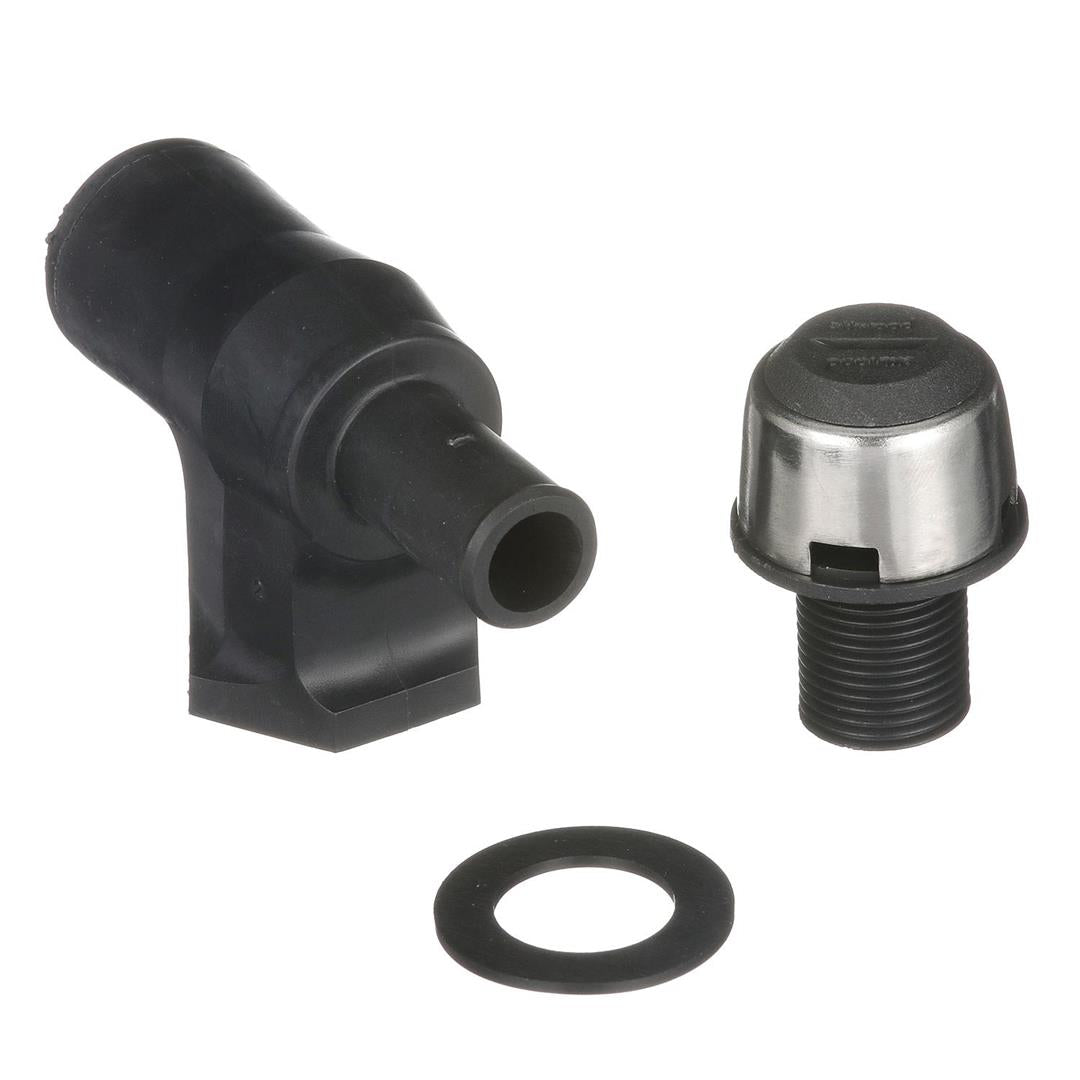

Attwood 90° P-Trap Fuel Tank Vent - Black w/Stainless Steel Trim Cover

The 1670/1671/1674 P-traps have been tested and certified by a third party lab to meet the ABYC weathertight and watertight requirements and ensure no liquid water will reach a fuel vent line, carbon canister or fuel tank. The 1670/1671/1674 P-traps allow air to vent freely during normal sea conditions and washdowns and meet the ISO 10088 requirement for minimum venting area. For 5/8 Inch I.D. hose. Meets ABYC Standard. Cover can be removed for vent inspection, debris removal and fuel system pressure testing. Certified by third party laboratory to meet ABYC H-24 watertight and weathertight specification.

Attwood Marine 664193 Attributes

• Compatibility: 5/8 Inch Inside Diameter Hose
• Style: P-Trap Vent
• Hull Thickness: 9/16 Inch
• Color: Black
• Material: Plastic
• Mounting Type: Surface Mount

Attwood Marine 664193 Features & Benefits

• For 5/8 Inch Inside Diameter Hose
• P-Traps allow Air To Vent Freely During Normal Sea Conditions And Washdowns And Meet The ISO 10088 Requirement For Minimum Venting Area
• Cover Can Be Removed For Vent Inspection, Debris Removal And Fuel System Pressure Testing
• Certified By Third Party Laboratory To Meet ABYC H-24 Watertight And Weathertight Specification
• Limited 2 Year Warranty

Attwood Marine 664193 Warranties

• Attwood Warranty 2009.pdf

90° P-Trap Fuel Tank Vent - Black with Stainless Steel Trim Cover

Composite 90-degree P-trap fuel tank vent 66419-3. These vents help prevent water from entering the fuel tank, yet allow air to vent freely, during normal sea conditions and washdowns.  This eliminates the need for an anti-siphon loop in the vent hose.

Features:

• For 5/8" I.D. hose
• (inch) 3/4" install. hole size
• (inch) 9/16" max. hull thickness
• Vents air from your boat's fuel tank as you fill the fuel tank
• Splash-resistant, corrosion resistant
• Meets ABYC standard

*Compatible with Ethanol blended fuels

SKU: NVN-98340
MPN: 66419-3
