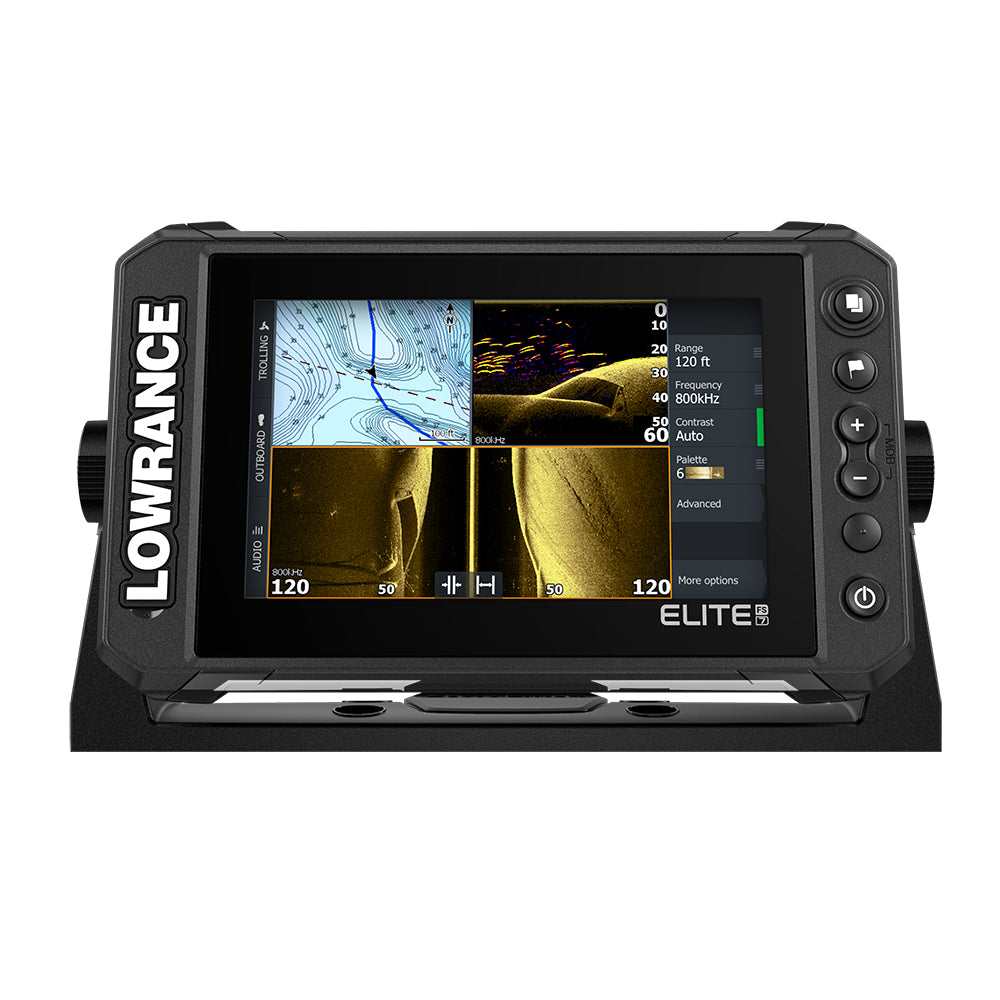

Lowrance Elite FS 7 Chartplotter/Fishfinder - No Transducer
Lowrance Elite FS 7 Chartplotter/Fishfinder - No Transducer — Product description
Step up your angling game with the Lowrance Elite FS 7, a versatile chartplotter and fishfinder designed for serious anglers who demand clarity and precision on the water. This 7-inch powerhouse delivers stunning sonar imagery and detailed mapping without the bulk of unnecessary extras, letting you focus on what matters most: landing that trophy catch. Perfect for kayaks, bass boats, or center consoles, it shines in revealing hidden structures and tracking fish movement effortlessly.
What sets the Elite FS 7 apart is its seamless blend of cutting-edge sonar tech and intuitive controls. Picture this: you're navigating a murky lake at dawn, and suddenly, FishReveal highlights fish targets against structure with crystal-clear contrast. No more guessing— just pure fishing intelligence at your fingertips.
Unlock Superior Fishfinding with Advanced Sonar Capabilities
The Elite FS 7 supports the latest in live sonar innovation, making it ready for ActiveTarget to show real-time fish behavior right on your screen. Pair it with Active Imaging for ultra-detailed views of side and down scans, revealing wrecks, weed beds, and bait schools that traditional sonar misses. CHIRP technology sweeps multiple frequencies simultaneously, delivering sharper fish arches and bottom details across various depths.
- FishReveal for automatic fish ID with color-coded targets
- Compatible with StructureScan 3D for immersive underwater landscapes
- DownScan Imaging for photo-like bottom composition
- SideScan for wide-area coverage up to hundreds of feet
Anglers report doubling their hookups in tournaments thanks to these tools, as they pinpoint exact lure presentation spots. Note: Transducer sold separately, allowing you to choose the perfect match for your hull and fishing style.
Preloaded C-MAP Contour+ Charts: Navigate and Fish Smarter
Hit the water with confidence using high-definition C-MAP Contour+ charts preloaded on over 8,900 U.S. inland lakes. These aren't basic outlines—they feature 1-foot contour lines that expose subtle ledges, humps, and points where big fish stage. Custom depth shading lets you visualize your strike zone instantly, while fishing points of interest guide you to proven hot spots.
Expand your horizons with easy upgrades to full C-MAP, Navionics, or other charts via microSD. Features like Easy Routing auto-plot safe paths around hazards, and Genesis Live lets you create personalized maps on the fly during your trips. It's like having a local guide embedded in your display.
Seamless Connectivity and Boat Integration
Stay connected without cables cluttering your dash. Built-in Ethernet, NMEA 2000, and wireless options link multiple displays, sharing waypoints, sonar returns, and radar data effortlessly. Control Power-Pole anchors for stealthy positioning or Ghost trolling motors with precise touchscreen commands—ideal for solo anglers managing everything from one screen.
Bluetooth keeps your phone paired for software updates and apps, while high-speed 10Hz GPS ensures pinpoint accuracy for trails and return-to spots. Network it with Halo radar for all-weather safety, turning your setup into a full command center.
Rugged Build Meets Daylight-Readable Brilliance
Crafted for real-world abuse, the Elite FS 7 boasts IPX6/IPX7 waterproofing to shrug off rain, spray, and accidental dips. The 7-inch multi-touch display pumps out over 1200 nits of brightness, staying visible even under direct sun—say goodbye to squinting at shadows.
| Category | Details |
|---|---|
| Display Resolution | 800 x 480 pixels with wide viewing angles |
| Operating Temp | -15°C to +55°C (5°F to 131°F) |
| Power Draw | Max 28W (2A at 13.8V DC) |
| Connectivity Ports | Sonar (9-pin), Ethernet, NMEA 2000 Micro-C, microSD |
| Weight | 0.9 kg (1.9 lbs) display only |
Quick install with included bracket, sun cover, and power cable—up and running in under an hour for most setups.
Pro Tips for Maximizing Your Elite FS 7
- Mount transducers low and bubble-free for optimal sonar performance.
- Use split-screen views to monitor live sonar alongside charts during trolling.
- Customize color palettes for low-light conditions to reduce eye strain on long days.
- Share waypoints wirelessly to team boats in tournaments.
Frequently Asked Questions
Does the Lowrance Elite FS 7 include a transducer?
No, this model ships without a transducer, giving you flexibility to select one tailored to your boat and fishing needs, such as Active Imaging or HDI skimmers.
What types of charts come preloaded on the Elite FS 7?
It features C-MAP Contour+ with 1-foot contours on 8,900 U.S. lakes, including depth shading, fishing POIs, and standard navigation data for immediate inland use.
Is the Elite FS 7 compatible with live sonar like ActiveTarget?
Yes, it's fully ready for optional ActiveTarget live sonar and Active Imaging transducers, overlaying real-time fish tracking with traditional sonar views.
Can multiple Elite FS 7 units network together?
Absolutely—Ethernet and NMEA 2000 enable sharing of sonar, charts, and waypoints across displays for multi-station setups.
How bright is the screen for daytime fishing?
With over 1200 nits brightness and anti-glare coatings, the 7-inch touchscreen remains sharply visible in full sunlight.
What accessories are included in the box?
You'll get the display unit, sun cover, mounting bracket with knobs, power cable, and fuse with holder—everything for a straightforward install.
Does it support trolling motor and anchor control?
Yes, full touchscreen integration for Power-Pole anchors and Ghost trolling motors keeps your focus on fishing, not fiddling with remotes.
Elite FS 7 Chartplotter/Fishfinder - No Transducer
The Elite Fishing System (FS) combines the power of Lowrance’s proven and newest fishfinding tools with a more affordable display that’s easier to use and install. From ActiveTarget™ live sonar and extreme high-resolution Active Imaging™ with Lowrance CHIRP sonar, SideScan and DownScan Imaging™ to preloaded C-MAP® Contour+ Fishing Maps, Elite FS gives you all the tools you need to find and catch more fish.
Key Features
- 7" Display
- ActiveTarget™ Live Sonar ready with optional ActiveTarget™ live sonar and transducer (000-15593-001)
- Transducer Required
- FishReveal™
- Preloaded C-MAP® Contour+ with 1-foot contours on 8,900 lakes
- Other mapping options including C-MAP, Navionics® and more
- C-MAP® Easy Routing, Navionics® Autorouting capability
- C-MAP Genesis Live onscreen mapping
- High-resolution multi-touch touchscreen
- Integrated wireless, NMEA 2000® and Ethernet connectivity
- Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor
C-Map Contour+ Mapping Preloaded
You will spend more time trying to catch fish and less time trying to find them with the high-resolution detail of the C-MAP Contour+ charts built into Elite FS displays. From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high-resolution 1-foot contours on 8,900 lakes.
Key Features
- Custom depth shading
- Easy routing, Lowrance presentation for icons
- High-Resolution, Bathymetric 1-foot contours on 8,900 U.S. lakes
- Standard navigation data
- Fishing POIs
From Active Target real-time sonar and ultra-high resolution active imaging equipped with Lowrance CHIRP sonar, Sides can and DownScan Imaging to pre-installed C-MAP Contour + fishing maps, Elite FS provides you with discovering and catching more fish All the tools needed for class. The active target real-time sonar is ready. Active imaging 3 in 1. Fish noodles. The pre-loaded C-MAP Contour+ has a 1-foot-high contour line on 8,900 lakes, and provides map options, including C-MAP, Navionics, etc. C-MAP easy wiring, Navionics automatic wiring function. Real-time mapping of C-MAP Genesis on the screen. High-resolution multi-touch screen.
SKU: NVN-86349
MPN: 000-15703-001
UPC: 9420064117055
Technical specifications
| Brand | Lowrance |
| Model | Lowrance Elite FS 7 Chartplotter/Fishfinder - No Transducer |
| SKU / MFR# | 86349 |
