Lowrance ActiveTarget™ Live Sonar Transducer
Lowrance ActiveTarget™ Live Sonar Transducer — Product description
Transform Your Fishing Game with Real-Time Fish Tracking
Imagine watching fish dart around structure in real time, reacting instantly to your bait as it drops through the water column. That's the edge provided by advanced live sonar technology, which delivers crystal-clear, high-resolution imagery right on your display. Unlike static sonar snapshots that leave you guessing, this system lets you observe fish behavior live—whether they're schooling tightly around cover or scattering at your approach. Anglers report catching more fish because they can fine-tune presentations on the fly, switching lures or depths based on actual fish responses rather than hunches.
In busy fishing spots with heavy cover like weed beds or submerged timber, spotting active fish becomes intuitive. You'll see baitfish balls swirling ahead, predatory bass ambushing from below, or crappie suspending mid-water, all without leaving your boat position. This level of detail sharpens your strategy, boosting confidence during tournaments or casual outings.
Versatile Viewing Modes for Every Scenario
One transducer unlocks three dynamic perspectives, adapting to your fishing style:
- Forward View: Peer ahead up to 100 feet or more, tracking fish swimming toward or away from your boat—ideal for spotting incoming schools during trolling.
- Down View: Monitor directly beneath, perfect for vertical jigging or watching your lure's descent and fish strikes in deep water.
- Scout Mode: Get a panoramic overhead scan in front, revealing vast areas of structure and fish activity. It's a game-changer for quickly locating hot spots teeming with bait and gamefish.
Switch modes seamlessly to match conditions, from shallow bays to offshore wrecks, ensuring you're always one step ahead of the fish.
Rugged Build for Demanding Waters
Engineered for reliability on the water, this setup withstands harsh marine environments while delivering consistent performance. Key specs include:
| Category | Details |
|---|---|
| Waterproof Rating | IP67 – Fully protected against dust and immersion up to 1 meter |
| Operating Temperature | 5°F to 131°F (-15°C to 55°C) |
| Power Requirements | 10.8–31.2V DC, max 1.5A draw |
| Beam Angle | 18° x 135° for wide coverage |
| Cable Lengths | Transducer: 25 ft; Ethernet: 15 ft |
Compact dimensions ensure easy integration: processor module measures about 8.6" x 7.6" x 2.9", while the transducer stays sleek at roughly 5.9" x 3.2" x 2.3".
Pro Angler Strategies to Maximize Performance
Seasoned bass pros use live sonar to dial in patterns faster. In summer, scout for shad balls near points to predict bass ambushes. During spawn, forward view reveals bedding fish without spooking them. Adjust sensitivity for murky water—higher settings cut through sediment for clearer arches representing individual fish.
For walleye or stripers, down view shines in current, showing lure fall and hooksets. Combine with side imaging for a full 360° awareness, turning average days into limits.

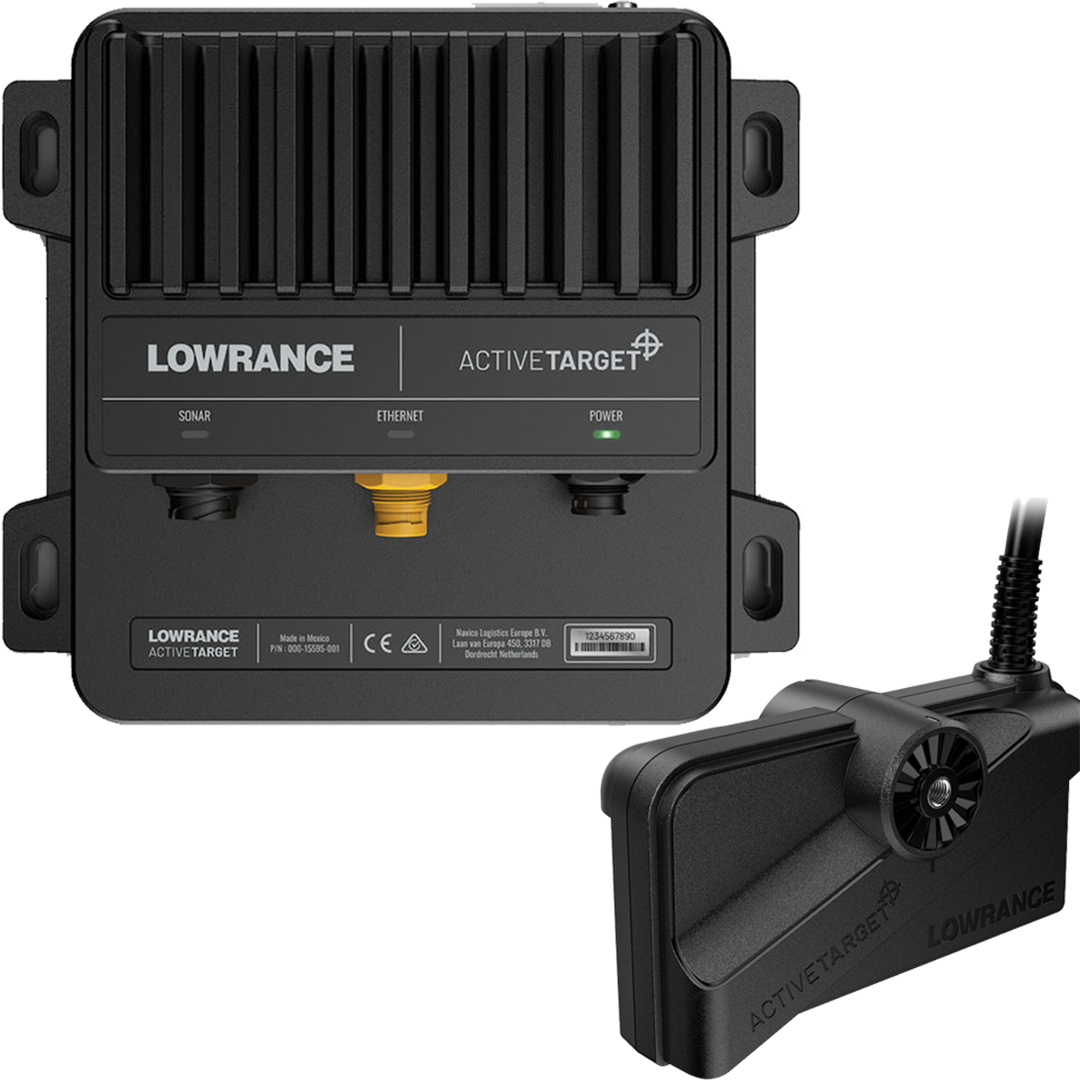

Complete Kit for Quick Setup
- Live sonar black box processor
- High-res transducer
- Three trolling motor mount kits
- Power and Ethernet cables
Everything you need for plug-and-play integration with supported displays—no extras required to start scanning.
Frequently Asked Questions
What makes live sonar different from traditional 2D sonar?
Live sonar provides motion video-like imagery of fish and structure in real time, unlike 2D sonar's static arches. You see fish swimming, turning, and reacting, removing guesswork from your reads.
Which Lowrance displays work with this system?
It's designed for HDS LIVE, HDS Carbon, and Elite FS series chartplotters via Ethernet connection, overlaying live views on your maps effortlessly.
How far can the forward view reach?
Range varies by water clarity and depth but typically extends 80-120 feet ahead, capturing fish movements well before they reach your boat.
Is it suitable for saltwater fishing?
Yes, the IP67 rating handles saltwater splashes and submersion, with anglers using it successfully for offshore tuna, redfish, and snook pursuits.
Can I use multiple units on one boat?
Supported displays allow multiple transducers networked together, enabling coverage from bow and stern for comprehensive boat-wide scanning.
How do I clean and maintain the transducer?
Rinse with fresh water after use, avoiding high-pressure washers. Inspect mounts seasonally and secure cables to prevent snags.
Does Scout mode work in shallow water?
Absolutely—it's effective in as little as 2-3 feet, great for flats fishing or revealing hidden structure in skinny water.
Lowrance ActiveTarget Sonar SystemIncludes Processor, Transducer, Mounts and CablingWatch high-resolution images of fish movements -- tracking them as they swim in and around cover with ActiveTarget Live Sonar. When you see how fish are located near structure and watch them respond to your lure, you will know if your current technique is working, or if it's time to make an adjustment -- information that is harder to get from traditional sonar or structure imaging.Track fish and your presentation with high-resolution views in front or below your boat, or use the Scout mode to see an ultra-wide, overhead view of structure and fish activity in front of your boat, perfect for finding bait balls and big schools of fish.ActiveTarget is compatible with Lowrance HDS LIVE, HDS Carbon and Elite FS fishfinder/chartplotters.
Lowrance Electronics 0015593001 Attributes
- Display Size: Without Display
- Display Resolution: Without Display
- Overall Dimensions: 8.63 Inch Length X 7.56 Inch Width X 2.86 Inch Height
- Used To: Use To Find Fish
- Interface: Ethernet
- Waterproof: IP67 Waterproof Rating
- Power Supply Voltage: 10.8 To 31.2 Volt
- Operating Temperature Range: 5 To 131 Degree Fahrenheit
Lowrance Electronics 0015593001 Features & Benefits
- Get three views from one transducer: Forward view ahead of your boat, Down view below your boat or Scout view -- an ultra-wide, overhead view in front of your boat
- See how fish are positioned in and around structure and watch them respond to your lure as it happens
- High-resolution live images remove the guesswork from sonar interpretation
- Know whether fish are active
- 1 Year + 4 additional years of upgrade options, totaling 5 years
ActiveTarget™ Live Sonar with Transducer
Watch high-resolution images of fish movements – tracking them as they swim in and around cover with ActiveTarget™ Live Sonar. When you see how fish are located near structure and watch them respond to your lure, you will know if your current technique is working, or if it’s time to make an adjustment – information that is harder to get from traditional sonar or structure imaging.
Track fish and your presentation with high-resolution views in front or below your boat, or use the Scout mode to see an ultra-wide, overhead view of structure and fish activity in front of your boat, perfect for finding bait balls and big schools of fish.
Features:
- Get three views from one transducer: Forward view ahead of your boat, Down view below your boat or Scout view – an ultra-wide, overhead view in front of your boat
- See how fish are positioned in and around structure and watch them respond to your lure as it happens
- High-resolution live images remove the guesswork from sonar interpretation
- Know whether fish are active
- Compatible with HDS LIVE, HDS Carbon and Elite FS
Comes with:
ActiveTarget transducer Only - 000-15594-001
activeTarget Black Box Only - 000-15595-001
activeTarget Trolling Motor shaft Mount - 000-15770-001
ActiveTarget Trm FWD/DOWN Mount - 000-15771-001
ActiveTarget Trolling Motor Scout Mount - 000-15772-001
Power Cable 4PIN - 000-00128-001
With the new ActiveTarget Live sonar, you can see high-resolution images of fish swimming around the structure and responding to your temptations. ActiveTarget Live Sonar has forward, down or scouting views that can scan the position of the fish and easily track its movement. Understand the relationship between the fish and the structure and the response to the bait, so you can make the correct adjustments to make them attack.
SKU: NVN-86170
MPN: 000-15593-001
UPC: 9420064115457
Technical specifications
| Brand | Lowrance |
| Model | Lowrance ActiveTarget™ Live Sonar Transducer |
| SKU / MFR# | 86170 |
