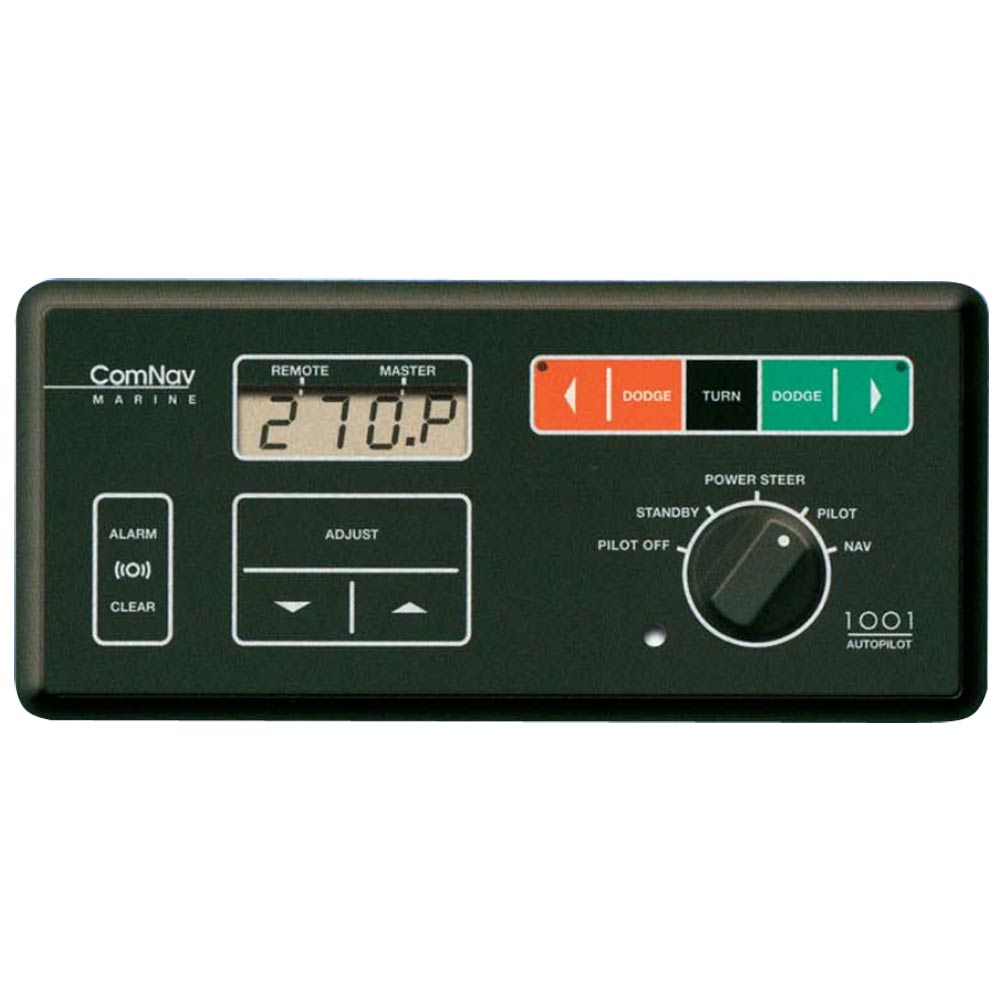

ComNav 1001FC Autopilot - Fluxgate Compass w/o Pump

ComNav 1001FC AutopilotWith Fluxgate CompassThe 1001 Autopilot from ComNav is designed to work on a wide variety of boats, from small pleasure craft to massive workboats.Included with the pilot is a self-compensating fluxgate compass, and for those who require the greatest of steering accuracy, an optional rate gyro is available.The 1001 Autopilot is capable of being used with most any type of steering system, and is especially useful when there is a need to retrofit to an older system.Using one of several available drive boxes (sold separately) the 1001 can be used with mechanical, hydraulic, or constant-running (solenoid) steering systems.Since their introduction in 1982, ComNav Autopilots have gained a reputation for top performance and reliability in even the harshest sea conditions.Built-in diagnostics, self test, visual and audible alarms, plus a three year extended warranty make the 1001 one of the most reliable autopilots on the market today.

Comnav 10040003 Attributes

• Compass: Fluxgate (PN: 20320004); optional rate compass
• Control Type: Pushbuttons
• Dimensions: Control head: 8.0"W x 3.26"H x 3.6D
• Display: 2" LCD
• Drive Unit: Not Included
• Interface: 1 ea. NMEA 0183 in/out
• Processor: Contained in the control head; optional motor drive controller required
• Remote Options: Optional second station, rudder angle indicator, jog lever
• Rudder Feedback: Rotary (PN: 20330008)
• Steering Type: Hydraulic or constant-running (solenoid)
• Vessel: Mid-sized powerboats

Comnav 10040003 Features & Benefits

• Three turn functions: Continuous, Emergency and "U" Turns
• Water resistant Control Head
• Ability to add a full-function second station or remote control
• Automatic trim;Adjustable yaw, turn rate and rudder settings
• Easy course changes, from one degree to major changes
• Fast and Slow Modes may be automatically implemented by Nav device
• Ten selectable steering parameters for both Fast and Slow Modes
• Digital display of rudder angle; Nav mode accepts NMEA 0183 information
• Output for optional analog rudder angle indicator, up to 4 stations
• Backlit LCD display for comfortable viewing, Adjustable brightness and contrast

1001 Autopilot
State-of-the-art Reliable Autopilot

Features:

• Fixed station autopilot

• Suitable for mid-sized vessels, in the range of 30 to 60 feet / 10 to 20 meters

• Three "Turn" functions, Continuous, Emergency and "U" Turns

• Compatible with most standard types of steering systems

• Water resistant Control Head

• Automatic trim

• Adjustable yaw, turn rate and rudder settings

• Easy course changes, from one degree to major changes

• "Nav" mode accepts NMEA 0183 information

• Fast and Slow Modes may be automatically implemented by Nav device

• Ten selectable steering parameters for both Fast and Slow Modes

• Digital display of rudder angle

• Output for optional analog rudder angle indicator, up to 4 stations

• Backlit LCD display for comfortable viewing

• Adjustable brightness

• Built-in diagnostics and self tests plus visual and audible alarms

• Easy to install and fully compatible with your onboard instruments

• Extended 3 year warranty

• Meets CE requirements

• Reliable in any sea and weather conditions

""
SKU: NVN-48567
MPN: 10040003
UPC:
