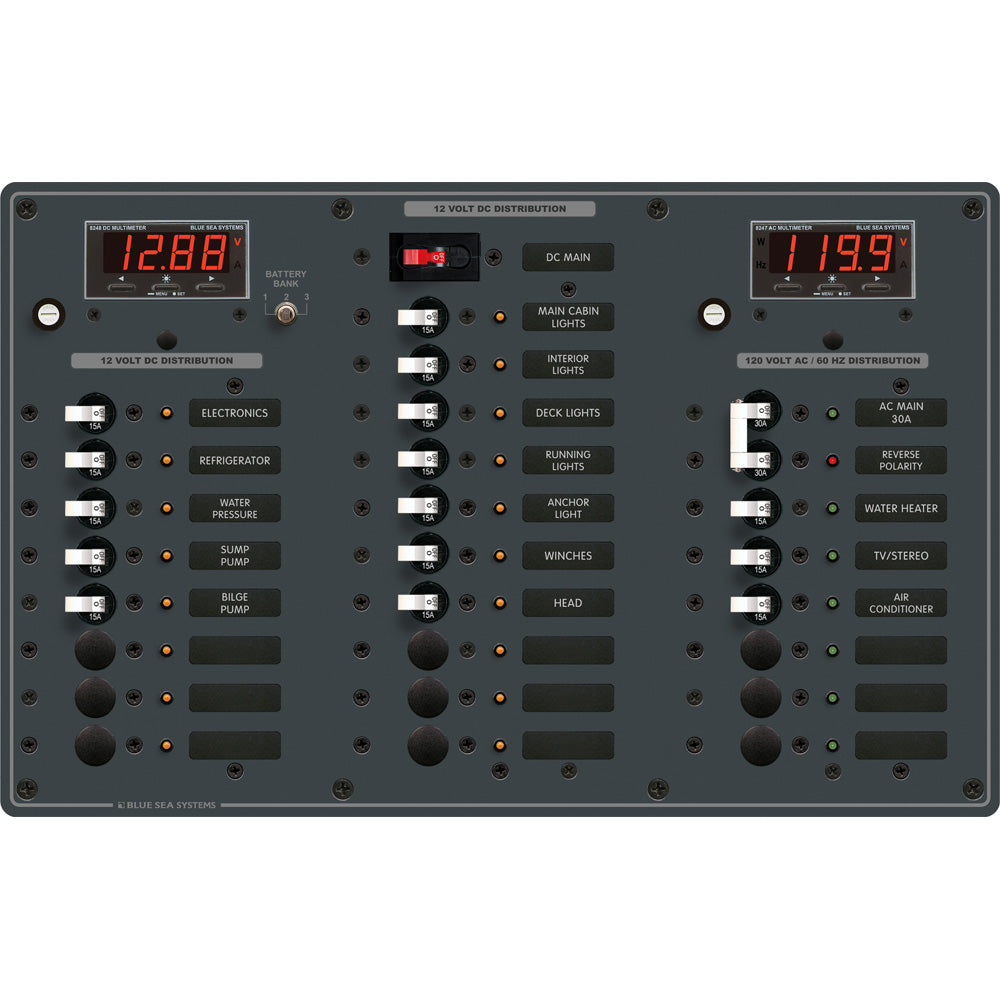

Blue Sea 8408 AC Main + 6 Positions / DC Main + 18 Positions

AC Main + 6 Positions / DC Main + 18 Positions

Installed AC Breakers

(1) 30A

(3) 15A

(1) 8247 AC Digital Multimeter w/ Alarm

Installed DC Breakers

(1) 100A Main

(12) 15A

(1) 8248 DC Digital Multimeter w/ Alarm

• 120V AC

• 12/24V DC

• All AC and DC buses installed and fully pre-wired

• Label backlighting pre-installed

• ON - indicating LEDs installed in all circuit positions

• 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch

• Maximum panel amperage - 100 Amperes AC, 50 Amperes DCMIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Detailed installation instructions and cutout template included

• Countersunk mounting holes throughout

• Includes set of 60 common AC and DC Large Format Labels

• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

"Blue Sea systems 120v ac\/dc toggle circuit breaker panels main + 6 positions\/dc 18 . Blue sea systems designs innovative, reliable, superior quality electrical system products. Ac\/dc combination circuit breaker panels: traditional metal panels incorporate ac and dc switching, circuit protection, source selection and monitoring into a single distribution panel. Features all ac and dc buses installed, fully pre-wired. Countersunk mounting holes throughout. Maximum panel amperage 100 amperes dc\/50 amperes ac. Backlit label positions. Model specific features: analog voltmeters and analog ammeters. Digital multimeter component. References ready for installation of optional ac isolation cover \"on\" indicating leds installed in all circuit positions. Owner upgradable to 24 volt dc with 8240, 18-32 volt dc voltmeter. A-series toggle circuit breakers. C-series toggle circuit breakers. Included over 500 individual labels available."
SKU: NVN-20832
MPN: 8408
UPC: 632085084080
