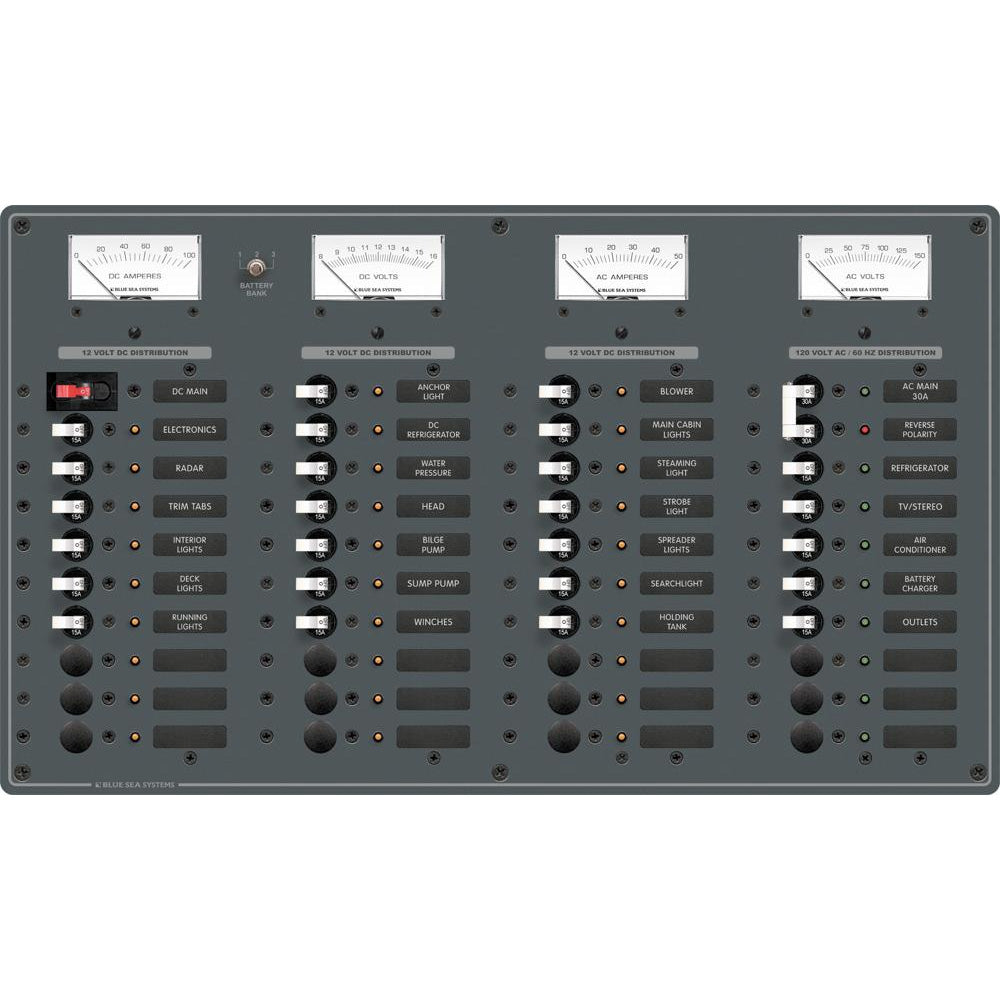

Blue Sea 8195 AC Main + 8 Positions / DC Main + 29 Positions

AC Main + 8 Positions / DC Main + 29 Positions

Switches Color: White

Installed AC Breakers

(1) 16A

(5) 8A

Installed DC Breakers

(1) 100A Main

(20) 15A

• Voltage 230v - 12V DC

• All AC and DC buses installed and fully pre-wired

• Label backlighting pre-installed

• ON - indicating LEDs installed in all circuit positions

• 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch

• Maximum panel amperage - 100 Amperes AC, 50 Amperes DC

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The traditional 230V AC/DC main panel provided by Blue Sea Systems has 8 AC and 29 DC positions (8195). This product is very suitable for use in all marine applications. It will satisfy the demand...
SKU: NVN-20722
MPN: 8195
UPC: 632085081959
