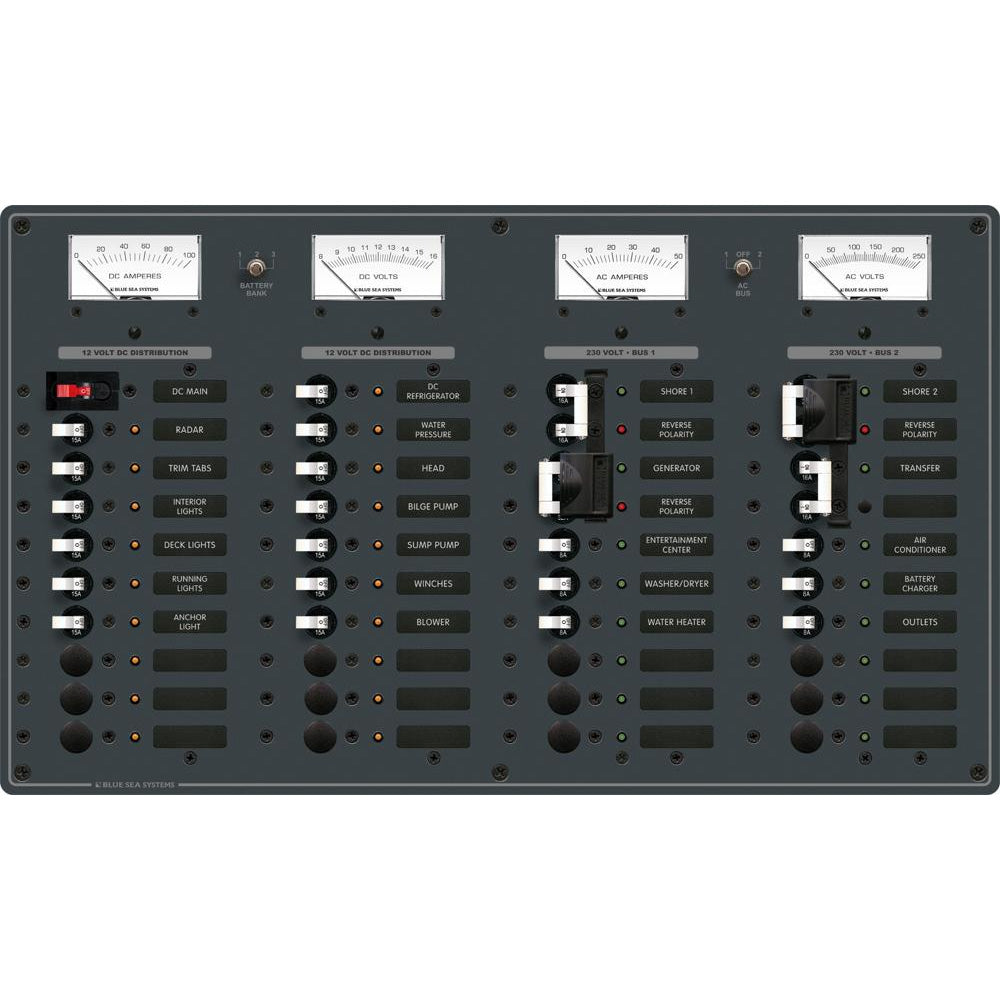

Blue Sea 8186 AC 2 Sources + 12 Positions/DC Main + 19 Positions

AC 2 Sources + 12 Positions / DC Main + 19 Positions

Switches Color: White

Installed AC Breakers

(3) 16A

(1) 32A

(6) 8A

Installed DC Breakers

(1) 100A Main

(13) 15A

• Voltage 230v - 12V DC

• All AC and DC buses installed and fully pre-wired

• Label backlighting pre-installed

• ON - indicating LEDs installed in all circuit positions

• 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch

• Maximum panel amperage - 100 Amperes AC, 50 Amperes DC

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The traditional 230V AC/DC main panel provided by Blue Sea Systems has 12 AC and 19 DC positions (8186). This product is very suitable for use in all marine applications. It will satisfy the demand...
SKU: NVN-20721
MPN: 8186
UPC: 632085081867
