Lowrance Elite FS 7 Chartplotter/Fishfinder with HDI Transom Mount Transducer

Unlock Smarter Fishing with Advanced Sonar and Mapping

Imagine gliding across the water, pinpointing fish with crystal-clear imagery while navigating unfamiliar waters effortlessly. The Elite FS 7 transforms every outing into a targeted hunt, blending proven CHIRP sonar with next-level imaging options. Anglers rave about how its intuitive interface cuts through the guesswork, letting you focus on the thrill of the catch. Whether you're chasing bass in shallow lakes or tracking schools offshore, this compact powerhouse delivers pro-grade performance without the complexity.

Superior Sonar for Unmatched Fish Detection

At the heart of the Elite FS 7 lies FishReveal technology, which overlays CHIRP sonar data directly onto DownScan Imaging. This means clearer fish separation from structure—no more squinting at ambiguous blips. Paired with the included HDI transom-mount transducer (83/200/455/800kHz), it scans wide areas with medium and high CHIRP frequencies for detailed bottom contours and baitfish balls. Ready for upgrades like Active Imaging or ActiveTarget live sonar, it shows real-time fish movements around your boat, giving you an edge in competitive waters.

• CHIRP SideScan and DownScan for panoramic underwater views
• FishReveal for instant fish ID amid weeds and rocks
• Supports high-res Active Imaging transducers for 3-in-1 clarity

Precision Mapping That Finds the Hotspots

Preloaded C-MAP Contour+ charts cover thousands of U.S. lakes with 1-foot bathymetric contours, highlighting ledges, humps, and channels where fish hide. Customize depth shading to match conditions, and use Easy Routing for automatic path planning around no-go zones. Genesis Live lets you create real-time custom maps right from your sonar data, perfect for exploring new spots or sharing with buddies.

• 8,900+ lakes with high-res detail
• Fishing POIs like wrecks and reefs
• Navionics Autorouting compatibility for seamless upgrades

Effortless Connectivity and Control

Stay linked with integrated NMEA 2000, Ethernet, and wireless options. Network multiple units to share waypoints, sonar views, and radar data. Control Power-Pole anchors or Ghost trolling motors directly from the touchscreen—no extra remotes needed. Bluetooth keeps your phone paired for software updates and app integration, ensuring you're always running the latest features.

Rugged Build for Real-World Waters

Built to withstand splashes and spray with IPX7 waterproofing, this 7-inch display shines at over 1200 nits—even under direct sun. The flush or gimbal mount fits tight dashboards, and its lightweight 1.9 lb design makes setup straightforward. Operating from 5°F to 131°F, it's ready for dawn patrols or summer scorcher trips.

What's Packed Inside for Quick Setup

• Elite FS 7 display unit
• HDI Skimmer transducer with transom mount
• Power cable, fuse, and holder
• Gimbal bracket with knobs and suncover
• MicroSD card slot for charts and data

Frequently Asked Questions

Does the Elite FS 7 support live sonar like ActiveTarget?

Yes, it's fully compatible with ActiveTarget live sonar and Active Imaging transducers via the sonar port. Just add the optional module for real-time views of fish chasing bait.

What kind of charts come preloaded on this fishfinder?

C-MAP Contour+ with 1-foot contours on over 8,900 U.S. lakes, plus standard navigation aids and fishing points of interest for inland and coastal use.

Is the touchscreen responsive in sunlight?

Absolutely—boasting 1200+ nits brightness and wide viewing angles (up to 70° left/right), it remains sharp and multitouch-responsive even on bright days.

Can I network this with other Lowrance units?

Yes, via Ethernet, NMEA 2000, and wireless sharing. Share sonar, waypoints, and charts across multiple displays for bigger boat setups.

What's the transducer frequency range?

The included HDI transom transducer handles 83/200kHz CHIRP for depth and coverage, plus 455/800kHz for DownScan detail.

How many waypoints can it store?

Up to 3,000 waypoints, with microSD expansion for unlimited storage of routes, trails, and custom maps.

The new Elite ™ Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools including ActiveTarget ™ live sonar, Active Imaging ™ and preloaded C-MAP (R) Contour ™Plus charts to help you make the most of your time on the water.

Lowrance Electronics 0015696001 Attributes

• Display Size: 7 Inch LCD
• Display Resolution: 800 X 400 Pixels
• Sonar Compatibility: CHIRP SideScan And Down Scan With Support For ActiveImaging And Active Target Sonar
• With Built-In GPS: Yes
• Mount Type: Dash Flush Mount/ Gimbal Bracket Mount
• Used To: To Find Fish, Mark And Return To Hot Spots, Docks And Ramps
• Interface: Touchscreen
• Waterproof: IPX7 Rating Waterproof
• Power Supply Voltage: 12 Volt
• Point Of Interest: 3000 Waypoints
• Weight: 1.9 Pound
• Screen Brightness: 1200 Nits
• Viewing Angle: 50 Degree Top/ 60 Degree Bottom/ 70 Degree Left/ Right
• SD Card Storage: Micro SD Card
• Fuse Rating: 3 Amp
• Operating Temperature Range: 5 To 131 Degree Fahrenheit
• Compass Safe: 12 Inch
• Cartography Included: C-MAP Contour + (US Models) Navionics Basemap (AMER, AUS/NZ And Row Models)

Lowrance Electronics 0015696001 Features & Benefits

• Fish Are Easier To Find And Easier To Identify With FishReveal, Which Combines On One Screen The Proven Performance Of Lowrance Chirp Sonar
• High-Resolution Multi-Touch Touchscreen
• Features HDI Transducer With Lowrance CHIRP Sonar And DownScan Imaging ™
• C-MAP ® Easy Routing, Navionics ® Autorouting Capability
• C-MAP Genesis Live Onscreen Mapping
• Integrated Wireless, NMEA 2000 ® And Ethernet Connectivity
• Full Touchscreen Control Of Power Pole ® Anchors And Ghost ® Trolling Motor
• Limited 1 Year Warranty

Lowrance Electronics 0015696001 Installation Instructions

• Elite-FS_IG_EN_988-12758-002_w.pdf

Lowrance Electronics 0015696001 Technical Bulletins

• Elite-FS_7_MT_988-12761-001_w.pdf
• ELITE-FS_22-1_ADD_EN_988-13022-001_w.pdf
• Elite-FS_QG_multilingual_988-12759-001_w.pdf
• ELITE-FS_UM_EN_988-12757-001_w.pdf

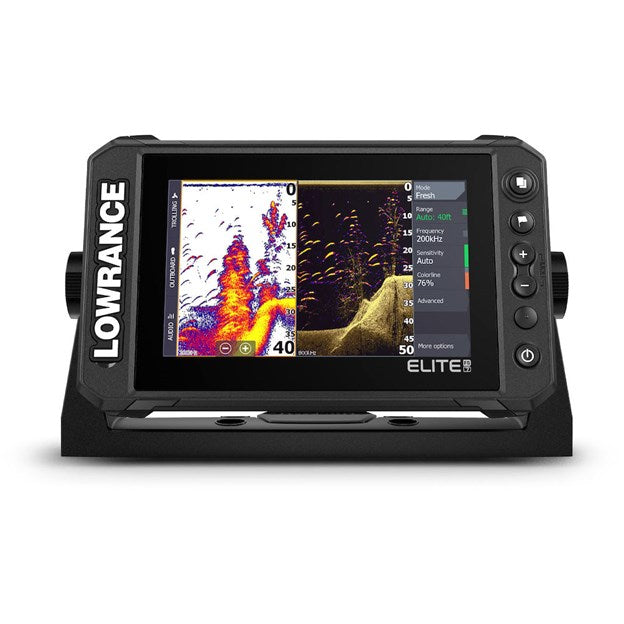

Elite FS 7 Chartplotter/Fishfinder with HDI Transom Mount Transducer

The Elite Fishing System (FS) combines the power of Lowrance’s proven and newest fishfinding tools with a more affordable display that’s easier to use and install. From ActiveTarget™ live sonar and extreme high-resolution Active Imaging™ with Lowrance CHIRP sonar, SideScan and DownScan Imaging™ to preloaded C-MAP® Contour+ Fishing Maps, Elite FS gives you all the tools you need to find and catch more fish.

Key Features

• 7" Display
• ActiveTarget™ Live Sonar ready with optional ActiveTarget™ live sonar and transducer (000-15593-001)
• Includes HDI transducer with Lowrance CHIRP and DownScan Imaging™
• FishReveal™
• Preloaded C-MAP® Contour+ with 1-foot contours on 8,900 lakes
• Other mapping options including C-MAP, Navionics® and more
• C-MAP® Easy Routing, Navionics® Autorouting capability
• C-MAP Genesis Live onscreen mapping
• High-resolution multi-touch touchscreen
• Integrated wireless, NMEA 2000® and Ethernet connectivity
• Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor

C-Map Contour+ Mapping Preloaded

You will spend more time trying to catch fish and less time trying to find them with the high-resolution detail of the C-MAP Contour+ charts built into Elite FS displays. From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high-resolution 1-foot contours on 8,900 lakes.

Key Features

• Custom depth shading
• Easy routing, Lowrance presentation for icons
• High-Resolution, Bathymetric 1-foot contours on 8,900 U.S. lakes
• Standard navigation data
• Fishing POIs

From Active Target real-time sonar and ultra-high resolution active imaging equipped with Lowrance CHIRP sonar, Sides can and DownScan Imaging to pre-installed C-MAP Contour + fishing maps, Elite FS provides you with discovering and catching more fish All the tools needed for class. The active target real-time sonar is ready. Active imaging 3 in 1. Fish noodles. , And map options, including C-MAP, Navionics, etc. C-MAP is easy to wire, and Navionics has an automatic wiring function. C-MAP Genesis real-time mapping on the screen. High-resolution multi-touch screen.
SKU: NVN-86348
MPN: 000-15696-001
UPC: 9420064116980
