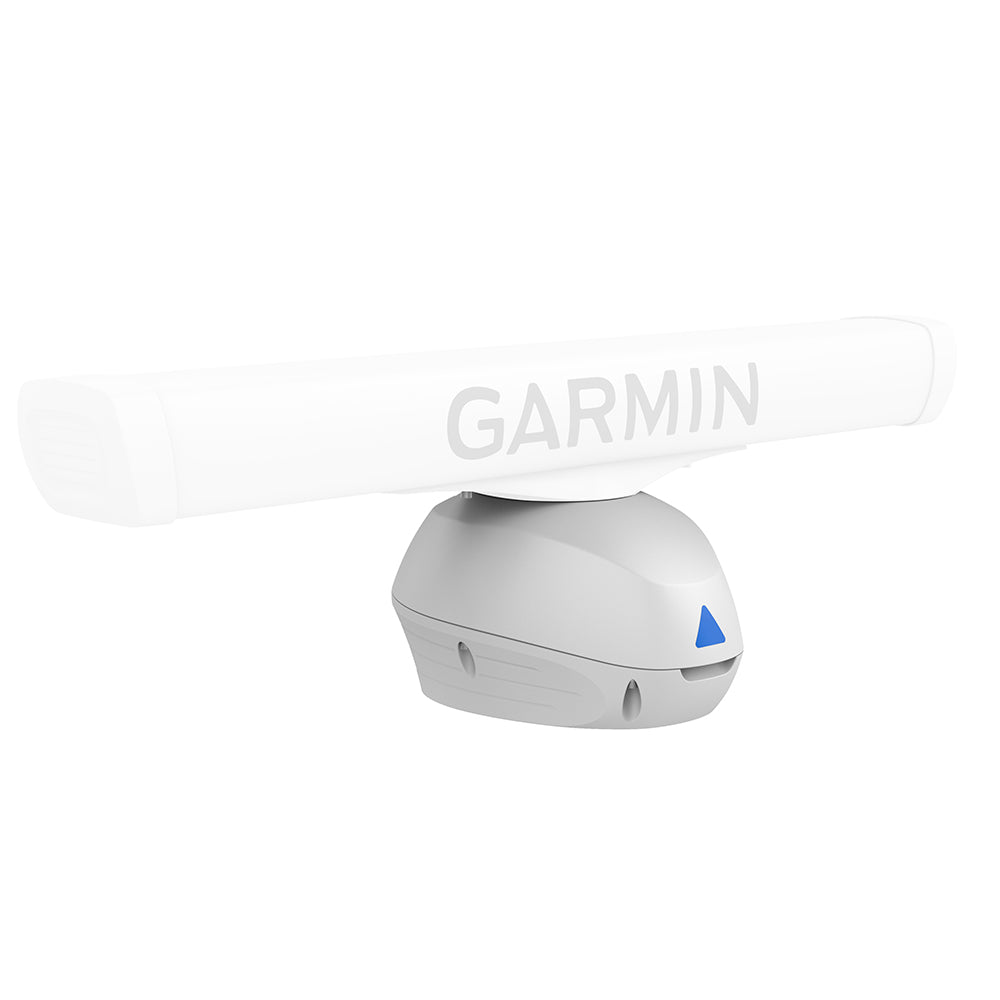

Garmin GMR Fantom 12X Pedestal Only

Enhance Your Vessel's Radar Capabilities with the GMR Fantom 12X Pedestal

Navigating open waters demands reliability and precision, especially when visibility drops or hazards lurk just beyond sight. The GMR Fantom 12X pedestal serves as the robust foundation for your radar system, designed to pair seamlessly with compatible GMR Fantom 4-foot or 6-foot arrays. This pedestal-only component delivers the stable, high-speed rotation essential for real-time marine radar imaging, giving skippers confidence in crowded harbors, foggy conditions, or nighttime passages.

Crafted from marine-grade materials, it withstands harsh saltwater environments while ensuring smooth operation. Whether you're outfitting a sportfishing boat, yacht, or patrol vessel, this pedestal elevates your situational awareness without the bulk of traditional magnetron radars.

Key Features for Superior Performance

• High-Speed Rotation: Achieves up to 48 RPM for rapid target refreshes, minimizing blind spots and improving collision avoidance.
• Solid-State Pulse Compression Technology: When matched with a Fantom array, offers instant-on capability—no warmup delays—and exceptional short-range detection down to 20 feet.
• Compact Pedestal Design: Low-profile mount reduces wind resistance and simplifies deck installation, ideal for vessels with limited space.
• Weatherproof Build: IPX6-rated for rain, spray, and corrosive elements, ensuring longevity on extended voyages.
• Plug-and-Play Integration: Connects effortlessly to Garmin chartplotters via Garmin Marine Network for overlay on charts, AIS, and sonar.

These attributes make it a go-to choice for boaters prioritizing performance over outdated dome radars, delivering sharper echoes and dual-range functionality for monitoring both distant weather cells and nearby obstacles.

Perfect Compatibility and Versatile Applications

Exclusively engineered for the GMR Fantom series, this 12X pedestal mates with 4-foot or 6-foot open arrays to customize range and beam width to your boating style. Pair a 4-foot array for agile coastal cruising with a narrower 5.1° horizontal beam, or opt for the 6-foot version's broader coverage on offshore adventures.

Ideal scenarios include:

• Foggy inlets where pinpoint target separation prevents groundings.
• Fishing trips needing bird mode to locate bait schools from afar.
• Competitive racing, tracking competitors and marks with MARPA functionality.

Its modular nature allows easy array swaps, future-proofing your setup as needs evolve.

Installation Insights for Seamless Setup

Mounting the pedestal requires careful planning for optimal radar horizon. Select a foredeck or flybridge location with minimal obstructions—aim for at least twice the mounting height clearance forward. Use the included template for precise hole drilling, securing with stainless bolts and sealing with marine sealant.

Pro tips:

• Route cables through the pedestal's integrated conduit to protect from chafe.
• Calibrate tilt angle (typically 5-10°) post-install to match your hull's attitude.
• Test rotation freely before final torquing to avoid binding.

Most installations take under two hours for experienced riggers, blending durability with user-friendly engineering.

Maintenance and Longevity Tips

To maximize lifespan, rinse the pedestal with fresh water after saltwater exposure and inspect bearings annually for smooth operation. Lubricate pivot points sparingly with marine grease, avoiding excess that attracts grime. In storage, cover to shield from UV degradation.

Regular software updates via your Garmin display keep pulse compression algorithms sharp, enhancing clutter rejection in choppy seas.
