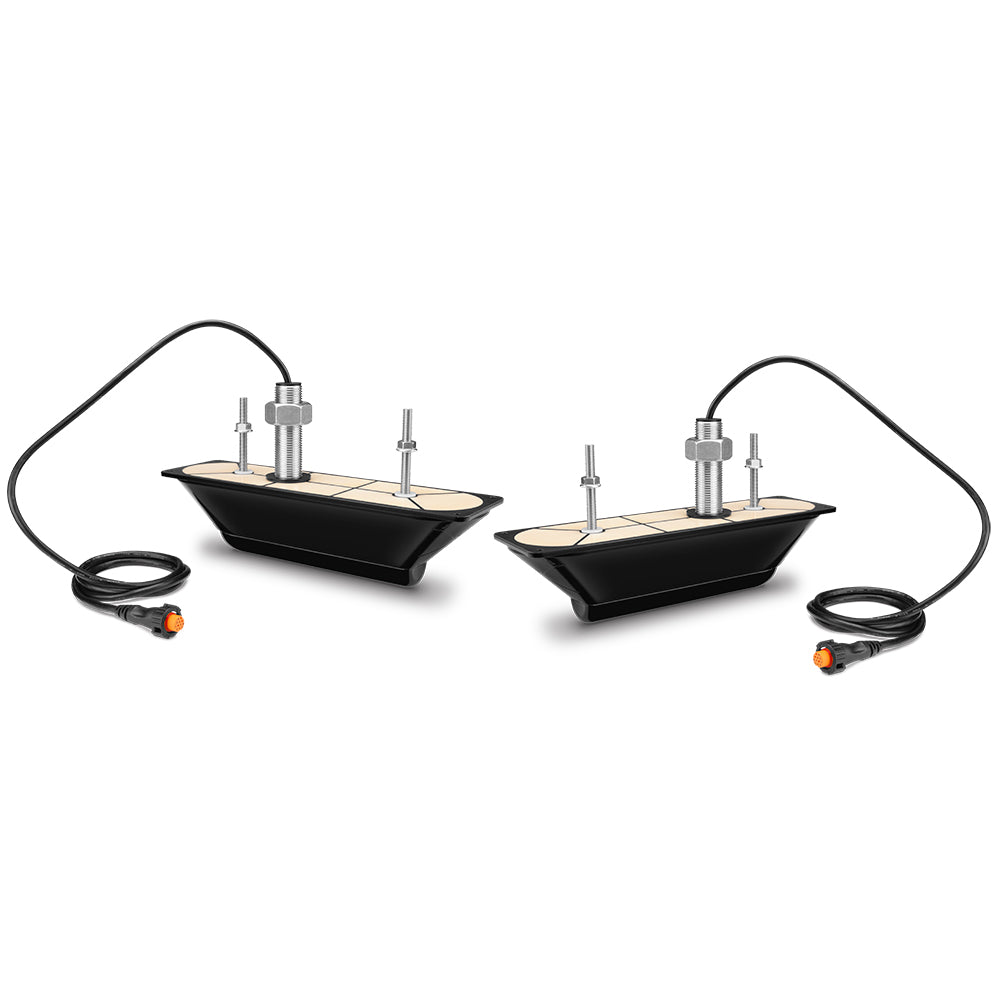

Garmin GT34UHD-THP Ultra HD Thru-Hull Transducer - Pair
Garmin GT34UHD-THP Ultra HD Thru-Hull Transducer - Pair — Product description
Unlock Crystal-Clear Underwater Views with the Garmin GT34UHD-THP
Imagine gliding over hidden reefs or scouting prime fishing spots without missing a single detail. The Garmin GT34UHD-THP thru-hull transducer pair transforms your Garmin chartplotter into a powerful sonar system, delivering Ultra High-Definition ClearVü and SideVü images that reveal fish, structure, and bottom contours with unprecedented sharpness. Unlike traditional sonar that leaves you guessing, this pair's high-frequency arrays cut through the water to provide pinpoint accuracy, helping serious anglers and boaters make smarter decisions on the water.
Designed for thru-hull mounting, these transducers excel in boats with deadrise angles from 0 to 25 degrees, ensuring reliable performance across a wide range of hull designs. Whether you're chasing trophy fish in shallow bays or exploring deeper wrecks offshore, the GT34UHD-THP pair gives you the edge by combining downward and side-scanning capabilities in one seamless setup.
Standout Features That Set It Apart
- Ultra High-Definition ClearVü Scanning: A downward-facing element at 800 kHz (CHIRP 760-880 kHz) powers through depths up to 200 feet, painting vivid pictures of fish arches, bait balls, and submerged structures directly beneath your vessel. The narrow beamwidth of 0.74° x 46° focuses energy for superior target separation.
- Ultra High-Definition SideVü Scanning: Side-facing arrays at 1,200 kHz (CHIRP 1,060-1,170 kHz) scan up to 125 feet to each side (250 feet total span), uncovering fish holding near drop-offs or along shorelines. With a tight 0.44° x 55° beam, images stay razor-sharp even at speed.
- Robust 500W Power Rating: Delivers strong signals for reliable performance in varied water conditions, from calm lakes to choppy coastal waters.
- Integrated Depth and Temperature Sensing: Provides real-time data to help you track water column changes and locate thermoclines where fish congregate.
- 20-Foot Cable and 12-Pin Connector: Offers flexibility for clean routing and easy integration with Garmin's GCV sonar modules and compatible chartplotters.
Real-World Advantages for Anglers and Boaters
In practical use, the GT34UHD-THP shines during structure fishing. ClearVü mode excels at identifying individual fish near the bottom, distinguishing between rockpiles and weed beds that traditional 2D sonar blurs together. SideVü extends your search horizontally, spotting schools along ledges before you even motor over—saving fuel and time while increasing hookups.
For tournament pros or weekend warriors, the high CHIRP frequencies mean less noise and more detail than lower-end scanners. Pair it with your Garmin ecosystem, and you'll gain scrolling sonar history to review missed opportunities. It's particularly valuable in freshwater reservoirs or saltwater inlets where visibility is key to success.
Pro tip: Mount these at the optimal fore-aft position to minimize interference from props or keels, maximizing coverage without blind spots.
Technical Specifications at a Glance
| Specification | Details |
|---|---|
| Frequency (ClearVü) | 0.8 MHz (800 kHz), CHIRP 760-880 kHz |
| Frequency (SideVü) | 1.2 MHz (1,200 kHz), CHIRP 1,060-1,170 kHz |
| Power | 500 W |
| Beamwidth (ClearVü) | 0.74° x 46° |
| Beamwidth (SideVü) | 0.44° x 55° |
| Max Depth (ClearVü) | 200 feet |
| Max Range (SideVü) | 125 feet per side (250 feet total) |
| Sensors | Depth and Temperature |
| Pins / Cable | 12-pin / 20 feet |
| Deadrise Compatibility | 0° to 25° |
Seamless Thru-Hull Installation Tips
Installing the GT34UHD-THP pair requires precision for peak performance. Select hull locations forward of the prop and away from strakes to avoid turbulence. Use a fairing block for angled hulls to keep the transducers perpendicular to the waterline, ensuring bubble-free scans. Drill carefully, seal with marine-grade compounds, and route cables through existing conduits to protect against chafe. Test in shallow water post-install to verify clear images before heading offshore.
Frequently Asked Questions
What makes the GT34UHD-THP's Ultra High-Definition scanning superior?
Its high CHIRP frequencies and narrow beamwidths deliver sharper, more detailed images than standard sonar, revealing finer details like fish size and structure texture at greater ranges.
Is this transducer pair suitable for high-speed boating?
Yes, the thru-hull design maintains stable contact with water at planing speeds, providing consistent SideVü and ClearVü scans without cavitation issues when mounted correctly.
How does SideVü help in finding fish?
SideVü scans horizontally up to 125 feet per side, spotting fish along banks, points, or wrecks before your boat arrives, allowing precise positioning.
What hull types work best with this pair?
It's optimized for deadrise angles 0-25 degrees, fitting most planing hulls like bass boats, center consoles, and offshore cruisers.
Does it include temperature sensing?
Yes, both transducers provide accurate water temperature readings alongside depth, aiding in locating thermal breaks.
What's the effective range in shallow water?
Performance scales with depth; SideVü reaches full 250-foot spans at 30 feet deep, ideal for bays and rivers.
Garmin make products that are engineered on the inside for life on the outside. We bring GPS navigation and wearable technology to the automotive, aviation, marine, outdoor and fitness markets. We believe every day is an opportunity to innovate and a chance to beat yesterday. We offer products with essential utility, leading-edge technologies, compelling features, and exceptional ease-of-use to create clear differentiators our customers appreciate and desire.
Garmin 101277611 Attributes
- Mounting Location: Thru-Hull Mount
- Number Of Pins: 12 Pin
- Depth: 200 Feet For Ultra High-Definition ClearVü And 125 Feet For Ultra High-Definition SideVü
- Power Rating: 500 Watt
- Frequency Range: 800 kHz For Ultra High-Definition ClearVü And 1200 kHz For Ultra High-Definition SideVü
- Supported Angle: 0 To 25 Degree Deadrise
- Cable Length: 20 Feet
Garmin 101277611 Features & Benefits
- Ultra High-Definition Sonar System Thru-Hull Pair Transducer
- Ultra High-Definition ClearVu Scanning Mode Provides Brilliant Image Clarity Of Structure And Fish Below Your Boat At Greater Depths Than Other High-Frequency Scanning Sonars
- Ultra High-Definition SideVu Scanning Mode Delivers Stunningly Clear Images Of Structure And Fish Off To The Sides Of Your Boat
- Makes It Easy To Scout A Fishing Area Quickly, Because You Can See Everything The First Time With Such Amazing Clarity
- Limited 2 Year Warranty
Garmin 101277611 Installation Instructions
Garmin 101277611 Warranties
GT34UHD-THP Ultra HD Thru-Hull Transducer - Pair
Ultra High-Definition Sonar System Thru-hull Transducer
Add stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonar images to your compatible chartplotter via the GCV™ 20 sonar module. It includes 3 arrays, including a downward-facing element element — with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz) — and it’s recommended for hulls with up to a 5-degree deadrise angle.
Ultra High-Definition ClearVü Scanning
This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.
Ultra High-Definition SideVü Scanning
This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.
Specifications:
- Frequency:
- Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
- Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz
- Power: 500W
- Beamwidth:
- Ultra High-Defintion ClearVü: 0.74° x 46°
- Ultra High-Defintion SideVü: 0.44° x 55°
- Maximum depth:
- Ultra High-Defintion ClearVü: 200' down
- Ultra High-Defintion SideVü: 125' sides, 250' total
- Depth/Speed/Temperature: Depth and Temperature
- Number of pins: 12-pin
- Cable length: 20'
- Supported deadrise/Transom angles: Up to 25° deadrise
Garmin designs, manufactures and sells GPS, communications and sonar products. They are committed to developing and supporting quality products that can help people engage in professional work and help them enjoy outdoor sports, leisure activities and other life adventures. Garmin's product line includes more than 50 different products serving the automotive, aviation, hunting, fishing, marine, wireless and outdoor markets. Garmin's success depends not only on the quality of the materials and final products used, but also on its simple mission: to transform complex technologies into useful products that can improve people's lives.
SKU: NVN-70796
MPN: 010-12776-11
UPC: 753759206369
