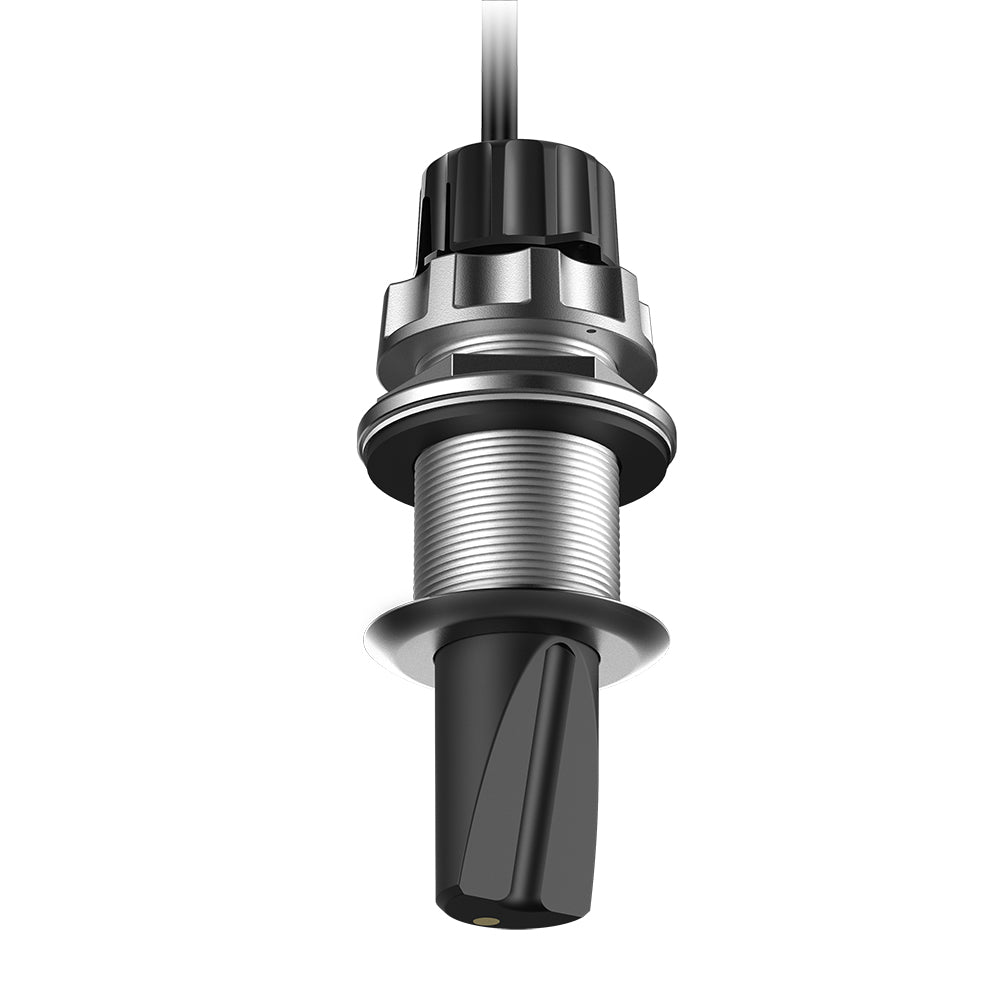

Garmin Panoptix PS51-TH LiveVu Forward Transducer
Garmin Panoptix PS51-TH LiveVu Forward Transducer — Product description
Transform Your Boating Experience with Forward-Looking Sonar Precision
Picture this: you're navigating a tricky inlet at low light, shallow waters lurking just out of sight. The Garmin Panoptix PS51-TH thru-hull transducer steps in as your vigilant scout, projecting a crystal-clear view of the seafloor up to 300 feet ahead. This isn't just another sonar—it's a premium multibeam system blending FrontVü bottom-mapping sonar with LiveVü Forward real-time imaging. Anglers spot schools of fish darting in front of the bow, while skippers confidently dodge sandbars, all displayed instantly on your Garmin chartplotter.
What sets the PS51-TH apart? Its narrow 20-degree forward beam zeros in on what's directly ahead, ignoring distracting side clutter. Paired with built-in AHRS stabilization, it holds steady through choppy seas, delivering reliable intel even when the boat pitches. Whether you're trailering to new fishing grounds or exploring coastal routes, this transducer builds trust in uncharted territories, reducing the guesswork that leads to groundings.
Key Features That Deliver Real-World Results
- FrontVü Sonar Excellence: Maps the bottom 8-10 times your current depth, reaching up to 300 feet forward—ideal for proactive hazard avoidance at speeds under 8 knots.
- LiveVü Forward Viewing: Watch fish, bait balls, or even divers in real-time motion up to 100 feet ahead and below, turning your chartplotter into a live underwater window.
- Motion-Stabilized Imaging: AHRS technology compensates for boat roll and pitch, ensuring a steady forward view in rough conditions.
- Network Sharing: Seamlessly distribute sonar data across multiple Garmin chartplotters via the Marine Network for crew-wide awareness.
- Thru-Hull Durability: Compact 2-inch stainless steel housing withstands hull speeds up to 45 knots, with integrated depth and water temperature sensors.
- Plug-and-Play Compatibility: Works effortlessly with any Panoptix-enabled Garmin display—no complex setups required.
How the PS51-TH Enhances Safety and Fishing Success
Boaters often face the blind spot ahead of the keel. Traditional down-facing sonars react too late; side-scanning units overwhelm with irrelevant data. The PS51-TH's focused forward sonar changes that. In real-time, FrontVü paints a contour map of drop-offs, wrecks, and shallows, giving you seconds-to-minutes of reaction time. Switch to LiveVü Forward, and you're tracking predator-prey dynamics live—perfect for trolling lures or positioning in currents.
Installation pros love the standard thru-hull mount and included fairing block, which streamlines water flow for optimal performance. Pro tip: Align it dead-ahead during install for maximum forward range, and calibrate AHRS on calm water for peak accuracy. Saltwater anglers report cleaner arches on species like snapper or kingfish, even in murky bays.
Technical Specifications at a Glance
| Specification | Details |
|---|---|
| Mounting Options | Thru-hull (50.88 mm / 2-inch stainless steel) |
| Power Consumption | <1.2A @ 12V |
| Voltage Range | 10-35 VDC |
| Frequencies Supported | 417 kHz |
| Maximum Range | 8-10x current depth, up to 300 ft (FrontVü); 100 ft forward (LiveVü) |
| Beam Shape | 20° x 90° (LiveVü Forward & FrontVü) |
Note: Optimal FrontVü performance for grounding avoidance is at speeds below 8 knots; unit hull-rated to 45 knots.
Everything You Need for Quick Setup
- Panoptix PS51-TH forward thru-hull transducer
- Mounting hardware
- Fairing block for hydrodynamic efficiency
- Blanking plug for clean removal
- Comprehensive documentation
Frequently Asked Questions
What is the main benefit of the Garmin Panoptix PS51-TH's FrontVü sonar?
FrontVü provides real-time bottom contour mapping up to 300 feet ahead, helping prevent groundings by showing hazards before you reach them, especially useful at low speeds.
How does LiveVü Forward differ from traditional sonar?
LiveVü Forward delivers video-like, real-time images of fish and objects moving ahead and below the boat up to 100 feet, unlike static traditional sonar returns.
Is the PS51-TH suitable for rough water?
Yes, its integrated AHRS sensor stabilizes images against boat motion, maintaining clear forward views even in choppy conditions.
What Garmin devices is this transducer compatible with?
It's fully compatible with all Panoptix-capable Garmin marine chartplotters and shares data over the Garmin Marine Network.
What's the effective speed range for best performance?
FrontVü excels below 8 knots for hazard avoidance; the transducer itself handles hull speeds up to 45 knots.
Does it measure water temperature and depth?
Absolutely—built-in sensors display both depth and temperature data directly on your chartplotter.
How narrow is the forward beam to avoid side clutter?
The 20-degree narrow beam focuses precisely ahead, filtering out irrelevant side information for cleaner, more actionable views.
Panoptix PS51-TH LiveV Forward Transducer
The Panoptix multibeam thru-hull transducer with premium FrontV forward-looking sonar helps you avoid running aground* by displaying the bottom ahead of your boat in real time on your chartplotter. You will have more confidence when navigating unfamiliar water because Panoptix FrontV is a narrow beam, forward-looking sonar that focuses on the bottom in front of your boat and not with what is off to each side. Panoptix PS51-TH features a stainless steel thru-hull mount. Displays depth and temperature data and is compatible with all Panoptix capable Garmin chartplotters.
*The ability to effectively avoid running aground with FrontV sonar decreases as speed rises above 8 knots.
Features:
- Panoptix multibeam thru-hull transducer with premium FrontV forward-looking sonar helps you avoid running aground*
- Displays the bottom ahead of your boat in real time on your chartplotter
- See the bottom up to 300ft ahead of the boat (at 8 to 10 times the currect depth)
- Delivers nearly instant feedback to give you more time to react
- Narrow beam, forward-looking sonar (20°), shows the bottom in front of your boat, not what is off to each side
- Simple to use, can be shared across Garmin Marine Network with other chartplotters
- Includes AHRS for motion stabilization so you can see what is in front of your boat even in rough water
- Displays depth and temperature data
- Compact size and shape, standard 50.88mm (2") stainless steel thru-hull mount
- Compatible with all Panoptix capable Garmin chartplotters
Comes With:
- Panoptix PS51-TH forward thru-hull transducer
- Mounting hardware
- Fairing block
- Blanking plug
- Documentation
Garmin Panoptix PS51-TH Premium FrontV Forward-looking Sonar
Model: 010-01753-00UPC: 753759170912
- Premium FrontV forward-looking sonar helps you avoid running aground
- Narrow beam, forward-looking sonar that focuses on the bottom in front of your boat
- Displays the bottom ahead of your boat in real time
- Displays bottom up to 300 feet ahead
- Delivers nearly instant feedback to give you more time to react
The Panoptix multibeam thru-hull transducer with premium FrontV forward-looking sonar helps you avoid running aground by displaying the bottom ahead of your boat in real time on your chartplotter.
Panoptix FrontV sonar displays bottom up to 300 feet ahead of the boat (at 8 to 10 times the current depth) and delivers nearly instant feedback to give you more time to react. You can be more confident when navigating unfamiliar water because Panoptix FrontV has a narrow beam, forward-looking sonar (20 degrees). This allows you to focus on the bottom in front of your boat and not be confused with what is off to each side. It also includes an AHRS sensor for motion stabilization that allows you to see what is in front of your boat even in rough water conditions. And all the FrontV forward-looking sonar image data can be easily shared with other chartplotters across the Garmin Marine Network.
Panoptix PS51-TH features a standard 50.88 mm (2-inch) stainless steel thru-hull mount. Displays depth and temperature data, and is compatible with all Panoptix capable Garmin chartplotters.
1The ability to effectively avoid running aground with FrontV sonar decreases as speed rises above 8 knots.
Specifications| Mounting options | Thru-hull |
| Power consumption | Power consumption: <1.2A @ 12V |
| Voltage range | 10-35vDC |
| Frequencies supported | 417 kHz |
| Maximum range | 8-10x the current depth, up to 300 ft |
| Beam shape | |
| LiveV Forward | 20° x 90° |
| ?FrontV | 20° x 90° |
What's in the Box:
- Panoptix PS51-TH forward thru-hull transducer
- Mounting hardware
- Fairing block
- Blanking plug
- Documenatation
PremiumFrontV forward-looking sonar PremiumFrontV forward-looking sonar can help you avoid stranding Real-time display of the bottom of the boat up to 300 feet deep, and also provides LiveV front fishing function-even when fixed, you can watch fish swimming in front of the boat. Multi-beam through-hull transducer and first-class The FrontV front-view sonar can display the front bottom of the ship in real time on the chartplotter to help you avoid grounding. It also includes the LiveVForward sonar, which enables you to see fish (even divers) with a unique ability and swim under and in front of the boat in real time with a forward range of 100 feet. The PanoptixFrontV sonar display can display the bottom 300 feet in front of the boat (8 to 10 times the current depth) and provide almost instant feedback, giving you more time to react. When you navigate unfamiliar waters, you can be more confident because PanoptixFrontV has a narrow beam, forward looking sonar (20 degrees). This allows you to focus on the bottom of the front of the boat without being confused with things on the sides. It also includes an AHRS sensor for motion stabilization, so you can see objects in front of the ship even in rough sea conditions. All FrontV forward-looking sonar image data can be easily shared with other chart plotters in the Garmin marine network. Panoptix PS51-TH has a standard 50.88 mm (2 inch) stainless steel through-hull mount. Displays depth and temperature data and is compatible with all Garmin plotters that support Panoptix. Can withstand speeds of up to 45 knots and up to 8 knots.
PremiumFrontV front-view sonar PremiumFrontV front-view sonar can help you avoid stranding real-time display of the depth of the ship's bottom up to 300 feet, and also provides LiveV front fishing function-even after fixing, you can watch fish swimming in front of the boat. The multi-beam through hull transducer and the first-class FrontV forward looking sonar can display the front bottom of the ship in real time on the chartplotter to help you avoid landing. It also includes the LiveVForward sonar, which enables you to see fish (even divers) with a unique ability and swim under and in front of the boat in real time with a forward range of 100 feet. The PanoptixFrontV sonar display can display the bottom of the ship 300 feet ahead (8 to 10 times the current depth) and provide almost instant feedback, giving you more time to react. When you sail in unfamiliar waters, you will be more confident because PanoptixFrontV has a narrow beam and forward looking sonar (20 degrees). In this way, you can focus on the bottom of the bow without being confused with things on the side. It also includes AHRS sensors for motion stabilization, so you can see objects in front of the ship even in rough sea conditions. All FrontV forward-looking sonar image data can be easily shared with other chart plotters in the Garmin marine network. Panoptix PS51-TH has a standard 50.88 mm (2 inch) stainless steel through-hull mount. Displays depth and temperature data and is compatible with all Garmin plotters that support Panoptix. Can withstand speeds of up to 45 knots and 8 knots.
SKU: NVN-63432
MPN: 010-01753-00
UPC: 753759170912
Technical specifications
| Brand | Garmin |
| Model | Garmin Panoptix PS51-TH LiveVu Forward Transducer |
| SKU / MFR# | 63432 |
