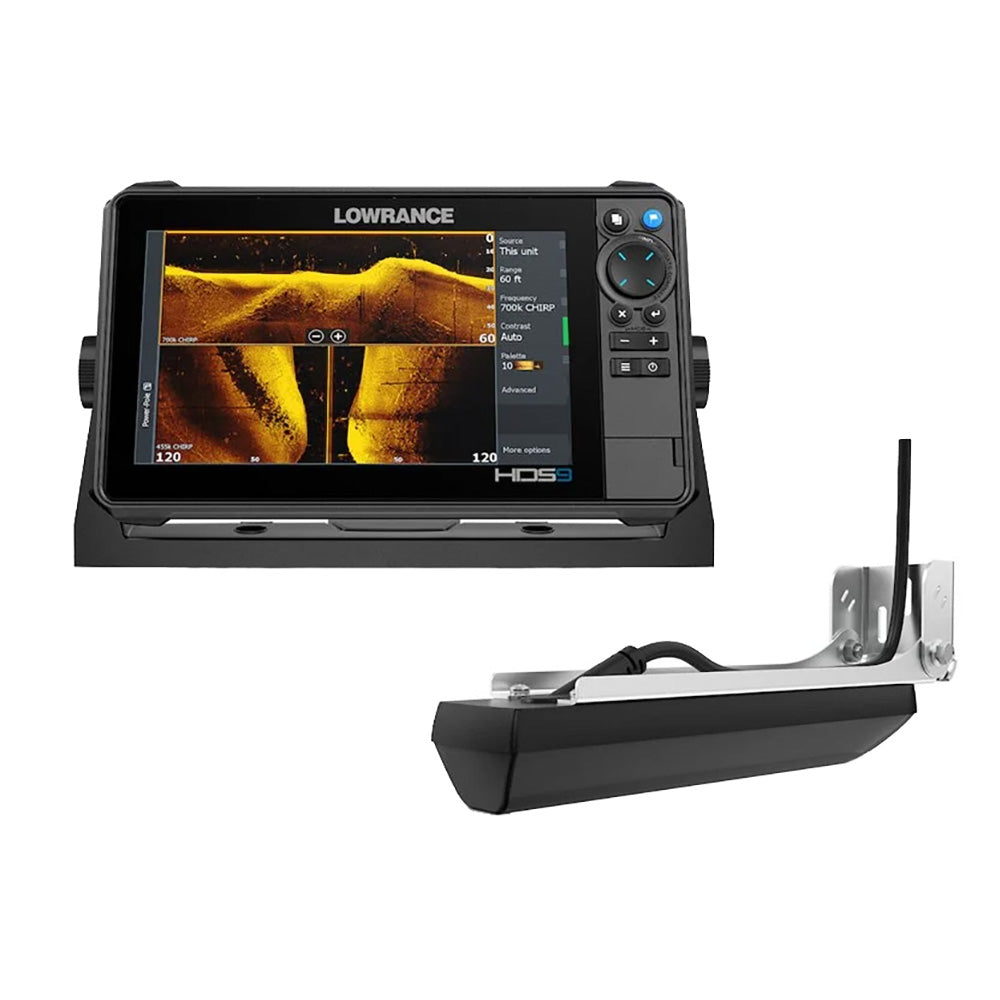

Lowrance HDS PRO 9 w/C-MAP DISCOVER OnBoard + Active Imaging HD
Lowrance HDS PRO 9 w/C-MAP DISCOVER OnBoard + Active Imaging HD — Product description
Unlock Crystal-Clear Views Beneath the Waves
Imagine dropping your line into a lake and watching fish swarm toward your bait in real-time, their every twitch visible on a sunlit screen. That's the edge the Lowrance HDS PRO 9 delivers for serious anglers chasing bass, walleye, or stripers. This isn't just a fishfinder—it's a game-changer that combines ultra-high-definition sonar imaging with intuitive charting to put you steps ahead of the fish.
With the included Active Imaging HD 3-in-1 transducer, you'll see fish-holding structures and schools with unprecedented detail. SideScan reveals cover up to 180 feet away, while DownScan paints crisp pictures directly below. Pair it with CHIRP sonar for separated targets even in cluttered water, and FishReveal makes popping those fish off the screen effortless.
Live Sonar That Brings the Hunt to Life
ActiveTarget 2 Live Sonar support takes reactivity to new heights. Mount one or two heads for simultaneous views—track baitfish clouds in Scout mode or widen your front-facing beam to follow lure reactions without missing a beat. Ghost Trolling Motor users love the 360 chart overlay, spotting fish circling your boat from all angles.
In practice, this means less guesswork on structure edges or drop-offs. Tournament pros swear by it for dialing in patterns during changing conditions, like post-frontal clears where fish hug subtle contours.
Mapping That Finds the Honey Holes Fast
Preloaded C-MAP DISCOVER OnBoard charts cover over 19,000 U.S. lakes and 9,400 Canadian ones with 1-foot contours—perfect for pinpointing ledges, humps, and points. Genesis Live real-time mapping lets you build custom HD maps on the fly, shading depths to highlight your sweet spots.
Upgrade paths keep it fresh: Layer Navionics for dynamic tides or Florida Marine Tracks for skinny-water runs. No more fumbling with paper maps; touchscreen swipes get you waypointed and rolling.
SolarMAX HD Display: See It All, No Matter What
Bright days, polarized glasses, extreme angles—the 9-inch SolarMAX HD touchscreen laughs it off with over 1200 nits of brightness and 80-degree viewing cones. High-contrast visuals pop fish arches and bottom detail, while large programmable keys let gloved hands zoom or mark spots mid-cast.
It's built tough too: IPX7 waterproof, shock-resistant to 20G, and ready for -15°C to 55°C swings. Bracket or flush mount it anywhere from bow panel to helm station.
Full-System Networking for Total Boat Control
Link up to six units via Ethernet, tap NMEA 2000 for engine data, or go wireless with Bluetooth 5.2 for smartphone alerts. Touch-control Power-Pole anchors, Ghost Trolls, or autopilots directly—set drifts, orbit waypoints, or anchor from afar.
Expand with radar, AIS, or SiriusXM weather (U.S.), and pipe in Fusion audio. The S3100 module unlocks FishReveal on SideScan, turning vague blobs into identifiable targets.
Key Specifications at a Glance
| Category | Details |
|---|---|
| Display | 9" SolarMAX HD, 1280x720 resolution, >1200 nits, multi-touch + keypad |
| Sonar Power | 1kW RMS, Dual CHIRP, Active Imaging HD, ActiveTarget 2 ready |
| Connectivity | 2x Ethernet, NMEA 2000, WiFi, Bluetooth 5.2, 2x microSD |
| Dimensions & Weight | 11.02" x 6.56" x 3.05", 4.14 lbs |
| Power | 12V DC (10.8-17V), 3A fuse |
| GPS | 10Hz, WAAS, 3000 waypoints |
What's Included for Quick Setup
- HDS PRO 9 unit
- Power/NMEA 0183 cable
- Bracket, knobs, and sun cover
- C-MAP DISCOVER North America charts
- Active Imaging HD 3-in-1 transducer
Everything you need to mount, wire, and fish—plug-and-play simplicity that gets you on the water faster.
Frequently Asked Questions
What makes Active Imaging HD better than standard SideScan?
Active Imaging HD operates at 1.2MHz for razor-sharp images up to twice the detail of previous versions, revealing fish near structure in shallow or deep water with crystal clarity.
Can I run two ActiveTarget systems on the HDS PRO 9?
Yes, it supports dual ActiveTarget 2 heads for multiple live views simultaneously, like forward and scout modes side-by-side for comprehensive coverage.
Does the display work with polarized sunglasses?
Absolutely—the SolarMAX HD technology eliminates polarization blackout, ensuring full visibility from any angle in harsh sunlight.
What charts come preloaded, and can I add more?
C-MAP DISCOVER OnBoard with 1-foot contours on thousands of lakes; easily upgrade to C-MAP REVEAL, Navionics, or others via microSD for custom needs.
Is this unit compatible with trolling motors and anchors?
Yes, touchscreen control for Ghost Trolling Motors (including 360 views), Power-Pole anchors, and autopilots via NMEA 2000 integration.
How rugged is the HDS PRO 9 for rough waters?
IPX7 waterproof, withstands 20G shocks, and operates from -15°C to 55°C—built for tournament trails and big-water abuse.
What's the power draw, and does it need special wiring?
Typical 2A at 13VDC with sonar on; uses standard 12V systems with a 3A fuse—no special setup beyond the included power cable.
Pro Tips to Maximize Your HDS PRO 9
- Tune CHIRP frequencies (83/200kHz low, 455/800kHz high) for water clarity—low for deep murk, high for shallows.
- Use FishReveal on DownScan for instant ID in heavy vegetation; switch to SideScan for offshore humps.
- Overlay Live Sonar on charts during drifts to correlate marks with bottom type.
- Network with a second unit at the bow for dual-screen tactics: helm for nav, bow for live targeting.
Level up your game— this rig turns casual outings into limit fillers.
HDS PRO 9 with C-MAP DISCOVER OnBoard + Active Imaging HD
See more and catch more with the HDS PRO fishfinder/chartplotter. Watch fish react to your lure live with support for high-resolution ActiveTarget® 2 Live Sonar, and find fish and holding structure with ultra-high-definition Active Imaging™ HD. Quickly locate prime fishing areas with preloaded C-MAP® DISCOVER OnBoard charts and get full fishing system networking with expanded boat control from bow to stern.
Features:
- SolarMAX™ HD Touchscreen viewable at extreme angles and through polarized lenses
- High-definition Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)
- High-resolution ActiveTarget® 2 Live Sonar ready
- FishReveal™ with SideScan view*, as well as Downscan (*Requires S3100 and compatible transducer)
- Preloaded C-MAP® DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes
- Real-time mapping is available with C-MAP® Genesis Live.
- Support for ActiveTarget® Scout and Ghost® Trolling Motor 360 chart overlay views
- Large programmable keys
- Touchscreen control of Power-Pole® anchors, Ghost® Trolling Motor, Autopilot, and Lowrance Outboard Pilot
- NMEA 2000®, Wireless and Bluetooth®, connectivity – plus smartphone notifications
- Wide range of optional chart upgrades including C-MAP® REVEAL, Navionics®, Florida Marine Tracks and more
SKU: NVN-96129
MPN: 000-15981-001
UPC:
Technical specifications
| Brand | Lowrance |
| Model | Lowrance HDS PRO 9 w/C-MAP DISCOVER OnBoard + Active Imaging HD |
| SKU / MFR# | 96129 |
