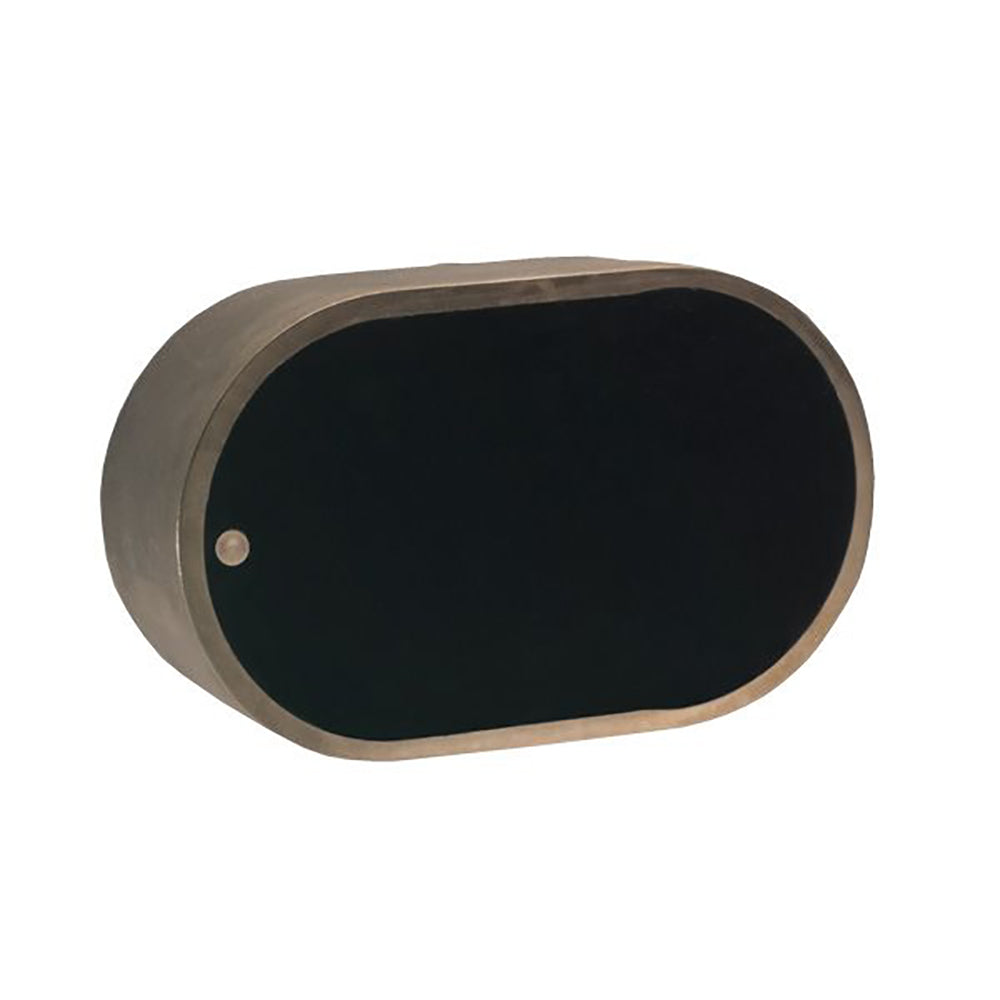

Airmar PM275C-LHW CHIRP Transducer

Get more coverage under your boat with Airmar's unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500').

The low-frequency band and 1 kW of power also support great deep-water performance. Get the best of both worlds with Airmar's dual-frequency, Chirp-ready transducer with wide-beam coverage.

PM275C-LHW CHIRP Transducer

Keel-mount 1kW dual-band CHIRP fishfinder transducer.

The PM265 is a Pocket/Keel mount unit available in the Low/Medium and Low/High bands. The PM275 is a wide beam version of the PM265 with Low/High bands and a wide beam.

Specifications:

• Type: CHIRP dual-band fishfinder transducer
• LM Version: Low Band 42-65 kHz / Beam width 25-16° // Medium Band 85-135 kHz / Beam width 16-11°
• LH Version: Low Band 42-65 kHz / Beam width 25-16° // High Band 130-210 kHz / Beam width 10-6°
• LHW Version: Low Band 42-65 kHz / Beam width 25-16° // High Wide Band 150-250 kHz / Beam width 25°
• Power Rating: 1000 watts
• Mounting: Pocket/Keel Mount
• Housing: Urethane
• Hull Aperture: 1.75" (44.5mm)

PM275C-LHW CHIRP sensor keel type 1kW dual-band CHIRP fish finder sensor. PM265 is a pocket/keel mounting unit that can be used in low/middle and low/high frequency bands. PM275 is...

• Depth and fast-response water-temperature sensor
• 1 kW for great deep-water performance from the low frequency
• Low frequency: 42 to 65 kHz
  • 25° to 16° beamwidth
  • Maximum depth of 914 m (3,000')
• High frequency: 150 to 250 kHz
  • 25° constant beamwidth
  • Maximum depth of 152 m (500')
• 123 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
• High wide beamwidth yields more coverage for detecting fish in the upper-water column
• Urethane housing designed for custom pocket/keel mounting
• Also available as thru-hull (B275LHW) and transom (TM275LHW) mounts
• Exclusive Xducer ID technology

SKU: NVN-88873
MPN: PM275C-LHW-MM
UPC:
