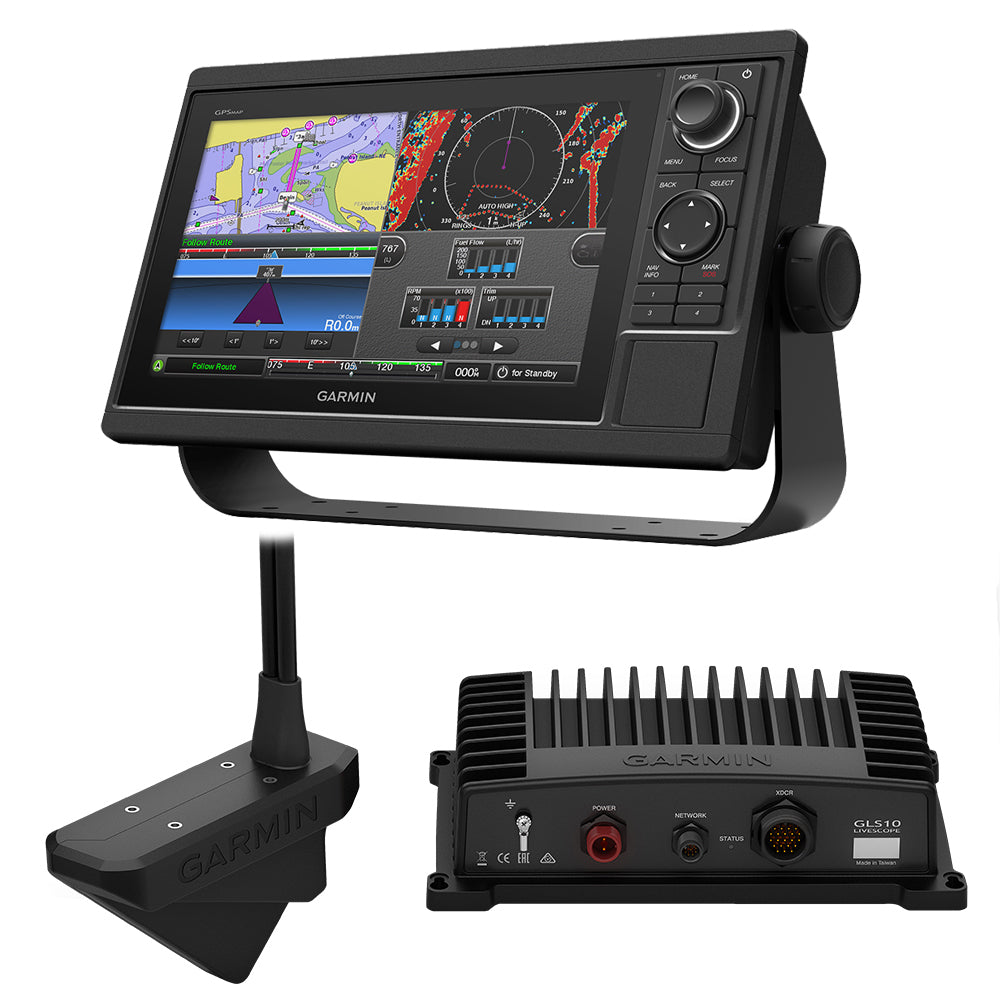

Garmin GPSMAP 1022 Livescope Bundle

Discover Unmatched Precision on the Water with the GPSMAP 1022 and LiveScope Bundle

Imagine gliding across open waters, spotting fish darting around structure in real-time, or plotting the perfect course with fluid position updates. This bundle pairs the robust Garmin GPSMAP 1022 chartplotter with the game-changing Panoptix LiveScope sonar system, delivering a powerhouse setup for serious anglers, cruisers, and sailors. Whether you're chasing trophy bass in shallow bays or navigating coastal passages, this combination elevates your boating game by blending crystal-clear navigation with live underwater intelligence.

Master Navigation with the GPSMAP 1022 Chartplotter

The heart of this setup is the 10-inch keyed chartplotter, built for those who demand hands-on control. Its bright color display pairs with a responsive keypad and multifunction knob, letting you zoom through menus effortlessly—even with gloves on during chilly dawn patrols. The internal 10 Hz GPS/GLONASS receiver refreshes your heading and position 10 times per second, painting a smooth trackline that makes waypoint drops and route following feel intuitive.

Expand your horizons with support for premium charts like BlueChart g3 Vision HD. Auto Guidance+ tech suggests safe paths around hazards, factoring in your vessel's draft and beam for stress-free planning. For sailors, SailAssist tools shine: visualize laylines, sync race timers across networked units, and track true/apparent wind with precision. Cruisers appreciate the GPX import for seamless waypoint transfers from other devices, keeping your favorite spots handy.

Revolutionize Fishing with Panoptix LiveScope Sonar

LiveScope isn't just sonar—it's a window into the underwater world. The LVS32 transducer delivers live scanning images up to 200 feet in both Forward and Down modes, revealing bait schools swirling, fish cruising structure, and even your jig falling through the water column. Stationary or trolling, the Attitude Heading Reference System (AHRS) keeps views rock-steady amid choppy seas.

Switch effortlessly: point Forward to scout ahead for ambush points, or Down for precision drops right beneath the boat. Anglers report distinguishing species by behavior—musky shadows versus panfish flickers—turning hunches into hookups. Pair it with traditional sonar views for historical data, giving a full picture of what's lurking below.

Seamless Networking and Smart Connectivity

Go beyond standalone with full Garmin Marine Network integration. Share sonar, radar, cameras, and user data across multiple screens. NMEA 2000 and 0183 compatibility hooks up autopilots, VHF, AIS, and sensors for a unified helm. Built-in Wi-Fi unlocks the ActiveCaptain app, where you plan routes, crowdsource contours from the Quickdraw community, and receive smart notifications—all syncing wirelessly to your plotter.

Two SD slots mean endless storage for custom maps, while video input supports cameras for 360-degree awareness. This bundle thrives in multi-station setups, whether on a center console or sailboat.

Real-World Applications for Anglers and Boaters

For tournament pros, LiveScope levels the playing field by exposing hidden patterns pre-sunup. Casual anglers love watching kids react to live fish sightings, making family outings memorable. Cruisers leverage the plotter's weather overlays and engine data feeds for confident passages. Sail racers sync pre-race pages network-wide, shaving seconds off starts.

Pro tip: Mount the transducer on your trolling motor for dynamic casting views, or transom for trailered boats. Regular firmware updates via ActiveCaptain keep performance peaking, often adding new features like enhanced fish ID.

Built Tough for Marine Life

IPX7 water resistance shrugs off spray, with wide temp ranges for year-round adventures. The GLS 10 black box and lightweight transducer install cleanly, with mounts for trolling motors, shafts, or transoms. Power draw stays efficient, fusing safely at 7.5A.

Frequently Asked Questions

How does LiveScope Forward differ from LiveScope Down?

LiveScope Forward scans up to 200 feet ahead and around your boat, ideal for spotting fish and structure before casting. LiveScope Down focuses directly below, perfect for vertical jigging or precise bait placement—even at anchor.

Can the GPSMAP 1022 handle both freshwater and saltwater environments?

Absolutely. Its rugged build and IPX7 rating make it reliable across bays, lakes, and oceans, with charts tailored for coastal navigation and inland waters.

What sailing features does the GPSMAP 1022 offer?

SailAssist includes laylines, virtual starting lines, race timers syncable across networks, wind roses, set/drift indicators, and true/apparent wind displays for tactical edges.

Is networking multiple units straightforward?

Yes, with two Garmin Marine Network ports and NMEA 2000 support, sharing sonar, radar, and data is plug-and-play. Add IP cameras or sensors for a fully integrated system.

How does ActiveCaptain improve my boating experience?

It connects your plotter to your phone for route planning, community-shared contours, software updates, and notifications—keeping you linked to charts and the boating world from anywhere.

What's the best transducer mounting option for trolling?

The included trolling motor barrel or shaft mounts keep the LVS32 stable and adjustable, delivering clear Forward/Down views as you maneuver through structure.

Does LiveScope work in shallow water?

Exceptionally well. It excels in depths from inches to 200 feet, showing fine details like bottom-hugging fish or submerged grass beds.

Can I import waypoints from other GPS devices?

Yes, via standard GPX format, transfer tracks, routes, and waypoints from compatible Garmin handhelds or competitors' units effortlessly.

GPSMAP 1022 Keyed Networking Chartplotter - No Sonar

10-inch Chartplotter Is All-in-1 Solution

• 10-inch color display with keypad interface and multifunction control knob
• High-sensitivity internal 10 Hz GPS and GLONASS receiver
• Fully network capable for Garmin Marine Network and NMEA 2000 plus NMEA 0183 support
• Supports optional BlueChart g3 Vision HD charts for Auto Guidance and other premium navigation features

GPSMAP 1022 is designed for cruisers, sailors and sailing racers who need the advanced all-in-1 solution provided by our 10-inch keyed chartplotter. Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.

Complete Network Sharing

Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.

The Ultimate Connected Boating App

Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you'll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.

Heading, Position Refreshed 10 Times per Second

Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints and finding your way back to them quick and easy.

Upgrade to Our Best Maps on the Water

Two SD card slots provide expandable memory for accessory map purchases, such as LakeV HD, LakeV HD Ultra, BlueChart g3 HD or BlueChart g3 Vision HD, which adds Garmin patented Auto Guidance and other great features.

Built-in SailAssist Features

To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.

GPX Waypoints Transfer

If you have waypoints, tracks or frequently used routes stored on another manufacturer's GPS product or on a Garmin handheld device it's easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.

What's In The Box?

• GPSMAP 1022 chartplotter
• Power/data cable
• NMEA 2000 T-connector
• NMEA 2000 drop cable (2 m)
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Documentation

Connections:

• Garmin Marine Network Ports: 2
• NMEA 2000 Port: 1
• NMEA 0183 Input Ports: 1
• NMEA 0183 Output Ports: 1
• Video Input Ports:  1 BNC
• Video Output Ports: None
• Wireless Connectivity: Yes

Auto Guidance is for planning purposes only and does not replace safe navigation operations.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Panoptix LiveScope System

We Took Scanning Sonar and Made It Panoptix

Features:

• See highly detailed, easy-to-interpret live scanning sonar images of structure, bait and fish swimming below and around your boat in real time, even when your boat is stationary
• Easily adjust the transducer to fit your fishing techniques; point forward to see around your boat, or point down to see directly below your boat
• See incredibly sharp real-time scanning sonar images up to 200' down and away
• Attitude Heading Reference System (AHRS) stabilizes sonar view on chartplotter screen, even in rough conditions
• Simple plug-and-play Garmin Marine Network connector makes it easy to install and seamlessly integrate with your compatible Garmin chartplotter

Clearly, this is the most amazing sonar technology ever. You have never fished like this before. Panoptix LiveScope is live, real-time scanning sonar. You can actually see easy-to-interpret live scanning sonar images of fish swimming near clearly defined structure. You can even see your lure as you retrieve it. And your boat doesn't need to be moving. These images are so clear and precise that with a little practice, you might be able to distinguish between species of fish!

Two Modes in One Transducer

You get both LiveScope Down and LiveScope Forward modes in one transducer. It's easy to adjust the transducer mode to fit your fishing techniques; use LiveScope Forward to see remarkably clear images of structure and swimming fish around your boat, and use LiveScope Down to see directly below your boat. The view automatically updates on your compatible Garmin chartplotter. AHRS stabilization keeps your sonar view steady, even in rough conditions.

Panoptix LiveScope Down

LiveScope Down mode allows you to see live, easy-to-interpret scanning sonar images of structure and swimming fish in incredible detail below your boatup to 200' even while your boat is stationary.

Panoptix LiveScope Forward

LiveScope Forward mode is an excellent tool for scouting and fishing out ahead of your cast. You're looking at live, highly detailed and easy-to-interpret scanning sonar images of structure and fish swimming all around your boat up to 200' even while your boat is stationary.

The Panoptix LiveScope scanning sonar system includes a compact GLS 10 sonar black box with LVS32 transducer and simple plug-and-play Garmin Marine Network connector, making it easy to install and seamlessly integrate with your compatible Garmin chartplotter. Use the transducer as a supplemental traditional and ClearV sonar source to see a historical representation of structure and fish below your boat.

Specifications:

• Physical dimensions:
• GLS 10 sonar black box: 9.6 x 5.9 x 2.6 (24.5 x 14.9 x 6.5 cm);
• LVS32 transducer: 5.4 x 3.8 x 1.8 (13.7 x 9.7 x 4.6 cm)
• Weight:
• GLS 10 sonar black box: 4.3 lbs (2.0 kg);
• LVS32 trasnducer: 1.9 lbs (0.9 kg)
• Water rating:   IPX7
• Garmin Marine Network ports: 1 (small connector)
• Temperature range:  Operating: -15 C to 70 C; Non-operating: -40 C to 85 C

Sonar Features & Specifications

• Frequencies supported: 530 - 1,100 kHz
• Transmit power: 500W
• Maximum depth: Down and Forward: 200' (61.0M)

Electrical

• Power input: 10-32 V
• Power usage:  21 W typical, 58 W max
• Fuse: 7.5 A

What's In The Box?

• LiveScope GLS 10 sonar black box
• Panoptix LVS32 transducer
• Trolling motor barrel mount
• Trolling motor shaft mount
• Transom mount
• Power cable
• 2 meter Garmin marine network cable, small connector
• Network adapter cable
• Mounting hardware
• Documentation

SKU: NVN-86547
MPN:
UPC:
