Garmin ECHOMAP Ultra 106sv Preloaded US Offshore BlueChart g3 - LakeVu g3 w/GT56UHD-TM
Garmin ECHOMAP Ultra 106sv Preloaded US Offshore BlueChart g3 - LakeVu g3 w/GT56UHD-TM — Product description
Imagine heading out on the water, whether chasing trophy bass in hidden coves or targeting offshore species in deeper waters, with a fishfinder that reveals every detail beneath the surface. The Garmin ECHOMAP Ultra 106sv paired with the GT56UHD-TM transducer transforms your boating experience into a precision angling adventure. This 10-inch sunlight-readable touchscreen isn't just a display—it's your command center, blending advanced sonar imaging, preloaded high-definition charts, and seamless connectivity to help you find fish faster and navigate smarter.
What sets this unit apart for serious anglers is its Ultra High-Definition (UHD) scanning sonar, which delivers razor-sharp images of fish-holding structures, bait schools, and individual targets. Combined with CHIRP traditional sonar, it covers everything from shallow weedlines to depths over 2,300 feet in freshwater, giving you confidence in varied conditions.
Crystal-Clear Sonar That Spots Fish Like Never Before
The GT56UHD-TM transducer is the heart of this system's fishfinding power. It supports multiple frequencies, including CHIRP High-Wide (150-240 kHz) for broad coverage, Ultra High-Definition ClearVü at 800 kHz for straight-down views, CHIRP ClearVü at 455 kHz, and UHD SideVü at 1,200 kHz with a 20% range boost over previous models. These let you peer into the water column with unprecedented detail, distinguishing subtle bottom changes or suspended fish that traditional sonar might miss.
Vivid color palettes enhance target separation, making it easier to identify hard structures like rock piles from softer mud bottoms or weed beds. Anglers report seeing fish reactions to lures in real-time, a game-changer for finesse techniques like drop-shotting or jigging. Plus, features like Sonar History Rewind let you scroll back through returns to analyze missed opportunities without missing a beat.
- Bottom lock mode for clean bottom tracking in current.
- Water temperature graphs to track thermoclines.
- A/S mode splits screen for traditional and scanning sonar side-by-side.
Stay Connected and in Control On and Off the Water
This chartplotter shines in networked setups. Dual Garmin Marine Network ports let you share sonar, user data, and charts across multiple ECHOMAP Ultra or compatible UHD units—no repeaters needed for smaller boats. NMEA 2000 compatibility integrates with autopilots, engine sensors, VHF radios, AIS, and even Fusion audio for a unified helm display.
Built-in Wi-Fi pairs with the ActiveCaptain app, unlocking OneChart for easy map swaps, software updates, smart notifications, and community data. Control your FORCE trolling motor directly from the screen—point it to waypoints or follow saved tracks effortlessly. Support for LiveScope and Panoptix transducers (sold separately) future-proofs your setup for forward-facing sonar thrills.
The quick-release bail mount makes it portable: unplug and take it ashore for trailering security, with cords staying attached to the cradle.
Rugged Build for Real-World Boating
Rated IPX7 waterproof, this unit withstands submersion and splashes. The WXGA display (1280 x 800) stays readable in direct sun, and polarized lens support cuts glare. At 4 lbs with dimensions of 11.6" x 7.7" x 3.9", it fits flush or bail mounts easily. Max transmit power hits 600W RMS (4,000W peak-to-peak) for deep-water penetration.
Connections include NMEA 0183 in/out, transducer ports for 12-pin scanning and LVS sonar, and wireless for app integration. Dual microSD slots handle charts and data storage.
Pro Tips to Maximize Your ECHOMAP Ultra 106sv
For offshore runs, leverage UHD SideVü to scout ledges from afar before dropping lines. Inland, pair ClearVü with forward-facing views (if added) to watch bass cruising shallows. Customize split-screen layouts for your style—many pros run four panels: sonar, charts, mapping, and engine data.
Regular transducer cleaning prevents false readings, and mounting it 1/3 from the transom edge optimizes water flow. Update via ActiveCaptain to access new color palettes or sonar tweaks that sharpen images further.
Frequently Asked Questions
What type of sonar does the GT56UHD-TM transducer provide?
It delivers CHIRP traditional sonar, Ultra High-Definition ClearVü and SideVü scanning sonars across multiple frequencies for detailed imaging at various depths.
Does this unit come with preloaded charts for U.S. waters?
Yes, it includes BlueChart g3 for coastal and offshore U.S. areas and LakeVü g3 for inland lakes, both with Navionics integration and Auto Guidance.
Can I network multiple ECHOMAP units together?
Absolutely, with dual Garmin Marine Network ports, you can share sonar, charts, and data between compatible ECHOMAP Ultra, Plus, or UHD models.
Is the ActiveCaptain app required for full functionality?
No, but it enhances features like software updates, Quickdraw Community maps, notifications, and OneChart access via Wi-Fi pairing.
What's the maximum depth capability?
Up to 2,300 ft in freshwater and 1,100 ft in saltwater at 77 kHz, varying by conditions and bottom type.
Does it support trolling motor integration?
Yes, compatible with FORCE trolling motors for waypoint navigation, track following, and control from the chartplotter screen.
How do I create custom maps?
Use Quickdraw Contours to generate 1-foot contour maps in real-time while fishing, then save or share via the Garmin Connect app.
ECHOMAP Ultra 106sv Preloaded US Offshore BlueChart g3 - LakeV g3 with GT56UHD-TM
ALL THE TOOLS YOU NEED FOR SUCCESSFUL FISHING
The sunlight-readable 10 touchscreen combo features preloaded BlueChart g3 charts and LakeV g3 maps, and the transducer bundle adds CHIRP traditional and Ultra High-Definition scanning sonars.
Features:
- The keyed-assist 10 touchscreen puts fishfinding know-how at your fingertips.
- See crisp images of structure and fish in stunning detail.
- Navigate confidently with preloaded BlueChart g3 charts and LakeV g3 maps.
- Manage your marine experience from nearly anywhere with the ActiveCaptain app1.
- Connect your boat to share data, sonar and charts with your other compatible devices.
- Explore your new favorite spot; create maps on the fly, and tailor them to fit your needs.
LiveScope Sonar Support
ECHOMAP Ultra 106sv supports a variety of Garmin transducers, including Panoptix all-seeing sonar transducers and the Panoptix LiveScope LVS12 scanning sonar system (sold separately).
Built-In UHD Sonar
The included GT56 transducer provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearV and SideV scanning sonars. With three scanning sonar frequencies and 20% greater range for our UHD SideV sonar, you'll get top performance at all depths.
Vivid Color Palettes
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
Preloaded Charts
Experience unparalleled coverage and detail with BlueChart g3 coastal charts and LakeV g3 inland maps both with integrated Navionics data and Auto Guidance2 technology.
Quickdraw Contours
Create personalized fishing maps on-screen with 1' contours. Keep the data to yourself, or share it with the Garmin Quickdraw Community on the Garmin Connect app3.
Network Capable
If you have multiple compatible ECHOMAP Ultra 10 and 12 units or ECHOMAP Plus or UHD and 9 units on your boat, you can share information such as sonar, user data and charts among them.
NMEA 2000 Network Compatibility
Connect to your compatible autopilots, digital switching, Fusion-Link audio system, media, VHF, AIS, engine data, heading sensors such as the SteadyCast sensor and more from one screen.
ActiveCaptain APP
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications, software updates, Garmin Quickdraw Community data and more1.
FORCE Trolling Motor Compatible
Take control of the most powerful and efficient trolling motor available4, route it to waypoints, follow tracks and more from the screen of your chartplotter.
Take It With You
Keep your ECHOMAP Ultra safe and secure. Cords plug directly into the quick-disconnect bail mount, which allows you to quickly install and remove your unit.
Connections:
- Garmin Marine Network Ports: 2 (large connector)
- NMEA 2000 Compatible: Yes
- Transducer Pin Numbers: 1 - LVS sonar, 1-12 pin Scanning sonar
- NMEA 0183 Input Ports: 1
- NMEA 0183 Output Ports: 1
- Video Input Ports: None
- Video Output Ports: None
- Wireless Connectivity: Yes
In The Box
- ECHOMAP Ultra 106sv with BlueChart g3 and LakeV g3 for U.S.
- GT56UHD-TM transducer
- Power/data cable
- Tilt mount with quick release cradle
- Flush mount
- Protective cover
- Hardware
- Documentation
1 Requires the ActiveCaptain app on your compatible smartphone paired to the ECHOMAP Ultra 106sv
2 Auto Guidance is for planning purposes only and does not replace safe navigation operations
3 Requires app on your compatible smartphone
4 In compliance with ISO standard 13342
Wi-Fi is a registered trademark of the Wi-Fi Alliance.

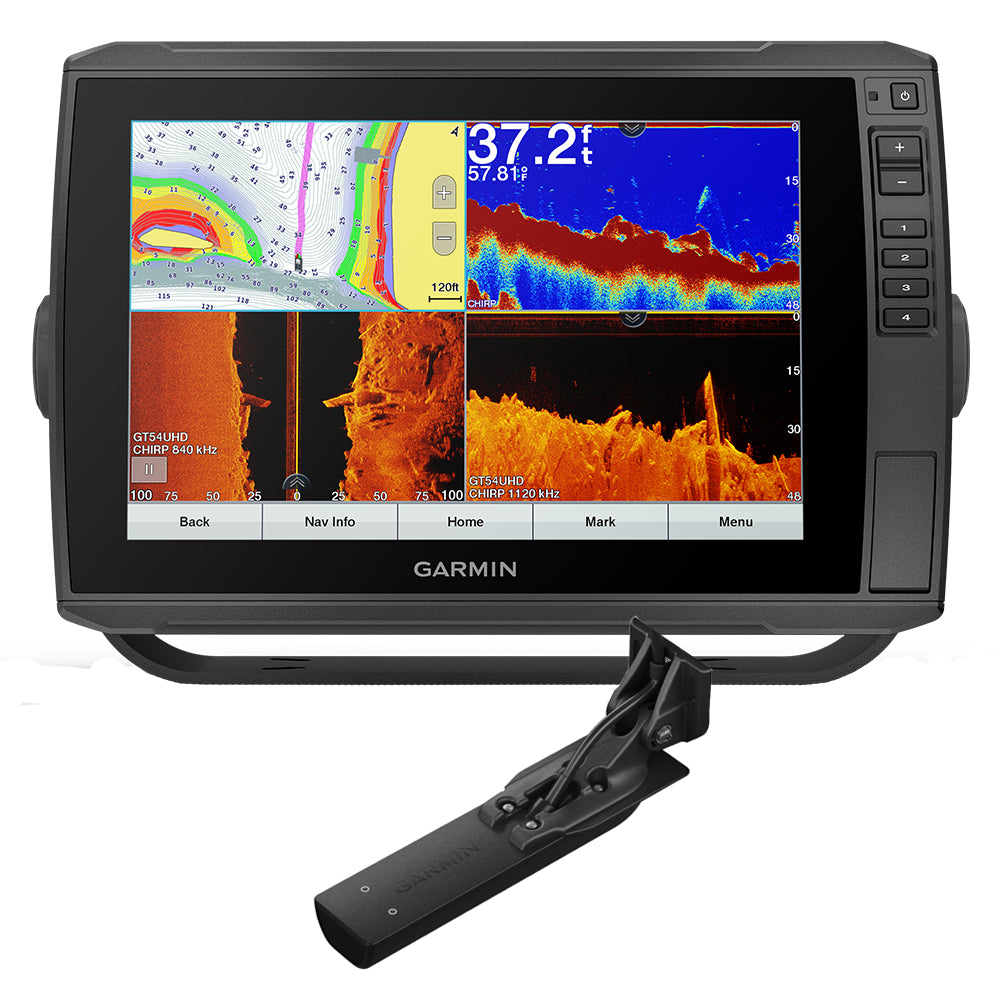

Garmin ECHOMAP™ Ultra 106sv With GT56UHD-TM Transducer
Model: 010-02527-01- The keyed-assist 10" touchscreen puts fishfinding know-how at your fingertips.
- See crisp images of structure and fish in stunning detail.
- Navigate confidently with preloaded BlueChart g3 charts and LakeVü g3 maps.
- Manage your marine experience from nearly anywhere with the ActiveCaptain® app1.
- Connect your boat to share data, sonar and charts with your other compatible devices.
- Explore your new favorite spot; create maps on the fly, and tailor them to fit your needs.
The sunlight-readable 10" touchscreen combo features preloaded BlueChart® g3 charts and LakeVü g3 maps, and the transducer bundle adds CHIRP traditional and Ultra High-Definition scanning sonars.
ECHOMAP Ultra 106sv supports a variety of Garmin transducers, including Panoptix™ all-seeing sonar transducers and the Panoptix LiveScope™ LVS12 scanning sonar system (sold separately).
The included GT56 transducer provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. With three scanning sonar frequencies and 20% greater range for our UHD SideVü sonar, you’ll get top performance at all depths.
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
Experience unparalleled coverage and detail with BlueChart g3 coastal charts and LakeVü g3 inland maps — both with integrated Navionics® data and Auto Guidance2 technology.
Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Garmin Quickdraw™ Community on the Garmin Connect™ app3.
If you have multiple compatible ECHOMAP Ultra 10" and 12" units or ECHOMAP Plus or UHD 7" and 9" units on your boat, you can share information - such as sonar, user data and charts - among them.
Connect to your compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS, engine data, heading sensors - such as the SteadyCast™ sensor - and more from one screen.
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw Community data and more1.
Take control of the most powerful and efficient trolling motor available4, route it to waypoints, follow tracks and more from the screen of your chartplotter.
Keep your ECHOMAP Ultra safe and secure. Cords plug directly into the quick-disconnect bail mount, which allows you to quickly install and remove your unit.
1 Requires the ActiveCaptain app on your compatible smartphone paired to the ECHOMAP Ultra 106sv 2 Auto Guidance is for planning purposes only and does not replace safe navigation operations 3 Requires app on your compatible smartphone 4 In compliance with ISO standard 13342
Specifications| General | |
| PHYSICAL DIMENSIONS | 11.6" x 7.7" x 3.9" (295 x 195 x 98 mm) |
| DISPLAY SIZE | 8.5" x 5.4"; 10" diagonal (21.7 cm x 13.6 cm; 25.4 cm diagonal) |
| DISPLAY RESOLUTION | 1280 x 800 pixels |
| DISPLAY TYPE | WXGA display |
| WEIGHT | 4.0 lbs (1.8 kg) |
| WATER RATING | IPX7 |
| POLARIZED SUPPORT | Yes |
| POWER CONSUMPTION | 26 W |
| ANTENNA | Internal or external over NMEA 2000 |
| MOUNTING OPTIONS | Bail or flush |
| RECEIVER | 10Hz |
| GARMIN MARINE NETWORK™ PORTS | 2 (large connector) |
| TRANSMIT POWER | 600 W (RMS) / 4,000 W (peak to peak) |
| Maps & Memory | |
| PRELOADED MAPS | BlueChart® g3 (U.S. and Western Canada coastal maps) and LakeVü g3 (inland maps) |
| ACCEPTS DATA CARDS | 2 microSD™ cards |
| WAYPOINTS | 5,000 |
| TRACK LOG | 50,000 points; 50 saved tracks |
| ROUTES | 100 |
| Outdoor Recreation | |
| TIDE TABLES | Yes |
| Chartplotter Features | |
| GARMIN SONAR COMPATIBLE | Yes |
| SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) | Yes |
| SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) | Yes |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | Yes |
| GCV™ BLACK BOX SONAR SUPPORT | Yes |
| ACTIVECAPTAIN COMPATIBLE | Yes |
| SAILING FEATURES | Yes |
| Sonar Features & Specifications | |
| DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE | Yes |
| DUAL-BEAM (77/200 KHZ) SONAR CAPABLE | Yes |
| FREQUENCIES SUPPORTED | CHIRP High-Wide: 150-240 kHz Ultra High-definition ClearVü: 800 kHz (760-880 kHz) CHIRP ClearVü: 455 kHz (425-845 kHz) Ultra High-definition SideVü: 1,200 kHz (1060-1170 kHz) |
| CHIRP SONAR TECHNOLOGY | Yes (Built-in) |
| CLEARVü | Yes with CHIRP (built-in) |
| SIDEVü | Yes with CHIRP (built-in) |
| MAXIMUM DEPTH | 2,300 ft @ 77 kHz, freshwater 1,100 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions) |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) | Yes |
| WATER TEMPERATURE LOG AND GRAPH | Yes |
| SONAR RECORDING | Yes |
| SONAR HISTORY REWIND | Yes |
| Connections | |
| NMEA 2000® COMPATIBLE | Yes |
| TRANSDUCER PIN NUMBERS | 1 — LVS sonar, 1 — 12 pin scanning sonar |
| NMEA 0183 INPUT PORTS | 1 |
| NMEA 0183 OUTPUT PORTS | 1 |
| WIRELESS CONNECTIVITY | Yes |
What's in the Box:
- ECHOMAP Ultra 106sv with BlueChart g3 and LakeVü g3 for
- GT54UHD-TM transducer
- Power/data cable
- Tilt mount with quick release cradle
- Flush mount
- Protective cover
- Hardware
- Documentation
SKU: NVN-86503
MPN: 010-02527-01
UPC: 753759264529
