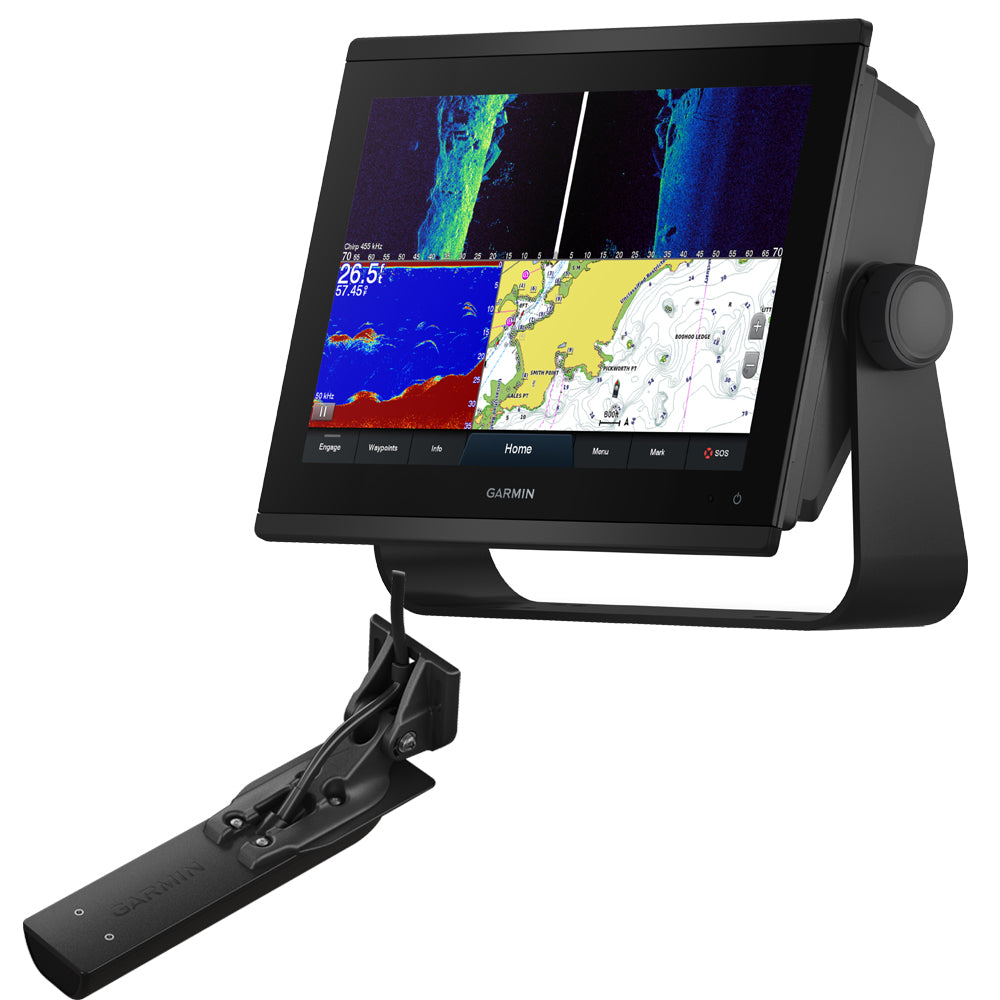

Garmin GPSMAP 1243xsv Combo GPS/Fishfinder - Preloaded US+Canada+Bahamas BlueChart g3 - LakeVu g3 w/GT56UHD-TM
Garmin GPSMAP 1243xsv Combo GPS/Fishfinder - Preloaded US+Canada+Bahamas BlueChart g3 - LakeVu g3 w/GT56UHD-TM — Product description
Unlock Deeper Insights on the Water with Superior Sonar Imaging
Imagine gliding across inland lakes or coastal bays, spotting fish and underwater structures with pinpoint clarity before your eyes. The Garmin GPSMAP 1243xsv elevates your boating adventures by blending a stunning 12-inch high-resolution display with cutting-edge Ultra High-Definition scanning sonar. Paired with the versatile GT56UHD-TM transducer, this combo delivers SideVü and ClearVü views that reveal the underwater world in vivid detail—perfect for anglers dialing in on schools of walleye or bass lurking near drop-offs.
What sets this apart is its ability to cut through murky conditions, offering 20% extended range on SideVü at 1,000 kHz compared to previous models. Whether you're trolling for salmon or structure fishing in shallow bays, the high wide CHIRP traditional sonar provides exceptional target separation down to impressive depths, helping you make smarter decisions on the fly.
Seamless Navigation Across Diverse Waters
Preloaded with BlueChart g3 for coastal regions spanning the US, Canada, and Bahamas, plus LakeVü g3 for thousands of inland lakes, you'll have detailed bathymetric contours, shorelines, and wrecks at your fingertips. Garmin's Auto Guidance technology simplifies route planning by suggesting safe paths around obstacles, saving time and reducing stress during busy outings.
For those seeking even richer visuals, compatibility with optional premium charts adds relief shading and satellite imagery, turning your screen into a virtual scouting tool. No more guessing games—confidently explore unfamiliar anchorages or prime fishing spots with data trusted by professional captains.
Build a Connected Helm That Grows with You
This chartplotter shines in expandability, supporting Panoptix LiveScope for real-time forward, downward, and all-around views that make jigging or live bait presentations a game-changer. Network it effortlessly via Garmin Marine Network ports to share user data, radar overlays, and camera feeds across multiple units.
Engine integration via J1939 keeps vital stats like fuel flow and RPM front and center, while NMEA 2000/0183 opens doors to autopilots, AIS, and audio systems. Pair with third-party gear through OneHelm for unified control, or sync ANT+ devices like wireless wind sensors and smartwatches for a fully orchestrated setup. The in-plane switching panel ensures sharp visibility from any angle, even under harsh sunlight.
Everyday Versatility from Transom to Trolling Motor
The GT56UHD-TM transducer adapts to your style—secure it transom-mounted for offshore runs or relocate to a trolling motor for stealthy inland pursuits. Multiple frequency options cover shallow flats to deep offshore drops, with a color palette that makes fish pop against the bottom. Anglers report hooking more keepers thanks to the enhanced resolution spotting subtle ledges missed by standard sonars.
Wireless connectivity links to the ActiveCaptain app, enabling Quickdraw Community contour sharing, software tweaks, and notifications without leaving the helm. It's like having a crew member handling updates while you focus on the bite.
Pro Tips for Maximizing Your Setup
- Fishing Focus: Dial in UHD SideVü for scanning broad areas quickly, then switch to LiveScope for precise presentations.
- Boating Efficiency: Leverage NMEA networks to consolidate engine data, VHF alerts, and weather overlays on one intuitive interface.
- Customization: Use flush or bail mounting for a clean console look that withstands spray and bumps.
- Maintenance Edge: Regular transducer checks ensure peak performance; the included adapter cables simplify swaps.
Frequently Asked Questions
What types of sonar does the GPSMAP 1243xsv support?
It features built-in Ultra High-Definition SideVü and ClearVü scanning sonars, plus 1 kW CHIRP traditional sonar. Add Panoptix or LiveScope for live imaging, covering everything from high-frequency shallow scans to deep-water traditional views.
Which charts come preloaded on this device?
BlueChart g3 coastal charts for the US, Canada, and Bahamas, along with LakeVü g3 inland maps, include Garmin Navionics data, Auto Guidance paths, and detailed contours for seamless navigation.
How flexible is the GT56UHD-TM transducer mounting?
Designed for transom or trolling motor installation, it offers versatile placement to optimize performance based on your boat type and fishing style.
Can it integrate with other Garmin and third-party devices?
Yes, via Garmin Marine Network, NMEA 2000/0183, J1939 engines, ANT+ accessories, and OneHelm for third-party digital switching—all from multiple dedicated ports.
What benefits does the ActiveCaptain app provide?
Through built-in Wi-Fi, access OneChart purchases, community data, smart notifications, and over-the-air updates for a connected experience from your smartphone.
How does Ultra High-Definition sonar improve fishing?
With vivid color palettes and extended range, it distinguishes fish from structure clearly, even in low visibility, leading to better hookups and fewer empty passes.
Is video input and output supported?
Absolutely—one BNC video input for cameras and HDMI output for mirroring to larger screens or secondary displays.
GPSMAP 1243xsv Combo GPS/Fishfinder - Preloaded US+Canada+Bahamas BlueChart g3 - LakeV g3 with GT56UHD-TM
Get a sharper view from your connected helm with the GPSMAP 1243xsv chartplotter. With its high-resolution 12 in-plane switching display, ultra sleek design and vivid sonar color palette, it seamlessly integrates into your Garmin marine system. GPSMAP 1243xsv also features built-in Ultra High-Definition SideV and ClearV scanning sonars and supports 1 kW CHIRP traditional sonar as well as fully networkable radar and Panoptix LiveScope sonar devices. Preloaded BlueChart g3 coastal charts and LakeV g3 inland maps give you the best of Garmin and Navionics data plus Auto Guidance1 technology. Easily build your marine system from compatible sonar and autopilots to compatible radar, cameras and multimedia using HTML 5.0, NMEA 2000 and NMEA 0183 network connectivity, J1939 for engines and the Garmin Marine Network. Or pair your plotter with your other compatible Garmin devices, such as quatix marine smartwatches, wind transducers, wireless remote controls and more.
Features:
- Easily integrate with more engines.
- Connect to compatible third-party devices with OneHelm digital switching.
- Easily build your marine system using the best of network connectivity.
- Navigate any waters with preloaded mapping and coastal charts.
- See everything below and around your boat with Ultra High-Definition scanning sonar.
- High wide CHIRP traditional sonar delivers target separation like no other.
- Multiple sonar frequencies have you covered no matter what depth you're fishing.
- See targets and structure in bright, vivid color.
- Mount this transducer your way transom or trolling motor.
- Manage your marine experience from nearly anywhere1.
Ultra High-Definition Scanning Sonar
Get built-in Ultra High-Definition SideV and ClearV scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP 1243xsv also supports 1 kW CHIRP traditional sonar capabilities.
Ultra High-Definition SideV Scanning Sonar
See everything the first time with stunningly clear images of structure and fish off to the sides of your boat. SideV sonar now has 20% greater range at 1,000 kHz, so you can see even farther than before.
High Wide Chirp Traditional Sonar
Experience remarkably clear target separation and definition up to 800' below your boat.
Panoptix Sonar Support
Pair with Panoptix or Panoptix LiveScope easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.
Fast, Sharp, Smart
With its ultrasleek design, vivid sonar color palette and high-resolution 12 in-plane switching display, this large format chartplotter/sonar combo offers improved sunlight readability and wide-angle visibility.
Preloaded Mapping
Experience unparalleled coverage and detail with preloaded BlueChart g3 coastal charts and LakeV g3 inland maps featuring integrated Garmin and Navionics content and Auto Guidance3 technology.
Optional Bluechart G3 Vision Charts
Upgrade to our reliable premium charts2, which add even more unparalleled features, such as high-resolution relief shading, to help you on each trip.
Garmin Marine Network
If you have multiple compatible Garmin devices on your boat, you can share information such as maps, user data, radar and IP camera video among them.
NMEA 2000 and NMEA 0183 Networks
Connect to compatible autopilots, digital switching, weather, Fusion-Link audio system, media, VHF, AIS and more from one screen.
ActiveCaptain APP
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications2, software updates, Garmin Helm digital switching, Garmin Quickdraw Community data and more4.
Integrated ANT Technology
Connect with some of your favorite devices, such as quatix marine watches, gWind Wireless 2 transducers, GNX Wind marine instruments and wireless remote controls.
J1939 Connectivity
Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.
OneHelm Feature
This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus digital switching, on one screen.
Connections
- Garmin Marine Network Ports: 2
- Transducer Ports: 1 (12 Pin)
- NMEA 2000 Port: 1
- NMEA 0183 Input Ports: 1
- NMEA 0183 Output Ports: 1
- J1939 Port: 1
- Video Input Ports: 1 BNC
- Video Output Ports: 1 HDMI
- Wireless Connectivity: Yes
In The Box
- GPSMAP 1243xsv chartplotter
- GT56UHD-TM
- microSD card preinstalled
- Power cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 meters)
- 8-pin transducer to 12-pin sounder adapter cable
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
1 Requires ActiveCaptain app on your compatible smartphone paired to the GPSMAP 1243xsv
2 Sold separately
3 Auto Guidance is for planning purposes only and does not replace safe navigation operations
4 When paired with your compatible smartphone
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
SKU: NVN-86486
MPN:
UPC:
Technical specifications
| Brand | Garmin |
| Model | Garmin GPSMAP 1243xsv Combo GPS/Fishfinder - Preloaded US+Canada+Bahamas BlueChart g3 - LakeVu g3 w/GT56UHD-TM |
| SKU / MFR# | 86486 |
