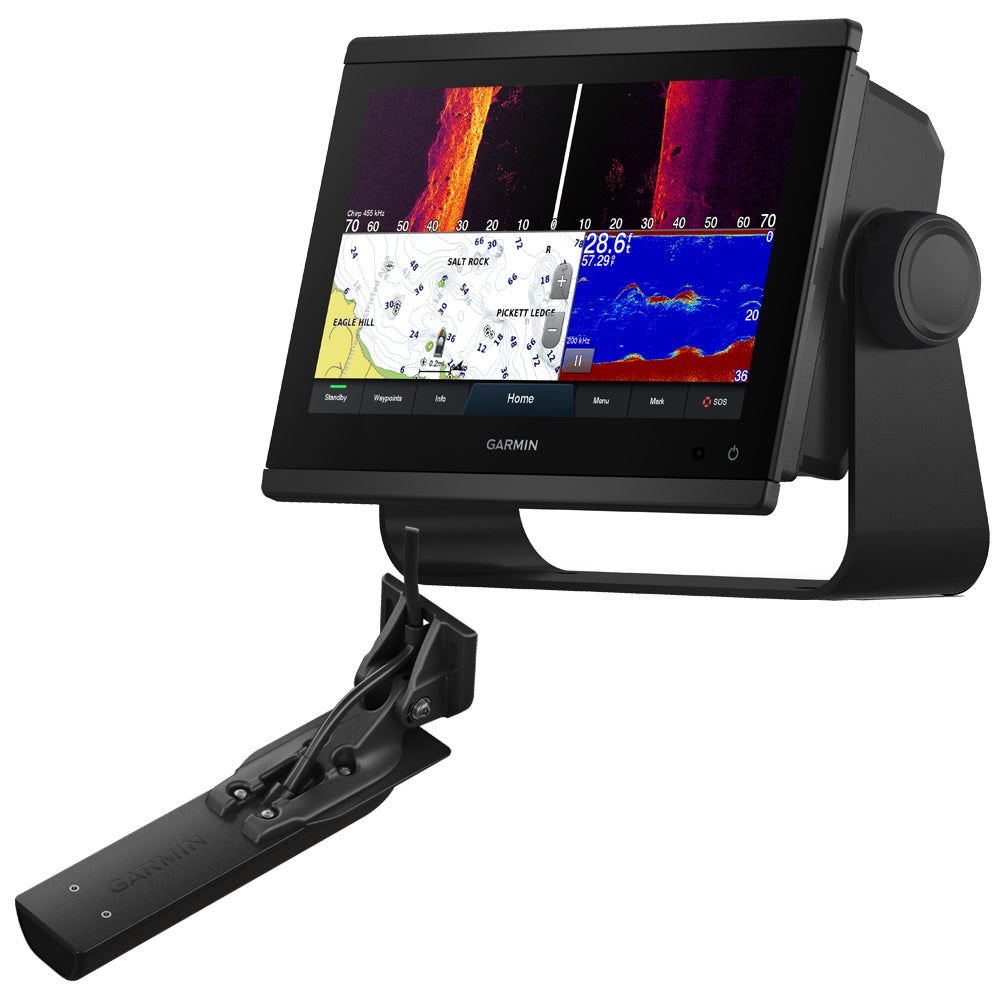

Garmin GPSMAP 943xsv Combo GPS/Fishfinder - Preloaded US+Canada+Bahamas BlueChart g3 - LakeVu g3 w/GT56UHD-TM
Garmin GPSMAP 943xsv Combo GPS/Fishfinder - Preloaded US+Canada+Bahamas BlueChart g3 - LakeVu g3 w/GT56UHD-TM — Product description
Transform Your Boating Experience with Cutting-Edge Clarity and Control
Imagine navigating treacherous waters or pinpointing that trophy fish with confidence, all from a sleek helm station. The GPSMAP 943xsv elevates everyday outings into precision adventures, blending a vibrant 9-inch in-plane switching touchscreen with powerhouse processing. Its display packs 50% more pixels than older models, delivering sharper charts, richer sonar images, and superior visibility even under harsh sunlight or from off-angles. Boaters rave about how this compact unit fits seamlessly into tight dashes, freeing up space without skimping on functionality.
What sets it apart? Double the processing speed ensures buttery-smooth panning across detailed maps, while 10 Hz GNSS tracking—drawing from GPS, GLONASS, and Galileo—locks in your position for spot-on course-over-ground data. Whether you're chasing billfish offshore or bass in shallow bays, this chartplotter responds instantly to your touch.
Preloaded Charts That Know Your Waters Inside Out
Dive into preloaded BlueChart g3 coastal coverage for the US, Canada, and Bahamas, fused with LakeVü g3 inland maps. This isn't just data—it's Garmin's collaboration with Navionics, offering high-res bathymetry, spot soundings, and smart Auto Guidance paths that plot safe routes around obstacles. Picture entering a destination, and the system suggests the optimal path, factoring in your boat's draft and beam. It's like having a seasoned captain whispering directions, perfect for unfamiliar anchorages or crowded marinas.
Real anglers appreciate the granularity: shaded depth contours highlight drop-offs where fish stage, and aerial imagery overlays help scout layouts before launch. No more fumbling with downloads mid-trip—these charts are ready from day one.
Ultra High-Definition Sonar: See More Fish, Catch More
Built-in UHD SideVü and ClearVü scanning sonars paint vivid pictures with high-contrast palettes, making fish targets pop against structure. Paired with the included GT56UHD-TM transducer, you unlock next-level performance. This all-in-one powerhouse delivers 20% greater SideVü range at 1 MHz, scanning up to 500 feet per side at 455 kHz, and crystal-clear high-wide CHIRP traditional sonar reaching 800 feet down.
- Triple-threat frequencies: 455/800 kHz/1 MHz scanning plus 500 watts for versatile depth coverage.
- Noise-free arches: CHIRP tech separates baitfish from keepers effortlessly.
- Easy distinction: Color schemes highlight wrecks, weedlines, and schools instantly.
Fishermen swear by it for trolling motor or transom mounts—installation is straightforward, and the results transform guesswork into targeted drifts. Support for 1 kW CHIRP, Panoptix LiveScope, and networkable radar means your setup scales with your passion.
Build a Connected Marine Ecosystem Effortlessly
Integration is where the GPSMAP 943xsv shines brightest. NMEA 2000/0183, Garmin Marine Network, and J1939 engine links let you monitor fuel, RPM, and trim alongside charts. OneHelm ties in third-party gear like digital switches, while built-in Wi-Fi connects to the ActiveCaptain app for notifications, updates, and chart management.
Pair with quatix smartwatches for wrist-based controls, gWind transducers for sail trim, or wireless remotes for hands-free helm work. ANT+ support extends to instruments, creating a unified system that anticipates your needs—alerting to shallow water ahead or syncing music from onboard multimedia.
Practical Tips from Seasoned Boaters
To maximize your setup, calibrate sonar in calm water first for baseline gains. Use edge-to-edge glass for glare-free viewing by angling shades strategically. For GT56UHD-TM, secure the trolling motor mount with Loctite to handle rough chops. Network multiple units for redundant displays during family charters, and leverage Auto Guidance for no-stress docking in crosswinds. These tweaks turn pros into even sharper operators.
Offshore? Stack radar overlays for bird-flocking cues. Lakeside? UHD scanning reveals submerged timber invisible to the naked eye. It's versatile gear that adapts to solo spins or crewed tournaments alike.
Frequently Asked Questions
What makes the display on the GPSMAP 943xsv better for marine use?
The 9-inch in-plane switching touchscreen boasts 50% more pixels for sharper images, improved sunlight readability, and wide-angle visibility, ideal for bumpy seas or group helm viewing.
Which areas are covered by the preloaded charts?
It includes BlueChart g3 for US coastal, Canada, and Bahamas waters, plus LakeVü g3 for detailed inland lakes, with Navionics-enhanced data and Auto Guidance.
How does the GT56UHD-TM transducer enhance fishing?
It provides UHD SideVü up to 500' per side, ClearVü scanning, and high-wide CHIRP to 800', with vivid palettes distinguishing fish from bottom structure across multiple frequencies.
Can this unit connect to other devices and networks?
Yes, via NMEA 2000/0183, Garmin Marine Network, J1939 engines, Wi-Fi for apps, and ANT+ for smartwatches, remotes, and sensors—building a full ecosystem.
What sonar options does it support beyond built-in?
It handles Panoptix LiveScope, 1 kW CHIRP traditional, and networkable radar, plus the GT56UHD-TM for comprehensive scanning.
Is the GT56UHD-TM easy to install?
Absolutely, with included transom and trolling motor mounts for quick setup, ensuring reliable performance without complex wiring.
How does Auto Guidance work?
It calculates efficient routes based on your vessel specs, avoiding hazards—great for planning, though always verify with active navigation.
GPSMAP 943xsv Combo GPS/Fishfinder - Preloaded US+Canada+Bahamas BlueChart g3 - LakeV g3 with GT56UHD-TM
Get a sharper view from your connected helm with the GPSMAP 943xsv chartplotter. Its higher-resolution 9 in-plane switching display has 50% more pixels than previous-generation touchscreens. And with its compact footprint, vivid sonar color palette and double the processing power of previous-generation GPSMAP devices, it seamlessly integrates into your Garmin marine system. GPSMAP 943xsv also features built-in Ultra High-Definition SideV and ClearV scanning sonars and supports 1 kW CHIRP traditional sonar as well as fully networkable radar and Panoptix LiveScope sonar devices. Preloaded BlueChart g3 coastal charts and LakeV g3 inland maps give you the best of Garmin and Navionics data plus Auto Guidance1 technology. Easily build your marine system from compatible sonar and autopilots to compatible radar, cameras and multimedia using HTML 5.0, NMEA 2000 and NMEA 0183 network connectivity, J1939 for engines and the Garmin Marine Network. Or pair your plotter with your other compatible Garmin devices, such as quatix marine smartwatches, wind transducers, wireless remote controls and more.
Features:
- Higher-resolution in-plane switching touchscreen displays offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9 units
- Fast and responsive, with nearly twice the processing power of previous-generation GPSMAP devices, this system references 10 Hz GNSS (GPS, GLONASS and Galileo) for accurate positioning and smooth speed as well as COG data
- Slimline display borders, edge-to-edge glass and reduced unit footprint make for easy retrofit in a wider range of dash configurations
- Preloaded mapping includes LakeV g3 and BlueChart g3 with the best of Garmin and Navionics data plus built-in Auto Guidance1 technology for confidence in helping you get where you need to go
- J1939 engine connectivity for easy integration with engines and our exclusive OneHelm feature for connecting to compatible third-party devices, such as EmpirBus digital switching
- Easily build your marine system from compatible sonar and autopilots to compatible radar, cameras and multimedia using NMEA 2000 and NMEA 0183 network connectivity and the Garmin Marine Network
- Use built-in Wi-Fi networking to pair with the free ActiveCaptain app2 for access to OneChart, smart notifications, software updates and more
- Integrated ANT technology support for use with your compatible quatix marine smartwatches, gWind Wireless 2 transducer, GNX Wind marine instrument and wireless remote controls
- Built-in Ultra High-Definition SideV and ClearV scanning sonars with high-contrast vivid color palettes to help distinguish fish from structure
- Supports Panoptix and Panoptix LiveScope sonar devices, 1 kW CHIRP traditional sonar and more
1 Auto Guidance is for planning purposes only and does not replace safe navigation operations
2 Requires app on your compatible smartphone; see Garmin.com/ble
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
GT56UHD-TM
Less time finding. More time fishing. The GT56 transducer is the ultimate all-in-one sonar solution, featuring Ultra High-Definition SideV scanning sonar with 20% greater range at 1 MHz, Ultra High-Definition ClearV scanning sonar and amazingly clear high wide CHIRP traditional sonar. With three scanning sonar frequencies, you'll get top performances at all depths. High wide CHIRP traditional sonar shows crisp fish arches with minimal noise for incredible clarity. Vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure. This transducer includes transom and trolling motor mounts.
Features:
- Get Ultra High-Definition SideV scanning sonar with 20% greater range at 1 MHz, Ultra High-Definition ClearV scanning sonar and amazingly clear high wide CHIRP traditional sonar
- High wide CHIRP traditional sonar provides remarkably clear target separation and definition up to 800' below your boat
- 455 kHz SideV scanning sonar lets you see up to 500' on each side of your boat
- Three scanning sonar frequencies 455 kHz, 800 kHz and 1 MHz and 500 watts of power deliver top performances at all depths
- Vivid scanning sonar color palettes make it easy to distinguish targets and structure
- Easy to install with transom and trolling motor mounts
SKU: NVN-86463
MPN:
UPC:
Technical specifications
| Brand | Garmin |
| Model | Garmin GPSMAP 943xsv Combo GPS/Fishfinder - Preloaded US+Canada+Bahamas BlueChart g3 - LakeVu g3 w/GT56UHD-TM |
| SKU / MFR# | 86463 |
