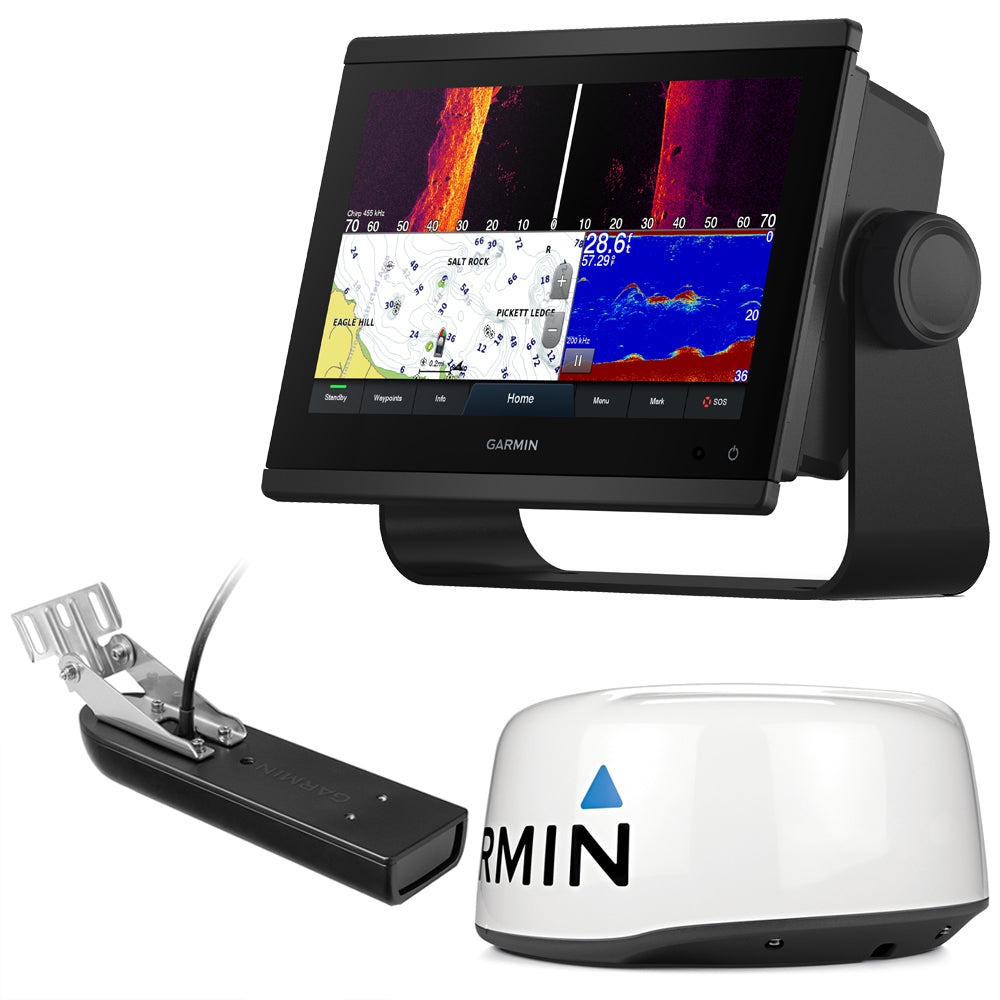

Garmin GPSMAP 943xsv Combo GPS/Fishfinder - Preloaded US+Canada+Bahamas BlueChart g3 - LakeVu g3 w/GT23M-TM & GMR 18 HD+
Garmin GPSMAP 943xsv Combo GPS/Fishfinder - Preloaded US+Canada+Bahamas BlueChart g3 - LakeVu g3 w/GT23M-TM & GMR 18 HD+ — Product description
Imagine navigating foggy coastal waters or pinpointing that hidden reef structure teeming with snapper during a dawn offshore run. The GPSMAP 943xsv setup transforms your boat's helm into a command center, blending razor-sharp charts, crystal-clear sonar returns, and radar vigilance into one seamless experience. Anglers and cruisers alike rave about how this combo elevates their time on the water, turning guesswork into precision without the clutter of multiple screens.
Why This Chartplotter Stands Out on the Water
At the heart of this bundle is the 9-inch in-plane switching touchscreen, packing 50% more pixels for sunlight-legible details even from off-angles—perfect for those squinting tournament weigh-ins or family cruises. Its doubled processing power smooths out 10 Hz GNSS tracking across GPS, GLONASS, and Galileo, delivering rock-steady course-over-ground data that keeps you locked on target amid choppy wakes.
Slim borders and a compact footprint mean it slips into tight dashes like it was built for your rig, while preloaded BlueChart g3 coastal charts (covering US, Canada, and Bahamas) and LakeVü g3 inland maps fuse Garmin's precision with Navionics' depth contours. Auto Guidance plots optimal paths around shallows, factoring in your vessel's draft for stress-free routing—ideal for threading skinny inlets or chaining waypoints across vast lakes.
Built-In Sonar That Sees Through the Murk
Ultra High-Definition SideVü and ClearVü scanning sonars come alive with vivid color palettes that make fish targets pop against bottom clutter. Whether you're scanning 200 feet sideways for schooling baitfish or imaging a precise drop-off straight down, separation is uncanny. Paired with the GT23M-TM transom-mount transducer, this mid-band CHIRP setup (80-160 kHz at 600W traditional, 260/455 kHz DownVü at 500W) paints crisp arches and structure with offshore clarity. Coastal trollers chasing kingfish or bass boats hugging contours report fewer missed bites thanks to its consistent performance in varied depths.
Network it up with 1 kW CHIRP traditional sonar or Panoptix LiveScope for forward-facing real-time views, and suddenly you're watching fish react to your lure in 360-degree glory—no more blind casts.
GT23M-TM Transducer: The Workhorse Below the Hull
This 8-pin plastic transducer thrives in rough conditions, mounting cleanly on the transom without drilling hassles. Its dual-channel prowess excels at separating targets in thermoclines or murky bays, helping you dial in lure depth on the fly. Boaters note its resilience against fouling, keeping readings reliable from launch to haul-out.
Radar Awareness That Keeps You Safe and Ahead
The GMR 18 HD+ dome radar punches above its 18-inch size with 4 kW power, scanning up to 36 nautical miles while nailing 20-meter close-ins at 24 RPM. Overlay echoes directly on your charts for intuitive threat avoidance—spot unlit vessels or squalls before they spot you. Dynamic Auto Gain and Sea Filter adapt on-the-fly, cutting clutter in swells so you focus on fishing, not fiddling.
With MARPA tracking (pair it with a heading sensor), it locks onto targets like commercial traffic, giving you peace of mind during night passages. Compact and cable-ready, it's a no-fuss add for trailerable center consoles or cuddy cabins craving radar without the bulk.
Seamless System Building for Your Boat
Expand effortlessly via Garmin Marine Network, NMEA 2000/0183, and J1939 engine links. Sync with autopilots for hands-free follows, cameras for docking views, or OneHelm for third-party switches. Wi-Fi hooks into ActiveCaptain for community charts and notifications, while ANT+ pairs with quatix watches for wrist-based helm control. It's not just gear—it's an ecosystem that grows with your adventures, from solo kayak trolling to crewed bluewater runs.
Real Boaters' Edge: Tips for Peak Performance
- Foggy Days? Layer radar overlays with SideVü to hug contours safely, avoiding no-wake zones packed with unseen obstacles.
- Tournament Ready: Leverage 10 Hz smoothing for pinpoint waypoint drifts, and CHIRP's target ID to cull keepers from shorts fast.
- Family Cruises: Auto Guidance simplifies routes, while vivid sonar keeps kids hooked spotting rays or wrecks.
- Maintenance Hack: Clean the GT23M-TM face monthly to sustain beam sharpness; radar thrives with clear line-of-sight mounts.
- Pro Tip: Calibrate transducers post-install for baseline accuracy, unlocking the full vivid palette potential.
Frequently Asked Questions
What kind of boats is the GPSMAP 943xsv best suited for?
This compact powerhouse fits center consoles, bay boats, and inland cruisers up to 30 feet, where space and power matter. Its retrofit-friendly design shines on upgrades from legacy plotters.
Does the built-in sonar work well in shallow water?
Absolutely—the ClearVü and DownVü excel down to 5-10 feet, revealing grass beds and flats species with high-res separation, complemented by CHIRP for deeper swings.
How does the GMR 18 HD+ handle rain clutter?
Dynamic Sea and Auto Gain settings auto-tune for precipitation and chop, delivering clean returns so you track birds or boats without false alarms.
Can I connect this to my existing engine data?
Yes, J1939 compatibility pulls fuel flow, RPM, and trim from most modern outboards and diesels, overlaying it all on one screen.
Is the GT23M-TM transducer easy to install?
Transom mounting is straightforward with included hardware—just ensure a fairing block for optimal beam angle and avoid cavitation zones.
What maps are preloaded, and can I add more?
US/Canada/Bahamas BlueChart g3 coastal and LakeVü g3 inland come standard, with ActiveCaptain enabling quick OneChart swaps or community updates.
Does it support forward-facing sonar?
Network-ready for Panoptix LiveScope, it streams live fish reactions ahead, revolutionizing jigging and trolling tactics.
GPSMAP 943xsv Combo GPS/Fishfinder - Preloaded US+Canada+Bahamas BlueChart g3 - LakeV g3 with GT23M-TM & GMR 18 HD+
Get a sharper view from your connected helm with the GPSMAP 943xsv chartplotter. Its higher-resolution 9 in-plane switching display has 50% more pixels than previous-generation touchscreens. And with its compact footprint, vivid sonar color palette and double the processing power of previous-generation GPSMAP devices, it seamlessly integrates into your Garmin marine system. GPSMAP 943xsv also features built-in Ultra High-Definition SideV and ClearV scanning sonars and supports 1 kW CHIRP traditional sonar as well as fully networkable radar and Panoptix LiveScope sonar devices. Preloaded BlueChart g3 coastal charts and LakeV g3 inland maps give you the best of Garmin and Navionics data plus Auto Guidance1 technology. Easily build your marine system from compatible sonar and autopilots to compatible radar, cameras and multimedia using HTML 5.0, NMEA 2000 and NMEA 0183 network connectivity, J1939 for engines and the Garmin Marine Network. Or pair your plotter with your other compatible Garmin devices, such as quatix marine smartwatches, wind transducers, wireless remote controls and more.
Features:
- Higher-resolution in-plane switching touchscreen displays offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9 units
- Fast and responsive, with nearly twice the processing power of previous-generation GPSMAP devices, this system references 10 Hz GNSS (GPS, GLONASS and Galileo) for accurate positioning and smooth speed as well as COG data
- Slimline display borders, edge-to-edge glass and reduced unit footprint make for easy retrofit in a wider range of dash configurations
- Preloaded mapping includes LakeV g3 and BlueChart g3 with the best of Garmin and Navionics data plus built-in Auto Guidance1 technology for confidence in helping you get where you need to go
- J1939 engine connectivity for easy integration with engines and our exclusive OneHelm feature for connecting to compatible third-party devices, such as EmpirBus digital switching
- Easily build your marine system from compatible sonar and autopilots to compatible radar, cameras and multimedia using NMEA 2000 and NMEA 0183 network connectivity and the Garmin Marine Network
- Use built-in Wi-Fi networking to pair with the free ActiveCaptain app2 for access to OneChart, smart notifications, software updates and more
- Integrated ANT technology support for use with your compatible quatix marine smartwatches, gWind Wireless 2 transducer, GNX Wind marine instrument and wireless remote controls
- Built-in Ultra High-Definition SideV and ClearV scanning sonars with high-contrast vivid color palettes to help distinguish fish from structure
- Supports Panoptix and Panoptix LiveScope sonar devices, 1 kW CHIRP traditional sonar and more
1 Auto Guidance is for planning purposes only and does not replace safe navigation operations
2 Requires app on your compatible smartphone; see Garmin.com/ble
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
GT23M-TM Plastic, TM Transducer, Mid-Band CHIRP/CHIRP DownV - 260/455kHz, 500W, 8-Pin
GT23M-TM transducer is perfect for coastal and offshore fishermen who want CHIRP traditional sonar and CHIRP DownV scanning sonar. This transom mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.
The 8-pin transducer features mid-band CHIRP traditional sonar (80-160 kHz) and has a power rating of 600 W. The CHIRP DownV (260/455 kHz) element has a power rating of 500 W.
For installation, follow the included instructions carefully to avoid damaging your boat.
GMR 18 HD+ Dome Radar
The compact GMR 18 HD+ dome radar is a good choice for boats with limited room for radar placement. It delivers 4 kW of transmit power and clear echo definition at all ranges to enhance situational awareness. Overlay radar images onto your chartplotter map page; however, for best overlay results, an optional autopilot or heading sensor is recommended. It also helps you avoid traffic on the water. GMR 18 HD+ provides MARPA target tracking when combined with a multifunction display and heading sensor (sold separately).
Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions. Dynamic Sea Filter automatically adjusts sea clutter, depending on sea conditions. GMR 18 HD+ features 8-bit true color resolution for a clear presentation on your chartplotter screen. It has a maximum range of 36 nautical miles with a minimum range of 20 meters and a rotation speed of 24 RPM. There are no complex user settings, and it's easy to install and start using.
Features:
- Streamlined 18-inch 4kW dome radar
- Deliver 4kW of transmit power and clear echo definition at all ranges
- Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions
- Dynamic Sea Filter automatically adjusts gain to changing sea conditions
- Overlays the radar image on the chartplotter map page (autopilot or heading sensor is recommended for best results)
- MARPA target tracking when combined with a multifunction display and heading sensor (sold separately)
- Beam angles: 5.0° horizontal, 25° vertical
- Max range: 36 nautical miles
- Minimum range: 20 meters
- Rotation speed: 24 revolutions/minute
- No complex user settings; easy to install and start using
Comes with:
- GMR 18 HD+ radome
- Mounting hardware kit
- Power cable (15 m/49.21 ft)
- Network cable (15 m/49.21 ft)
- Installation instructions
- Mounting template
SKU: NVN-86462
MPN:
UPC:
Technical specifications
| Brand | Garmin |
| Model | Garmin GPSMAP 943xsv Combo GPS/Fishfinder - Preloaded US+Canada+Bahamas BlueChart g3 - LakeVu g3 w/GT23M-TM & GMR 18 HD+ |
| SKU / MFR# | 86462 |
