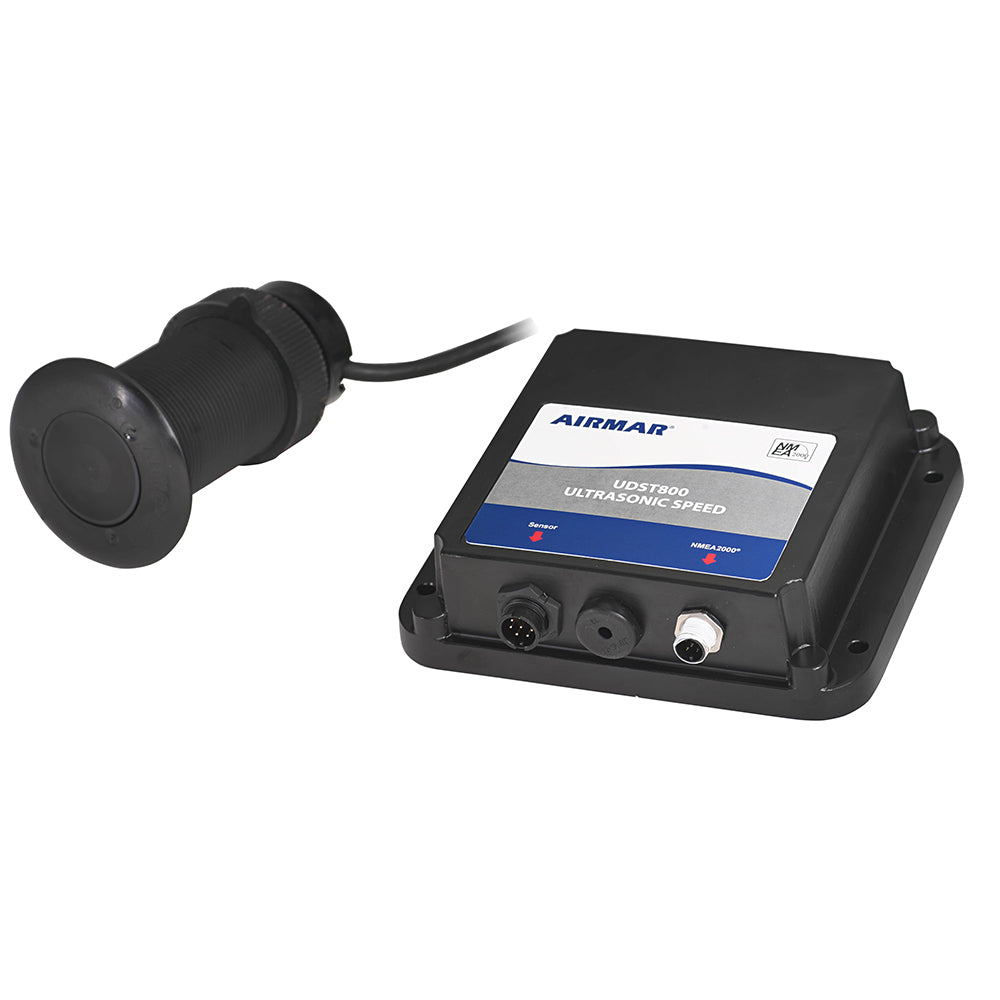

Airmar UDST800P-N2 Ultrasonic Smart Sensor - N2K

Airmar's patented UDST800 just turned your maintenance time into more cruising time—and made your boat smarter too. Get ultrasonic speed, depth, and temperature in a single thru-hull housing with no moving parts. Say goodbye to paddlewheel maintenance and hello to Smart technology, from the company who invented the Smart Sensor.

UDST800P-N2 Ultrasonic Smart Sensor - N2K

The UDST800 just turned your maintenance time into more cruising time…and made your boat smarter too. Ultrasonic speed, depth, and temperature in one single housing with no moving parts make this sensor high precision, low maintenance solution for use on power and sailboats of all types and sizes. Say goodbye to paddlewheel maintenance and hello to Smart technology, from the company that invented the Smart™ Sensor.

Features:

• Ultrasonic Depth, Speed and Temperature in one housing
• Precise readings at high speeds ideal for powerboats, cruising, and sailing
• Data Update Rate: up to 10 x per second
• Advanced filtering & sampling rates for increased accuracy at all speeds
• Adapts automatically to boat speed, water depth, and water clarity keeping speed-accuracy consistent
• No moving parts – no paddlewheel

Specifications:

• Correlation Speed Sensor Transmitting Frequency: 4.5 MHz
• Correlation Pulse Repetition Frequency: 0.5 kHz to 12 kHz (varies with speed)
• Speed Range: 0.1 to 50 knots (.1 MPH to 57 MPH)
• Available Outputs: NMEA2000®
• Water Temperature Range: -4°C to 40°C (32°F to 104°F)
• Depth: 235 kHz
• Depth Range: Minimum 0.6 m ( 2'), Maximum 100 m (328')
• Supply Voltage—NMEA2000®: 9 VDC to 16 VDC
• Supply Current: 80 mA - 200 mA, Average 125 mA @12VDC
• Thru-Hull Housing Material: Plastic (bronze or stainless steel optional)
• Thru-Hull Housing Diameter: 51 mm (2")
• CE Compliant: Yes
• Retrofits into AIRMAR P617V housing

"The Airmar P79 in-hull transducer easily adjusts to hull deadrise angles up to 22 o. This ensures that the beam is vertically oriented to receive echos, resulting in accurate depth readings. Unlike traditional \"puck\" type transducers, the Airmar P79 consists of a base that is bonded to the hull and filled with liquid. The separate transducer then attaches to the base with a twist lock. The sound waves travel more efficiently though the liquid, giving the best possible performance.Compatible with Garmin units with -pin transducer connector. Not Compatible with wood hulls, metal hulls or foam cored hulls."

• Ultrasonic speed, depth, and fast-response water-temperature sensing
• Single housing with no moving parts—no paddlewheel
• Precise readings at high speeds ideal for powerboats, cruising, and sailing
• Advanced filtering and sampling rates for increased accuracy at all speeds
• Adapts automatically to boat speed, water depth, and water clarity, keeping speed accuracy consistent
• 235 kHz frequency prevents interference with other echosounders on the vessel
• Retractable plastic insert in a low-profile plastic housing with water valve
• Also available in a bronze (B617V) or stainless steel (SS617V) housing
• Retrofits into Airmar's P617V, B617V or SS617V housing
• Airmar's Smart Sensor technology

SKU: NVN-84041
MPN: UDST800P-N2
UPC: 801769002560
