Lowrance HOOK Reveal 7 Chartplotter/Fishfinder Ice Machine w/SplitShot Transducer
Lowrance HOOK Reveal 7 Chartplotter/Fishfinder Ice Machine w/SplitShot Transducer — Product description
Transform Your Ice Fishing Adventures with Advanced Sonar Technology
Imagine drilling a hole in the ice, dropping your line, and instantly spotting schools of perch or walleye holding tight to the bottom structure. The Lowrance HOOK Reveal 7 with SplitShot transducer turns that vision into reality, especially tailored for ice anglers. This compact powerhouse combines high-performance sonar with user-friendly mapping, making it a game-changer for both seasoned pros and weekend warriors battling frozen lakes. Its ice-ready setup ensures you're not fumbling with gear in sub-zero temps—everything you need is included for quick deployment.
What sets it apart? FishReveal technology overlays crystal-clear fish arches from CHIRP sonar onto detailed DownScan images, so you see exactly where fish are lurking amid weeds, rocks, or drop-offs. No more guesswork; just precise targeting that boosts your catch rate even on pressured waters.
FishReveal: See Fish Like Never Before
In the low-visibility world of ice fishing, distinguishing baitfish from your trophy can mean the difference between a skunk and a limit. FishReveal fuses the sharp target separation of wide-angle CHIRP sonar with the photo-like clarity of DownScan Imaging. Fish light up in vivid colors against subtle structure details, helping you pinpoint aggressive biters and ignore the rest.
Pair it with new color palettes optimized for fish ID, and you'll quickly learn to read the screen like a pro. Whether jigging for crappie in shallow bays or hunting pike in deep basins, this feature saves time and ice chips.
Autotuning Sonar for Effortless Performance
Sonar settings can be a hassle in changing conditions—thick ice one day, thin slush the next. Autotuning sonar automatically optimizes frequency, gain, and sensitivity on the fly, delivering the sharpest images without constant tweaks. It's perfect for multi-species trips where depth and cover vary wildly.
The SplitShot transducer doubles your coverage with simultaneous CHIRP, DownScan, and GPS tracking, scanning wider areas faster. Cover more ground (or ice) to find hot bites before the crowd arrives.
Built-in Mapping to Unlock Hidden Hotspots
Preloaded C-MAP US Inland charts cover thousands of lakes with 1-foot contours, highlighting contours, humps, and points where fish stage. Genesis Live lets you create custom maps in real-time, etching half-foot detail on uncharted spots—ideal for remote northern lakes.
Store up to 3,000 waypoints for those secret honey holes, and navigate back effortlessly. MicroSD slot supports expanded charts for coastal or big-water ice fishing when seasons shift.
Rugged Design Built for Ice Fishing Extremes
With a SolarMAX display boasting 1000 nits of sunlight-readable brightness, you'll see every detail even on the sunniest winter days. The 7-inch 800x480 LCD offers wide viewing angles, so your buddy can spot fish from the side.
IPX7 waterproofing shrugs off splashes and spray, while the operating range from 5°F to 131°F handles brutal cold snaps. Lightweight at just 1.25 pounds, it mounts easily via gimbal bracket or flush dash—portable enough for snowmobile hauls.

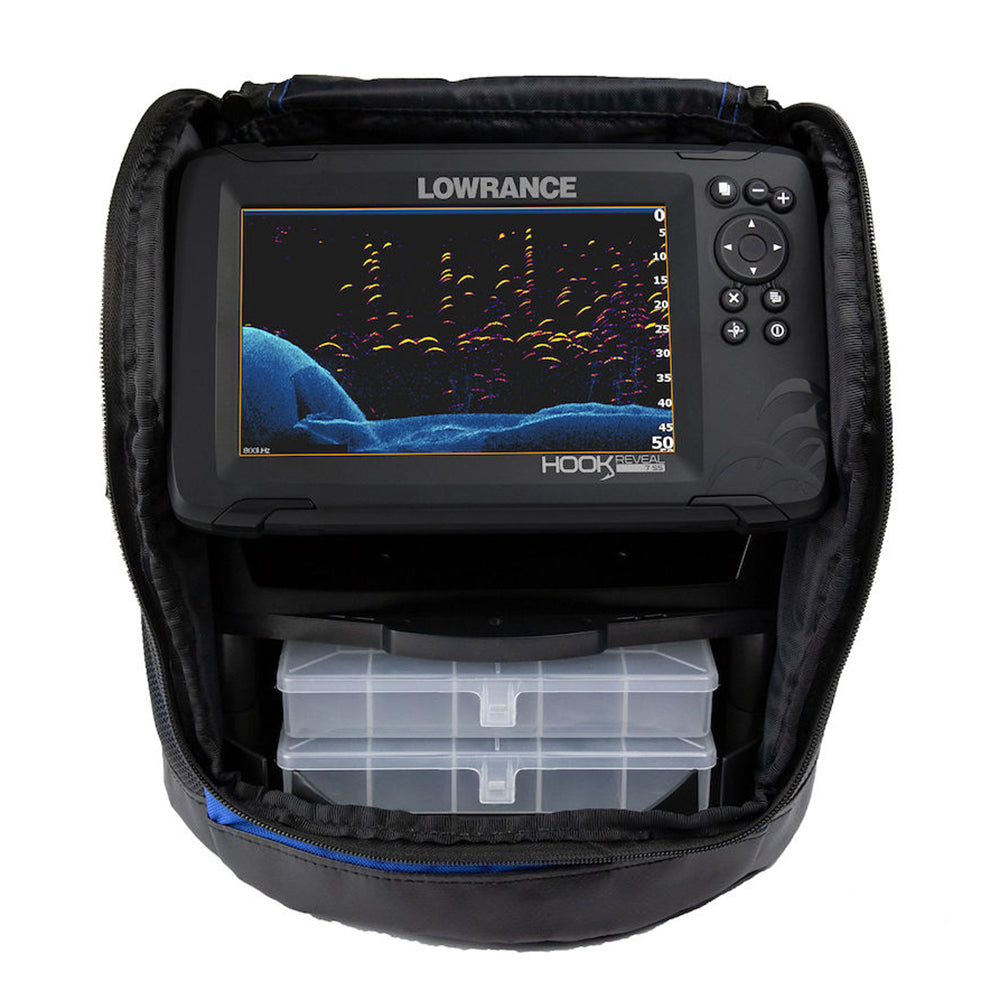

The ice machine kit includes a carrying case, rechargeable battery, charger, transducer, and tackle trays, transforming it into a self-contained station ready for tip-ups or deadsticking.
Simple Setup and Pro Tips for Ice Success
Getting started is straightforward: secure the gimbal mount to your shelter frame, connect the 12V battery (5-amp fuse protected), and plug in the SplitShot transducer through your auger hole. Power up, autotune, and start marking fish in minutes.
Pro tip: Use the one-touch keypad for quick zoom to fish arches or switch views. In shallow ice (under 20 feet), emphasize DownScan for wreck identification; go full CHIRP for deeper suspended schools. Pair with a flasher for hybrid setups on tough bites.
Frequently Asked Questions
What makes the SplitShot transducer ideal for ice fishing?
The SplitShot offers triple-shot capability—wide CHIRP for fish arcs, DownScan for structure, and GPS for precise hole locations. Its compact design threads easily through ice holes, providing reliable readings in murky winter water without interference from bubbles or debris.
How does FishReveal improve fish detection under ice?
FishReveal merges CHIRP sonar's fish ID with DownScan's high-res imaging on a single pane, highlighting fish in distinct colors against bottom clutter. This clarity helps identify species patterns, like walleye hugging mud flats versus suspended trout.
Is the HOOK Reveal 7 battery-powered for portable ice setups?
Yes, the included rechargeable 12V battery powers full-day sessions without a generator. The charger ensures quick top-ups, and low-power draw extends runtime even in cold weather.
Can I customize maps with this fishfinder?
Absolutely—Genesis Live creates real-time contour maps at 1/2-foot resolution. Save them to the microSD slot alongside 3,000 waypoints for returning to proven spots season after season.
What's the display like in bright sunlight on the ice?
SolarMAX technology delivers 1000 nits of brightness with anti-glare coating, ensuring vivid colors and sharp sonar returns even under harsh winter sun reflecting off snow.
How rugged is it for mobile ice fishing?
IPX7 waterproofing withstands submersion, and it operates from 5°F up, perfect for atv transport or shelter hopping. The lightweight build and carrying case make it ultra-portable.
Does Autotuning work well for beginners?
Yes, it automatically adjusts settings for depth, water type, and ice thickness, so new users get pro-level images instantly without manual calibration.
Gear Up for Limit Fills This Ice Season
Don't let tough conditions limit your success. With the HOOK Reveal 7 Ice Machine, you're equipped to find fish faster, fish smarter, and fill the fry pan. Its blend of innovation, durability, and ease makes every trip more productive.
The all-new HOOK Reveal makes fishing easier, delivering powerful performance with proven fish-finding tools including, Autotuning Sonar, DownScan Imaging ™ and now FishReveal ™, which makes fish easier to see by combining the benefits of Lowrance CHIRP sonar and DownScan Imaging ™ on one screen. Whether you're fishing a local spot or unfamiliar water, find the best fishing areas with preloaded US Inland mapping or map uncharted water in real time with Genesis Live.
Lowrance Electronics 0015542001 Attributes
- Display Size: 7 Inch LCD
- Display Resolution: 800 X 480 Pixels
- Sonar Compatibility: High CHIRP Sonar And Down Imaging In One Screen
- Mount Type: Dash Flush Mount/ Gimbal Bracket Mount
- Used To: To Find Fish, Mark And Return To Hot Spots, Docks And Ramps
- Interface: Keypad
- Waterproof: IPX7 Rating Waterproof
- Power Supply Voltage: 12 Volt
- Point Of Interest: 3000 Waypoints
- Weight: 1.25 Pound
- Screen Brightness: 1000 Nits
- Viewing Angle: 80 Degree Top/ Bottom, 85 Degree Left/ Right
- SD Card Storage: Micro SD Card
- Fuse Rating: 5 Amp
- Operating Temperature Range: 5 To 131 Degree Fahrenheit
- Compass Safe: 12 Inch
- Cartography Included: C-MAP US Inland Charting
Lowrance Electronics 0015542001 Features & Benefits
- Fish Are Easier To Find And Easier To Identify With FishReveal, Which Combines On One Screen The Proven Performance Of Lowrance Chirp Sonar
- High-Resolution, SolarMAX Display
- Autotuning Sonar Makes Fishing Simple
- Tripleshot ™ Features The Fish-Finding Capability Of Wide-Angle High Chirp Sonar And The High-Resolution Images Of Fish-holding Structure From Sidescan And Downscan Imaging ™
- New Fish-Finding Color Palettes
- Optimized Keypad With One-Touch Access To Key Features
- Features MicroSD Card Slot
- Easy Front-Dash Or Gimbal-Bracket Mount
- Limited 1 Year Warranty
Lowrance Electronics 0015542001 Installation Instructions
Lowrance Electronics 0015542001 Technical Bulletins
- Hook-Reveal-Series_OM_EN_988-12681-001_w.pdf
- Hook-Reveal_QG_EN_988-12656-001_w.pdf
- Hook-Reveal-X-Series-OM_EN_988-12692-001_w.pdf
- Hook-Reveal_QG_EN_988-12656-001_w.pdf
- Hook2-7-Hook-Reveal-7_MT_988-11781-002_w.pdf
- Hook-Reveal-Series_OM_EN_988-12681-001_w.pdf
HOOK Reveal 7 Chartplotter/Fishfinder Ice Machine with SplitShot Transducer
From the world’s best-selling series of fishfinders comes HOOK Reveal, a new fishfinder/chartplotter with one of our most popular features – FishReveal™. This powerful fishfinding tool combines the proven target identification of Lowrance CHIRP sonar with the high-resolution images of bottom detail and structure from DownScan Imaging™. That gives you the ultimate fishing view, allowing you to target fish and get the best view of how they are relating to structure without the need for a CHIRP-DownScan Imaging™ splitscreen display.
Designed to make the most of your time on the water, HOOK Reveal ensures you get the best sonar image every time with Autotuning Sonar, a unique feature that automatically adjusts sonar settings as fishing conditions change. What’s more, you’ll cover more water in less time with double the sonar coverage of other fishfinders, and have an easier time accessing key features with an optimized keypad and simple menu layout.
HOOK Reveal comes with a loaded combination of navigation tools to get you on the fish, including a preloaded US Inland fishing map with 1-foot contours on 4,000 lakes and Genesis Live real-time mapping. Find productive fishing areas faster with the built-in fishing map or map uncharted areas – down to ½-foot contours – with Genesis Live.
Features:
- FishReveal™
- Genesis Live Real-Time Mapping
- Autotuning sonar
- Double the sonar coverage of other fishfinders
- SplitShot transducer with High CHIRP and DownScan Imaging™
- Preloaded C-MAP US Inland mapping
- SolarMAX™ Display
- New fish-finding color palettes
- Optimized keypad with one-touch access to key features
- Mapping options include C-MAP, C-MAP Genesis, Navionics® and more
- MicroSD card slot
- Easy front-dash or gimbal-bracket mount
- Ice Fishing Pack included
Lowrance HOOK Reveal 7
Splitshot USA Inland Ice Machine
Model: 000-15542-001- FishReveal
- Genesis Live Real-Time Mapping
- Autotuning sonar
- Double the sonar coverage of other fishfinders
- SplitShot transducer with High CHIRP and DownScan Imaging™
- Preloaded C-MAP US Inland mapping
- SolarMAX™ Display
- New fish-finding color palettes
- Optimized keypad with one-touch access to key features
- Mapping options include C-MAP, C-MAP Genesis, Navionics® and more
- microSD card slot
- Easy front-dash or gimbal-bracket mount
From the world’s best-selling series of fishfinders comes HOOK Reveal, a new fishfinder/chartplotter with one of our most popular features — FishReveal™. This powerful fishfinding tool combines the proven target identification of Lowrance CHIRP sonar with the high-resolution images of bottom detail and structure from DownScan Imaging™. That gives you the ultimate fishing view, allowing you to target fish and get the best view of how they are relating to structure without the need for a CHIRP-DownScan Imaging™ splitscreen display.
Designed to make the most of your time on the water, HOOK Reveal ensures you get the best sonar image every time with Autotuning Sonar, a unique feature that automatically adjusts sonar settings as fishing conditions change. What’s more, you’ll cover more water in less time with double the sonar coverage of other fishfinders, and have an easier time accessing key features with an optimized keypad and simple menu layout.
HOOK Reveal comes with a loaded combination of navigation tools to get you on the fish, including a preloaded US Inland fishing map with 1-foot contours on 4,000 lakes and Genesis Live real-time mapping. Find productive fishing areas faster with the built-in fishing map or map uncharted areas — down to ½-foot contours — with Genesis Live.
HOOK Reveal 7 Mapper/fishfinder ice maker with SplitShot transducer comes from the world’s best-selling fishfinder series. HOOK Reveal is a new fishfinder with one of our most popular features – FishReveal™ Maker/graph drawing machine. ...
SKU: NVN-81387
MPN: 000-15542-001
UPC: 9420064114771
Technical specifications
| Brand | Lowrance |
| Model | Lowrance HOOK Reveal 7 Chartplotter/Fishfinder Ice Machine w/SplitShot Transducer |
| SKU / MFR# | 81387 |
