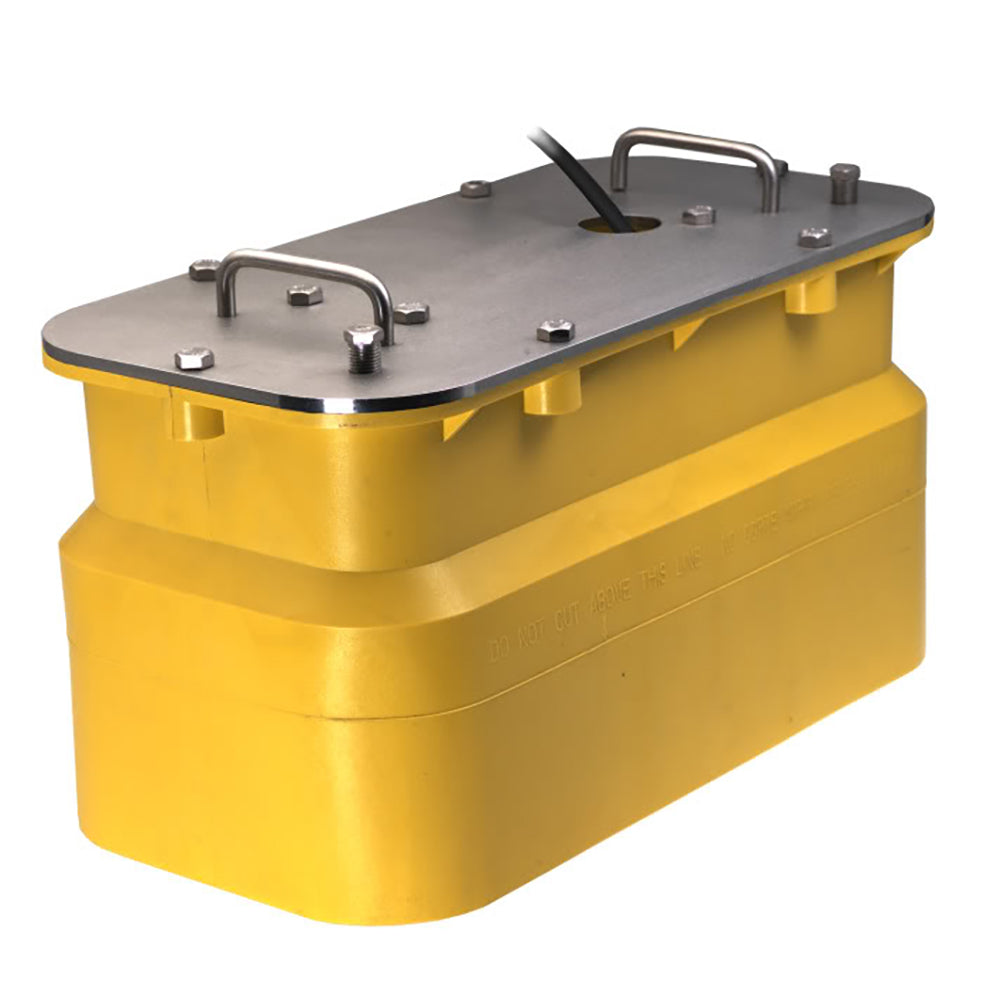

Airmar R111C-LM 2KW Chirp Transducer - In Hull

2 kW

Having the right tool for the job makes the job easier and gives better results. The right tool for covering deep-water haunts of swordfish, tuna, and other species is a 2 kW, low to medium-frequency transducer. The Chirp-ready R111LM delivers the deep-water performance of the low frequency down to 1829 m (6000') plus the detailed returns produced by the narrower beams of the medium band.

Chirp technology shows 5 to 10 times-greater detail and resolution than conventional frequencies. The R111LM transmits across the low frequency bandwidth of 38 to 75 kHz, and the medium frequency from 80 to 130 kHz. This transducer delivers up to 87 kHz of total bandwidth in a single installation.

The transducer is installed in the included tank which is cut to the boat's deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The R111LM is a popular choice for customers not wanting to drill a hole in their hull and for trailered or multi-hull boats.

R111C-LM In-Hull Chirp 2KW Transducer

L/M Model -Low Frequency 38-75 kHz, Medium Frequency 80-130 kHz

Features

• Depth & fast-response water-temperature sensor
• Low—CHIRPS from 38 kHz to 75 kHz 19° to 10° beamwidth
• Medium—CHIRPS from 80 kHz to 130 kHz 13° to 8° beamwidth
• 87 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 38, 50, 88, and 107 kHz plus everything else in the bandwidth
• Fishing Profile: Recreational and commercial inshore and offshore fishing (deep-water canyon and sea-mount tracking)
• Urethane transducer housing
• Hull Type: Solid fiberglass only
• Exclusive Xducer ID® technology

Specifications

• Hull Deadrise: 0° to 22°
• Acoustic Window: Epoxy/urethane
• All mounting hardware provided, including tank
• Weight: 19.7 kg (43.4 lb)

• Depth only
• 2 kW of power for outstanding deep-water performance
• Low frequency: 38 to 75 kHz
• 19° to 10° port-starboard beamwidth
• 10° to 5° fore-aft beamwidth
• Maximum depth of 1829 m (6000')
• Medium frequency: 80 to 130 kHz
• 13° to 8° beamwidth
• Maximum depth of 914 m (3000')
• 87 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 38, 50, 88, and 107 kHz plus everything else in the bandwidth
• Urethane transducer housing with plastic mounting tank
• Also available as thru-hull external (R109LM) and pocket/keel/welded-tank (PM111LM) mounts
• Patented Xducer ID technology

SKU: NVN-79705
MPN: R111C-LM
