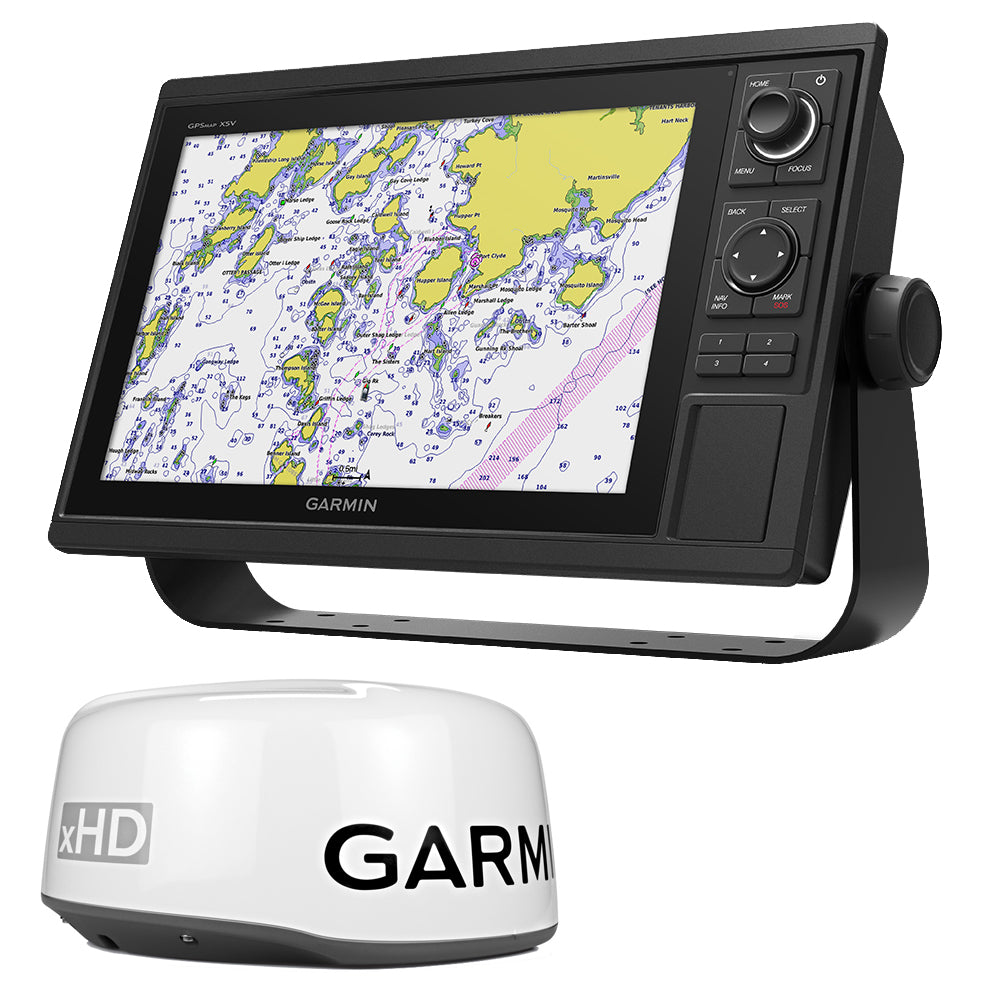

Garmin GPSMAP 1242xsv Keyed Networking Combo - No Transducer w/GMR 18XHD Bundle
Garmin GPSMAP 1242xsv Keyed Networking Combo - No Transducer w/GMR 18XHD Bundle — Product description
Discover Seamless Navigation and Radar Precision on the Water
Imagine gliding across open waters or navigating tight inland channels with crystal-clear situational awareness. The GPSMAP 1242xsv keyed networking combo paired with the GMR 18xHD radar bundle transforms your boat's helm into a command center. This 12-inch powerhouse combines intuitive controls, advanced sonar readiness, and high-definition radar scanning, all without the included transducer for flexible customization. Boaters and anglers rave about its responsive interface—perfect for gloved hands during rough seas—and its ability to network effortlessly with other gear.
Whether you're chasing trophy fish in shallow bays or plotting coastal voyages, this setup delivers fluid 10 Hz GPS updates for pinpoint accuracy, preloaded charts with Auto Guidance to dodge hazards, and radar that pierces fog or darkness up to 48 nautical miles. It's not just equipment; it's your edge for safer, smarter outings.
Intuitive Keyed Control Meets Vibrant 12-Inch Display
The oversized, sunlight-readable color screen pairs with a rugged keypad and programmable multifunction knob, letting you zoom charts, toggle sonar views, or adjust radar gains without fumbling. Forget touchscreen frustrations in wet conditions—this design shines where precision matters most.
- High-sensitivity internal GPS/GLONASS for 10x-per-second position refreshes, smoothing out your trackline even at speed.
- Built-in CHIRP sonar support (transducer optional) with ClearVü, SideVü scanning, and Panoptix compatibility for live underwater vistas.
- Network sharing across multiple units: sonar, radar overlays, user data, cameras—you name it.
Pro tip: Overlay radar returns directly on your chartplotter for clutter-free collision avoidance, a feature that saves seconds in critical moments.
GMR 18xHD Radar: HD Clarity in a Compact Dome
Elevate your radar game with this 4kW, 18-inch dome that packs open-array performance into a familiar footprint. Its dynamic auto-adjustments handle calm harbors or choppy oceans, dialing in gain and sea clutter without endless tweaks. Split-screen dual-range views let you monitor close-quarters traffic alongside distant storms, all in rich 8-bit color.
- Intuitive modes for any sea state: Harbor/Offshore, Calm/Rough—pick your aggression level.
- 48 RPM rotation with auto-speed scaling for responsive sweeps.
- Effortless integration via Garmin Marine Network—no complex installs required.
Anglers love spotting bird flocks over bait balls; cruisers trust it for unmarked rocks or rogue waves. This radar doesn't just detect—it interprets the water ahead.
Stay Connected: From App to ANT and Beyond
Wi-Fi unlocks the ActiveCaptain app ecosystem: plan routes on your phone, crowdsource Quickdraw Contours from fellow boaters, or snag smart notifications without leaving the helm. ANT+ links to wearables like quatix watches or wireless wind sensors for real-time data fusion.
Full NMEA 2000/0183 compatibility hooks into autopilots, VHF, AIS, and more. Share one sonar source across the boat while video inputs display engine cams—it's a wired (and wireless) wonderland.
Superior Mapping: Own the Depths and Shores
Preloaded LakeVü g3 and BlueChart g3 blend Garmin precision with Navionics detail, including 1-foot contours on 17,000+ lakes and coastal raster charts. Auto Guidance plots safe paths around shallows; shading highlights depth zones to prevent groundings.
Upgrade to Ultra/Vision for relief shading that reveals submerged structures like never before. Best part? Quickdraw Contours lets you map uncharted spots in real-time, sharing or hoarding your secrets via the community.
For sailors, SailAssist tools like laylines, pre-race timers, and wind roses turn the screen into a tactician's dream.
Versatile Connections and Easy Setup
Two Marine Network ports, one 12-pin transducer slot, NMEA ports, and BNC video input ensure scalability. The bundle arrives ready to mount—bail, flush, or protected—with all cables and adapters included for plug-and-play vibes.
Frequently Asked Questions
Does the GPSMAP 1242xsv bundle include a transducer?
No, this specific combo ships without a transducer, giving you freedom to choose the perfect one for your hull and fishing style, like GT51M-TM or Panoptix PTS800.
How does the GMR 18xHD radar improve over standard domes?
It steps up with 4kW HD processing for sharper target separation, dynamic auto features that adapt to conditions, and dual-range splits—ideal for spotting pots or ships without overload.
Can I share sonar data across multiple chartplotters?
Absolutely—Garmin Marine Network lets any networked unit share the 1242xsv's CHIRP sonar, radar, and maps, streamlining your multi-station setup.
What charts come preloaded, and can I add more?
LakeVü g3 for inland (17,000+ lakes) and BlueChart g3 for coasts, both with Navionics data and Auto Guidance. Expand via ActiveCaptain with Ultra/Vision packs for satellite overlays and more.
Is this suitable for sailing or just powerboating?
Versatile for both—SailAssist includes laylines, wind data, and race timers, while power users get top-tier fishfinding and radar for all conditions.
How do I transfer waypoints from my old GPS?
Use GPX format for seamless imports from other brands or Garmin handhelds—drop thousands of points without hassle.
What's the benefit of the 10 Hz GPS receiver?
It updates position and heading 10 times per second for smoother tracks, precise waypoint drops, and better autopilot following at trolling or planing speeds.
GPSMAP 1242xsv Keyed Networking Combo - No Transducer with GMR 18XHD Bundle
12-inch Chartplotter/Sonar Combo Is All-in-1 Solution.
Features:
- 12-inch color display with keypad interface and multifunction control knob
- Includes transducer with high wide CHIRP, 250 W and CHIRP ClearV/SideV, 455/800, 500 W (also available without transducer)
- Preloaded U.S. LakeV g3 maps and BlueChart g3 charts feature Navionics data and Auto Guidance technology
- High-sensitivity internal 10 Hz GPS and GLONASS receiver
- Built-in single channel CHIRP sonar, CHIRP ClearV and CHIRP SideV scanning sonar and Panoptix support (transducers sold separately)
Experience an advanced all-in-1 solution with our 12-inch GPSMAP 1242xsv keyed combo. Includes transducer for Garmin CHIRP sonar, CHIRP ClearV and CHIRP SideV (also available without transducer). It also has built-in support for Panoptix all-seeing sonar and premium Garmin sonar modules (transducers sold separately). Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.
Complete Network Sharing
Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.
Built-in ANT Connectivity
Enjoy built-in ANT wireless connectivity directly to quatix marine watch, Garmin Nautix in-view display, gWind Wireless 2 transducer, GNX Wind marine instrument and wireless remote controls.
The Ultimate Connected Boating App
Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you'll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.
Built-in Sonar Capabilities
Right out of the box, you have access to some amazing sonar capabilities; all you have to add are transducers. Comes with built-in Garmin 1 kW CHIRP sonar, CHIRP ClearV and CHIRP SideV scanning sonar. It even supports Panoptix all-seeing sonar, premium Garmin sonar modules and a wide range of transducers (sold separately).
Networked combos can share their internal sonar with any other device on the network. You can also choose what information is overlaid on the sonar screen; for example, radar, time of day or GPS speed.
Heading, Position Refreshed 10 Times per Second
Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints and finding your way back to them quick and easy.
Preloaded with Exceptional Garmin Cartography
LakeV g3 inland maps and BlueChart g3 coastal charts provide industry-leading coverage, clarity and detail with integrated Garmin and Navionics data and Auto Guidance1 technology. LakeV g3 and BlueChart g3 include Auto Guidance1, which uses your desired depth and overhead clearance to calculate routes and provide a suggested path to follow. LakeV g3 provides coverage on more than 17,000 lakes with up to 1' contours. BlueChart g3 also includes NOAA raster cartography, available as a free downloadable feature via the ActiveCaptain app. Additionally, they both offer easy-to-use features such as Depth Range Shading and Shallow Water Shading, which let you view your target depth to avoid running aground.
Upgrade to Our Best Maps on the Water
Accessory map purchases, such as LakeV g3 Ultra or BlueChart g3 Vision, add even more features and detail to your maps and charts. LakeV g3 Ultra and BlueChart g3 Vision add high-resolution relief shading, which provides an easy-to-interpret, clearer view of bottom structure than contour lines alone plus many other chart and map-enhancing features.
Quickdraw Contours to Create Your Own HD Maps
Instantly create personalized HD fishing maps on screen with 1-foot contours. Tailor them to fit your needs. These are your maps you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect.
Built-in SailAssist Features
To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.
GPX Waypoints Transfer
If you have waypoints, tracks or frequently used routes stored on another manufacturer's GPS product or on a Garmin handheld device it's easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.
In The Box:
- GPSMAP 1242xsv chartplotter
- Power/data cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 m)
- 8-pin transducer to 12-pin sounder adapter cable
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
Connections:
- Garmin Marine Network Ports: 2
- Transducer Ports: 1 (12 Pin)
- NMEA 2000 Port: 1
- NMEA 0183 Input Ports: 1
- NMEA 0183 Output Ports: 1
- Video Input Ports: 1 BNC
- Video Output Ports: No
- Wireless Connectivity: Yes
Auto Guidance is for planning purposes only and does not replace safe navigation operations.
iPhone and iPad are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Wi-Fi is a registered trademark of the Wi-Fi Alliance.
GMR 18 xHD
Garmin's next-generation, 4kW high-definition GMR 18 xHD dome radar with intuitive advanced open-array features is very easy to use. Intuitive operation makes modes and settings simple to understand so you can enjoy great performance without a lot of technical know-how. Delivers higher resolution than our previous generation 18" dome radars. Dynamic Auto Gain and Dynamic Sea Filter continually adjust to your surroundings providing optimal performance in varying conditions. Choose from multiple levels of aggressiveness or use manual gain adjustment. Dual range operation allows split-screen display of far and close radar views in full 8-bit color. Range of 48 nautical miles.
Features:
- 4kW high-definition 18" dome radar
- Step up to xHD performance in a radome
- Dynamic new shape allows for a larger antenna to occupy the same footprint
- No complex user settings, easy to install and start using
- Dynamic Auto Gain and Dynamic Sea Filter continually adjust to your surroundings to provide optimal performance in varying conditions
- Harbor/Offshore and Calm/Medium/Rough user selections allow the user to vary the aggressiveness of the Dynamic Auto features
- 8-bit true color display (on select chartplotter models)
- Dual range operation allows split screen display for far and close radar views
- 48 RPM max speed with auto adjustment based on range
- Maximum range of 48 nautical miles
