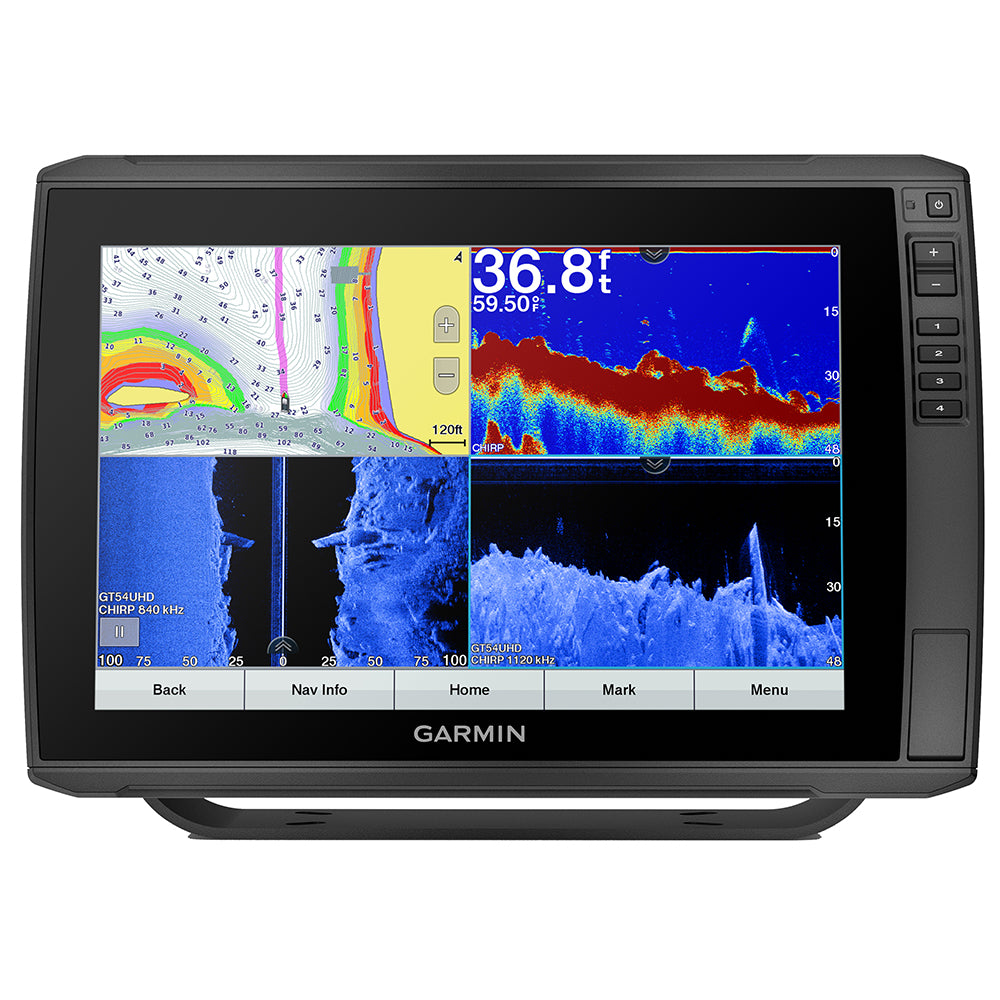

Garmin ECHOMAP Ultra 126sv w/o Transducer
Garmin ECHOMAP Ultra 126sv w/o Transducer — Product description
Discover the Power of Advanced Fishing Technology
Imagine heading out on the water, confident that every detail of your trip—from spotting fish in real-time to navigating tricky channels—is handled by a reliable partner. The Garmin ECHOMAP Ultra 126sv without transducer steps in as that trusted companion for serious anglers and boaters. This 12-inch powerhouse combines crystal-clear charting with support for cutting-edge sonar systems, all without the bulk of unnecessary extras. Whether you're chasing trophy bass in shallow lakes or tracking pelagic species offshore, its versatile design adapts to your style.
Exceptional Visibility on the Water
Sunlight glare can make or break a fishing day, but this unit's keyed-assist touchscreen shines through. The 12.1-inch WXGA display (1280 x 800 resolution) delivers sharp images even under the brightest conditions. Gloved hands? No problem—the physical keys alongside touch controls ensure quick access to functions like zooming charts or switching sonar views. Weighing just 5.5 lbs and rated IPX7 waterproof, it withstands splashes and rough handling, making it ideal for open-deck boats or harsh marine environments.
Unlock Premium Sonar Without Compromise
Built for anglers who demand the best, it supports Garmin's elite sonar lineup straight out of the box. Pair it with traditional CHIRP for deep-water precision, ClearVü and SideVü for detailed bottom scans, or dive into Panoptix LiveScope for live-action fish tracking—no black box needed. Transmit power hits 500W RMS (4,000W peak-to-peak), penetrating up to 2,300 feet in freshwater. Features like sonar rewind let you replay history to analyze structure, while bottom lock and water temp graphs reveal hidden patterns. Pro tip: Combine with a high-frequency transducer for pinpointing bait schools during dawn patrols.
Real-World Sonar Tips
- Adjust CHIRP frequencies (low for depth, high for separation) based on water clarity to cut through thermoclines.
- Use SideVü to map drop-offs before dropping lines, saving hours of blind trolling.
- Record sessions for post-trip review—perfect for refining techniques on familiar waters.
Superior Mapping That Evolves with You
Preloaded BlueChart g3 coastal charts and LakeVü g3 inland maps come alive with integrated Navionics data. Auto Guidance technology plots safe routes considering depth and clearance, like a virtual navigator whispering directions. But the magic happens with Quickdraw Contours: As you fish, it generates 1-foot custom maps on the fly. Own your data—keep private hotspots secret or share anonymously via Garmin Connect.
Want more? Upgrade to g3 Vision or LakeVü Ultra for 3D bottom shading, satellite overlays, and high-res relief that turns flat charts into immersive views. Store up to 5,000 waypoints, 100 routes, and 50,000 track points across two microSD slots for endless exploration.
Seamless Networking and Sharing
Never fish alone—share live sonar, waypoints, and routes with compatible ECHOMAP Ultra or Plus units. Dual Garmin Marine Network ports, NMEA 2000, and NMEA 0183 ensure integration with autopilots, heading sensors, FUSION audio, AIS, and DSC VHF. It's a hub for your entire setup, supporting sailing features like laylines for wind-dependent tactics.
Stay Connected Anywhere with ActiveCaptain
Built-in Wi-Fi links to the free ActiveCaptain app, transforming your smartphone into a command center. Plan routes ashore, sync Quickdraw data, receive smart notifications, and grab software updates effortlessly. Access the Quickdraw Community for crowd-sourced maps, or browse new charts on the go. It's like having a marina full of intel in your pocket.
Easy Installation and Portability
Quick-disconnect bail or flush mounts make setup a breeze—cords stay plugged into the cradle for theft-proof removal. The 8-pin to 12-pin adapter included handles legacy transducers. Polarized lens support cuts glare further, and the internal GPS antenna (10 Hz update) tracks position flawlessly.
Technical Specifications at a Glance
| Category | Details |
|---|---|
| Physical Dimensions | 13.4" x 9.0" x 3.9" (341 x 229 x 98 mm) |
| Display | 12.1" diagonal WXGA (1280 x 800), sunlight-readable |
| Weight | 5.5 lbs (2.5 kg) |
| Water Rating | IPX7 |
| Transmit Power | 500W RMS / 4,000W peak-to-peak |
| Max Depth | 2,300 ft freshwater (varies by conditions) |
| Connections | 2 Marine Network, 1 NMEA 2000, 1x 12-pin transducer, Wi-Fi |
| Memory | 5,000 waypoints, 100 routes, 2 microSD slots |
What's Included for Hassle-Free Setup
- ECHOMAP Ultra 126sv unit with preloaded U.S. charts
- Power/data cable
- Tilt mount with quick-release cradle
- Flush mount kit
- Protective cover
- Hardware and documentation
- 8-pin to 12-pin transducer adapter
Ready to elevate your outings? This unit pairs perfectly with your choice of transducer, giving you flexibility to match your boat and fishing grounds.
ECHOMAP Ultra 126sv without Transducer
Built-in Support for Our Premium Sonar Capabilities
- 12 keyed-assist touchscreen combo with built-in support for our premium sonar capabilities, including the Panoptix LiveScope scanning sonar system
- Preloaded with Garmin exclusive BlueChart g3 coastal charts and LakeV g3 inland maps both with integrated Navionics data and Auto Guidance1 technology
- Share sonar, waypoints and routes with other ECHOMAP Ultra 10 and 12 units as well as ECHOMAP Plus and 9 units
- Built-in Quickdraw Contours mapping software instantly creates personalized fishing maps on-screen with 1' contours as you fish
- Built-in Wi-Fi connectivity pairs with the free ActiveCaptain app
- NMEA 2000 connectivity and support for heading sensors, autopilots, digital
- Switching, FUSION-Link audio system and more
The ECHOMAP Ultra 126sv combo, with its bright, sunlight-readable 12 keyed-assist touchscreen display, has all the fishing tools you need. It includes built-in support for our premium Garmin sonars and preloaded BlueChart g3 coastal charts and LakeV g3 inland maps both with integrated Navionics data and Auto Guidance1 technology. All transducers are sold separately.
Our Premium Sonar Support
The ECHOMAP Ultra 126sv combo includes built-in support for traditional CHIRP, CHIRP ClearV and CHIRP SideV scanning sonars, Ultra High-Definition scanning sonar and Panoptix LiveScope LVS12 sonar (no black boxes required) plus the full line of Panoptix all-seeing sonar transducers. It also supports the Panoptix LiveScope system.
Best-in-market Preloaded Maps and Charts
It comes preloaded with BlueChart g3 coastal charts and LakeV g3 inland maps both with integrated Navionics data and Auto Guidance technology that uses your desired depth and overhead clearance to easily calculate routes and see a suggested path to follow.
Quickdraw Contours to Create Your Own Maps
Instantly create personalized fishing maps on-screen with 1' contours as you fish. Tailor them to fit your needs. These are your maps you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect, our online community.
Upgrade to the Best Maps on the Water
Upgrade the preloaded BlueChart g3 charts and LakeV g3 maps to optional premium BlueChart g3 Vision charts and LakeV g3 Ultra maps. These add features such as elevation shading of bottom structure which provides more 3-D relief than contours alone satellite imagery and more.
Share Sonar, Waypoints and Routes
Have more than one unit? You can share sonar, waypoints and routes with other ECHOMAP Ultra 10 and 12 units as well as ECHOMAP Plus and 9 units.
The Ultimate Connected Boating App
Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you'll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.
Take Your ECHOMAP Ultra with You
When you're off the water, it's easy to keep your ECHOMAP Ultra combo safe and secure. You don't have to mess with plugging and unplugging wires from the unit, because the cords plug directly into the quick-disconnect bail mount. This allows you to quickly install and remove your ECHOMAP Ultra from power and the mount.
In The Box
- ECHOMAP Ultra 126sv with BlueChart g3 and LakeV g3 for U.S.
- Power/data cable
- Tilt mount with quick release cradle
- 8-pin transducer to 12-pin sounder adapter cable
- Flush mount
- Protective cover
- Hardware
- Documentation
Connections
- Garmin Marine Network Ports: 2 (large connector)
- Transducer Ports: 1 (12 Pin)
- NMEA 2000 Port: 1
- NMEA 0183 Input Ports: 1
- NMEA 0183 Output Ports: 1
- Wireless Connectivity: Yes
1Auto Guidance is for planning purposes only and does not replace safe navigation operations
2When paired with a compatible smartphone; see Garmin.com/ble
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
Garmin ECHOMAP™ Ultra 126sv Without Transducer
Model: 010-02114-00- 12" keyed-assist touchscreen combo with built-in support for our premium sonar capabilities, including the Panoptix LiveScope™ scanning sonar system
- Preloaded with Garmin exclusive BlueChart® g3 coastal charts and LakeVü g3 inland maps — both with integrated Navionics® data and Auto Guidance1 technology
- Share sonar, waypoints and routes with other ECHOMAP Ultra 10" and 12" units as well as ECHOMAP Plus 7" and 9" units
- Built-in Quickdraw Contours mapping software instantly creates personalized fishing maps on-screen with 1’ contours as you fish
- Built-in Wi-Fi® connectivity pairs with the free ActiveCaptain® app
- NMEA 2000® connectivity and support for heading sensors, autopilots, digital switching, weather, FUSION-Link™ audio system and more
The ECHOMAP Ultra 126sv combo, with its bright, sunlight-readable 12" keyed-assist touchscreen display, has all the fishing tools you need. It includes built-in support for our premium Garmin sonars and preloaded BlueChart g3 coastal charts and LakeVü g3 inland maps — both with integrated Navionics data and Auto Guidance1 technology. All transducers are sold separately.
The ECHOMAP Ultra 126sv combo includes built-in support for traditional CHIRP, CHIRP ClearVü and CHIRP SideVü scanning sonars, Ultra High-Definition scanning sonar and Panoptix LiveScope LVS12 sonar (no black boxes required) plus the full line of Panoptix™ all-seeing sonar transducers. It also supports the Panoptix LiveScope system.
It comes preloaded with BlueChart g3 coastal charts and LakeVü g3 inland maps — both with integrated Navionics data and Auto Guidance technology that uses your desired depth and overhead clearance to easily calculate routes and see a suggested path to follow.
Instantly create personalized fishing maps on-screen with 1’ contours as you fish. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™, our online community.
Upgrade the preloaded BlueChart g3 charts and LakeVü g3 maps to optional premium BlueChart g3 Vision charts and LakeVü g3 Ultra maps. These add features such as elevation shading of bottom structure — which provides more 3-D relief than contours alone — satellite imagery and more.
Have more than one unit? You can share sonar, waypoints and routes with other ECHOMAP Ultra 10" and 12" units as well as ECHOMAP Plus 7" and 9" units.
Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.
When you’re off the water, it’s easy to keep your ECHOMAP Ultra combo safe and secure. You don’t have to mess with plugging and unplugging wires from the unit, because the cords plug directly into the quick-disconnect bail mount. This allows you to quickly install and remove your ECHOMAP Ultra from power and the mount.
Specifications| General | |
| Physical dimensions | 13.4" x 9.0" x 3.9" (341 x 229 x 98 mm) |
| Display size | 10.3" x 6.4"; 12.1" diagonal (26.1 cm x 16.3 cm; 30.7 cm diagonal) |
| Display resolution | 1280 x 800 pixels |
| Display type | WXGA display |
| Weight | 5.5 lbs (2.5 kg) |
| Water rating | IPX7 |
| Polarized Support | Yes |
| Power consumption | 26 W |
| Antenna | Internal only |
| Mounting options | Bail or flush |
| Receiver | 10 Hz |
| Garmin Marine Network™ ports | 2 (large connector) |
| Maps & Memory | |
| Accepts data cards | 2 microSD™ cards |
| Waypoints | 5,000 |
| Routes | 100 |
| Track log | 50,000 points; 50 saved tracks |
| Preloaded maps | BlueChart® g3 (U.S. and Western Canada coastal maps) and LakeVü g3 (inland maps) |
| Outdoor Recreation Features | |
| Tide tables | Yes |
| Chartplotter Features | |
| Supports AIS (tracks target ships position) | Yes |
| Supports DSC (displays position data from DSC-capable VHF radio) | Yes |
| Supports FUSION-Link™ compatible radios | Yes |
| GCV™ Black Box sonar support | Yes |
| ActiveCaptain compatible | Yes |
| Sailing Features | Yes |
| Garmin Sonar compatible | Yes |
| Sonar Features & Specifications | |
| Sonar history rewind | Yes |
| Transmit power | 500 W (RMS) / 4,000 W (peak to peak) |
| CHIRP sonar technology | Yes (Built-in) |
| ClearVü | Yes |
| SideVü | Yes |
| Maximum depth | 2,300 ft @ 77 kHz, freshwater 1,100 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions) |
| Bottom lock (shows return from the bottom up) | Yes |
| Water temperature log and graph | Yes |
| Sonar recording | Yes |
| Dual-frequency (50/200 kHz) sonar capable | Yes |
| Dual-beam (77/200 kHz) sonar capable | Yes |
| Connections | |
| Transducer pin numbers | 12 |
| NMEA 0183 input ports | 1 |
| NMEA 0183 output ports | 1 |
| Wireless connectivity | Yes |
| NMEA 2000® compatible | Yes |
What's in the Box:
- ECHOMAP Ultra 126sv with BlueChart g3 and LakeVü g3 for U.S.
- Power/data cable
- Tilt mount with quick release cradle
- Flush mount
- Protective cover
- Hardware
- Documentation
- 8-pin transducer to 12-pin sounder adapter cable
GarminechoMAPUltra126sv product #010-02114-00 (without sensor) The GarminechoMAPUltra126svisa12 embedded auxiliary touch screen combination comes with preloaded blue chart 3 coastal chart and lake Vuug3 inland land map. This echo chart improves the fishing experience to a higher level. It shares ultrasonic waves with sonacho, and sonarandshare sonar, the combination of route points and routes is paired with other choMAPUltra10Inchand12Inchunits and asechochoMAPPlus7Inchand9inchunits. The built-in QuickdrawContours mapping software can help you create a personalized fishing map on the screen.
SKU: NVN-77773
MPN: 010-02114-00
UPC: 753759212933
Technical specifications
| Brand | Garmin |
| Model | Garmin ECHOMAP Ultra 126sv w/o Transducer |
| SKU / MFR# | 77773 |
