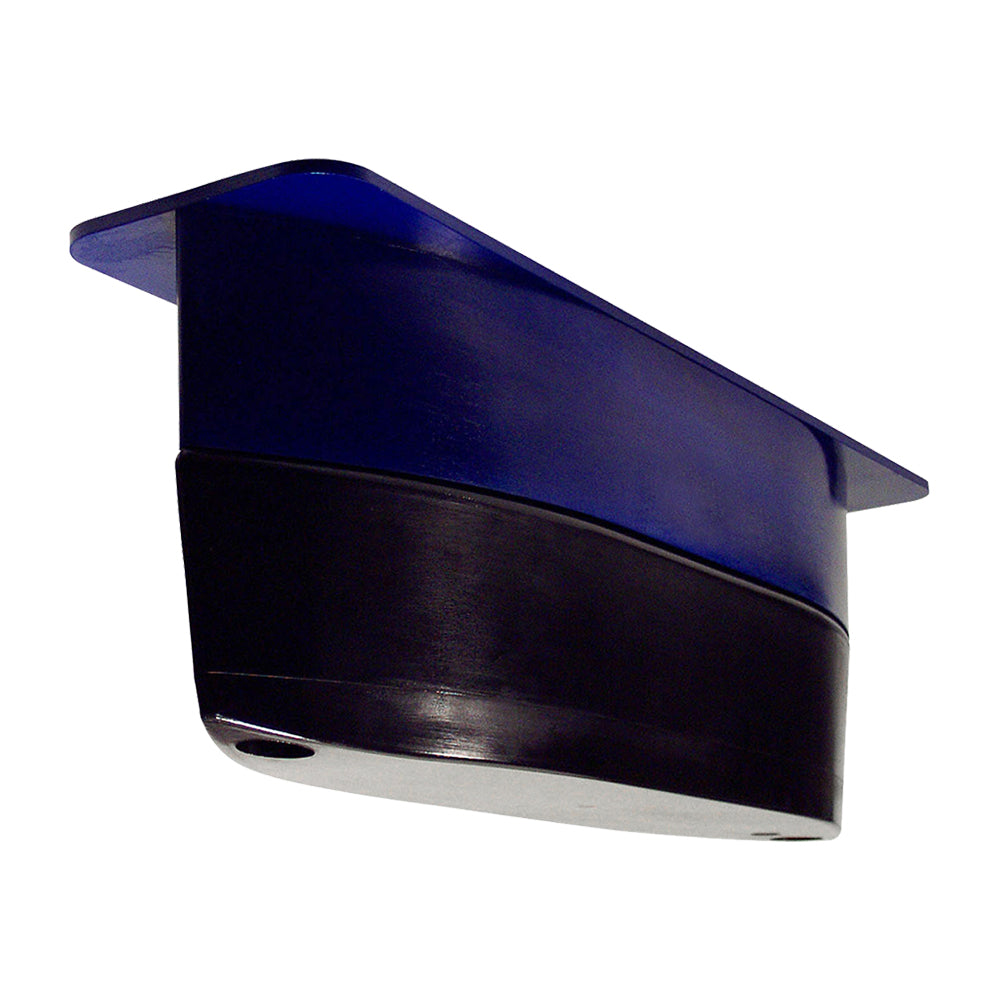

Airmar R509C-LHW CHIRP Transducer - No Connector

Get more coverage under your boat with Airmar's unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500').

The low-frequency band is rated to 3 kW and delivers amazing deep-water performance to 3,048 m (10,000'). Get the best of both worlds with Airmar's dual-frequency, Chirp-ready transducer with wide-beam coverage.

Note: 33-541-01 – Stainless Steel Stuffing Tube is included.

R509C-LHW CHIRP Transducer

Features:

• Fishing Profile: Commercial and recreational inshore and offshore fishing (deep-water canyon and sea-mount tracking)
• 25-Internal, Broadband Ceramic Elements
• Broadband / CHIRP / Spread Spectrum
• Operating frequencies:
  • Low—Chirps from 28 kHz to 60 kHz
  • High—Chirps from 130 kHz to 210 kHz
• Beamwidth (Adjustable):
  • Low—23° to 9°
  • High—8° to 4°
• 10 m (33’) cable, no connector
• Fast-response water-temperature sensor
• Boat size: 12 m (40’) and above
• Hull Type: Fiberglass, wood, or metal
• Exclusive Transducer ID®

R509C-LHW CHIRP sensor function: fishing characteristics: commercial and recreational offshore and offshore fishing (deep water canyon and seamount tracking) 25-internal, broadband ceramic element broadband/CHIRP/spread spectrum Operating frequency: low frequency-chirp from 28 kHz to 60. ..

• Depth and fast-response water-temperature sensor
• 3 kW for superior deep-water performance from the low frequency
• 3 kW for superior deep-water performance from the low frequency
  • 23° to 9° port-starboard beam
  • 11° to 5° fore-aft beamw
  • Maximum depth performance to 3,048 m (10,000')
• 1 kW high frequency: 150 to 250 kHz
  • 25° constant beamwidth
  • Maximum depth performance of 152 m (500')
• 132 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 38, 50, and 200 kHz plus everything else in the bandwidths
• High frequency provides superior shallow-water performance, bottom detail, and fish-target separation
• High wide beamwidth yields more coverage for detecting fish in the upper-water column
• Urethane housing with fairing for optimal performance
• Also available as a pocket/keel (CM599LHW) mount
• Exclusive Xducer ID technology

SKU: NVN-77002
MPN: R509C-LHW
UPC: 801769001945
