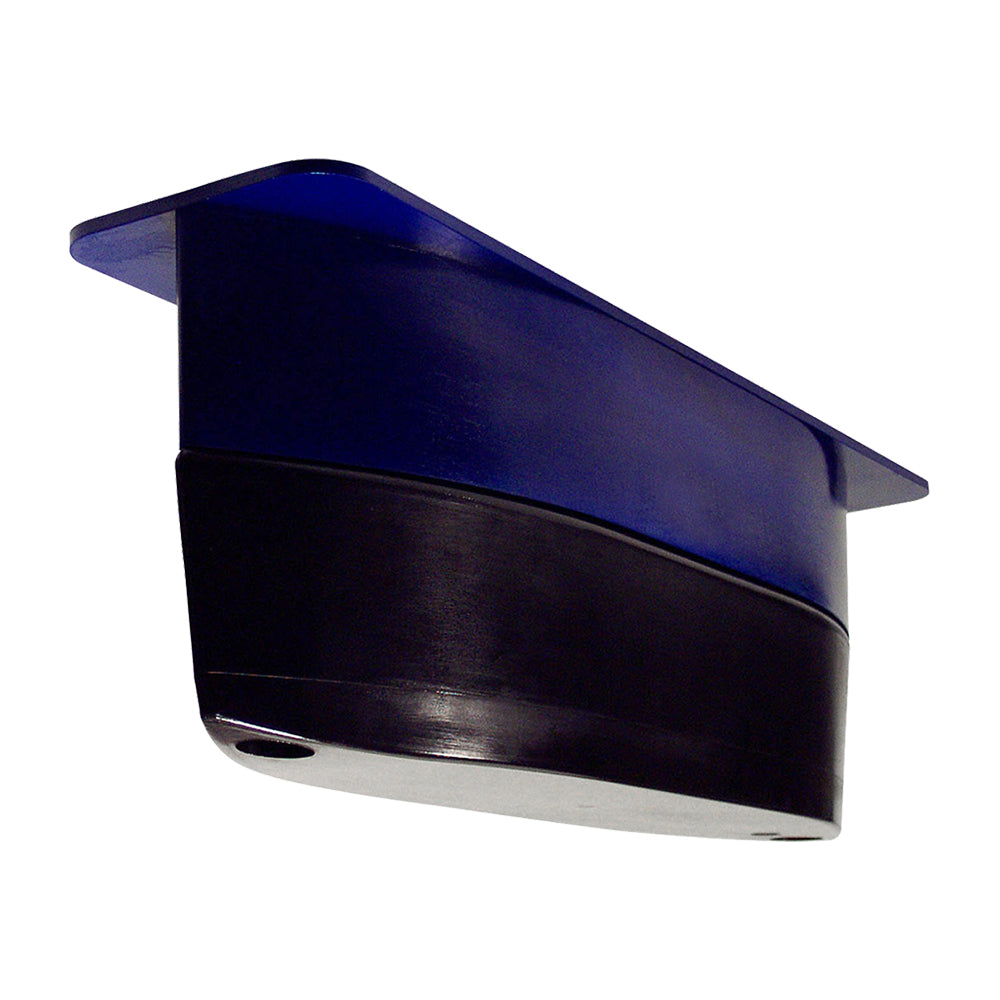

Airmar R509C-LH CHIRP Transducer
Airmar R509C-LH CHIRP Transducer — Product description
3 kW
The R509LH is the go-to transducer for today's top captains who want maximum depth capability combined with the excellent target resolution of the high-frequency band. This powerhouse transducer delivers extreme target detail, bottom discrimination, and bait and game-fish separation at all depths. The R509LH is packed with a twenty-four element, low-frequency array that operates at anywhere between 28 and 60Â kHz. The single, high-frequency ceramic operates at any frequency between 130 and 210Â kHz and has a narrow, 8° to 4°, beam, delivering amazing target resolution and bottom detail.
Note: 33-541-01 – Stainless Steel Stuffing Tube is included.
R509C-LH CHIRP Transducer
Features:
- Fishing Profile: Commercial and recreational inshore and offshore fishing (deep-water canyon and sea-mount tracking)
- 25-Internal, Broadband Ceramic Elements
- Broadband / CHIRP / Spread Spectrum
- Operating frequencies:
- Low—Chirps from 28 kHz to 60 kHz
- High—Chirps from 130 kHz to 210 kHz
- Beamwidth (Adjustable):
- Low—23° to 9°
- High—8° to 4°
- 10 m (33’) cable, no connector
- Fast-response water-temperature sensor
- Boat size: 12 m (40’) and above
- Hull Type: Fiberglass, wood, or metal
- Exclusive Transducer ID®
CHIRP Fishfinders transmit over a wide frequency band instead of using a single frequency. This is also called "frequency modulation" or "spread spectrum" transmission. ...
- Depth and fast-response water-temperature sensing
- 2 to 3 kW of power for exceptional deep-water performance
- Low frequency: 28 to 60 kHz
- 23° to 9° port-starboard beamwidth
- 11° to 5° fore-aft beamwidth
- Maximum depth of 3048 m (10000')
- High frequency: 130 to 210 kHz
- 8° to 4° beamwidth
- Maximum depth of 457 m (1500')
- 112 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
- Urethane housing with fairing for optimal performance
- Also available as cavity/welded tank (CM599LH) and in-hull (R599LH) mounts
- Patented Xducer ID technology
SKU: NVN-77001
MPN: R509C-LH
UPC:
Technical specifications
| Brand | Airmar |
| Model | Airmar R509C-LH CHIRP Transducer |
| SKU / MFR# | 77001 |
Set product metafields under specs.* to populate this table.
