Garmin Reactor 40 Kicker Autopilot w/GHC 20 Display

Discover Effortless Steering for Your Small Outboard Boat

Imagine gliding across choppy waters, hands free from the tiller, while you focus on landing that trophy fish or simply enjoying the ride. The Garmin Reactor 40 Kicker Autopilot transforms how you handle boats powered by compact gasoline outboards up to 20 horsepower. Engineered specifically for kicker motors, it delivers precise heading hold and route following, battling wind, waves, and currents with confidence-inspiring stability.

Key Features That Set It Apart

• Robust Course Keeping: Locks in your desired heading or follows GPS routes seamlessly, freeing you to multitask on deck.
• Throttle Mastery: Instant adjustments via a simple button press—dial down to idle in seconds for netting fish or docking maneuvers.
• Floating Remote Control: Bright, sunlight-readable screen ensures visibility in the harshest conditions; it's buoyant, so no worries if it takes a dip.
• Compact Design: Tailored for smaller vessels, integrating without bulky hardware that clutters your setup.

Intuitive Control at Your Fingertips

The included handheld remote feels like an extension of your hand. Its transflective display cuts through glare, showing critical data like heading, throttle status, and autopilot modes. Switch between heading hold, route navigation, or step turns effortlessly. For anglers chasing salmon or walleye, the quick-throttle drop feature means less hassle and more hooksets. Pair it with the GHC 20 display for a helm station that's both informative and unobtrusive.

Seamless Integration for Modern Boaters

Setting up is straightforward, especially if you're already in the Garmin family or running an NMEA 2000 network. Connect to compatible chartplotters for shared data like waypoints and radar overlays. The system self-calibrates to your boat's unique handling, learning helm response for smoother operation over time. No need for complex rewiring—plug-and-play cables handle the heavy lifting.

Real-World Performance on the Water

From dawn patrols for trout in tight coves to offshore runs against prevailing winds, this autopilot shines. Sailors appreciate its ability to maintain course out of crowded marinas, while tournament pros rely on it for precise trolling patterns. Users report fewer corrections needed in rough seas, translating to less fatigue and safer voyages. It's not just tech—it's a game-changer for solo or small-crew outings.

Technical Specifications Overview

Key dimensions and performance specs

Component	Specifications
ECU-14 (Electronic Control Unit)
Dimensions	6.9" x 5.6" x 2.6" (17.5 x 14.2 x 6.5 cm)
Supply Voltage	10 to 32 VDC
Operating Temperature	-20°C to 70°C
Water Rating	IPX7
GHC 20 Display
Dimensions (WxHxD)	4.3" x 4.4" x 1.9" (10.9 x 11.2 x 4.8 cm)
Display Resolution	320 x 240 pixels
Brightness	1200 cd/m²
Reactor Remote
Dimensions (WxHxD)	6.0" x 2.0" x 1.3" (15.2 x 5.2 x 3.2 cm)
Display Type	Sunlight-visible MIP, 240 x 240 pixels
Power	2 x AA batteries
Actuators
Steering Actuator (Overall Length)	Closed: 17.5"; Extended: 25.3"
Throttle Actuator Dimensions	6.0" x 2.5" x 1.1" (15.1 x 5.9 x 2.8 cm)

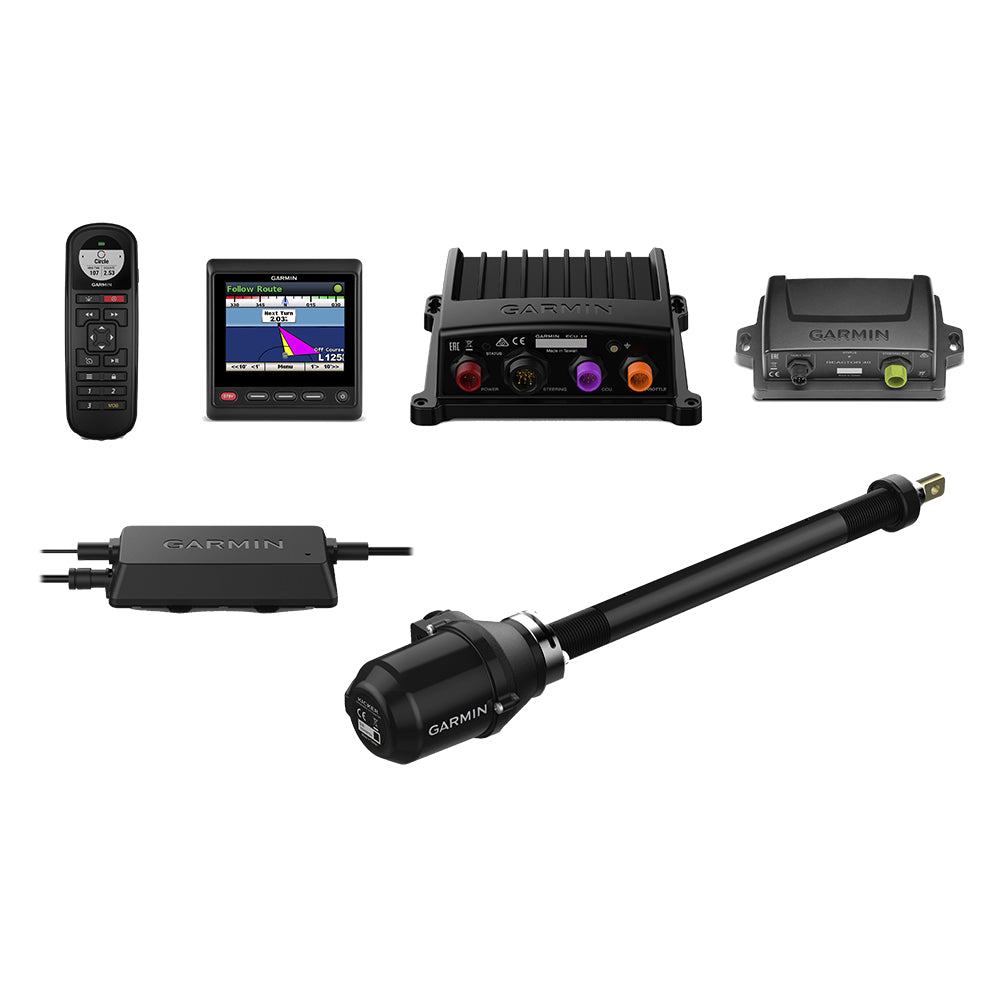

Complete Package Contents

• GHC 20 Autopilot Display
• CCU (Course Computer Unit)
• ECU (Electronic Control Unit) with power cable
• ECU to CCU interconnect cable
• Steering Actuator
• Throttle Actuator
• Floating Autopilot Remote
• Comprehensive Documentation

Frequently Asked Questions

What types of boats is the Garmin Reactor 40 Kicker Autopilot designed for?

It's optimized for vessels with small gasoline outboard kicker motors up to 20 horsepower, ideal for fishing boats, tenders, and compact cruisers.

How does the autopilot handle rough conditions?

Advanced sensors provide solid heading hold and route tracking, countering wind, waves, and currents for steady performance.

Is the remote control waterproof and easy to use?

Yes, it features a sunlight-readable display, floats if dropped, and offers intuitive buttons for throttle and mode adjustments.

Can it integrate with my existing Garmin setup?

Absolutely—pairs effortlessly with GHC 20 display, chartplotters, or NMEA 2000 networks for unified boat electronics.

What makes throttle control special here?

A dedicated button lets you fine-tune or drop to idle instantly, perfect for fishing stops or precise maneuvering.

How durable is this system in marine environments?

Components boast IPX6/IPX7 water ratings and wide temperature tolerance, built to withstand splashes, submersion, and harsh weather.

Does it support GPS route following?

Yes, when connected to compatible GPS or chartplotters, it follows routes while maintaining optimal heading.

Reactor 40 Kicker Autopilot with GHC 20 Autopilot Display

Designed for Use with Kicker Motors

• Specially designed for boats with small gasoline outboard motors up to 20 horsepower
• Helps maintain heading hold and route to keep you on course even against wind, waves or heavy current
• Includes convenient floating handheld remote control with a bright, sunlight-readable display
• Easily fine-tune autopilot throttle setting with the touch of a button to quickly drop to idle speed when netting a fish
• Easy to install and integrate with included GHC 20 autopilot display, compatible Garmin chartplotters or NMEA 2000 network-compatible GPS system

Whether you're going for salmon, trout, walleye or some other species or just taking your sailboat out of the marina, your Reactor 40 kicker autopilot can help you maintain heading hold and route to keep you on course even against wind, waves or heavy current.

Easy-to-use Remote Control

The Reactor 40 kicker autopilot includes a convenient floating handheld remote control with a bright, sunlight-readable display. Quickly and easily fine-tune your autopilot throttle setting with the touch of a button, and quickly drop to idle speed when netting a fish or coming up to a mooring. Enjoy easy integration with the included GHC 20 autopilot display, compatible Garmin chartplotters or NMEA 2000 network-compatible GPS system for a seamless onboard setup.

In the Box:

• GHC 20
• CCU (Course computer unit)
• ECU (Electronic control unit)
• ECU power cable
• ECU to CCU interconnect cable
• Steering actuator
• Throttle actuator
• Autopilot Remote
• Documentation

Garmin Reactor™ 40 Kicker Autopilot With GHC™ 20 Autopilot Display

Model: 010-00705-94

• Specially designed for boats with small gasoline outboard motors up to 20 horsepower
• Helps maintain heading hold and route to keep you on course — even against wind, waves or heavy current
• Includes convenient floating handheld remote control with a bright, sunlight-readable display
• Easily fine-tune autopilot throttle setting with the touch of a button to quickly drop to idle speed when netting a fish
• Easy to install and integrate with included GHC 20 autopilot display, compatible Garmin chartplotters or NMEA 2000® network-compatible GPS system

Whether you’re going for salmon, trout, walleye or some other species or just taking your sailboat out of the marina, your Reactor 40 kicker autopilot can help you maintain heading hold and route to keep you on course — even against wind, waves or heavy current.

The Reactor 40 kicker autopilot includes a convenient floating handheld remote control with a bright, sunlight-readable display. Quickly and easily fine-tune your autopilot throttle setting with the touch of a button, and quickly drop to idle speed when netting a fish or coming up to a mooring. Enjoy easy integration with the included GHC 20 autopilot display, compatible Garmin chartplotters or NMEA 2000 network-compatible GPS system for a seamless onboard setup.

Specifications

ECU-14
Dimensions	6.9" x 5.6" x 2.6" (17.5 x 14.2 x 6.5 cm)
Supply voltage range	10 to 32 volts
Operating temperature range	-20° to 70° C
Typical power consumption	1 to 2 amps average depending on weather conditions
Water rating	IPX7
GHC-20
Unit dimensions, WxHxD	4.3 " x 4.4 " x 1.9 " (10.9 x 11.2 x 4.8 cm)
Display resolution, WxH	320 x 240 pixels
Display type	QVGA color LCD display
NMEA output	NMEA 0183, NMEA 2000®
Supply voltage	Powered by NMEA 2000 bus, 9-16 VDC, units operate up to 32 VDC
Operating temperature	-15° C to 70 C° (5° F to 158° F)
Max power consumption	3W
Viewing angle	170°
Brightness	1200 cd/m2 (NIT)
Water rating	IPX7
NMEA 2000 LEN (Load Equivalency Number)	7 (350 mA at 9VDC)
Reactor Remote
Physical dimensions (W x H x D)	6.0" x 2.0" x 1.3" (15.2 x 5.2 x 3.2 cm)
Weight	3.8 oz (109 g) without batteries
Display type	Sunlight-visible, transflective memory-in-pixel (MIP)
Display size	1.2" (3.0 cm) diameter
Display resolution	240 x 240 pixels
Power	2 x AA batteries (sold separately)
Steering Actuator
Dimensions
Motor side	Extends 4" (10.3 cm) from end of tilt tube
Motor	2.5" (6.2 cm) diameter
Overall length	Closed 17.5" (44.5 cm); Extended 25.3" (64.4 cm)
General
Operating temperature range	-20° to 70° C
Water rating	IPX7
Throttle Actuator
Dimensions	6.0" x 2.5" x 1.1" (15.1 x 5.9 x 2.8 cm)
Operating temperature range	0° to 70° C
Water rating	IPX6

What's in the Box:

• GHC™ 20
• CCU (Course computer unit)
• ECU (Electronic control unit)
• ECU power cable
• ECU to CCU interconnect cable
• Steering actuator
• Throttle actuator
• Autopilot Remote
• Documentation

The Reactor 40 injector autopilot is specially designed for boats equipped with small gasoline outboard motors (up to 20 horsepower). Whether you are going to salmon, trout, beluga or other species, the Reactor 40 kicking autopilot can help you keep heading and keep heading, even in wind, waves or strong winds and waves. It includes a convenient floating handheld remote control with a bright sunlight-readable display. The Reactor 40 ejector autopilot allows you to fine-tune the autopilot's throttle settings with the push of a button, and quickly drop to idle speed when catching the net. Easily integrate with our included GHC 20 display, a compatible Garmin plotter or a GPS system compatible with the NMEA 2000 network for seamless onboard setup.


SKU: NVN-76599
MPN: 010-00705-94
UPC: 753759221706
