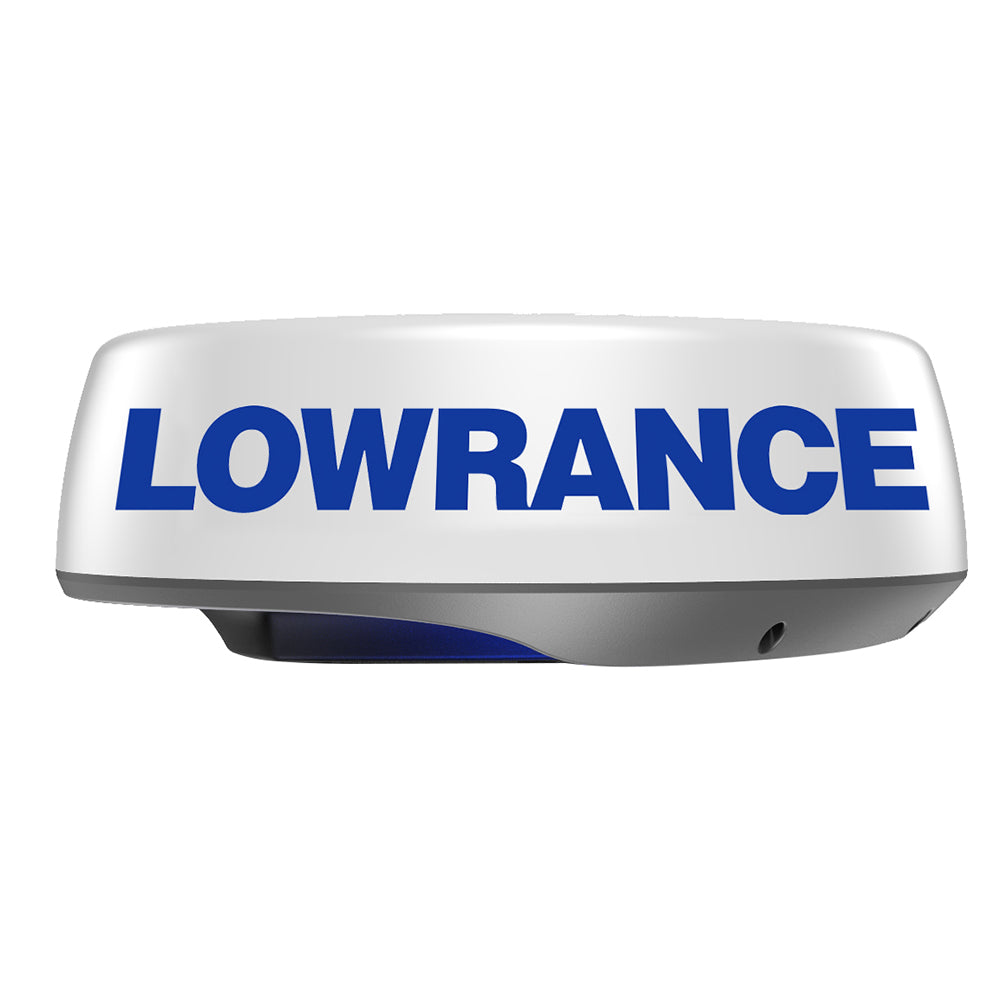

Lowrance HALO24 Radar Dome w/Doppler Technology
Lowrance HALO24 Radar Dome w/Doppler Technology — Product description
Imagine scanning the horizon with unmatched clarity, spotting potential collisions before they become threats, and tracking distant storms while keeping a sharp eye on nearby traffic. The Lowrance HALO24 radar dome brings this reality to your vessel through cutting-edge solid-state technology. Designed for boaters who demand precision in every outing, this 24-inch radome packs a punch with its ability to deliver real-time insights across vast distances—from tight marina maneuvers to open-water adventures.
What sets the HALO24 apart is its blend of speed, sensitivity, and smarts. Boaters often struggle with radars that lag in updates or compromise on range, but this unit refreshes your display up to 60 times per minute at close quarters, giving you an edge in busy harbors or foggy conditions. Whether you're a weekend angler chasing birds or a coastal cruiser monitoring weather fronts, it transforms your chartplotter into a vigilant co-pilot.
Why Boaters Trust HALO24 for Superior Situational Awareness
The secret lies in its advanced pulse compression system paired with beam sharpening. This means sharper target discrimination, even at extreme ranges, without the fuzzy echoes common in older magnetron radars. No more waiting for warm-up—it's ready to go from standby in seconds, conserving power on long trips.
- Lightning-Fast Updates: Achieve 60 RPM sweeps up to 2 nautical miles, painting a near-instantaneous 360-degree picture perfect for dodging obstacles in real time.
- Dual-Range Magic: Monitor close-in hazards and far-off weather simultaneously, splitting your screen without losing detail on either.
- Smart Doppler Alerts: VelocityTrack instantly colors incoming threats red and receding ones green, scanning every pixel automatically—no manual tweaks needed.
- Versatile Modes: Switch effortlessly between harbor for short-range clutter rejection, offshore for balanced scanning, weather for rain cell piercing, and bird mode to locate feeding flocks from afar.
- Robust Build: Withstands harsh marine environments, from pounding waves to 100-knot winds, thanks to its IPX6 sealing and rugged dome design.
Real-World Performance: From Marinas to the Open Sea
Fishermen love how bird mode reveals surface disturbances caused by bait balls, leading straight to the action. Sailors appreciate the MARPA tracking for up to 20 targets in dual range, maintaining locks on vessels during tacks or night passages. Powerboaters rave about collision avoidance in no-visibility scenarios, where Doppler tech flags speedboats cutting across your path amid rain clutter.
In practice, integrating with Lowrance multifunction displays unlocks overlay views on charts, letting you correlate radar hits with AIS and sonar for a fused awareness layer. It's not just a detector; it's a proactive safety net that buys you precious reaction time.
"Switching to HALO24 felt like upgrading from a flip phone to a smartphone—everything's faster, clearer, and more intuitive." – Experienced coastal skipper
Engineering Excellence Under the Dome
Crafted with a low-profile 24-inch footprint (610mm diameter, 225mm height) weighing just 6.75kg, installation is straightforward on most mid-sized boats. It draws minimal power—around 14-27W operating—making it ideal for battery-conscious setups on 12/24V systems.
| Specification | Details |
|---|---|
| Range Coverage | 50m to 48 nautical miles |
| Beam Width | Horizontal: 3.9° (sharpenable to 2°), Vertical: 22° |
| Power Output | 25W peak (solid-state) |
| Rotation Speed | 20-60 RPM (mode-dependent) |
| Frequency | X-band 9.4-9.5 GHz |
| Operating Temp | -25°C to +55°C |
| Connectivity | Ethernet (up to 30m cable) |
Pro tip: Mount high and aft for optimal horizon scan, ensuring minimal interference from masts or superstructures. Target separation controls let you fine-tune for crowded or sparse conditions, enhancing small-boat detection.
Frequently Asked Questions
How does VelocityTrack Doppler technology work on the HALO24?
VelocityTrack uses the Doppler effect to measure target motion relative to your boat. Incoming objects appear red for immediate alerts, while outgoing ones show green, processing all on-screen targets automatically for effortless collision avoidance.
Is the HALO24 suitable for small boats under 30 feet?
Absolutely—its compact 24-inch dome and lightweight design make it perfect for trailerable boats, fishing skiffs, and daysailers, providing pro-level radar without overwhelming your deck space or power draw.
What makes pulse compression better than traditional radars?
Pulse compression delivers consistent energy across ranges, improving sensitivity for weak echoes while rejecting clutter. Combined with beam sharpening, it offers crystal-clear separation of boats, buoys, and birds at any distance.
Can I use bird mode effectively for fishing?
Yes, bird mode optimizes sensitivity to detect flocks diving on baitfish schools, even in choppy seas. Pair it with dual range to scan structure below while spotting surface activity above.
How quick is setup from standby?
Instant On technology means no magnetron warm-up—it's scanning within seconds of activation, ideal for intermittent use during anchoring or docking.
Does it integrate with other Lowrance gear?
Seamlessly plugs into Lowrance HDS, Elite, or Hook series via Ethernet, enabling radar overlays on charts, AIS correlation, and shared data across your network.
What's the minimum detectable range?
Down to 6 meters reliably, with ultra-short pulses excelling in harbor mode for picking out small craft or mooring balls in no time.
Our most revolutionary radar to date, HALO24 offers a second by second view around your boat. Velocity Track ™ Doppler technology provides instantaneous hazard identification at short range while long range coverage up to 48 Nautical Mile lets you keep an eye on the weather up ahead.
Lowrance Electronics 0014541001 Attributes
- Radar Type: Radome
- Size: 24 Inch Dome
- Range: 50 Meters To 48 Nautical Miles
- Rotation Speed: 60 RPM
- Power Output: 29 Watt
- Dimension: 24 Inch Diameter x 8.9 Inch Height
- Input Voltage: 10.5 To 31.2 Volt
- Beam Width: 3.9 Degree Horizontal Nominal 2 Degree With Target Separation On High X 22 Degree Vertical
- Color: White
- Waterproof Rating: IPX6 Rating Waterproof
- Includes: With 1.5 Meter Cable RJ45 To 5 Pin, RJ45 Waterproofing Boot, 5 Meter Cable For HALO Dome
Lowrance Electronics 0014541001 Features & Benefits
- Advanced Pulse Compression Technology With Beam Sharpening
- Simultaneous Dual Range Operation Sees Both Near And Far
- Ultra-Fast 60 RPM Operation At Ranges Up To 1.5 Nautical Mile
- VelocityTrack ™ Doppler Technology For Collision Avoidance
- Easy Operation With harbor, Offshore, Weather And Bird Modes
- Ready Instantly From Standby
- Limited 2 Year Warranty
Lowrance Electronics 0014541001 Installation Instructions
Lowrance Electronics 0014541001 Technical Bulletins
HALO24 Radar Dome with Doppler Technology
HALO24 radar offers an almost real-time view, with industry-first 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrack™ Doppler technology, and enjoy simultaneous short and long-range coverage—up to 48 nautical miles—from one compact 24-inch dome antenna.
See Near and Far with One Compact Dome
Perfect for a wide range of sailboats, fishing boats and smaller powerboats, HALO24 comes in a compact dome antenna and delivers high-quality short, mid and long-range detection. Monitor two distance ranges at once in Dual Range mode, which enables you to keep an eye on far away weather cells while watching for collision hazards up close. HALO24 radar’s pulse-compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.
The Ultimate View for Collision Avoidance
HALO24 radar introduces industry-first 60 RPM rotation at ranges up to 2 nautical miles, delivering a full 360-degree sweep every single second. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance. Whether you’re navigating through crowded waterways or contending with poor visibility, Halo radar cuts through the clutter to give you a clear and current picture of your surroundings
VelocityTrack™ Doppler Technology Built-In
VelocityTrack™ technology provides instant visual feedback on whether targets are coming towards you or moving away. Using the Doppler effect, this feature automatically checks every target seen by your radar; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time. Simple color coding highlights potential hazards, improving your situational awareness and further reducing your risk of collision.
Key Features:
- 48 nm range from a compact 24" dome
- Advanced pulse compression technology with beam sharpening
- Simultaneous Dual Range operation sees both near and far
- Ultra-fast 60 RPM operation at ranges up to 2nm
- VelocityTrack™ Doppler technology for collision avoidance
- Easy operation with harbour, offshore, weather, and bird modes
- MARPA target tracking (up to 10 targets, 20 in dual range).
- Ready instantly from standby
- Lightweight, low profile dome design, with integrated LED lights
- 5m Radar Cable
Specifications:
Environmental
- Operating Temperature: -25° to +55°C (-13° to +130°F)
- Relative humidity: +35° C (95° F), 95% RH
- Waterproof: IPX6
- Max relative wind velocity: 51 m/sec (100 Knots)
- Complience: CE, FCC (ID:RAY3G4G), IC: 4697A-3G4G, IEC60945 : 2002
Power & Dimensions
- Power consumption (with 10M cable): Operating: 14.5 to 27W at 13.8 V
- Standby: 3.9 W (Typ.) at 13.8 V DC 170 mA
- DC input (at end of radar cable): 9 V to 31.2 V DC (12/24 V systems)
- Reverse polarity protection: Yes
- Minimum startup voltage: 10.75 V DC
- Transmitter source (pre-heating time): No magnetron – Instant On
Physical
- Outside dimensions: Ø Diameter 610 mm (24”), Height 225 mm (8.9”)
- Scanner weight (no cable): 6.75kg (14.9 lbs)
Radar and Antenna Parameters
- Radar ranges: 100M (328 ft) to 48nm with 18 range settings, (nm/sm/km)
- Rotation (mode dependent): 20 - 60 rpm (mode and MFD dependent)
- Transmitter frequency: X-band - 9.4 to 9.5 Ghz
- Transmitter source (warm-up time): No Magnetron – all solid state. Instant On™
- Plane of polarization: Horizontal Polarization
- Transmitter peak power output: 25W
- Minimum range: 6M (19.7')
- Sweep repetition frequency: 700-2400 Hz (mode dependent)
- Pulse length: 0.04 - 64 usec
- Sweep bandwidth: 48 MHz max
- Horizontal beam width (Tx and Rx antenna): 3.9° nominal (-3 dB width)
- Target Seperation Control: OFF: 3.9°+/-10% (-3 dB width nominal), LOW: 3.4°+/-10% (-3 dB width nominal), MED: 2.5°+/-10% (-3 dB width nominal), HIGH: 2.0°+/-10% (-3 dB width nominal)
- Vertical beam width (Tx and Rx antenna): 22° (-3B width nominal)
- Side lobe level (Tx and Rx antenna): Below -18 dB (within ±10°);Below -24 dB (outside ±10°)
- Noise figure: Less than 5 dB nominal
Communications/Cabling
- Protocol: Ethernet 100 Base T
- Maximum inter connecting cable length: 30M (98.5') – available as option, use NEP-2 for longer cable runs
Halo 24 radar, Mfg#000-14541-001, in a 24-inch dome, with sharpened pulse compression transmitter, 48-mile range, Marpa target tracking, dual-range operation, Doppler technology,...
SKU: NVN-74007
MPN: 000-14541-001
UPC: 9420024173831
Technical specifications
| Brand | Lowrance |
| Model | Lowrance HALO24 Radar Dome w/Doppler Technology |
| SKU / MFR# | 74007 |
