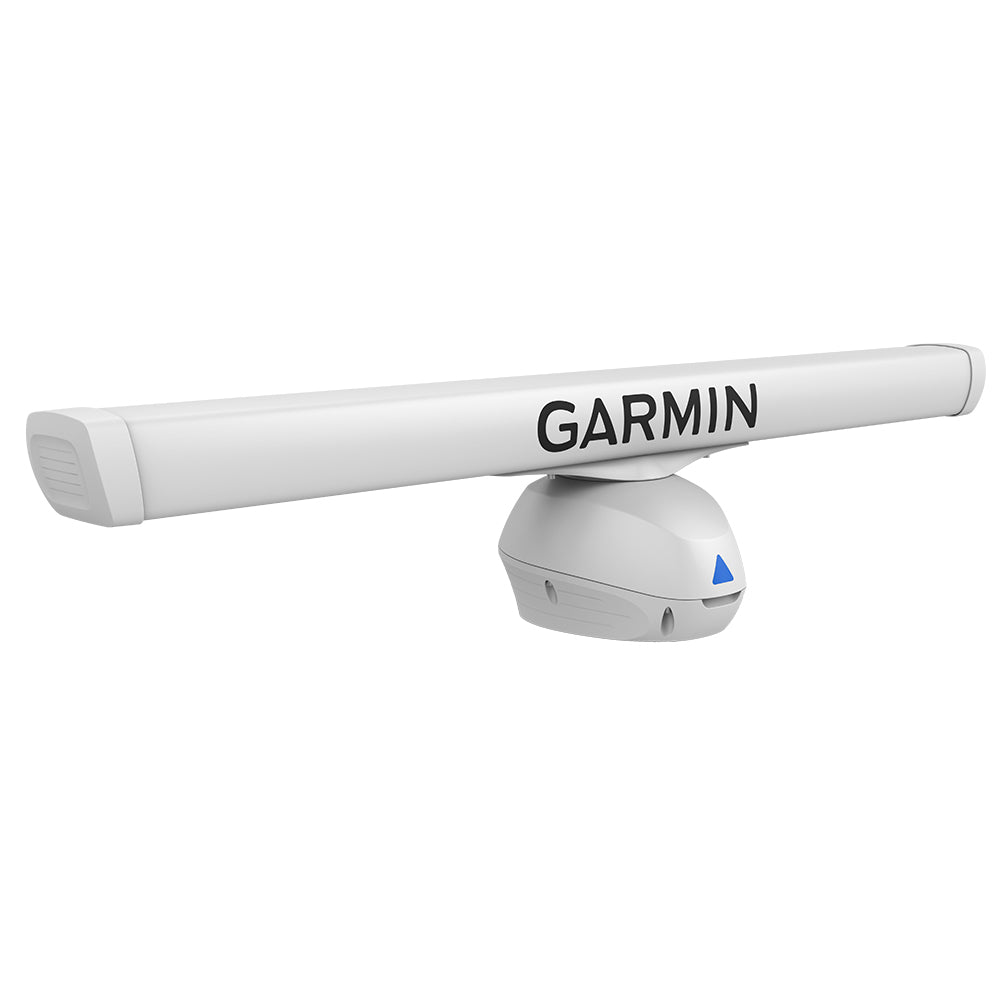

Garmin GMR Fantom 126 - 6' Open Array Radar

Discover Superior Navigation with the Garmin GMR Fantom 126 Radar

Imagine slicing through dense fog or navigating crowded waterways with crystal-clear awareness of your surroundings. The Garmin GMR Fantom 126, a 6-foot open-array radar, delivers that confidence through its robust 120W solid-state power and cutting-edge technologies. Boaters, anglers, and offshore adventurers rely on this radar for its unmatched ability to spot distant targets up to 96 nautical miles away, even in challenging conditions like heavy rain or poor visibility.

What sets this radar apart isn't just raw power—it's the intelligent features that turn raw data into actionable insights. From highlighting fast-moving vessels to pinpointing bird flocks that signal prime fishing grounds, the Fantom 126 enhances safety and efficiency on the water.

Key Technologies That Redefine Marine Radar Performance

MotionScope Doppler Processing for Real-Time Threat Detection

Leveraging Doppler effect principles, MotionScope instantly identifies objects moving toward or away from your vessel, coloring them green for approaching threats and red for receding ones. This visual cue helps you sidestep collisions in busy harbors or track erratic weather cells forming offshore. Unlike traditional radars that leave you guessing, this feature provides immediate situational awareness, proven invaluable during night passages or in zero-visibility scenarios.

Pulse Compression: Sharp Imaging Without Compromise

Pulse Compression maximizes energy output for superior short- and long-range detection while delivering high-definition resolution. You'll see crisp separation between small buoys and larger ships, or distinguish individual birds in a flock from clutter. This tech ensures weak echoes—like distant debris—aren't lost in noise, giving you a reliable picture from 20 feet to horizon-spanning 96 nautical miles.

True Echo Trails for Intuitive Target Tracking

Watch moving targets leave fading "echo trails" on your chartplotter, automatically adjusted for your boat's motion when paired with a heading sensor or autopilot. This makes it effortless to gauge speed and direction, spotting potential close-quarters risks before they become problems.

Tailored Features for Every Boating Scenario

• Auto Bird Gain: Spot surface-feeding birds that betray schools of baitfish below—perfect for sportfishermen chasing trophies.
• Dynamic Auto Gain and Sea Clutter Filters: Automatically tunes to waves and weather, with customizable low/medium/high settings for calm bays or stormy seas.
• Dual Range Overlay: Split-screen radar on your Garmin chartplotter with independent scales; overlay both on charts for hybrid views that reveal near threats and far horizons simultaneously.
• MARPA Tracking: Monitor up to 10 targets with mini-automatic radar plotting aid, calculating closest point of approach to prevent mishaps.
• Guard Zones and Alarms: Define safe perimeters around your boat; get audible alerts if anything intrudes.

Versatility with Dual Radar Support and Easy Customization

Pair it with a second radar for backup redundancy across multiple displays. Adjust target sizing to declutter screens or sharpen coastlines, tweak rotation speeds (up to 48 RPM for rapid updates), and use VRM/EBL tools for precise range and bearing measurements. It's all intuitive—no steep learning curve.

Built Tough for Real-World Demands

Rated IPX6 for water resistance, this radar withstands 80-knot winds and operates on 10-32V DC power. Its narrow 1.25° horizontal beamwidth and 23° vertical beam ensure pinpoint accuracy, with high antenna gain pulling in faint signals. Dimensions fit most vessels: pedestal at 16.6" x 14.3" x 10.7", full assembly reaching 75.2" diameter and 15.9" height.

Seamless Integration and Installation

Connect via Garmin Marine Network cables to chartplotters like GPSMAP or ECHOMAP series. No fiddly calibrations—just mount with included hardware, plug in the 15m power and data cables, and go. The voltage converter handles varying boat systems effortlessly.

Specification	Details
Water Rating	IPX6
Antenna Length	72"
Transmit Power	120W solid-state (pulse compression equivalent)
Beam Width	1.25° horizontal, 23° vertical
Max Range / Min Range	96 nm / 6 meters
Rotation Speed	24/48 RPM (high speed on shorter ranges)
Power Input	10-32 VDC

What's Included for Quick Setup

• GMR Fantom 126 antenna and pedestal
• Mounting hardware kit and template
• 15m right-angle power cable
• 15m right-angle network cable
• Voltage converter
• Documentation

Frequently Asked Questions

What makes the MotionScope technology in the Garmin GMR Fantom 126 stand out?

MotionScope uses Doppler processing to color-code moving targets (green for approaching, red for receding), helping with collision avoidance, bird spotting, and weather tracking in real time.

How far can the GMR Fantom 126 detect targets?

It offers detection from 6 meters minimum up to 96 nautical miles maximum, excelling in both close and long-range scenarios even through fog or rain.

Is this radar suitable for fishing boats?

Yes, Auto Bird Gain highlights flocks on the surface, indicating baitfish below, making it a favorite for anglers pursuing game fish.

Does it require a heading sensor for full functionality?

A heading sensor or autopilot enhances features like true echo trails and MARPA, but basic operation works without them.

How easy is installation on my vessel?

Very straightforward with included mounting kit, templates, and plug-and-play cables. No complex settings needed—just connect to your Garmin network.

Can I use this radar with multiple chartplotters?

Absolutely, dual radar support allows sharing data across displays, providing redundancy and flexibility for larger boats.

What's the power equivalence of this solid-state radar?

Its 120W solid-state output with pulse compression rivals traditional 6kW magnetron radars in performance and target detection.

GMR Fantom 126 - 6' Open Array Radar

Open-array Radar with Industry-leading 120 W Solid-state Output Power

Features:

• 6', 120W solid-state open-array radar with pedestal
• MotionScope technology detects and highlights moving targets in different colors to help avoid collisions, find flocks of birds and track weather
• Pulse Compression technology provides high-resolution imaging while maximizing energy to enhance target detection and identification
• True echo trails display a fading trail to help you quickly and easily identify moving targets while accounting for the movement of your own boat
• Overlay radar on your chart screen as single display or split screen with independent range settings

Featuring 120W of power, GMR Fantom 126 is our most powerful 6' solid-state radar. It uses MotionScope technology to detect and highlight moving targets in different colors, which helps you avoid potential collisions, find flocks of birds and track weather. It includes Pulse Compression technology that provides high-resolution imaging and maximizes energy to help you detect and identify targets. It has a detection range of 20' to 96 nautical miles.

High-power 120W Radar with Narrow Beam

You get excellent close- and long-range target detection from as close as 20' to 96 nautical miles, even in fog or rain. The narrow horizontal beamwidth provides a high-resolution image, and the high antenna gain picks out weak targets at a distance. This radar paints a clear, concise image of the shoreline, other vessels and impending weather right on your Garmin chartplotter. Get consistent target positions, excellent target separation that helps you distinguish large targets from small ones and adjustable rotation speed for fast screen updates.

MotionScope Doppler Technology

GMR Fantom uses the Doppler effect to detect and highlight moving targets to help you avoid potential collisions, find flocks of birds and track weather formations. The Doppler effect is the frequency shift in the radar echo due to the relative motion of the target. This allows for instant detection of any targets moving toward or away from the radar. MotionScope highlights the moving targets on the radar display so you can navigate around other boats or severe weather or toward fishing spots where birds are feeding at the surface.

Echo Trails

A fading trail is left on the screen to help you quickly and easily identify moving targets and potential collision threats. Trails are corrected for your boat's rotation when an autopilot or heading sensor is connected to your Garmin network.

Auto Bird Gain

Where there are birds on the water's surface, there are fish below it. Auto Bird Gain helps you locate flocks of birds at the water's surface where baitfish are likely to be found.

Dynamic Auto Gain and Sea Filter Settings

Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions. Dynamic Sea Filter automatically adjusts gain to changing sea conditions with user options for low, medium or high filtering.

Target Size

You can increase the size of targets on screen to help differentiate from noise, or reduce the size to sharpen shoreline details.

Dual Range with Radar Overlay

The single radar antenna can display radar images on your chartplotter map page side by side, with independent range settings and controls for both close and long range. One or both ranges can also be viewed as a chart overlay. An autopilot or heading sensor is recommended for best results.

MARPA Target Tracking

Mini-automatic radar plotting aid (MARPA) tracks up to 10 selected targets, helping you keep track of other vessels and avoid collisions.

Dual Radar Support

This provides redundancy and the ability for each display unit on the boat to select data from 1 of 2 different radar sources.

Guard Zone

Set the safety zone, and receive an alarm when an object enters the zone.

Easy Interpretation

Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land. It fits the selected radar range to the vertical size of your display to show more forward-looking radar returns on screen and make it easier to interpret target distances.

Easy to Install & Use

All our radars are designed to be easy to install and easy to use. There are no complex user settings to adjust; just install your radar, and start using it. You can rely on the GMR Fantom radar to provide reliable, optimum performance in all conditions.

In The Box

• GMR Fantom 126 antenna and pedestal
• Mounting hardware kit and template
• Right angle power cable (15 meters)
• Right angle network cable (15 meters)
• Voltage converter
• Documentation

SKU: NVN-72877
MPN: K10-00012-20
UPC: 753759189891
