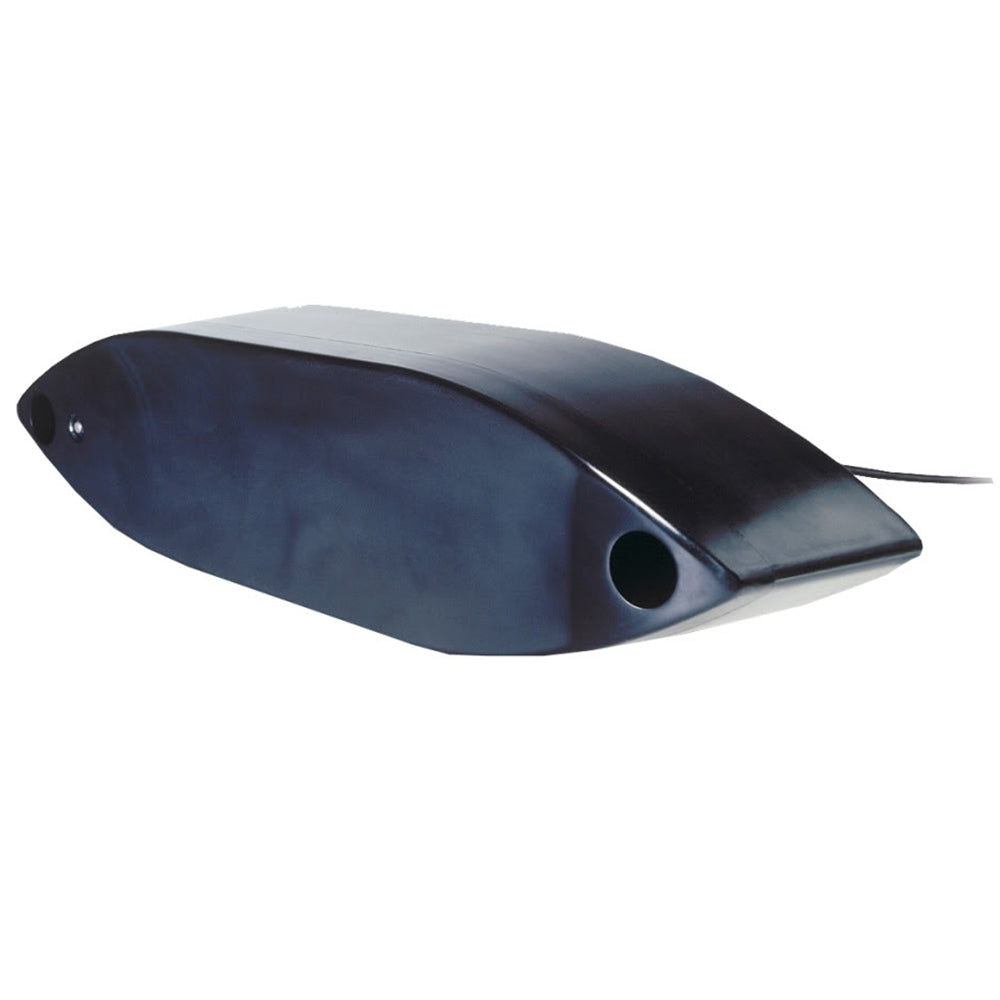

Garmin Airmar R109LM Thru-Hull Transducer - Bare Wires

Unlock Deeper Insights on Your Next Fishing Adventure

Picture this: you're out on the open water, chasing trophy fish in depths that humble most setups. The Garmin Airmar R109LM Thru-Hull Transducer steps up as your ultimate ally, blending cutting-edge CHIRP technology with rugged marine-grade construction. Unlike standard sonar units that blur distant targets, this powerhouse delivers crystal-clear images down to 10,000 feet, helping you separate baitfish from predators and pinpoint underwater contours with surgical precision.

Anglers targeting coastal reefs, deep-water canyons, or sea mounts rave about its ability to track game fish through thermoclines and structure. Whether you're running a charter operation or pushing your personal boat to the limit, this transducer transforms vague echoes into actionable intel, saving fuel and boosting catch rates.

Superior CHIRP Performance for Unmatched Detail

At the heart of the R109LM lies dual-band CHIRP operation: sweeping low frequencies from 38 to 75 kHz for wide-area coverage and beam angles narrowing from 19° to 10° port-starboard (10° to 5° fore-aft), paired with medium frequencies from 80 to 130 kHz offering 13° to 8° beamwidths. This 87 kHz total bandwidth captures everything from popular 38, 50, 88, and 107 kHz marks to the nuances in between.

• Extreme Depth Penetration: Probe seabeds up to 10,000 feet with 5-10x the resolution of conventional sonar.
• Fast-Response Temp Sensor: Monitor water column changes in real-time to locate bait balls and feeding zones.
• High-Power Handling: Rated for 2,000 watts, ensuring strong signals even in rough conditions or heavy kelp.

Exclusive transducer ID technology simplifies integration, letting compatible Garmin chartplotters auto-configure for peak performance right out of the box.

Built Tough for Real-World Marine Demands

Crafted with a urethane housing and high-performance fairing, the R109LM shrugs off impacts, corrosion, and the constant pounding of offshore runs. It's optimized for hull deadrises from 0° to 25°, fitting fiberglass, wood, or metal vessels 40 feet and larger without compromising hull integrity.

The 39-foot cable gives installers flexibility, while bare-wire connections allow seamless custom wiring to match your electronics suite. Weighing in at around 33 pounds, it's a serious tool for serious boats—think center consoles, sportfishers, and commercial trawlers pounding through swells.

Perfect Match for Coastal and Offshore Pros

Commercial skippers use it to map canyons for swordfish drops, while tournament bass and tuna hunters leverage its separation power to ID individual fish amid bait schools. Inshore? It excels at revealing structure hidden by murky water or sand waves.

"Switched to the R109LM and immediately saw fish I was missing—game-changer for deep drops." – Experienced offshore captain

Its thru-hull design minimizes air bubbles and maximizes bottom-lock, outperforming transom mounts in speed and chop.

Installation Insights for Optimal Results

Thru-hull mounting demands precision: align the fairing to hull speed for laminar flow, reducing turbulence that scatters sonar returns. Pair with a Garmin sounder module for full CHIRP sweeps, and calibrate temp offsets post-install to nail water layer reads. Pro tip: In variable deadrise hulls, use adjustable bedding compounds for a rock-solid seal against leaks.
