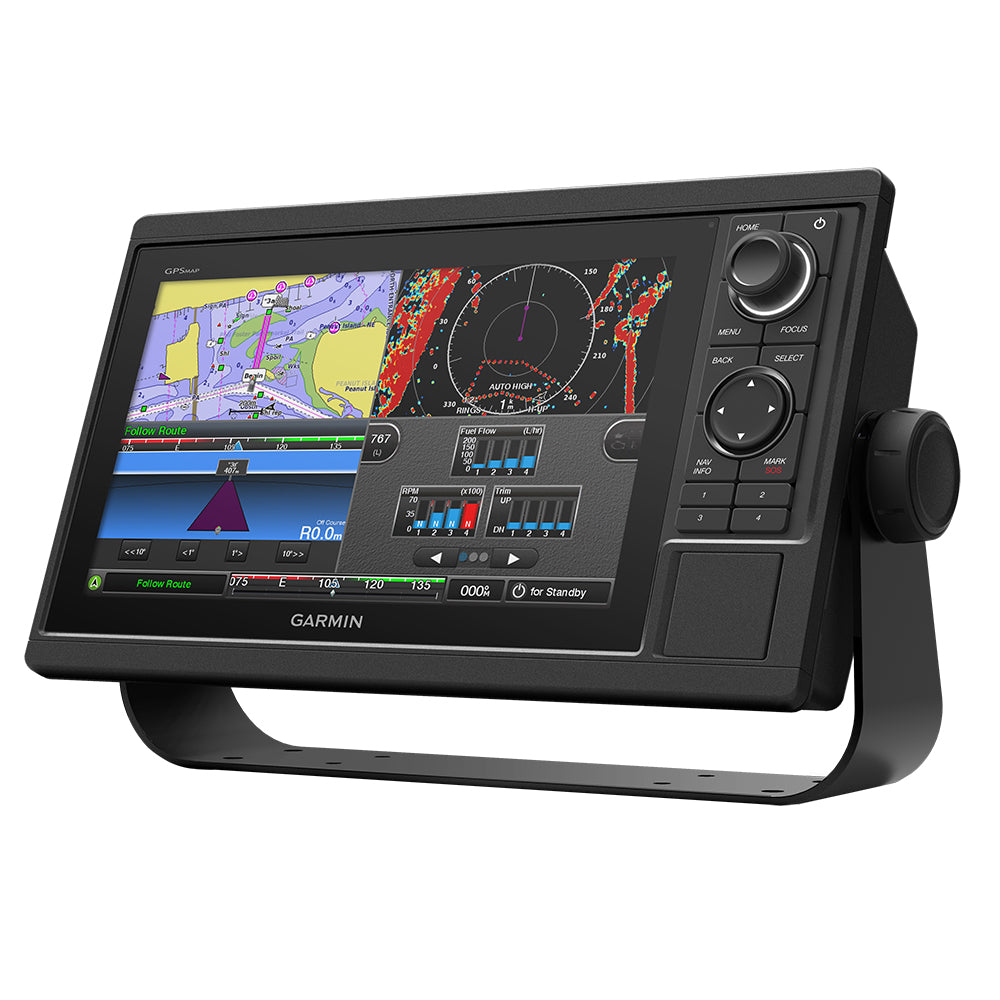

Garmin GPSMAP 1022 Keyed Networking Chartplotter - No Sonar
Garmin GPSMAP 1022 Keyed Networking Chartplotter - No Sonar — Product description
Imagine navigating open waters with confidence, whether you're cruising coastal routes, racing in regattas, or exploring remote bays. The Garmin GPSMAP 1022 delivers that reliability in a 10-inch powerhouse designed specifically for serious mariners who demand precision without sonar clutter. Its keyed interface stands out in rough conditions, offering tactile control that's faster than touchscreens alone, making it a favorite among sailors who prioritize speed and accuracy during high-stakes maneuvers.
Crystal-Clear Visibility and Intuitive Controls
The vibrant WSVGA display measures 8.8" x 4.9" with 1024 x 600 resolution, ensuring sharp details even under direct sunlight. Paired with a multifunction knob and programmable keys, it lets you customize shortcuts for frequently used functions like waypoint marking or chart zooming. This setup reduces glove-friendly fumbling, keeping your focus on the horizon rather than the screen.
Full Networking Power for Shared Intelligence
Connect effortlessly across your vessel with dual Garmin Marine Network ports, one NMEA 2000, and NMEA 0183 I/O. Share critical data—radar overlays, user waypoints, IP camera feeds, or sensor inputs from AIS, VHF, and weather stations—across multiple units. It's like giving your boat a central nervous system, where every device communicates in real-time for safer, smarter voyages.
ActiveCaptain: Your On-Water Command Center
Built-in Wi-Fi unlocks the ActiveCaptain app, turning your smartphone into an extension of the chartplotter. Sync routes planned ashore, access Quickdraw Contours from fellow boaters, receive smart notifications, and update firmware seamlessly. Mariners rave about how it simplifies pre-trip planning, like scouting unfamiliar lakes or downloading community-verified charts, all without docking.
Ultra-Smooth 10 Hz GPS Tracking
Refresh your position and heading 10 times per second for fluid on-screen movement that mirrors your boat's motion. Store up to 5,000 waypoints, 100 routes, and 50,000 track points. This high-sensitivity internal receiver with GLONASS support excels in challenging environments, like congested harbors or tree-lined rivers, ensuring you drop pins exactly where needed and retrace paths effortlessly.
Premium Mapping Flexibility
Dual SD card slots let you load expansive charts like BlueChart g3 Vision or LakeVü g3 Ultra. Unlock Auto Guidance for suggested safe paths, high-res bathymetric shading for spotting underwater hazards, and satellite imagery for landmark recognition. These aren't just maps—they're strategic tools that adapt to your cruising style, from shallow drafts to deep-sea passages.
SailAssist: Edge for Racing Enthusiasts
Gain a competitive advantage with dedicated sailing tools: virtual starting lines, synchronized race timers across networked devices, laylines, wind roses, set/drift calculations, and true/apparent wind displays. It's engineered for tacticians who live for the start sequence, helping optimize sail trim and course adjustments in variable winds.
Versatile Compatibility and Transfers
Import GPX files from other GPS brands or Garmin handhelds for seamless transitions. Supports radar, black-box sonar (add later if needed), FUSION-Link audio, GRID remotes, and more. Video input via BNC lets you monitor engine cams or aft views, rounding out a fully integrated helm setup.
Rugged Design Built to Last
IPX7 waterproofing shrugs off sprays and splashes, while compact dimensions (12.5" x 7.3" x 2.7") and 4.1 lb weight fit tight consoles. Bail or flush mounting options, plus protective covers, ensure it thrives in saltwater environments year after year.
Key Specifications at a Glance
| Feature | Details |
|---|---|
| Display Resolution | 1024 x 600 pixels (WSVGA) |
| GPS Refresh Rate | 10 Hz (GPS/GLONASS) |
| Network Ports | 2 Garmin Marine, 1 NMEA 2000 |
| Memory Cards | 2 SD cards |
| Waypoints/Routes | 5,000 / 100 |
| Waterproof Rating | IPX7 |
Included Essentials
- GPSMAP 1022 chartplotter unit
- Power/data cable
- NMEA 2000 T-connector and 2m drop cable
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover and trim snap covers
- Documentation
Frequently Asked Questions
Is the Garmin GPSMAP 1022 suitable for saltwater sailing?
Yes, its IPX7 waterproof rating protects against immersion, making it ideal for harsh marine environments like offshore sailing.
Can I add sonar to this no-sonar model later?
Absolutely—network with external black-box sonar modules like GSD or GCV for CHIRP, ClearVü, and SideVü capabilities.
How does the 10 Hz GPS improve navigation?
It updates position 10 times per second for smoother tracking, perfect for high-speed boating or precise waypoint navigation.
What sailing-specific features does it offer?
SailAssist includes laylines, race timers, wind data, and virtual start lines to optimize performance in competitions.
Does it work with third-party devices?
Yes, via NMEA 2000/0183 for autopilots, AIS, VHF, and GPX imports from other GPS brands.
Is mounting flexible for different boats?
Choose bail or flush mounting; compact size fits consoles on sailboats, cruisers, and racers.
How do I access updated charts?
Use dual SD slots for BlueChart g3 Vision or LakeVü maps, plus ActiveCaptain for community contours and purchases.
Equip your vessel with the GPSMAP 1022 and elevate every outing—from leisurely cruises to intense races—with navigation that's as dependable as the sea itself.
GPSMAP 1022 Keyed Networking Chartplotter - No Sonar
10-inch Chartplotter Is All-in-1 Solution
- 10-inch color display with keypad interface and multifunction control knob
- High-sensitivity internal 10 Hz GPS and GLONASS receiver
- Fully network capable for Garmin Marine Network and NMEA 2000 plus NMEA 0183 support
- Supports optional BlueChart g2 Vision HD charts for Auto Guidance and other premium navigation features
GPSMAP 1022 is designed for cruisers, sailors and sailing racers who need the advanced all-in-1 solution provided by our 10-inch keyed chartplotter. Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.
Complete Network Sharing
Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.
The Ultimate Connected Boating App
Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you'll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.
Heading, Position Refreshed 10 Times per Second
Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints and finding your way back to them quick and easy.
Upgrade to Our Best Maps on the Water
Two SD card slots provide expandable memory for accessory map purchases, such as LakeV HD, LakeV HD Ultra, BlueChart g2 HD or BlueChart g2 Vision HD, which adds Garmin patented Auto Guidance and other great features.
Built-in SailAssist Features
To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.
GPX Waypoints Transfer
If you have waypoints, tracks or frequently used routes stored on another manufacturer's GPS product or on a Garmin handheld device it's easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.
In The Box
- GPSMAP 1022 chartplotter
- Power/data cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 m)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
Connections
- Garmin Marine Network Ports: 2
- NMEA 2000 Port: 1
- NMEA 0183 Input Ports: 1
- NMEA 0183 Output Ports: 1
- Video Input Ports: 1 BNC
- Video Output Ports: None
- Wireless Connectivity: Yes
Auto Guidance is for planning purposes only and does not replace safe navigation operations.
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
Garmin GPSMAP® 1022 10-inch Chartplotter Is All-in-1 Solution
Model: 010-01740-00UPC: 753759168308
- 10-inch color display with keypad interface and multifunction control knob
- High-sensitivity internal 10 Hz GPS and GLONASS receiver
- Fully network capable for Garmin Marine Network and NMEA 2000® plus NMEA 0183 support
- Supports optional BlueChart® g3 Vision® premium charts
GPSMAP 1022 is designed for cruisers, sailors and sailing racers who need the advanced all-in-1 solution provided by our 10-inch keyed chartplotter. Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.
Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix™ sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.
Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain™ app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.
Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.
Upgrade to optional premium BlueChart g3 Vision charts and LakeVü g3 Ultra maps. These add features such as high-resolution relief shading of bottom structure — which provides more 3-D relief than contours alone — satellite imagery and more.
To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.
If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.
Specifications| Performance and Physical | |
| Dimensions | 12.5" x 7.3" x 2.7" (318 x 185 x 69 cm) |
| Display size | 8.8" x 4.9" (224 x 125 cm) |
| Display resolution | 1024 x 600 |
| Display type | WSVGA display |
| Weight | 4.1lbs |
| Water rating | IPX7 |
| Power consumption | Max power usage at 10 Vdc: 32.4 W |
| Antenna | Internal or external over NMEA 2000 |
| Mounting options | Bail or flush |
| Receiver | 10 Hz high-sensitivity |
| Garmin Marine Network™ ports | 2 |
| Preloaded maps | None |
| Accepts data cards | 2 SD™ cards |
| Waypoints | 5,000 |
| Routes | 100 |
| Track log | 50,000 points; 50 saved tracks |
| Tide tables | Yes |
| Garmin Radar compatible | Yes |
| Garmin Sonar compatible | Yes (with external black box, sold separately) |
| Garmin SmartMode compatible (customizable monitor presets) | Yes |
| Supports AIS (tracks target ships position) | Yes |
| Supports DSC (displays position data from DSC-capable VHF radio) | Yes |
| Garmin Meteor™ Audio System compatible | Yes |
| Supports FUSION-Link™ compatible radios | Yes |
| GSD™ Black Box sonar support | Yes |
| GCV™ Black Box sonar support | Yes |
| ActiveCaptain compatible | Yes |
| Garmin Helm compatible | Yes |
| GRID™ (Garmin Remote Input Device) compatible | Yes |
| Wireless remote compatible | Yes |
| CHIRP sonar technology | Yes (with external black box, sold separately) |
| ClearVü | Yes (with external black box, sold separately) |
| SideVü | Yes (with external black box, sold separately) |
| NMEA 2000® compatible | Yes |
| NMEA 0183 input ports | 1 |
| NMEA 0183 output ports | 1 |
| Video input ports | 1 BNC |
| Video output ports | None |
| Wireless connectivity | Yes |
What's in the Box:
- GPSMAP 1022 chartplotter
- Power/data cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 m)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
GARMIN Gpsmap 1022 is brand new. GARMIN Gpsmap 1022 GPSMAP 1022 is specially designed for cruisers, sailors and sailors who need the advanced all-in-one solution provided by our 10-inch lock chartplotter. It has a large and bright screen, as well as a fast and easy-to-use keyboard interface, user-programmable keys and multi-function control knobs.
SKU: NVN-63438
MPN: 010-01740-00
UPC: 753759168308
Technical specifications
| Brand | Garmin |
| Model | Garmin GPSMAP 1022 Keyed Networking Chartplotter - No Sonar |
| SKU / MFR# | 63438 |
