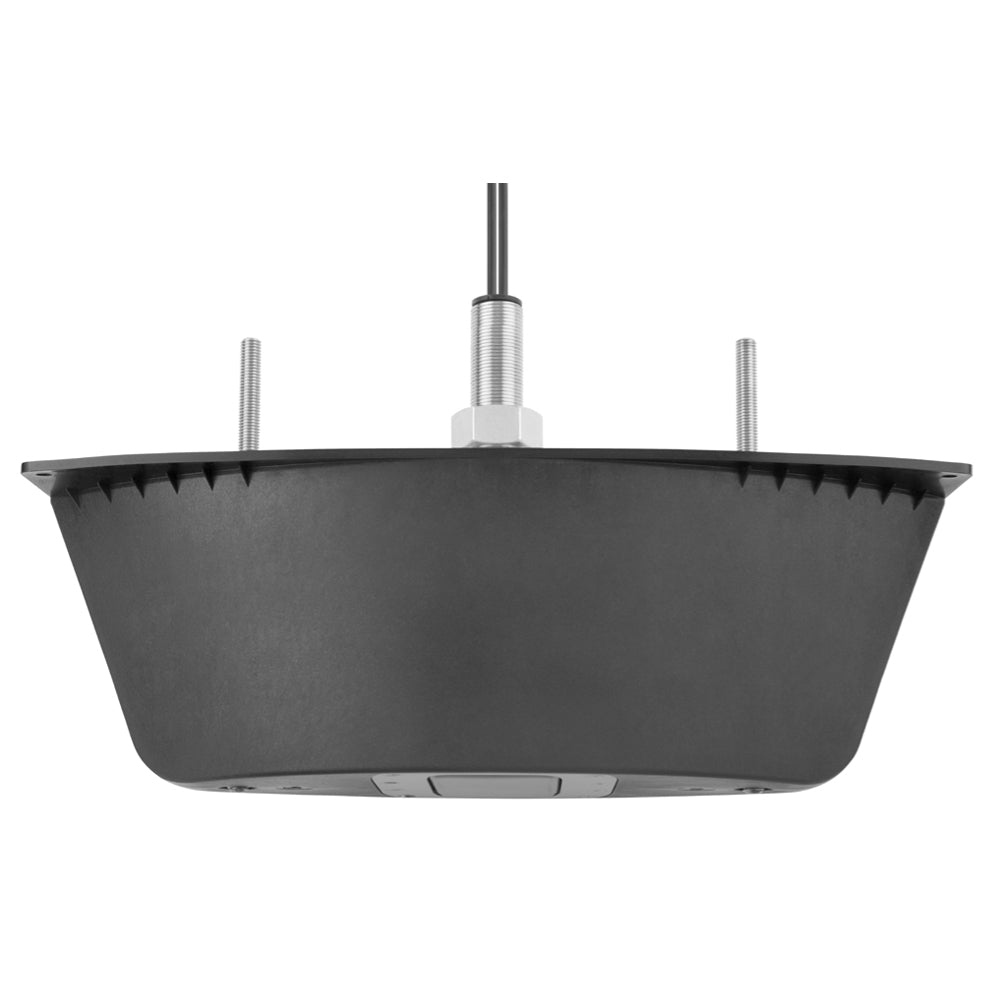

Garmin Panoptix PS60 Thru-Hull Down Transducer
Garmin Panoptix PS60 Thru-Hull Down Transducer — Product description
Revolutionize Your Fishing with Real-Time Sonar Insights
Imagine spotting schools of baitfish darting around larger game fish right beneath your hull, all in stunning real-time clarity. The Garmin Panoptix PS60 thru-hull transducer brings this vision to life for serious anglers on bigger vessels. Designed for thru-hull mounting, it delivers the same cutting-edge Panoptix technology as its transom-mount sibling but tailored for coastal cruisers and offshore warriors. No more guessing where fish are headed—watch their every move unfold live on your chartplotter.
This transducer stands out by combining forward-scanning prowess with downward precision, helping you adjust your strategy on the fly. Whether you're drifting over structure or trolling at speed, it paints a dynamic picture of the underwater world that traditional sonar simply can't match.
Key Sonar Views That Change the Game
The PS60 excels with three powerful sonar modes, each unlocking new levels of fish-finding intelligence:
- LiveVü Down: Get live, moving sonar images directly below your boat. Track baitfish and trophy targets in real time, noting their exact position left or right and depth for precise lure placement.
- RealVü 3-D Down: Capture a sweeping 3-D scan from front to back and side to side. Even when your boat is stationary, reveal bottom contours, submerged structures, and fish in a crystal-clear, multidimensional view.
- RealVü 3-D Historical: Dive into a rich archive of sonar history. Analyze fish positions across the entire water column—from surface to bottom—in immersive 3-D, perfect for identifying patterns and hot spots.
These views operate at 417 kHz, pushing coverage up to 300 feet, making it a powerhouse for deeper waters without sacrificing detail.
Built for Demanding Marine Environments
Crafted with a robust stainless steel stem and included fairing block, the PS60 installs seamlessly through the hull on boats with deadrise angles from 0 to 25 degrees. This setup minimizes drag and ensures optimal beam projection, even in rough seas. Its rugged design handles operating temperatures from 0°C to 40°C, with power draw under 0.8A at 12V for efficient all-day use.
Dimensions measure approximately 19.5" x 8.8" x 10.9", fitting most larger hulls without issue. The integrated 30-foot network cable and 15-foot power cable simplify wiring to your Garmin network.
Seamless Integration with Garmin Chartplotters
Pair the PS60 with compatible Garmin units like the GPSMAP 7400/7600, 8000/8500, or select 721/741/820/840/1020/1040 series for instant access to these advanced views. It plugs into your Garmin Marine Network via RJ45, overlaying sonar data effortlessly on your multifunction displays. Anglers love how it enhances CHIRP and ClearVü setups, creating a complete sonar ecosystem.
Technical Specifications at a Glance
| Specification | Details |
|---|---|
| Frequency Supported | 417 kHz |
| Maximum Range | 300 feet |
| Input Voltage | 10-35 VDC |
| Input Draw | <0.8A @ 12V |
| Operating Temperature | 0°C to 40°C |
| Dimensions | 19.5" x 8.8" x 10.9" |
What's Included for Easy Setup
- PS60 thru-hull down transducer with integrated 30 ft network cable and 15 ft power cable
- Fairing block for streamlined installation
- Stainless steel thru-hull mounting hardware
- Split ring RJ45 connector
- Comprehensive documentation
Everything you need arrives ready to mount, with hardware designed for durability in saltwater conditions.
Pro Tips for Maximizing Your PS60 Performance
For best results, position the transducer forward in the hull to avoid propeller interference. Calibrate during calm conditions, and experiment with historical views to map recurring fish-holding zones. Pair it with Garmin's Quickdraw Contours for custom maps that evolve with your outings. Offshore anglers report landing more billfish by anticipating baitfish movements hours before strikes.
Frequently Asked Questions
What makes the Garmin Panoptix PS60 different from traditional transducers?
Unlike conventional sonar that shows static images, the PS60 provides live, real-time video-like views of fish and structure below your boat, plus 3-D historical data for deeper analysis.
Is the PS60 suitable for my boat's hull design?
Yes, its stainless steel stem and fairing block support thru-hull installation on boats with deadrise angles between 0 and 25 degrees, ideal for larger coastal and offshore vessels.
How far can the PS60 detect fish and structure?
It offers a maximum range of 300 feet at 417 kHz, providing detailed coverage for both shallow baitfish schools and deeper targets.
What Garmin chartplotters work with the PS60?
It's fully compatible with GPSMAP 7400/7600 series, 8000/8500 series, and select models like 721/741/820/840/1020/1040 series via the Garmin Marine Network.
Can I use LiveVü Down while the boat is moving?
Absolutely—LiveVü Down delivers real-time moving sonar images below the boat even at trolling speeds, helping you track fish destinations dynamically.
What's the power requirement for the PS60?
It operates on 10-35 VDC with a low draw of under 0.8A at 12V, making it efficient for extended fishing trips without draining batteries.
Does the PS60 include mounting hardware?
Yes, the kit comes complete with a fairing block, stainless steel thru-hull hardware, cables, and documentation for straightforward installation.
Panoptix PS60 Thru-Hull Down Transducer
Panoptix is the most unique and innovative sonar on the water. The PS60 offers the same features as the PS30 transom mount version, but in a thru-hull installation. This configuration is ideal for coastal and offshore fishermen with larger boats. Panoptix PS60 transducer allows you to see fish and bait swimming under your boat - in real time. To truly appreciate Panoptix, you have to see it for yourself.
Features:
- LiveV Down - Provides real-time moving sonar images below the boat; see small baitfish and large target fish swimming around and pinpoint their destination left of right and their depth
- RealV 3-D Down - Scans the area below the boat from front to back and side to side, providing a full 3-D view showing bottom contour changes, fish and structure, even while stationary
- RealV Historical - Provides a wealth of historical sonar data - used for finding fish located throughout the entire water column in 3-D, from bottom to surface
- Mounting Option - Stainless steel stem, fairing block and mounting hardware allow for thru-hull installation on a boat with a deadrise between 0 and 25 degrees
Includes:
- Panoptix PS60 Thru-Hull Down Transducer
- Stainless Steel Thru-Hull Mount
- Fairing Block
- Split Ring RJ45 Connector and Documentation
- Integrated 30 ft network cable, 15 ft power cable
Compatible Devices:
- GPSMAP 7400/7600 Series
- GPSMAP 8000/8500 Series
- GPSMAP 721/741/820/840/1020/1040 Series Chartplotters
Garmin Panoptix PS60 Thru-hull Down transducer
Model: 010-01406-00UPC: 753759129286
- LIVEV DOWN - Provides real-time moving sonar images below the boat; see small baitfish and large target fish swimming around and pinpoint their distance left or right and their depth
- REALV 3-D DOWN - Scans the area below the boat from front to back and side to side, providing a full 3-D view showing bottom contour changes, fish and structure, even while stationary
- REALV 3-D HISTORICAL - Provides a wealth of historical sonar data - used for finding fish located throughout the entire water column in 3-D, from bottom to surface
- MOUNTING OPTION - Stainless steel stem, fairing block and mounting hardware allow for thru-hull installation on a boat with a deadrise between 0 and 25 degrees
Panoptix is the most unique and innovative sonar on the water. The newest member of the Panoptix family, PS60 Thru-hull Down Transducer, offers the same features as the PS30 transom mount version, but in a thru-hull installation. This configuration is ideal for coastal or offshore fishermen with larger boats. Panoptix PS60 transducer allows you to see fish and bait swimming under your boat — in real time. To truly appreciate Panoptix, you have to see it for yourself. Panoptix is compatible with Garmin GPSMAP® 7400/7600 series, GPSMAP 8000/8500 series and GPSMAP 721/741/820/840/1020/1040 series chartplotters.
Specifications| Temperature range | Operating: 0 C to 40 C Non-operating: -40 C to 70 C |
| Requencies supported | 417 kHz |
| Maximum range | 300 feet |
| Input Voltage | 10-35vDc |
| Input Draw | <0.8A @ 12 V |
| Dimensions | 19.5" x 8.8" x 10.9" |
What's in the Box:
- PS60 thru-hull down transducer (integrated 30 foot network cable, 15 foot power cable)
- Faring block
- Stainless steel thru-hull mounting hardware
- Split ring RJ45 connector
- Documentation
SKU: NVN-58316
MPN: 010-01406-00
UPC: 753759129286
Technical specifications
| Brand | Garmin |
| Model | Garmin Panoptix PS60 Thru-Hull Down Transducer |
| SKU / MFR# | 58316 |
