Garmin Panoptix PS31 Forward Transducer
Garmin Panoptix PS31 Forward Transducer — Product description
Unlock Real-Time Fishing Insights with Forward-Facing Sonar
Imagine gliding across the water, pinpointing fish schools, underwater structures, and even your lure's path before you even cast. The Panoptix PS31 forward transducer transforms your boating experience by delivering live sonar views ahead of your vessel. Whether you're trolling slowly or holding position, this innovative tool reveals what's lurking in front—from baitfish darting around to trophy gamefish closing in. Anglers rave about how it shifts fishing from guesswork to precision, boosting success on lakes, rivers, or coastal waters.
Unlike traditional down-facing sonar that only shows what's directly below, forward-facing technology scans up to 300 feet out. This gives you a strategic edge, letting you position baits perfectly or avoid dead zones packed with snags. It's especially game-changing for vertical jigging, casting to structure, or tracking suspended fish during key seasonal patterns like prespawn staging.

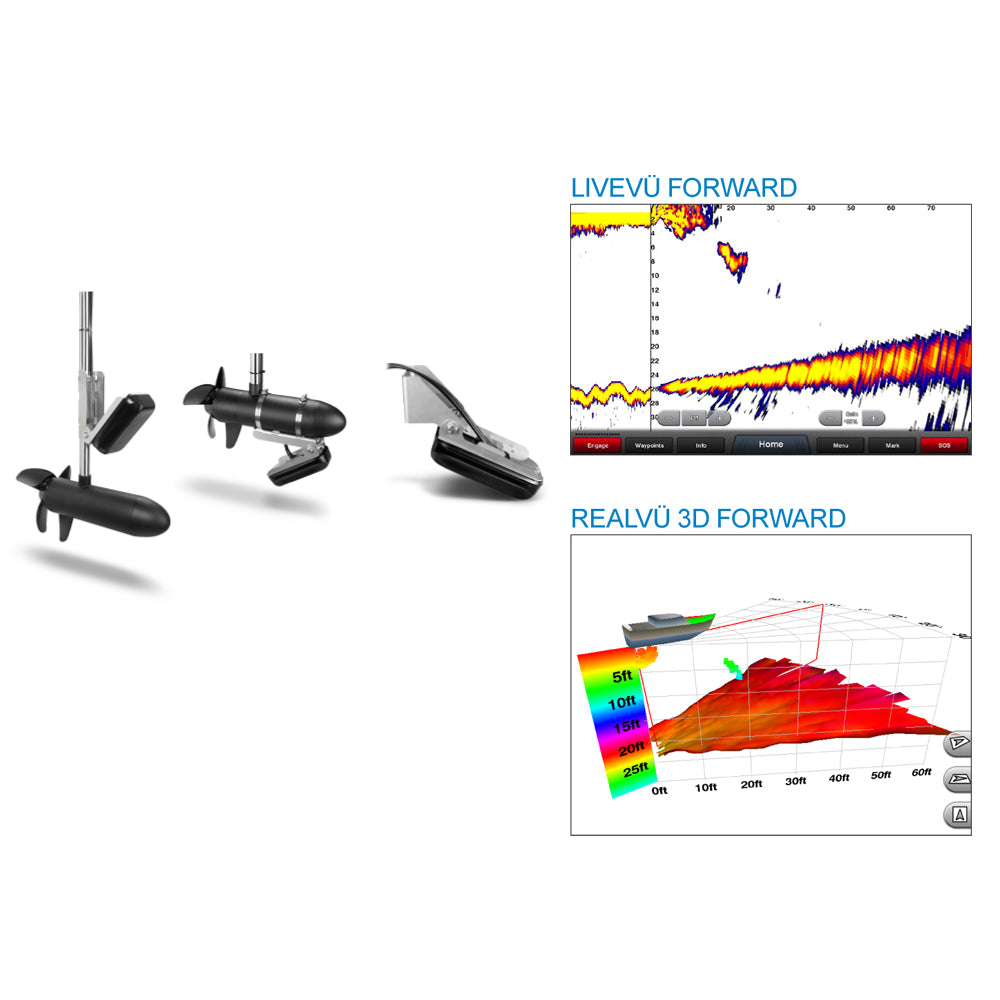

LiveVü Forward: Video-Like Action in Real Time
Experience sonar that feels like peering through a live underwater camera. LiveVü Forward refreshes the full image with every ping, capturing fluid motion. Watch small forage fish school up, predators ambushing from the sides, or your jig fluttering enticingly as you retrieve it. This mode excels at showing relative motion—fish charging toward your boat or fleeing your approach—helping you time strikes with confidence.
Fishermen often describe it as addictive; you can't look away from the dynamic display. It's perfect for high-action scenarios like chasing active walleye or bass in shallow bays, where split-second decisions separate keepers from releases.
RealVü 3-D Forward: Sweeping Depth and Detail
For a more volumetric perspective, RealVü 3-D Forward builds a sweeping 3D model slice by slice. Each ping adds to the picture, refreshing the full view every 1-4 seconds. You'll see fish suspended at various depths, bottom contours rising toward you, and structure like drop-offs or weed edges in crisp relief.
This view shines when prospecting new water or mapping complex bottoms. The forward sweep keeps historical data minimal, focusing on incoming action so you stay oriented to approaching targets. Pair it with LiveVü for the ultimate combo: motion for reaction baiting, 3D for planning drifts.
Versatile Mounting for Any Setup
Setup is straightforward with included transom and trolling motor mounts. Position it for optimal forward coverage, keeping in mind speed guidelines to prevent drag or cavitation—stay under 20 mph out of water, or 25 mph if submerged. Secure it firmly on a sturdy hull section to handle wakes and waves. Many users tweak angles slightly for their boat's deadrise, ensuring bubble-free readings.
Pro tip: Test mounts at dockside first, adjusting for hull shape. This transducer thrives on clean water flow, so avoid turbulent spots near props or strakes.
Key Specifications at a Glance
| Feature | Details |
|---|---|
| Mounting Options | Transom or trolling motor |
| Frequency | 417 kHz |
| Maximum Range | 300 feet |
| Input Voltage | 10-35 Vdc |
| Input Draw | <0.8A @ 12 Vdc |
Complete Package for Quick Setup
- PS31 forward-looking transducer (30 ft network cable, 15 ft power cable integrated)
- Trolling motor mount
- Transom mount
- Split ring RJ45 connector
- Software update microSD card with adapter
- Documentation
Seamless Integration with Your Gear
This transducer pairs effortlessly with a range of chartplotters and fishfinders, networking via Garmin Marine Network for split-screen multitasking. Run forward views alongside traditional 2D sonar, charts, or radar without missing a beat. It's built tough for marine environments, with reliable power draw that won't strain batteries on long outings.
Frequently Asked Questions
What makes the PS31 different from standard sonar?
It provides forward-facing, real-time imaging up to 300 feet, showing live fish movement and structure ahead—impossible with downward-only traditional sonar.
How does LiveVü Forward compare to RealVü 3-D?
LiveVü updates instantly for video-like motion, ideal for reaction fishing. RealVü builds 3D slices for detailed bottom mapping, refreshing every few seconds.
Can I use this on a trolling motor?
Yes, a dedicated trolling motor mount is included, allowing easy attachment for precise forward scans while motoring slowly.
What's the speed limit for safe operation?
Mount out of water for speeds over 20 mph; if submerged, limit to 25 mph to avoid strain, spray, or rotation issues.
Does it work while the boat is stationary?
Absolutely—it's designed for real-time viewing even at anchor, perfect for spotting fish holding near structure.
How far can it detect fish?
Up to 300 feet forward, with clear separation of baitfish, gamefish, and bottom details depending on water clarity.
Elevate Your Angling Game
Forward-facing sonar like the PS31 isn't just tech—it's a revelation for serious fishers. Dial in patterns faster, target specific depths, and watch strikes unfold before they happen. Whether chasing stripers in currents or crappie over brush piles, this setup delivers the clarity to fill limits consistently.
Panoptix PS31 Forward Transducer
All-Seeing Sonar
With one Panoptix Forward Transducer, you can actually see the bottom, structure and fish swimming around in front of your boat - in real time; even while stationary. You get 2 impressive views: LiveV Forward and RealV 3-D Forward.
LiveV Forward
Updates the entire view with a single ping and has a more "live video" look, providing real-time moving sonar images. You can see fish swimming toward or away from the boat. You can see small baitfish and large target fish swimming around, even your lure as you reel it in.
RealV 3-D Forward
Updates a slice of the 3-D volume with each ping and take 1 to 4 seconds to update the entire volume. It shows the bottom and fish in the water column coming toward the boat. It sweeps forward, and the history on screen is only one sweep.
All-Seeing is Believing
Garmin is the first to bring Panoptix sonar imaging to your boat. Panoptix all-seeing sonar is unlike anything you've ever seen on the water. It gives you the ability to see all around your boat in real-time. You can see fish in the water column in 3-D. You can also see your bait cast into the water and watch it as you reel it in. You can see fish swimming in front of or below your boat. You can even see them chase your lure. But to truly appreciate Panoptix, you have to see it. Transducer transom mounting kit included*.
*The forward-facing transom transducer should be mounted in a location that is out of the water at speeds over 32 km/h (20 mph). If located below the water line, cruising speeds over 40 km/h (25mph) should be avoided. The transducer can generate strain and water spray at higher speeds and can cause the transducer element to rotate in the mount. Mount the transducer to a secure (robust) area of the boat. Consider the placement to avoid damage to boat. If you have any doubts, contact a professional marine installer.
In The Box:
- PS31 forward looking transducer (integrated 30 ft network cable, 15 ft power cable)
- Trolling motor mount
- Transom mount
- Split ring RJ45 connector
- Software update microSD card with adapter
- Documentation
Compatible Devices:
- echoMAP 70 Series
- GPSMAP 1040xs
- GPSMAP 7xx Series
- GPSMAP 7xxx Series
- GPSMAP 8xxx Series
- GPSMAP 840xs
- GPSMAP 85xx Black Box
Garmin PS31 Panaptix Forward Looking Transducer
Model: 010-01284-01UPC: 753759129279
With one Panoptix Forward transducer, you can actually see the bottom, structure and fish swimming around in front of your boat — in real time; even while stationary. You get 2 impressive views: LiveVü Forward and RealVü 3-D Forward.
LIVEVü FORWARD
Updates the entire view with a single ping and has a more "live video" look, providing real-time moving sonar images. You can see fish swimming toward or away from the boat. You can see small baitfish and large target fish swimming around, even your lure as you reel it in.
REALVü 3-D FORWARD
Updates a slice of the 3-D volume with each ping and take 1 to 4 seconds to update the entire volume. It shows the bottom and fish in the water column coming toward the boat. It sweeps forward, and the history on screen is only one sweep.
All-seeing is Believing
Garmin is the first to bring Panoptix sonar imaging to your boat. Panoptix all-seeing sonar is unlike anything you’ve ever seen on the water. It gives you the ability to see all around your boat in real-time. You can see fish in the water column in 3-D. You can also see your bait cast into the water and watch it as you reel it in. You can see fish swimming in front of or below your boat. You can even see them chase your lure. But to truly appreciate Panoptix, you have to see it. Transducer trolling motor and transom mounting kit included .
The forward-facing transom transducer should be mounted in a location that is out of the water at speeds over 32 km/h (20 mph). If located below the water line, cruising speeds over 40 km/h (25mph) should be avoided. The transducer can generate strain and water spray at higher speeds and can cause the transducer element to rotate in the mount. Mount the transducer to a secure (robust) area of the boat. Consider the placement to avoid damage to boat. If you have any doubts, contact a professional marine installer.
Specifications| Mounting options | Transom our trolling motor |
| Frequency | 417kHz |
| Maximum range | 300' |
| Input Voltage | 10-35Vdc |
| Input Draw | <0.8A @12Vdc |
What's in the Box:
- PS31 forward looking transducer (integrated 30 ft network cable, 15 ft power cable)
- Trolling motor mount
- Transom mount
- Split ring RJ45 connector
- Software update microSD card with adapter
- Documentation
Panoptix sonar is different from anything you see on the water. It enables you to view the scene of the entire ship in real time. You can see the fish in the 3-D water column. You can also see the bait falling into the water and watch as it gets involved. Fish can swim in front of or under the boat. You can even see their temptation to chase you. But to truly appreciate Panoptix, you must see it. Supplied with transducer beam mounting kit. Using a Panoptix Forward sensor, you can see the bottom, structure, and school of fish swimming in front of the ship in real time; even if it is still.
SKU: NVN-56847
MPN: 010-01284-01
UPC: 753759129279
Technical specifications
| Brand | Garmin |
| Model | Garmin Panoptix PS31 Forward Transducer |
| SKU / MFR# | 56847 |
