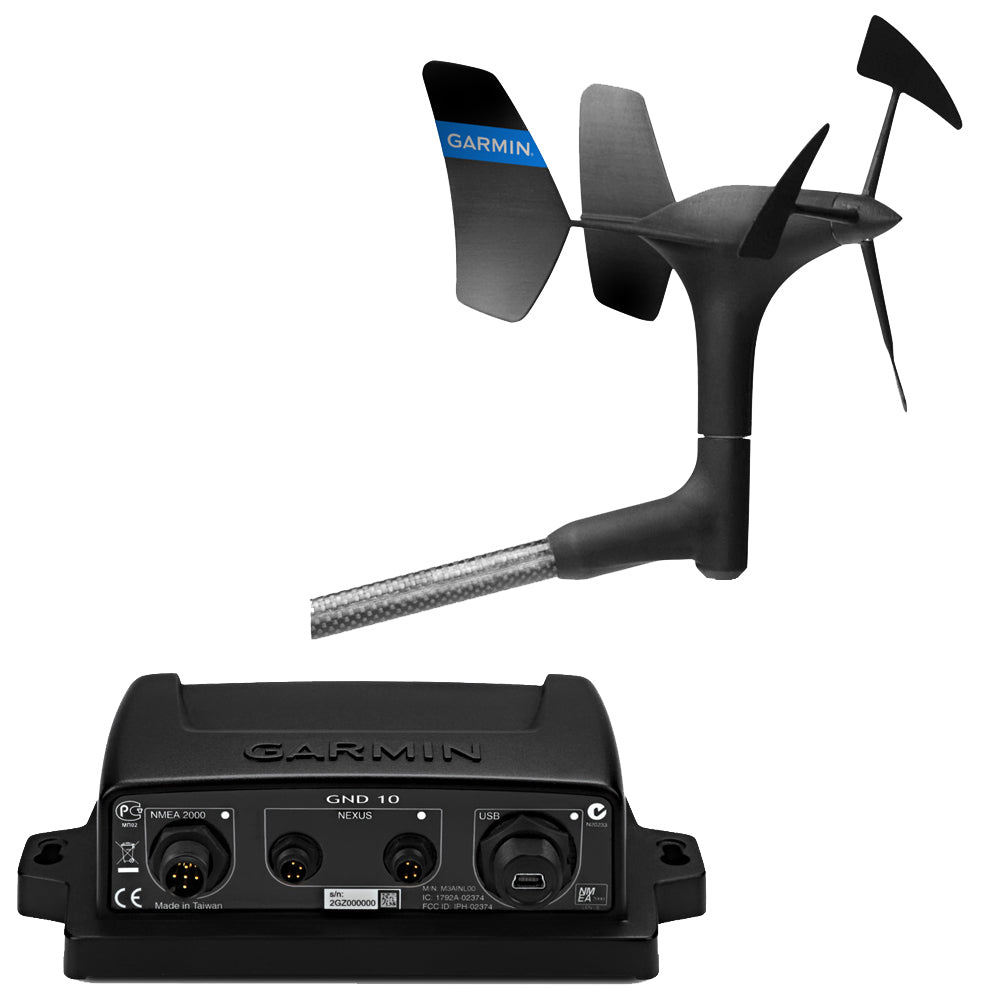

Garmin gWind Transducer w/GND 10 Black Box Bridge
Garmin gWind Transducer w/GND 10 Black Box Bridge — Product description
Upgrade your sailing experience with the Garmin gWind Transducer paired with the innovative GND 10 Black Box Bridge. This dynamic duo delivers precise wind data that serious sailors rely on, whether you're racing around buoys or cruising coastal waters. Imagine capturing every nuance of the breeze—from gentle zephyrs to gusty trades—without the guesswork that plagues traditional cup anemometers. The gWind's clever design shines in real-world conditions, helping you trim sails perfectly and outmaneuver competitors.
Revolutionary Twin-Fin and Propeller Technology
What sets this transducer apart is its three-bladed propeller paired with twin-fin stabilization. Unlike bulky cup sensors that stall in light winds, this propeller spins smoothly and efficiently across the entire wind range. The result? True Wind Speed (TWS) readings you can trust even when the air feels barely alive. The twin fins cut through yawing motions, locking in a rock-solid True Wind Angle (TWA) so your tactical decisions stay sharp.
Optical sensing takes accuracy to the next level. By reading propeller rotation via light rather than magnets, it eliminates startup delays and drift at low speeds. Sailors report linearity that's spot-on, meaning your polar diagrams translate directly to on-water performance. In club races or offshore passages, this precision can shave minutes off your elapsed time.
GND 10: The Ultimate Network Bridge for Seamless Sailing Data
The included GND 10 black box is more than a connector—it's a gateway to unified instrumentation. It effortlessly translates between NMEA 2000 and the Nexus Network, letting Garmin chartplotters converse with Nexus sensors (and the reverse). No more siloed data; wind info flows to your plotter, autopilot, and even PC tactician software like Expedition or Adrena.
Plug-and-play simplicity means you're sailing, not soldering. USB connectivity opens doors to software updates and calibration without fuss, keeping your setup future-proof. For regatta teams, this integration turns disparate gear into a cohesive race brain.
Built for the Harsh Marine Environment
Rugged doesn't begin to cover it. Submersible to IPX7 standards, it shrugs off rogue waves and tropical downpours. The 25-meter mast cable gives flexible mounting options on masts from dinghies to superyachts. Low power draw (just 0.33W) suits solar-powered setups, and its wide voltage tolerance handles flaky boat electrics.
Accuracy specs impress: better than 1.5° on angle and 3% on speed. Operating from -15°C to 70°C, it's ready for polar explorations or summer scorcher regattas.
Technical Specifications
| Specification | Details |
|---|---|
| Dimensions (WxH) | 17.7" x 11.8" (450 x 300 mm) packaged |
| Weight | 270g |
| Cable Length | 25m mast cable |
| Waterproof Rating | IPX7 |
| Temperature Range | -15°C to 70°C (5°F to 158°F) |
| Voltage Range | 9-16V |
| Power Consumption | 0.33W |
| Wind Angle Accuracy | Better than 1.5° |
| Wind Speed Accuracy | Better than 3% |
| Wireless | No |
Complete Kit Contents
- gWind transducer
- GND 10 black box bridge
- NMEA 2000 drop cable (2m)
- NMEA 2000 T-connector
- Mast cable with female connector (25m)
- Nexus network cable (5m; straight connector)
- Nexus female field-installable connector
- Mast bracket
- Mounting hardware
- Documentation
Frequently Asked Questions
What makes the gWind transducer superior in light winds?
The three-bladed propeller and optical reading provide efficient rotation and precise measurement at low speeds, outperforming traditional cup designs that struggle to start spinning.
How does the twin-fin design improve wind readings?
Twin fins stabilize the sensor against boat yaw and heel, delivering a consistent True Wind Angle even in choppy seas or during tacks.
What networks does the GND 10 bridge support?
It bridges NMEA 2000 and Nexus Network, enabling full compatibility between Garmin chartplotters and Nexus sailing instruments.
Is installation straightforward for this kit?
Yes, it's plug-and-play with included cables, T-connectors, and mast bracket—no complex wiring or configuration needed.
Can I use this with PC sailing software?
Absolutely, the USB port on the GND 10 connects to apps like Expedition, Adrena, or NexusRace for advanced data analysis and calibration.
What's the waterproof rating and durability like?
IPX7 rated for submersion up to 1 meter, with robust construction handling extreme temperatures from -15°C to 70°C.
Does it require frequent calibration?
Initial setup is simple via compatible displays or software; optical tech ensures long-term stability with minimal recalibration.
Equip your boat with wind intelligence that feels intuitive and performs flawlessly. Perfect for racers chasing podiums or cruisers seeking reliable navigation data.
gWind Transducer with GND 10 Black Box Bridge
The Garmin gWind Transducer features twin-fin technology with three-bladed propeller for more accurate True Wind Speed (TWS) in lighter air while the twin fin design gives a more stable True Wind Angle (TWA). The three-bladed propeller, unlike a cups design, is always efficient. Combined with optic reading this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity. Included GND 10 black box bridge enables the Nexus Network and compatible Garmin chartplotters to share critical NMEA 2000 data. The GND 10 enables Garmin chartplotter owners to use Nexus sail equipment and vice versa.
Features:
- Three-bladed propeller for more accurate True Wind Speed (TWS) in lighter air
- Twin-fin design gives a more stable True Wind Angle (TWA)
- Optic reading technique makes this transducer superior at low wind speeds and provides for excellent linearity
- GND 10 black box bridges NMEA 2000 data to Nexus Network and enables Garmin compatible chartplotters to work with Nexus sail equipment and vice versa
- Easy plug-and-play installation between Nexus, Garmin chartplotters, NMEA 2000 and USB networks
GND 10 Black Box Bridge
The GND 10 black box bridge seamlessly integrates Nexus instruments and sensors with the Garmin family. It converts data between the Nexus Network and NMEA 2000 to provide compatibility between Nexus and Garmin products, including gWindT, gWindT Wireless and gWindT Race transducers. Simple plug-and-play installation between Nexus and NMEA 2000, with USB connectivity, eliminates the need for user setup and system configuration.
GND 10 allows PC applications, such as NexusRace, Expedition, Adrena or SeaTrack, to communicate sailing-specific functions between Nexus and NMEA 2000 networks. It also enables GND 10 software updates over NMEA 2000. Existing NexusRace PC application can be used to update software, configure and calibrate Nexus devices over USB using the FDX protocol.
Features:
- Converts data between the Nexus network and NMEA 2000
- Provides compatibility between Nexus and Garmin products
- Simple plug-and-play installation between Nexus, NMEA 2000 and USB
- No user setup or system configuration required
- Allows PC applications, such as NexusRace, Expedition, Adrena or SeaTrack, to communicate sailing-specific functions between Nexus and NMEA 2000 networks
In The Box
- gWind transducer
- GND 10
- NMEA 2000 drop cable (2 m)
- NMEA 2000 T-connector
- Mast cable with female connector (25 m)
- Nexus female field installable connector
- Mast bracket
- Mounting hardware
- Documentation
- Three-bladed propeller for more accurate True Wind Speed (TWS) in lighter air
- Twin-fin design gives a more stable True Wind Angle (TWA)
- Optic reading technique for superior performance at low wind speeds with excellent linearity
- GND™ 10 black box bridges NMEA 2000® data to Nexus Network and enables Garmin compatible chartplotters integrate with Nexus sail equipment and vice versa
- Easy plug-and-play installation between Nexus, Garmin chartplotters, NMEA 2000 and USB
The gWind transducer features twin-fin technology with 3-bladed propeller for more accurate TWS in lighter air while the twin-fin design gives a more stable TWA. The 3-bladed propeller, unlike a cups design, is always efficient. Combined with optic reading this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity.
The included GND 10 black box bridge enables the Nexus Network and compatible Garmin chartplotters to share critical NMEA 2000 data. The GND 10 enables Garmin chartplotter owners to use Nexus sail equipment and vice versa.
- Unit Dimension, WxH: 17.7" x 11.8" (450 x 300 mm)
- Weight: 270g
- Cable Length: 25m
- Waterproof: Yes (IPX7)
- Temp Range: From 5°F to 158°F (-15°C to 70°C)
- Voltage Range: 9-16V
- Power Usage: 0.33W
- Compass Safe Distance: N/A
- Accuracy Angle: Better than 1.5°
- Speed: Better than 3%
- NMEA 2000® Load Equivalency Number (LEN): N/A
- Wireless Connectivity: No
In the box
- gWind transducer
- GND™ 10
- NMEA 2000® drop cable (2 m)
- NMEA 2000 T-connector
- Mast cable with female connector (25 m)
- Nexus network cable (5 m; straight connector)
- Nexus female field installable connector
- Mast bracket
- Mounting hardware
- Documentation
The gWind sensor has dual-fin technology and a 3-blade propeller, which can provide more accurate true wind speed (TWS) in lighter air, and the dual-fin design can provide a more stable true wind direction angle (TWA). Unlike the cup cover design, the three-blade propeller is always efficient. Combined with optical readings, the sensor provides excellent accuracy at low wind speeds and provides excellent linearity. The included GND 10 black box bridge allows the Nexus network and compatible Garmin plotters to share critical NMEA 2000 data. GND 10 allows Garmin chart plotter owners to use Nexus sail equipment and vice versa.
SKU: NVN-51102
MPN: 010-01227-00
UPC: 753759112226
Technical specifications
| Brand | Garmin |
| Model | Garmin gWind Transducer w/GND 10 Black Box Bridge |
| SKU / MFR# | 51102 |
