Garmin ECHOMAP™ UHD2 93SV LiveScope™ Plus Ice Fishing Bundle LI w/ECHOMAP™ UHD2 93sv, LiveScope Plus System & Lithium-ion Battery
Garmin ECHOMAP™ UHD2 93SV LiveScope™ Plus Ice Fishing Bundle LI w/ECHOMAP™ UHD2 93sv, LiveScope Plus System & Lithium-ion Battery — Product description
Transform Your Ice Fishing Game with Crystal-Clear Live Sonar
Imagine drilling fewer holes and spending more time reeling in fish. This bundle equips you with cutting-edge technology that reveals fish behavior in real time, right beneath the ice. The enhanced LiveScope Plus system delivers sharper images with less clutter, helping you spot schools, track jigs, and react instantly to strikes. Paired with a vibrant 9-inch touchscreen display, you'll navigate frozen waters like never before, even in the harshest conditions.
For serious ice anglers, the secret lies in its dual-mode scanning: Forward mode scouts up to 200 feet around and below, guiding your next hole. Down mode keeps your lure and fish in focus, showing every twitch and chase. Forget guesswork—see it all unfold live.
Built for the Ice: Rugged, Portable, and Powerful
Crafted for mobility on frozen lakes, this setup includes a lightweight lithium-ion battery that powers extended sessions without the bulk of traditional packs. The flexible transducer cable resists freezing, ensuring reliable performance when temperatures plummet. A sturdy swivel pole mount lets you adjust angles effortlessly, while the extra-large carrying bag shields your gear from ice, snow, and rough transport.
Standout Sonar Capabilities
- LiveScope Forward: Panoramic views up to 200 feet to locate fish clusters and prime drilling spots.
- LiveScope Down: Real-time jig tracking and fish reactions directly under your hole.
- Reduced noise and artifacts for pristine separation of targets, even in murky water.
- Compatible with CHIRP traditional sonar, ClearVü, SideVü, and Panoptix for versatile scanning.
Display and Navigation Excellence
The 9-inch IPS touchscreen with keyed assist shines in bright sunlight or gloved hands. Customize splitscreens to overlay sonar, flasher views, and detailed maps. Preloaded Garmin Navionics+ inland charts cover thousands of U.S. lakes (or Canadian options) with high-definition contours, depth shading, and points of interest. Quickdraw Contours lets you log your own hotspots on the fly.
Multi-band GPS with GLONASS, Galileo, and BeiDou ensures pinpoint accuracy, even under thick ice cover. ActiveCaptain compatibility keeps software updated and connects you to a community of anglers sharing insights.
Real Anglers, Real Results: Tips for Maximum Success
Start your day by using Forward mode to sweep for baitfish schools—fish follow the forage. Switch to Down for precise jigging, watching perch or walleye inhale your bait mid-drop. The lithium battery's 16.5Ah capacity means all-day fishing without recharges, perfect for remote spots. Pair with NMEA 2000 for expanded setups or Bluetooth for wireless control.
Pro tip: In shallow bays, combine SideVü with LiveScope to map structure invisible from the surface. Custom combos let you tailor views—flasher for depth precision, map for route planning back to the truck.
Technical Edge for Demanding Conditions
Display and Build
| Feature | Details |
|---|---|
| Screen Size | 9 inches diagonal (7.8 x 4.5 inches viewable) |
| Resolution | 1024 x 600 pixels, WVGA IPS |
| Input | Touch + Keyed Assist |
| Waterproof Rating | IPX7 |
| Bundle Dimensions | 13.8 x 12.2 x 13.0 inches |
| Weight | 22.5 lbs total |
Mapping and Memory
- 5,000 waypoints, 50,000 track points, 100 routes
- microSD slot (up to 32GB)
- Auto Guidance+ and Navionics+ Vision+ support
Power and Sonar Specs
- 9-18 VDC input, 500W RMS sonar output
- Built-in GPS receiver (10 Hz)
- NMEA 2000, Garmin Marine Network, Wi-Fi, Bluetooth
Complete Kit for Instant Deployment
Everything you need arrives ready to fish: the UHD2 chartplotter, GLS 10 sonar module, LVS34-IF ice transducer, pole mount, tilt mount, power cable, XL carrying bag, lithium battery, and charger. No assembly hassles—just unpack and punch holes.
Frequently Asked Questions
How does LiveScope Plus improve over previous models for ice fishing?
It offers enhanced clarity, better sensitivity, and superior target separation with minimized noise and artifacts, making fish and structure stand out sharper under ice.
What's the range of the Forward scanning mode?
Forward mode scans up to 200 feet all around and below the ice, ideal for scouting fish schools before drilling.
How long does the lithium battery last?
The 16.5Ah lithium-ion battery supports full days of ice fishing, significantly lighter than lead-acid alternatives for easier portability.
Can I customize the screen displays?
Yes, create custom combos blending live sonar, traditional sonar, flasher views, and Navionics+ maps on the 9-inch screen.
Is this bundle waterproof and durable for ice?
Rated IPX7, it withstands submersion, with a rugged bag and flexible cables designed for freezing temps and rough handling.
What maps are preloaded?
Garmin Navionics+ provides detailed inland charts for over 23,000 U.S. lakes or Canadian coastal/inland options, with Quickdraw for custom mapping.
Does it support connectivity with other devices?
Yes, via NMEA 2000, Garmin Marine Network, Bluetooth, ANT+, and Wi-Fi for sharing data and updates.
ECHOMAP™ UHD2 93SV LiveScope™ Plus Ice Fishing Bundle LI with ECHOMAP™ UHD2 93sv, LiveScope Plus System & Lithium-ion Battery
Get improved resolution, reduced noise, clearer images, and better target separation with the LiveScope™ Plus Ice Fishing Bundle LI. It includes a 9-inch ECHOMAP™ UHD2 combo, the complete LiveScope Plus System with LVS34-IF transducer, swivel pole mount, and a lightweight lithium battery.
Features:
- Get improved clarity, sensitivity, and Target Separation
- Scan surroundings with reduced noise and fewer sonar artifacts
- Use LiveScope™ forward mode so you know where to drill
- Use LiveScope™ down mode so you can keep an eye on your jig and the fish
- Fish longer with a 16.5AH lightweight lithium-ion battery
- Includes a rugged, portable carrying case
- LiveScope™ Forward sonar shows up to 200’ all around you and below the ice, so you can locate schools of fish and know where to drill the next hole
- LiveScope™ Down sonar shows live sonar images of what is below the ice, so you can watch fish respond to your jig
- Where you take your bundle is up to you. But the rugged, portable carrying case lets you easily transport it from hole to hole and season to season
ECHOMAP UHD2 Combo
Revolutionary real-time sonar pairs with a large 9-inch ECHOMAP UHD2 combo touchscreen display with a keyed assist, allowing you to see up to 200’ in any direction.
Two Modes One Transducer
LiveScope System offers two live-scanning sonar modes — Down and Forward. It features a transducer cable that stays flexible, even in freezing conditions
Garmin Navionics+ Maps
You get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.
Custom Combos
You can create custom pages that combine sonar, flashers, and maps on your display.
Lithium Battery
Fish even longer with a lightweight 16.5Ah lithium battery that won’t weigh you down on the ice.

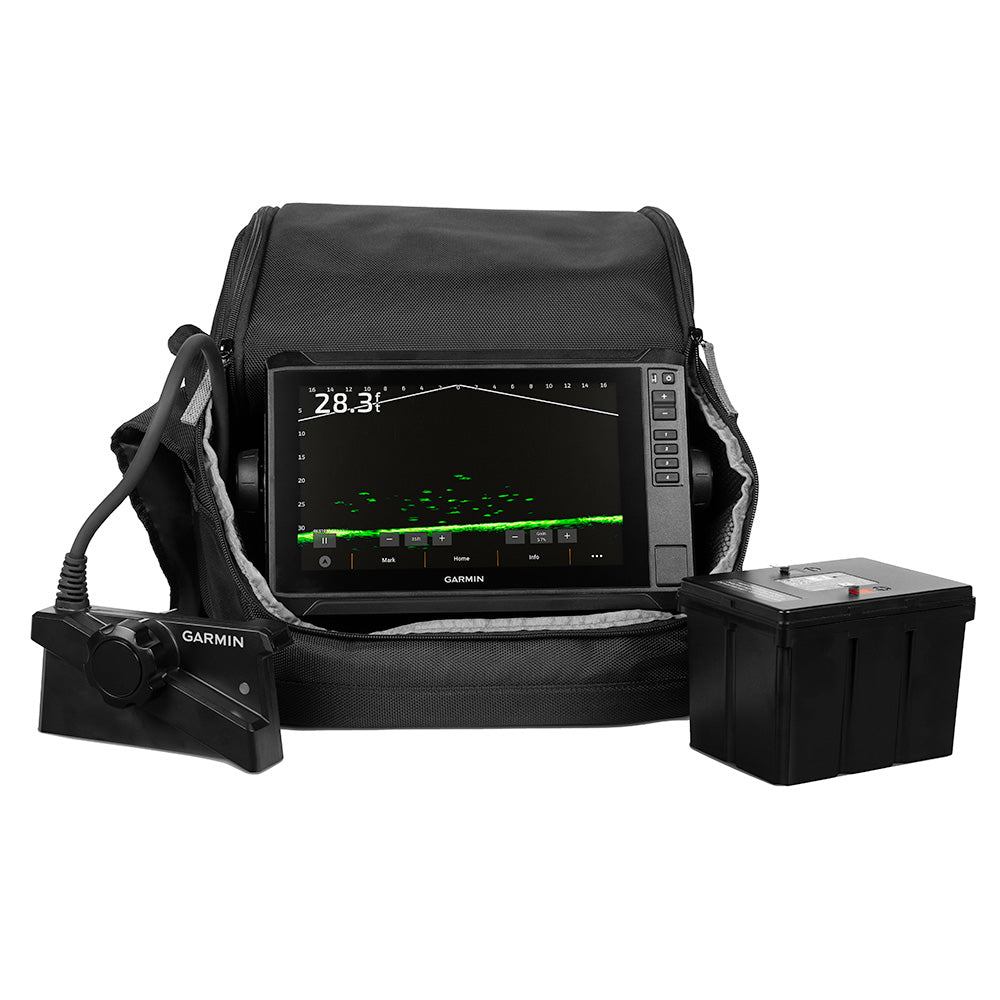

In the Box:
- ECHOMAP™ UHD2 chartplotter (version depends on mapping selected)
- LVS34-IF transducer
- GLS™ 10 sonar module
- Ice fishing pole mount
- Tilt mount
- Power cable
- Portable fishing bag with handle
- Lithium-ion battery
- Battery charger
- Documentation
General Specifications:
- Dimensions: 13.8 x 12.2 x 13.0 in. / 35 x 31 x 33 cm
- Touchscreen: Yes
- Input: Touchscreen with Keyed Assist
- Display Size: 7.8 x 4.5, 9.0" in. / 19.8 x 11.5, 22.9 cm
- Display Resolution: 1024 x 600 pixels
- Display Type: WVGA, IPS
- Weight: 22.5 lbs / 10.2 kg
- Waterproof: IPX7
Maps & Memory:
- Accepts Data Cards: 1 microSD™ card; 32 GB maximum size
- Waypoints: 5000
- Track Points: 50,000
- Tracks: 50 saved tracks
- Navigation Routes: 100
Ice Fishing Details:
- Battery Type, Size: Lithium-ion, 16.5Ah
- Bag Size: Extra Large (XL)
- Included Transducer: LiveScope™ Plus System with LVS34-IF
- Transducer Holding Feature: Pole mount
Sensors:
- Has Built-in Receiver: Yes
- Receiver: 10 Hz
- NMEA 2000 Compatible: Yes
- GPS: Yes
- Glonass: Yes
- Galileo: Yes
- Beidou: Yes
- Supports Waas: Yes
- Supports Multi-Band, Multi-Constellation GPS: Yes
Built-in Maps:
- Built-in Auto Guidance+: Yes (downloadable via ActiveCaptain app)
- Garmin Navionics+ Inland & Coastal: Yes (see Additional)
- Garmin Navionics+ (Inland): Yes (see Additional)
Optional Map Support:
- Garmin Navionics+: Yes
- Garmin Navionics+ VIision+™: Yes
- TOPO: Yes
- Standrad Mapping: Yes
- Garmin Quickdraw Contours: Yes
Chartplotter Features:
- ActiveCaptain® Compatable: Yes
Electrical Features:
- Power Input: 9 to 18 Vdc
Sonar Features & Specifications:
- Displays Sonar: Yes
- Power Output: 500 W
- Traditional Sonar (Dual Frequency/Beam): Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
- ClearVü™: Built-in 260/455/800/1000/1200 kHz
- SideVü™: Built-in 260/455/800/1000/1200 kHz
- Panoptix™ Sonar: Yes
- Livescope; Yes
Connections:
- NMEA 2000® Ports: Yes
- Garmin Marine Network Ports: 1
- 12-Pin Transducer Ports: 1
- Bluetooth® Pairing: Yes
- Ant+ (Connectivity): Yes
- Garmin Wi-Fi Network (Local Connection): Yes
Additional:
- Garmin Navionics+ Inland & Coastal: 95sv Canada
- Garmin Navionics + (Inland): 95sv U.S. Lakes
!["Warning"]("https://productimageserver.com/prop65/6pt.png")
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
SKU: NVN-99859
MPN: 010-02688-35
UPC: 753759322748
